Samsung RS2556SH/XAA-00 refrigerator

Samsung RS2556SH/XAA-00 refrigerator Parts

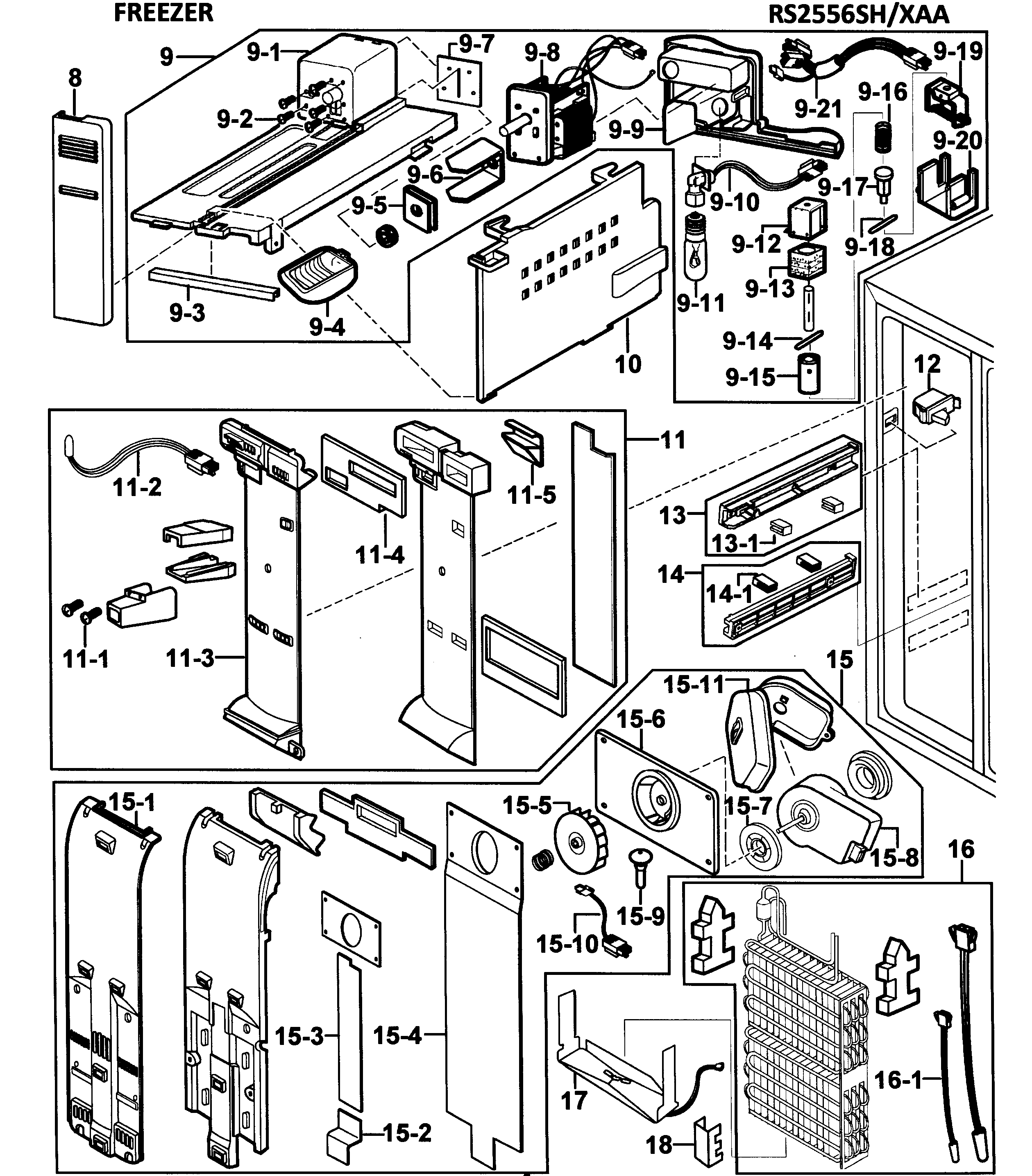

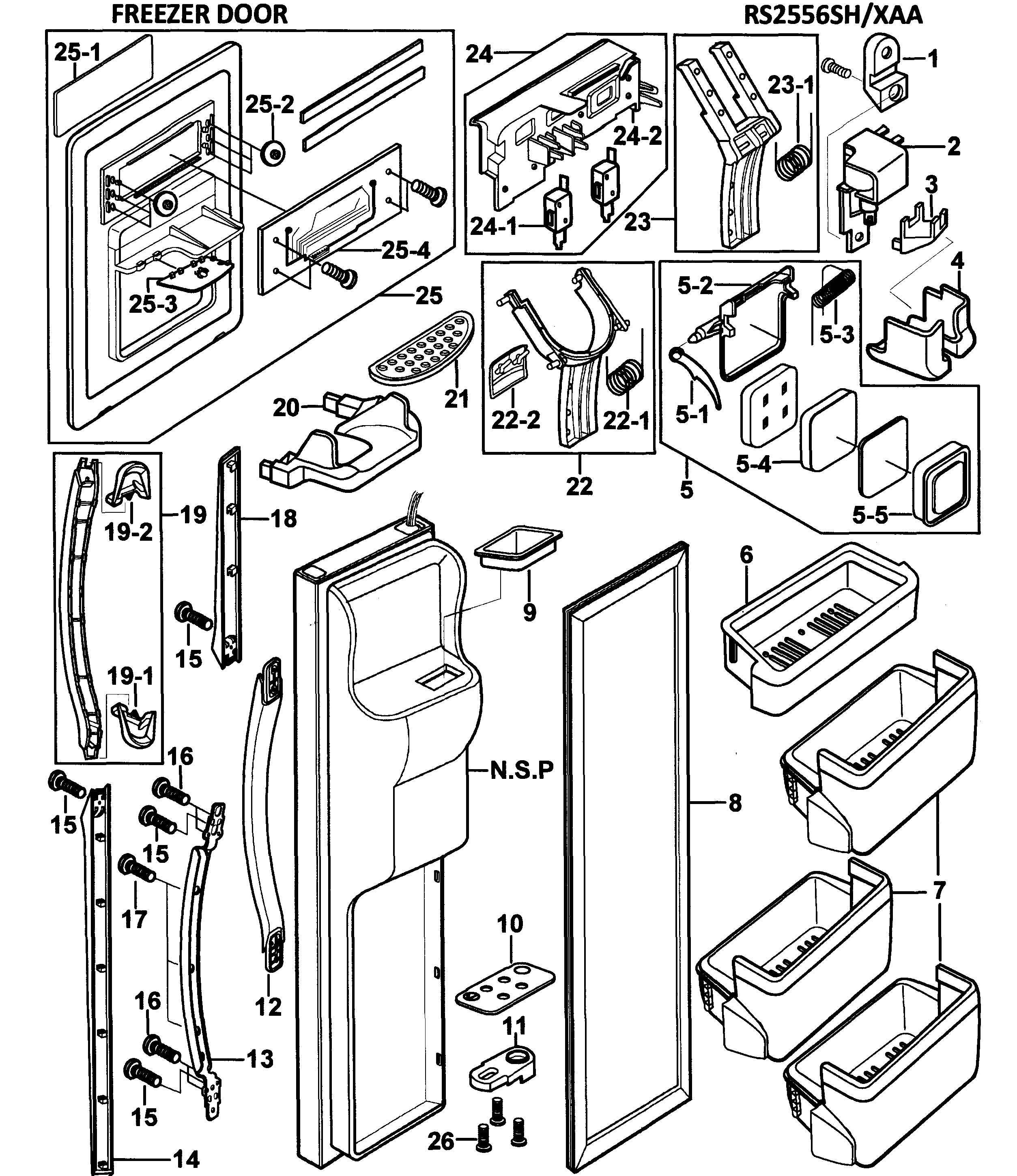

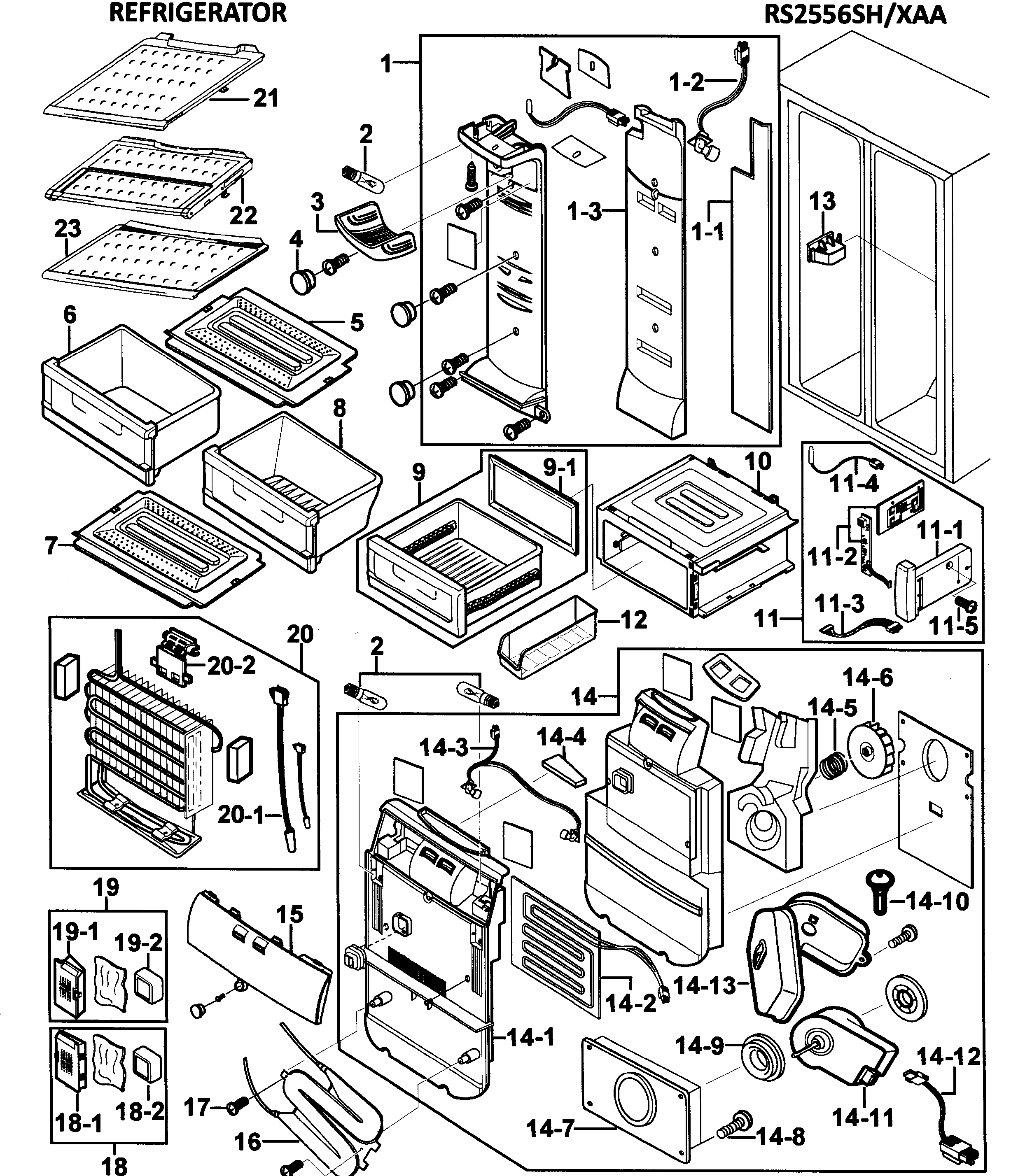

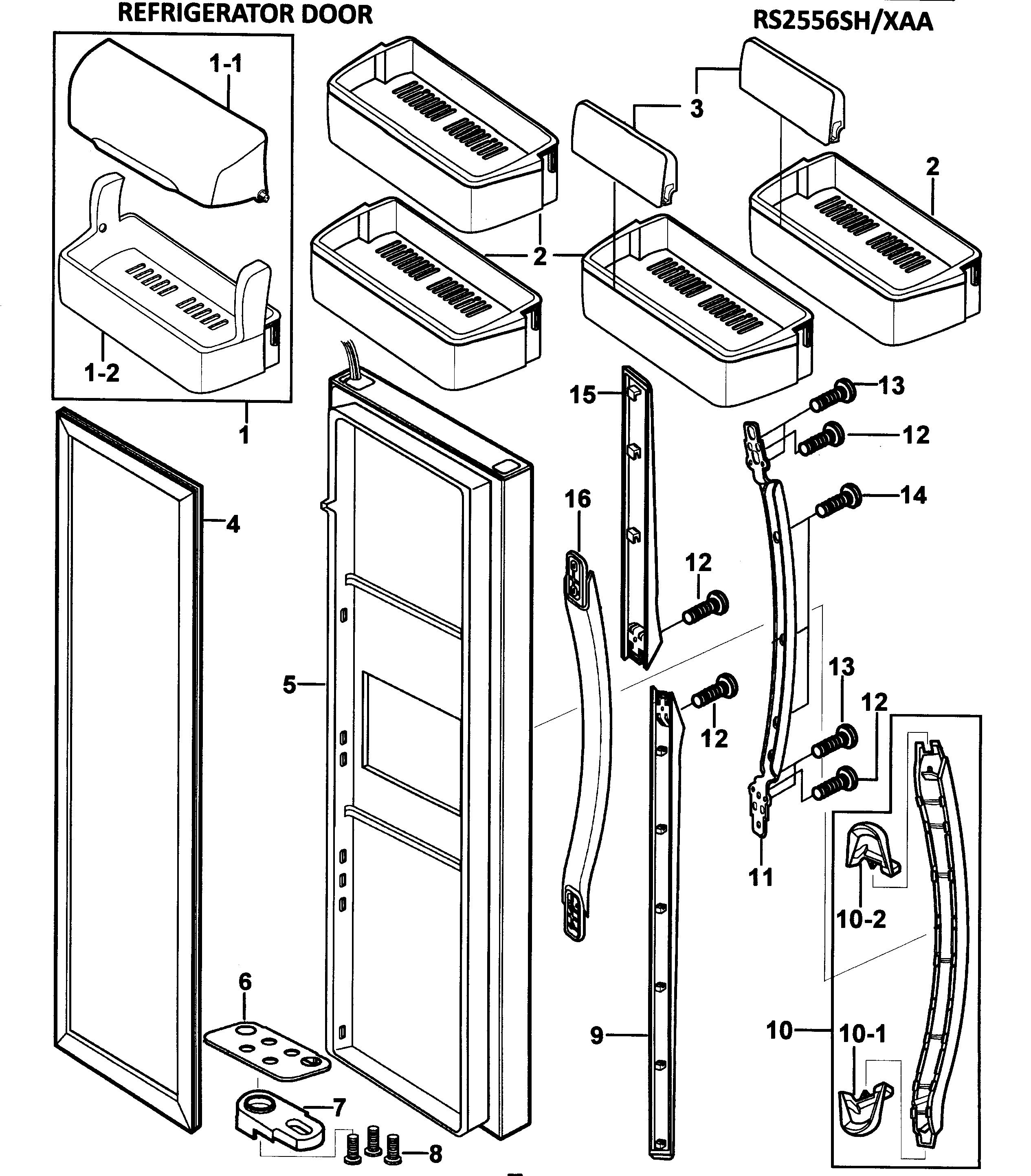

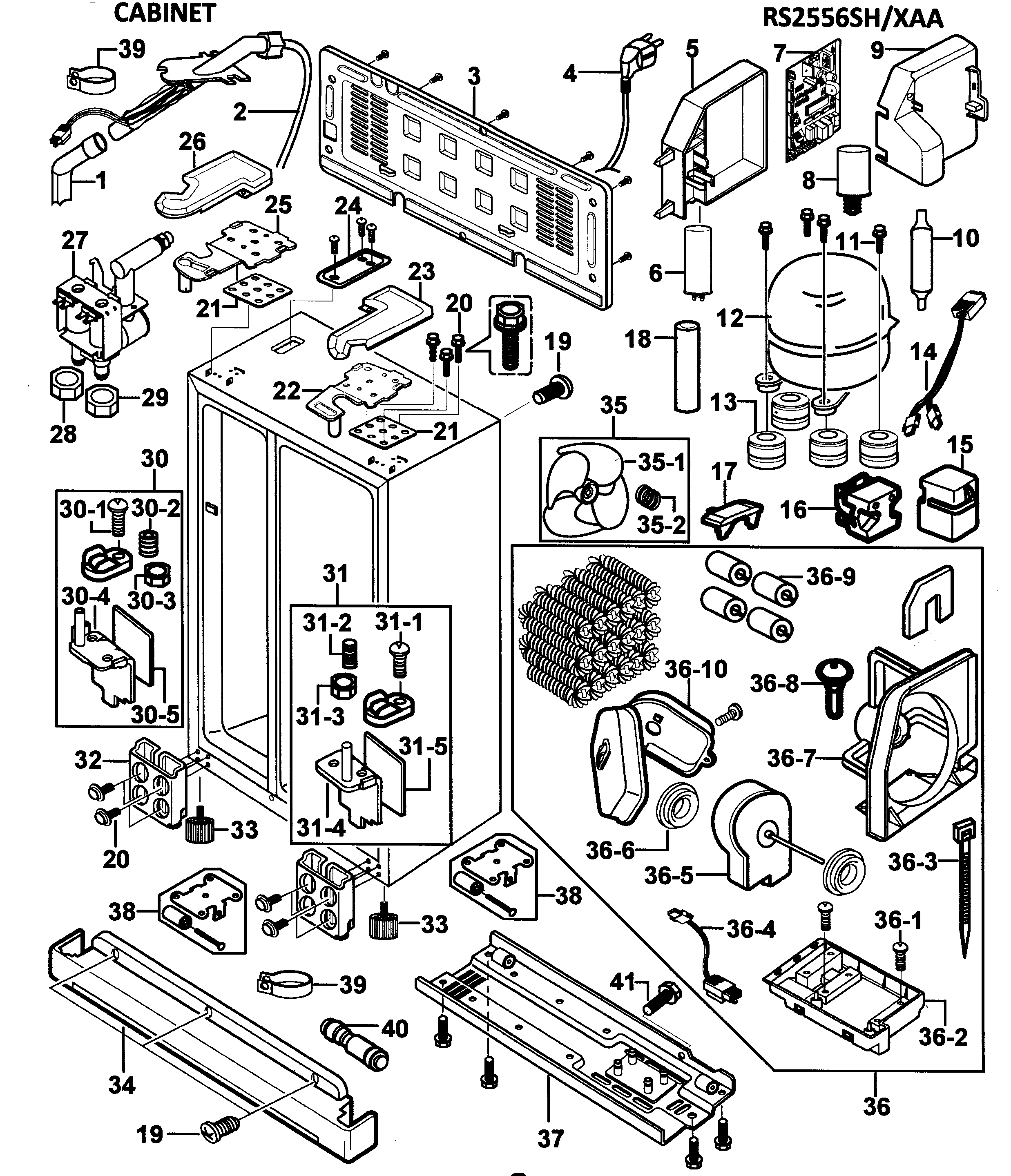

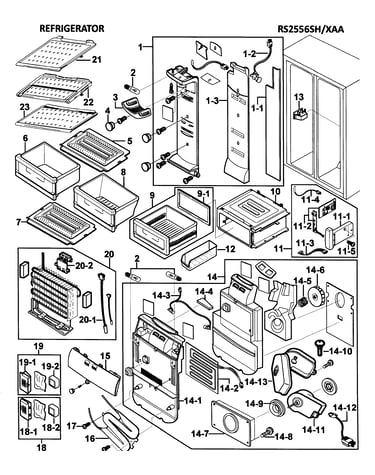

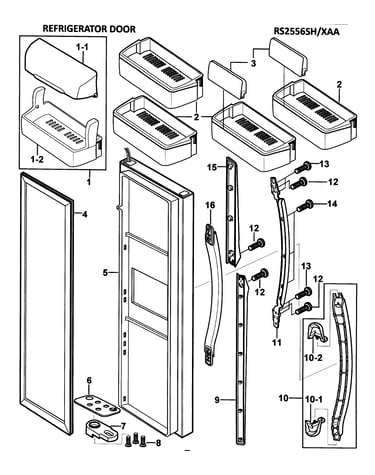

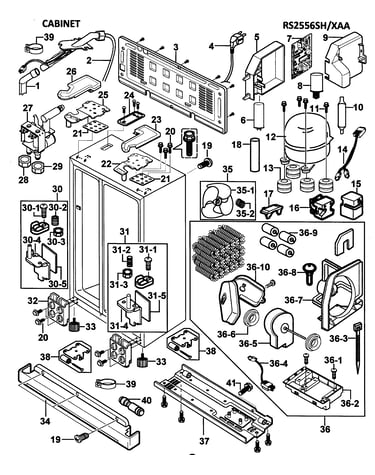

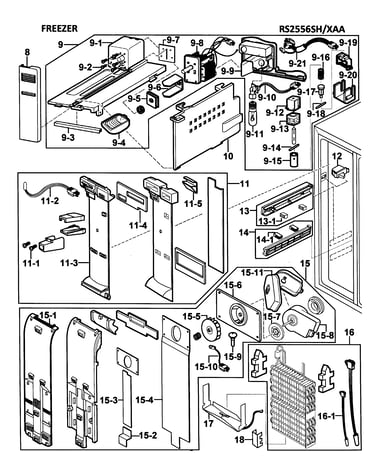

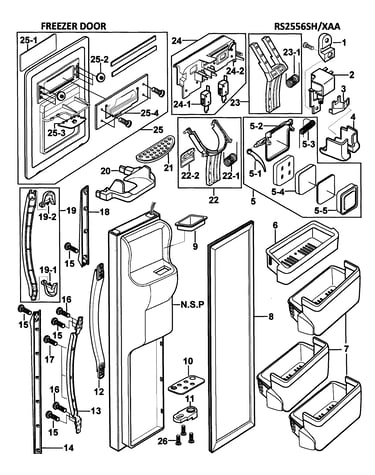

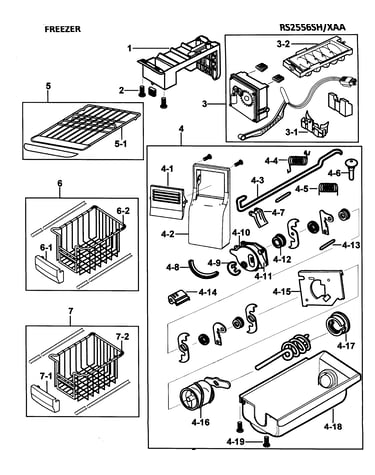

Here are the diagrams and repair parts for Samsung RS2556SH/XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RS2556SH/XAA-00 Refrigerators

Samsung Refrigerator RS2556SH/XAA-00 FAQs

A Samsung refrigerator typically lasts 10 to 15 years. For your Samsung RS2556SH side-by-side, lifespan depends most on compressor run time, door-seal condition, condenser airflow, and steady temperatures; consistent cleaning and correct settings help you reach the upper end of that range (see the RS2556SH owner's manual).

Typical lifespan and what usually ends a fridge’s life

Most refrigerators fail early from cooling-system stress or airflow problems, not from the cabinet itself.

  • 10 to 15 years is the normal service life for modern full-size refrigerators
  • Heavy use (frequent door openings, warm garage installs) shortens life
  • Poor airflow at the back/bottom makes the compressor work harder
  • Frost buildup from defrost issues can reduce cooling and increase run time
  • Worn door gaskets cause temperature swings and longer compressor cycles

Maintenance that adds years (high impact)

These steps reduce compressor load and help keep food-safe temperatures.

  • Vacuum dust from the condenser area and fan intake regularly
  • Keep vents inside the fresh food and freezer sections unblocked
  • Confirm doors close and seal fully; avoid overloading door bins
  • Replace water filters on schedule if you use the dispenser (your manual notes the filter indicator behavior)
  • Address unusual noises quickly (fan rubbing, clicking relay, buzzing)

Quick “health check” guide

What you notice What it often means What to do next
Warm fridge, freezer OK Airflow/evaporator issue Check vents, listen for fan, inspect for frost
Both sections warming Compressor/relay/airflow Clean condenser area; check start components
Heavy frost, weak airflow Defrost problem Inspect defrost system components
Clicking, no start Start relay/overload Test/replace start components

Parts that commonly affect longevity on RS2556SH

If symptoms point to a specific failure, these model-matched parts are common culprits.

Why it matters

A refrigerator that runs longer than it should uses more electricity and struggles to hold safe temperatures. Keeping airflow clear and temperatures stable reduces wear on the compressor and sealed system, which are the most expensive repairs.

Last updated: February 2026

The most common ice problem we see on Samsung side-by-side refrigerators like model RS2556SH is little or no ice because the ice maker is turned off, the freezer temperature is too warm, or water cannot reach the ice maker (shut-off valve closed, kinked line, or a clogged filter). For model-specific checks and settings, use the RS2556SH owner's manual.

Quick checks that fix most “no ice” complaints

  • Confirm ice making is enabled (ice maker function not stopped).
  • Make sure the ice bin has room and is seated correctly.
  • Verify the water line is connected and the shut-off valve is fully open.
  • Check for a crushed or kinked water supply line behind the refrigerator.
  • Set the freezer colder if it is too warm.
  • After any water line install or reconnect, wait at least 12 hours for ice production.

What symptoms usually mean

Symptom Most likely cause What to do first
No ice at all Ice maker off or no water supply Turn ice on; open valve; check line
Small or hollow cubes Restricted water flow Replace filter; check for pinched line
Ice clumps or jams in bin Ice melting and refreezing, warm freezer Lower freezer temp; keep doors closed
Ice not dispensing but bin has ice Dispenser/door issue or ice path blocked Clear chute; check dispenser door movement

Parts that commonly relate to ice and dispenser issues

If the dispenser is not responding correctly (for example, the flap or switch action feels inconsistent), a failed switch can contribute to dispensing problems. For this model, one common dispenser-related part is the refrigerator micro-switch DA34-00011A.

Why it matters

Ice production depends on two basics: cold enough freezer temperature and steady water flow. When either one is off, you can get no ice, slow ice, or dispensing problems even if the refrigerator seems to cool normally.

Last updated: February 2026

For a Samsung side-by-side refrigerator like model RS2556SH, repair is worth it when the problem is a single, accessible part (fan, sensor, relay, defrost component) and the cabinet is in good shape. If cooling is weak due to sealed-system or compressor issues, replacement is usually the better value.

Quick decision checklist

  • Repair if the fridge is cooling unevenly, frosting up, or making noise but still runs.
  • Repair if the fix is a common service part such as a sensor, fan, relay, or defrost fuse.
  • Repair if the doors seal well and the interior liner and shelves are intact.
  • Replace if the compressor is failing, the unit is not cooling at all, or repairs require sealed-system work.
  • Replace if you have repeated breakdowns affecting food safety or reliability.

Common “worth repairing” problems on RS2556SH

These issues are typically straightforward and parts-based:

Cost and complexity comparison

Repair type Typical complexity Typical value outcome
Sensor, fan, relay, defrost part Low to medium Usually worth repairing
Control board diagnosis/replacement Medium Worth it if confirmed bad
Compressor or sealed-system repair High Often better to replace

Why it matters

A refrigerator repair only pays off when it restores stable temperatures and reliable ice and water operation without turning into a chain of follow-up failures. Using the troubleshooting steps and safety guidance in the RS2556SH owner's manual helps you confirm the symptom before buying parts.

Helpful tip for ice and water issues

If your decision is driven by ice maker or dispenser problems, use our guide: why your Samsung fridge stopped making ice and how to fix it. Many “no ice” complaints are caused by airflow, freezing, or maintenance issues rather than major component failure.

Last updated: February 2026
