GE JCBP85DM1WW electric range

GE JCBP85DM1WW electric range Parts

Here are the diagrams and repair parts for GE JCBP85DM1WW electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

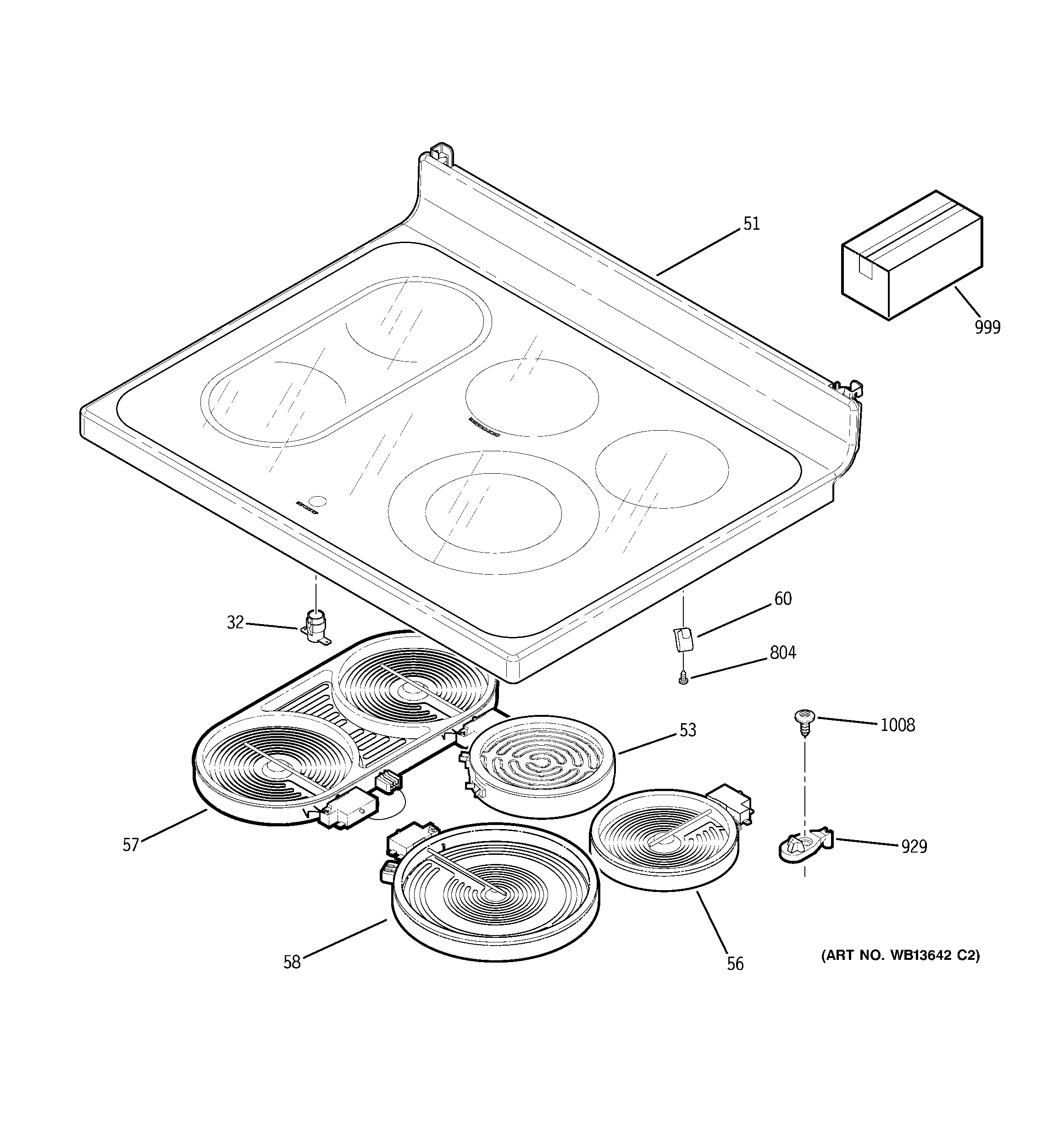

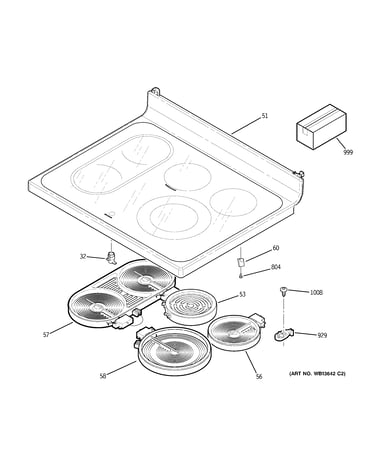

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JCBP85DM1WW Ranges

  • Kenmore Range Oven Temperature Sensor for GE JCBP85DM1WW - Part WB21X22134

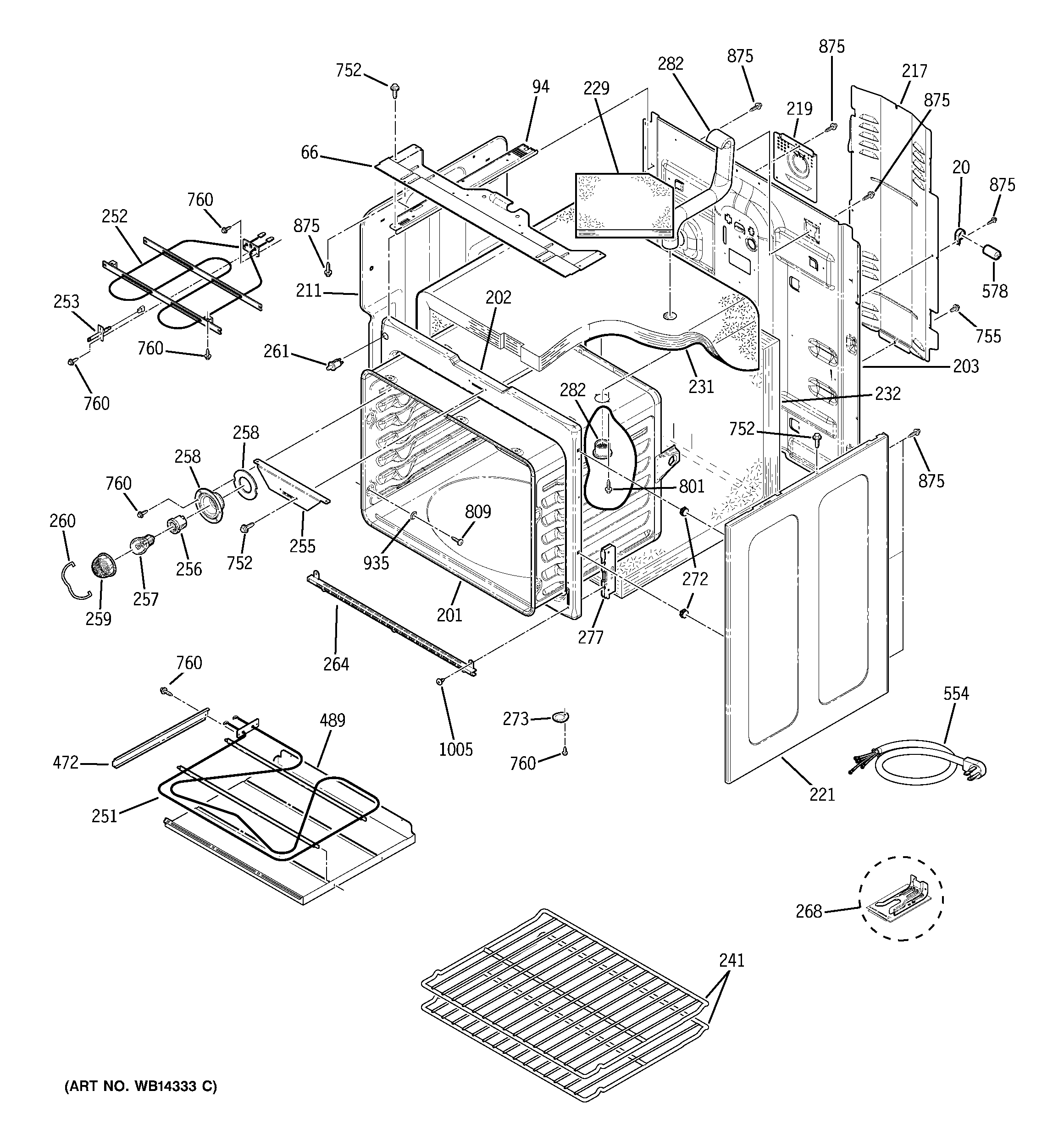

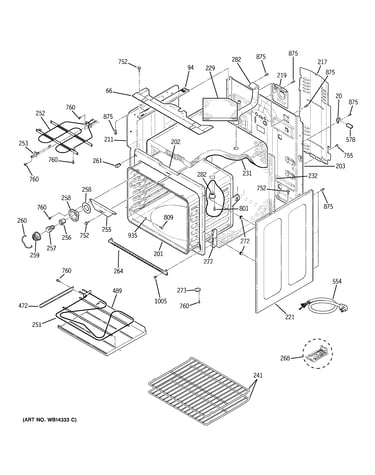

    Body parts diagram

    Wall Oven Temperature Sensor

    Part #WB21T10007

    Replaced by #WB21X22134

    Info Icon
    Manufacturer substitution
    This part replaces WB21T10007. Substitute parts can look different from the original.
    In Stock
    $24.74
    20% OFF Phone Price : $30.74Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE JCBP85DM1WW - Part 40A15

    Body parts diagram

    Range Oven Light Bulb

    Part #WX12X1510

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    In Stock
    $14.95
    12% OFF Phone Price : $16.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Light Socket for GE JCBP85DM1WW - Part WB08T10026

    Body parts diagram

    Range Light Socket

    Part #WB08T10026
    This item is not returnable
    In Stock
    $10.15
    16% OFF Phone Price : $12.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Gasket for GE JCBP85DM1WW - Part WB04T10086

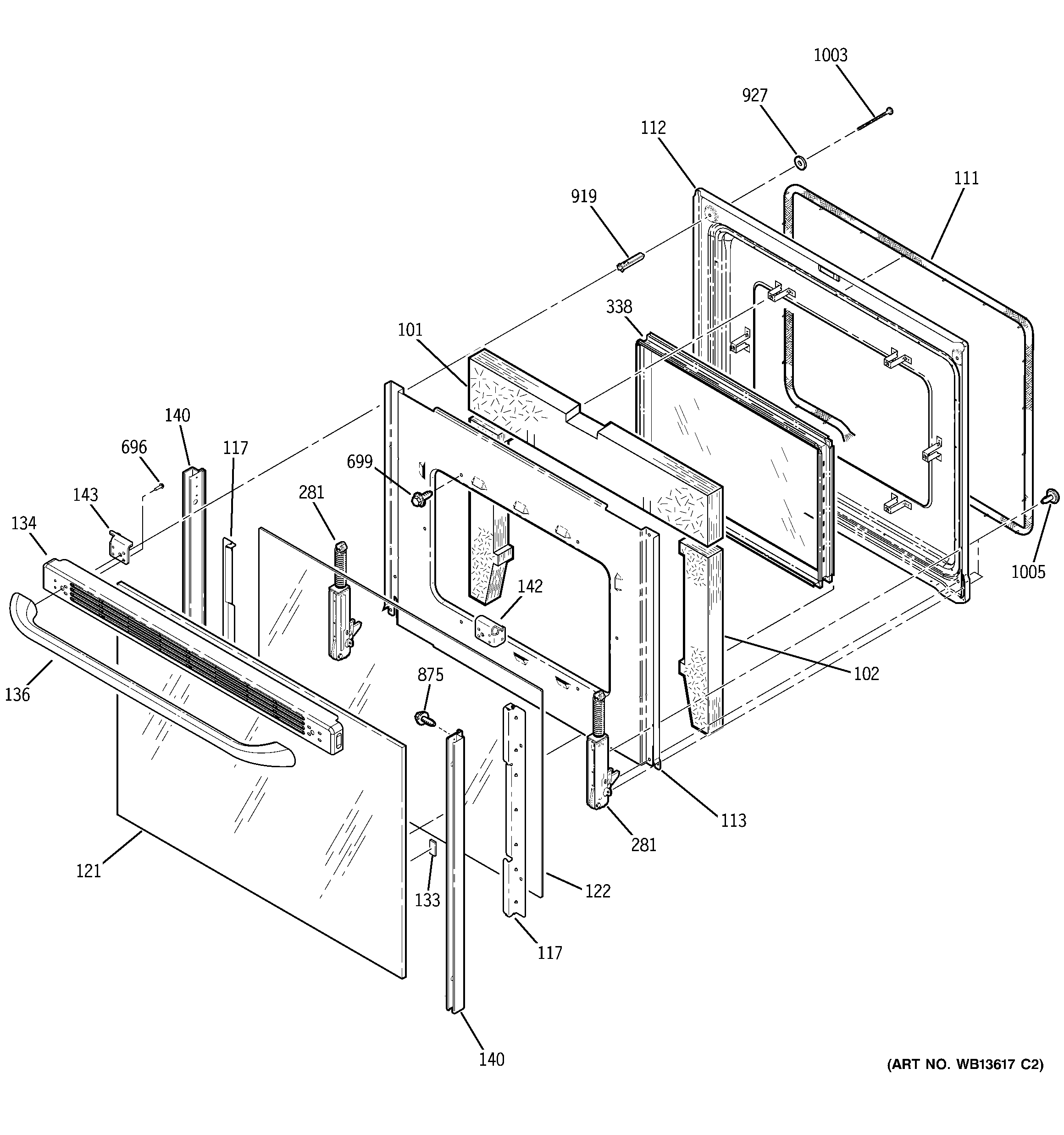

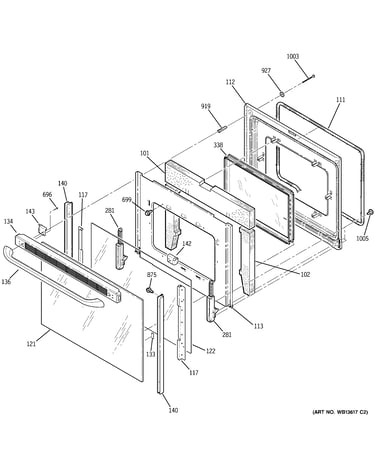

    Door diagram

    Range Oven Door Gasket

    Part #WB04T10001

    Replaced by #WB04T10086

    Info Icon
    Manufacturer substitution
    This part replaces WB04T10001. Substitute parts can look different from the original.
    In Stock
    $51.65
    10% OFF Phone Price : $57.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Dual Surface Element Control Switch for GE JCBP85DM1WW - Part WB24T10058

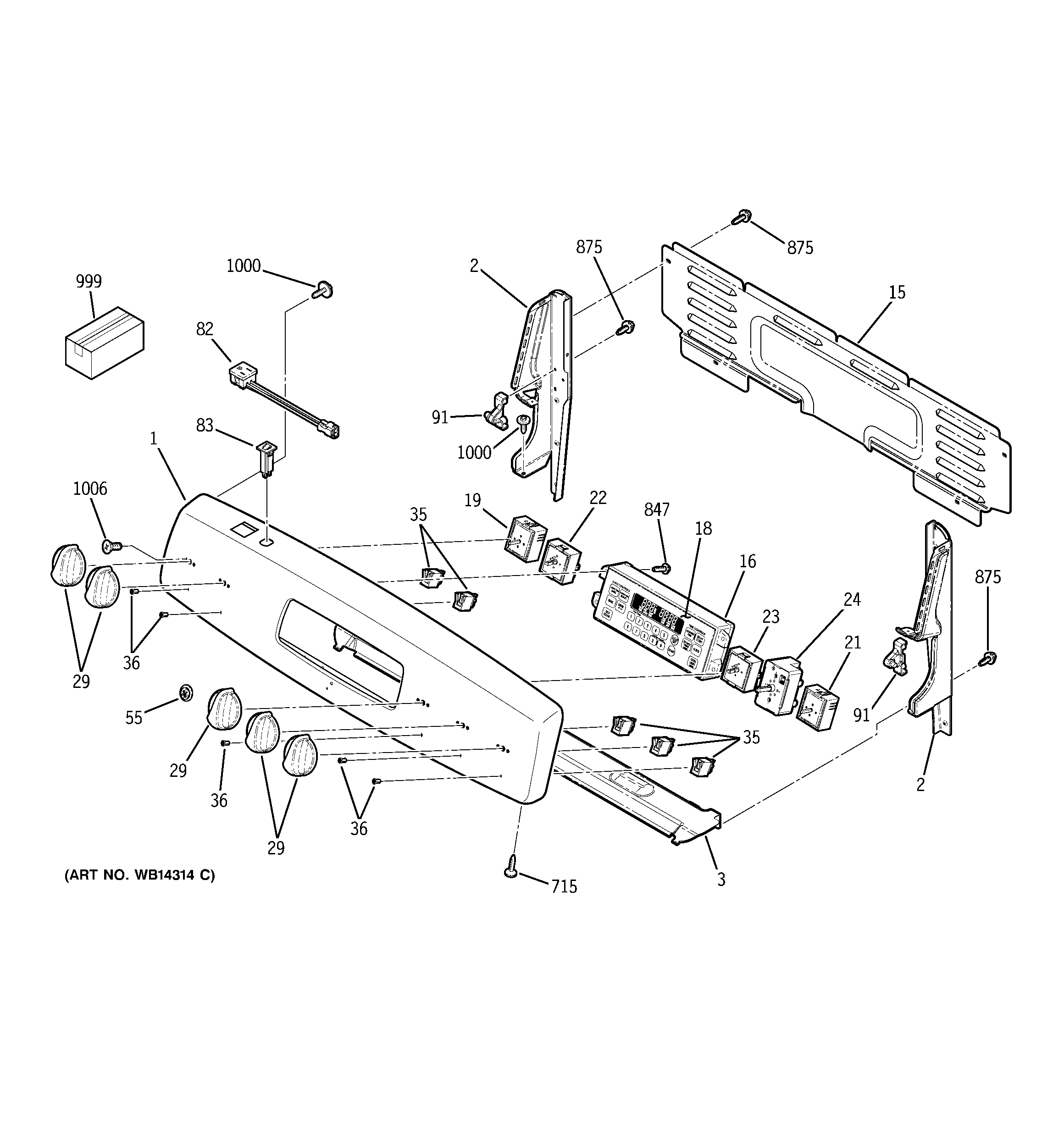

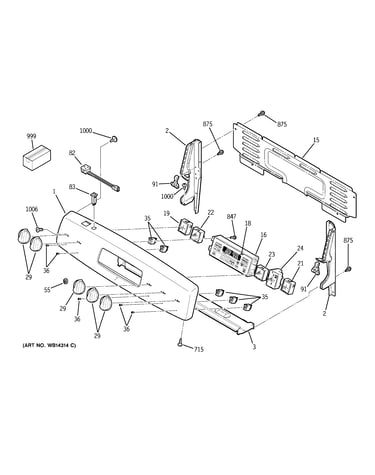

    Control panel diagram

    Range Dual Surface Element Control Switch

    Part #WB24T10058
    In Stock
    $80.61
    27% OFF Was : $110.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for GE JCBP85DM1WW - Part WB44X45499

    Body parts diagram

    Unit Asm (h/

    Part #WB44T10049

    Replaced by #WB44X45499

    Info Icon
    Manufacturer substitution
    This part replaces WB44T10049. Substitute parts can look different from the original.
    In Stock
    $126.17
    Minus Item
    Qty
    Plus Item
  • Range Convection Fan Blade for GE JCBP85DM1WW - Part WB02T10289

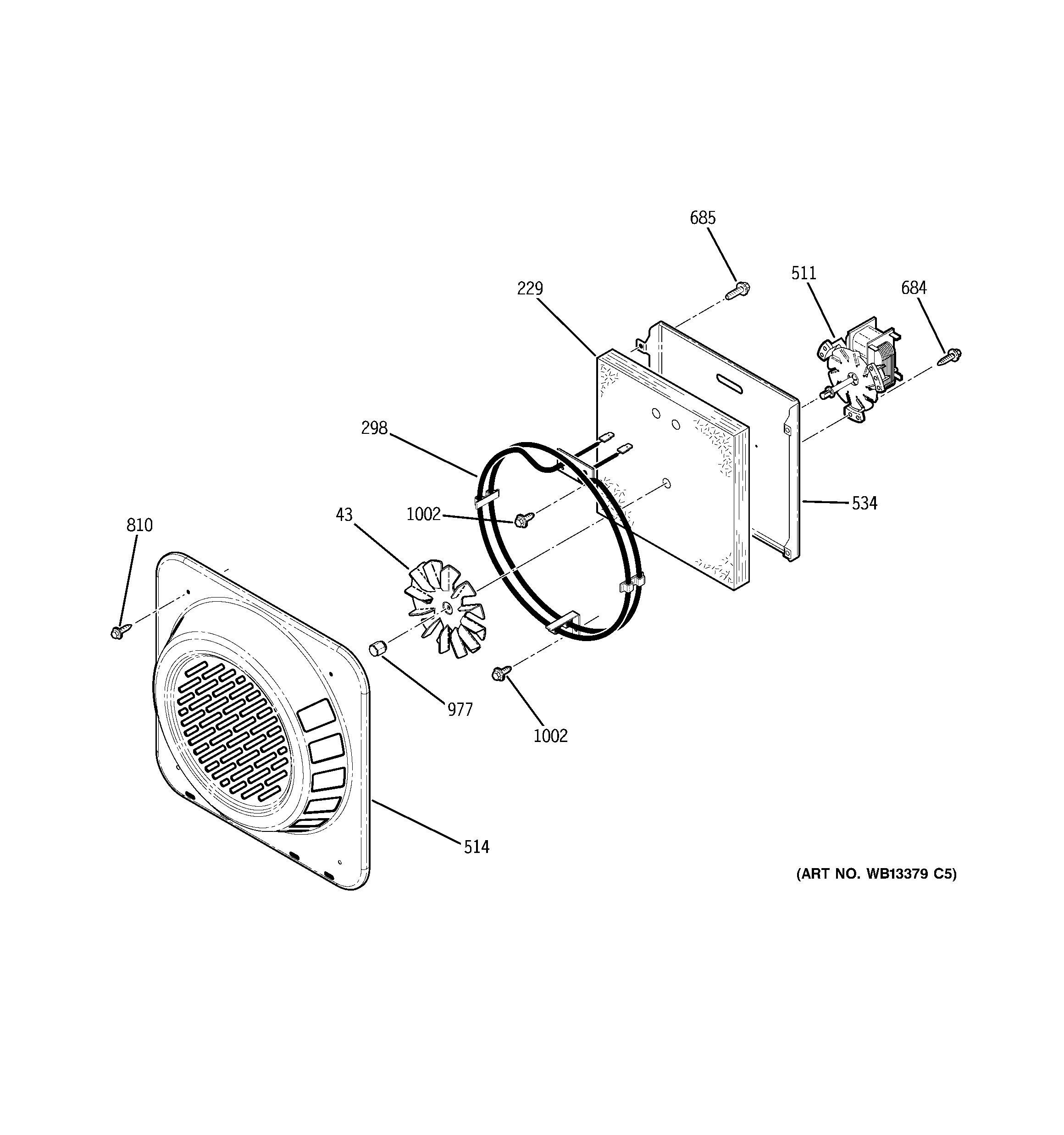

    Convection fan diagram

    Range Convection Fan Blade

    Part #WB02T10289
    This item is not returnable
    In Stock
    $28.42
    17% OFF Phone Price : $34.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for GE JCBP85DM1WW - Part WB36X192

    Body parts diagram

    Wall Oven Light Lens

    Part #WB36X0389

    Replaced by #WB36X192

    Info Icon
    Manufacturer substitution
    This part replaces WB36X0389. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.39
    12% OFF Phone Price : $17.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Elite Range Leveling Leg for GE JCBP85DM1WW - Part WB02X10521

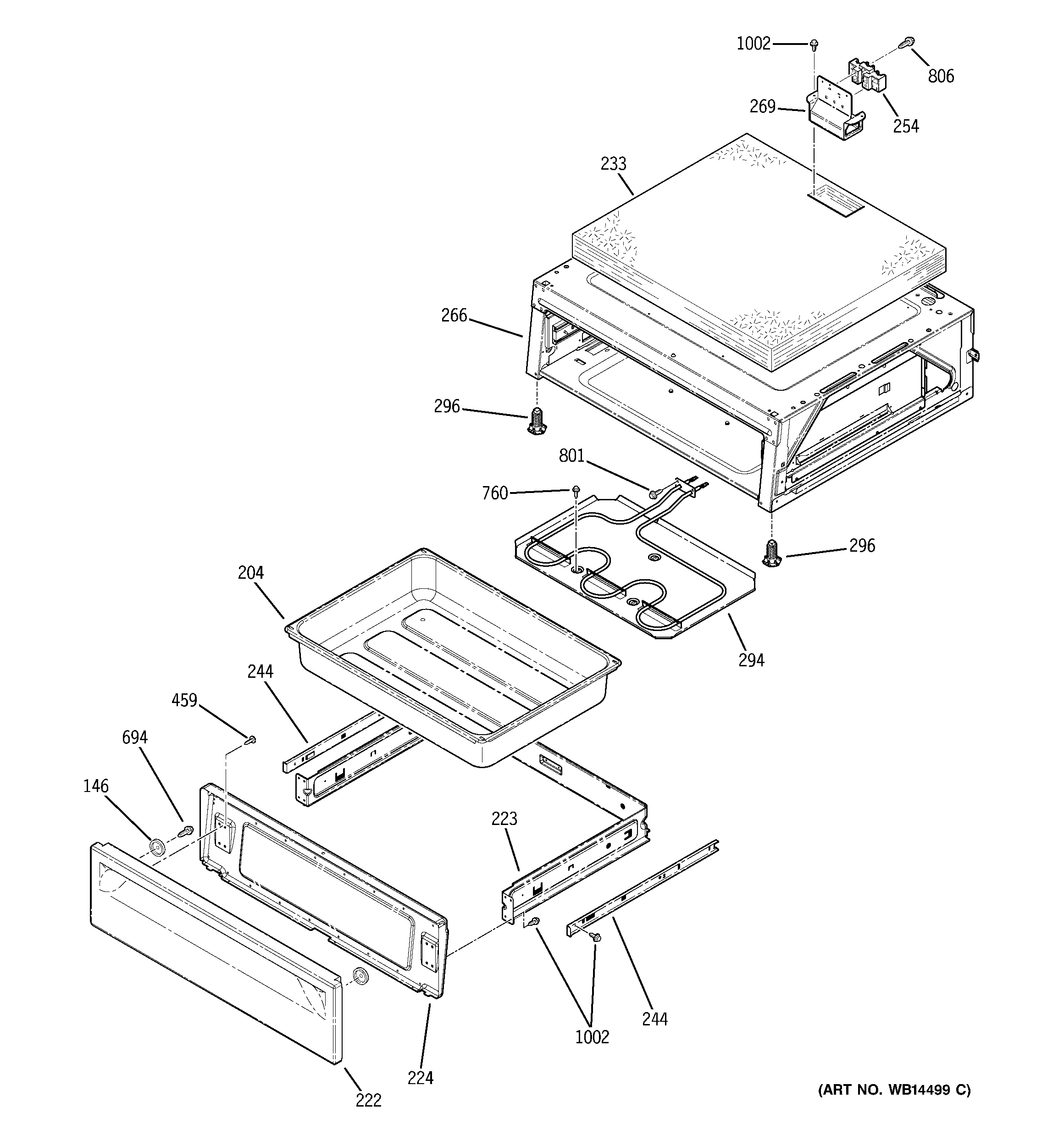

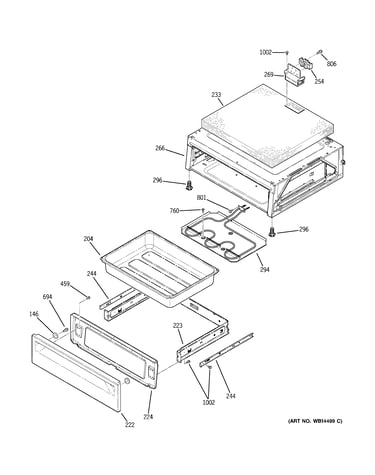

    Warming drawer diagram

    Kenmore Elite Range Leveling Leg

    Part #WB02X10521
    This item is not returnable
    In Stock
    $14.61
    12% OFF Phone Price : $16.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JCBP85DM1WW - Part WB1X536

    Screw

    Part #WB01K5028

    Replaced by #WB1X536

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5028. Substitute parts can look different from the original.
    In Stock
    $10.32
    16% OFF Phone Price : $12.32Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Foam Tape WB01T10052

Foam Tape

Part #WB01T10052
In Stock
$9.01
10% OFF Phone Price : $10.01Info Icon
Minus Item
Qty
Plus Item
