Whirlpool W8TXEWFYQ00 refrigerator Parts

A fridge with the freezer on top is called a top-freezer refrigerator (also commonly called a top-mount refrigerator). On the Whirlpool W8TXEWFYQ00, the freezer compartment sits above the fresh-food compartment, with a separate side-swing door for each section.

What “top-freezer” and “top-mount” mean

Both terms describe the same layout:

• Freezer is on the top
• Refrigerator section is on the bottom
• Two separate doors typically open from the side
• Cold air circulates between sections through built-in vents

For model-specific features and layout details, use the W8TXEWFYQ00 owner's manual.

How this design cools (and why venting matters)

In top-freezer designs like the W8TXEWFYQ00, cool air moves from the freezer into the refrigerator section through vents. Keeping those vents clear helps prevent temperature swings and moisture issues.

Do this:

• Keep packages away from freezer and refrigerator air vents
• Avoid overpacking shelves so air can circulate
• Wrap foods tightly to reduce odor transfer between sections

Quick comparison: common refrigerator styles

Style name	Freezer location	Typical door layout
Top-freezer (top-mount)	Top	Two side-swing doors
Bottom-freezer	Bottom	Upper fridge door(s), lower freezer drawer/door
Side-by-side	Left side	Two tall vertical doors
French door	Bottom	Two upper doors, lower freezer drawer

Why it matters

Knowing the style name helps you match the right parts and instructions for your refrigerator, especially for items like door hardware, shelves, and airflow-related components.

Last updated: January 2026

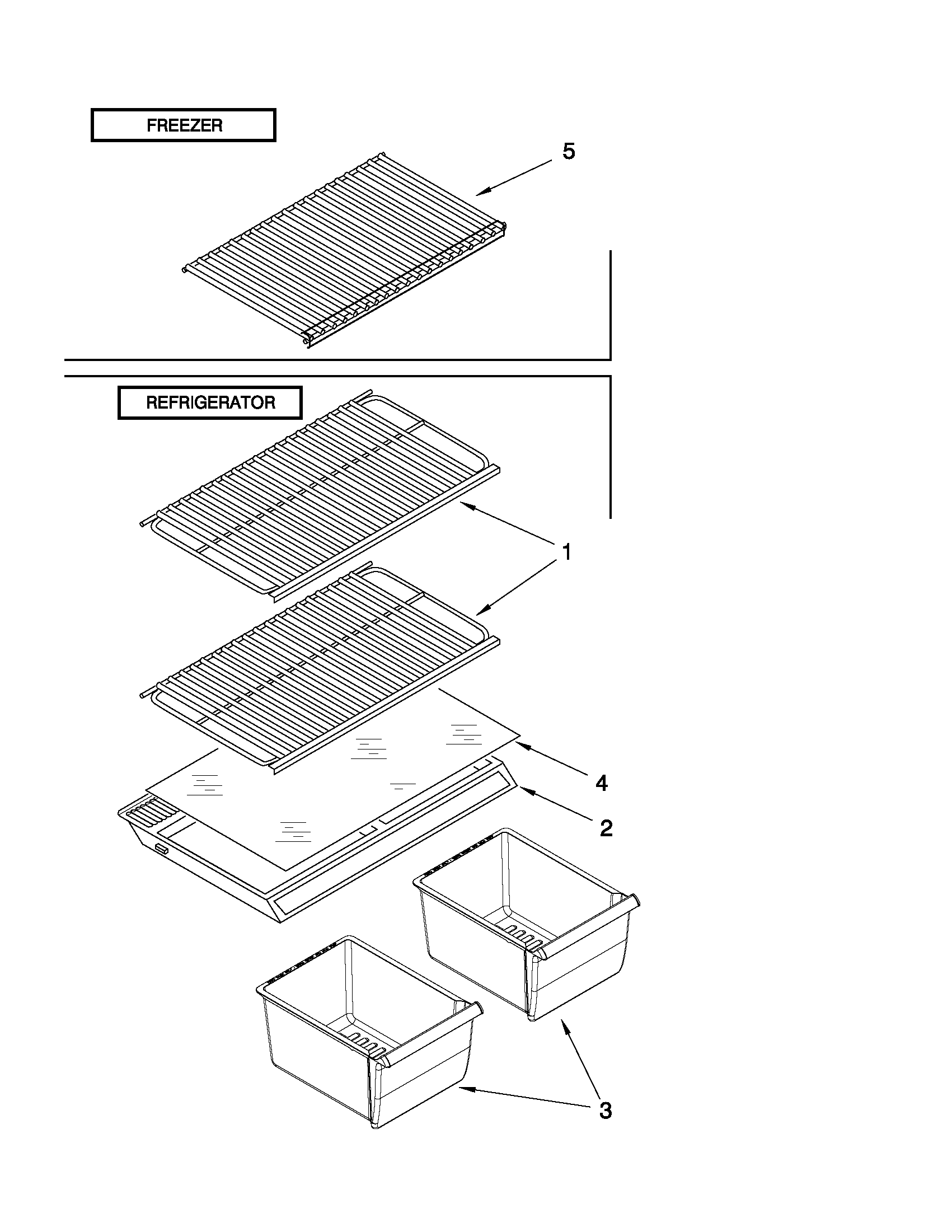

To put shelves back in your Whirlpool W8TXEWFYQ00 refrigerator, line up the shelf ends with the wall supports, set the back edge in first, then lower the front until it sits flat and stable. Reinstall bins and pans only after the shelf is fully seated; see the W8TXEWFYQ00 owner's manual for shelf and bin positions.

Step-by-step: reinstalling refrigerator shelves

• Remove food and bins from the shelf area so you can see the side supports clearly.
• Hold the shelf level; insert the rear edge into the rear supports first.
• Lower the front edge onto the front supports (do not force it).
• Slide the shelf left or right until it is centered and fully supported.
• Reinstall door bins, crisper pans, and covers in their correct positions.

If the shelf will not sit correctly

Common causes are a shelf installed backwards, a bin or crisper cover out of position, or a support not fully engaged.

Symptom	Likely cause	What to do
Shelf rocks or tilts	One side not seated	Lift and reseat both ends evenly
Door will not close	Shelf/bin/pan out of position	Reposition items so nothing hits the door
Glass shelf feels “stuck”	Cold glass and temperature change risk	Let the shelf warm slightly before handling

Safety and handling tips for glass shelves

The W8TXEWFYQ00 uses heavy tempered glass shelves on many configurations.

• Use two hands and keep the shelf level to avoid impact.
• Do not wash a cold glass shelf with warm water.
• Avoid bumping the shelf edges on the liner or supports.

Why it matters

Correct shelf placement keeps airflow paths open, helps the doors close completely, and prevents cracked shelves or broken shelf supports. Mispositioned shelves, pans, or bins can also cause door sealing problems and temperature swings.

Last updated: January 2026

Top-mount refrigerators like the Whirlpool W8TXEWFYQ00 typically cost less and are simple to own, but the main disadvantages are less convenient fresh-food access (you bend more), fewer premium organization features, and fewer built-in dispenser options compared with many bottom-freezer designs. See the W8TXEWFYQ00 owner's manual for layout, airflow, and setup details.

Common disadvantages (what most owners notice)

• Fresh-food items sit lower, so you bend more often for everyday use.
• Freezer is at eye level, which is convenient for frozen foods but not for produce and drinks.
• Organization can be simpler, with fewer specialty drawers and dividers than many bottom-mount models.
• Less space for tall items in the refrigerator section on some top-mount layouts.
• Fewer built-in features on many top-mount models (for example, external water or ice dispensing).

What to check on your W8TXEWFYQ00 before deciding

Even within top-mount refrigerators, day-to-day satisfaction depends on setup and airflow.

What you care about	Top-mount tradeoff	Practical tip
Easy access to fresh food	More bending	Keep daily items on upper shelves and door bins
Even temperatures	Can be affected by blocked vents	Keep packages away from air vents between sections
Door swing and placement	Needs clearance near walls	Allow hinge-side clearance so doors open fully
Noise expectations	Normal operating sounds can seem louder in tight spaces	Hard floors and cabinets can amplify sound

Why it matters

A top-mount design can work extremely well when you prioritize value and reliability, but it feels less ergonomic if you access the refrigerator compartment far more than the freezer. Good airflow and proper clearances also help prevent temperature swings and moisture issues.

Setup tips that reduce common frustrations

• Leave recommended ventilation space around the cabinet.
• Do not block the vents between the freezer and refrigerator sections.
• Level the refrigerator so doors close easily and seal consistently.
• Store heavier, frequently used items at waist height.
• Keep shelves and covers clean and handle glass carefully to avoid breakage.

Last updated: January 2026

In the Whirlpool W8TXEWFYQ00 top-mount refrigerator, the biggest problem we see is a cooling performance issue caused by restricted airflow or a failed cooling component. When vents are blocked or air cannot circulate between the freezer and fresh food sections, temperatures swing and moisture problems show up fast. See the W8TXEWFYQ00 owner's manual for the venting and airflow layout.

Most common “big” problems (and what they look like)

• Blocked air vents: warm refrigerator section, uneven temps, excess moisture; the manual warns not to block vents with food packages.
• Evaporator fan not moving air: freezer may be cold but refrigerator warms; you may hear squealing or no fan sound.
• Defrost system trouble: frost buildup on the freezer back wall, weak airflow, warmer temps over time.
• Dirty condenser coils: long run times, poor cooling, hot cabinet sides.
• Door sealing issues: condensation, frost, or temperature instability from warm air leaks.

Quick checks we recommend first

1. Set controls to normal and give the unit 24 hours to stabilize.
2. Confirm no packages are blocking freezer or refrigerator vents (top vent into refrigerator and freezer vents/returns).
3. Listen for the evaporator fan when the compressor is running.
4. Check for heavy frost on the freezer back panel (points to a defrost issue).
5. Inspect door gaskets for gaps and make sure doors close fully.

Parts that commonly solve cooling and frost complaints

Symptom	Likely area	Example part for W8TXEWFYQ00
Refrigerator warm, freezer OK	Air movement	Refrigerator evaporator fan motor WP2315539
Frost blanket, airflow weak	Defrost protection	Refrigerator defrost bi-metal WPW10225581
Frost buildup persists	Defrost heat	Refrigerator heater WP2263749

Why it matters

This model circulates air between the freezer and refrigerator sections; when airflow is restricted, you can get temperature and moisture problems, and odors can transfer between compartments. Keeping vents clear and the fan and defrost system working prevents food spoilage and constant running.

Last updated: January 2026
