Frigidaire TC3D5 trash compactor - 5995233003 Parts
Here are the diagrams and repair parts for Frigidaire TC3D5 trash compactor - 5995233003, as well as links to manuals and error code tables, if available.
By Schematic

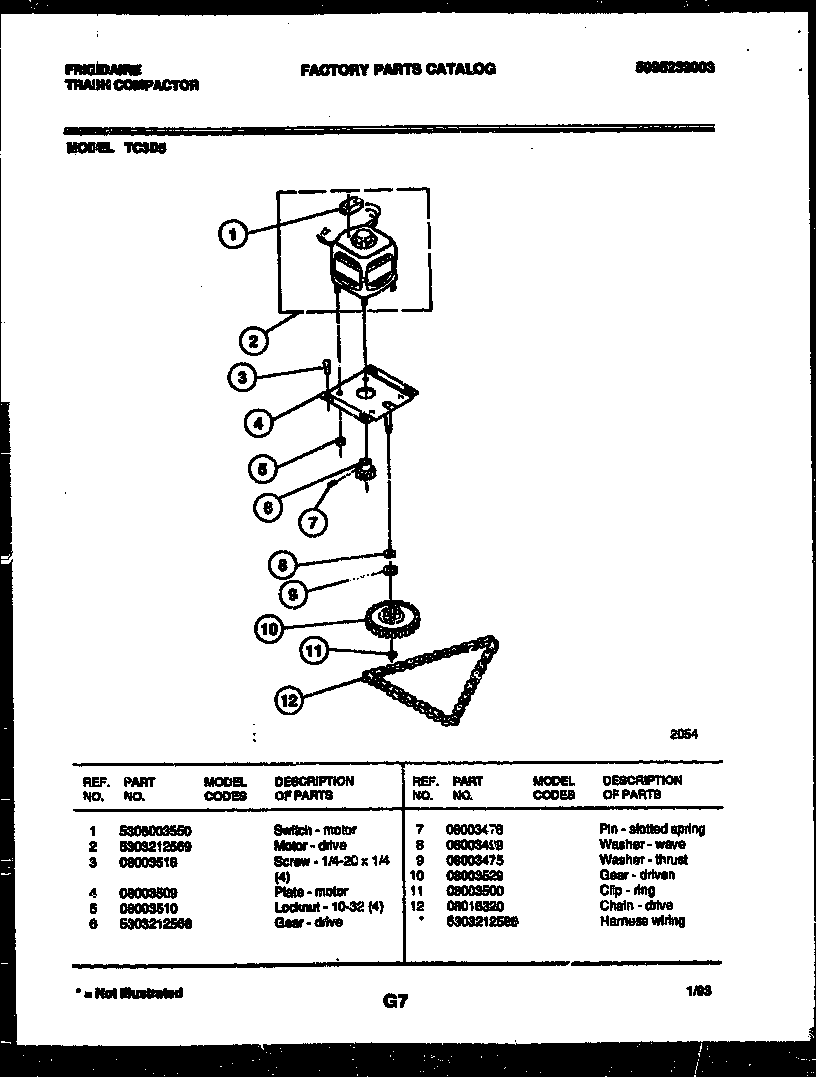

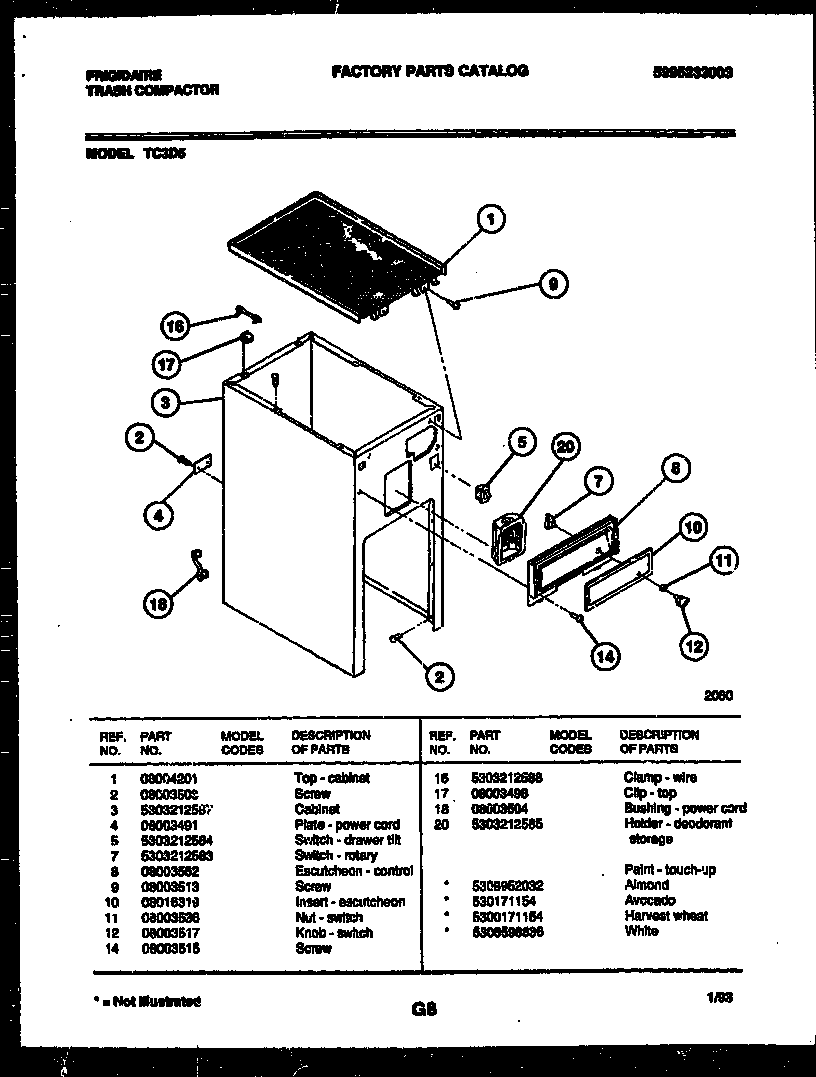

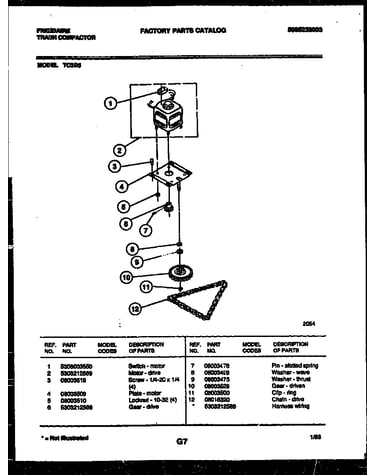

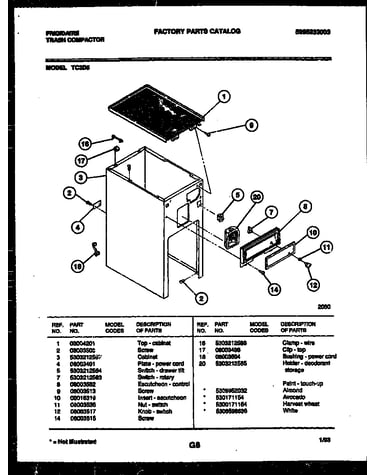

SELECT DIAGRAM
Browse Parts for TC3D5 Trash Compactor - 5995233003

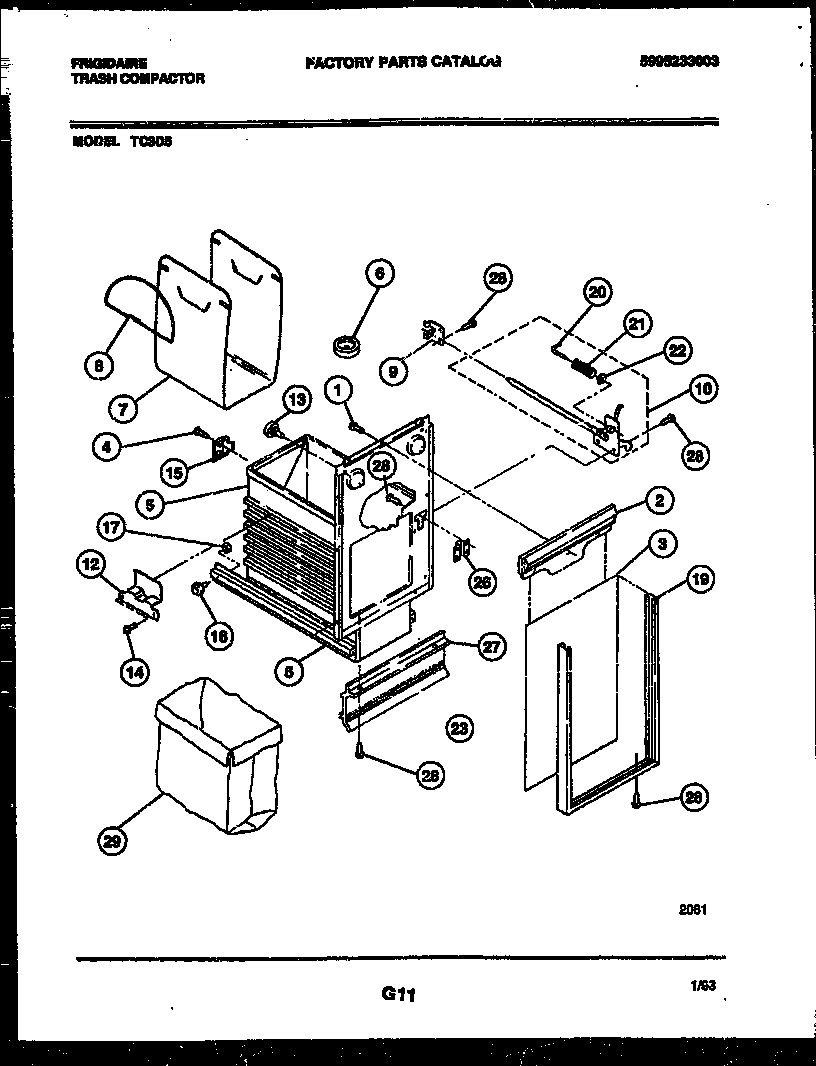

Latch and container assembly diagram
Cam - Actuator (2)
In Stock$29.19
Qty

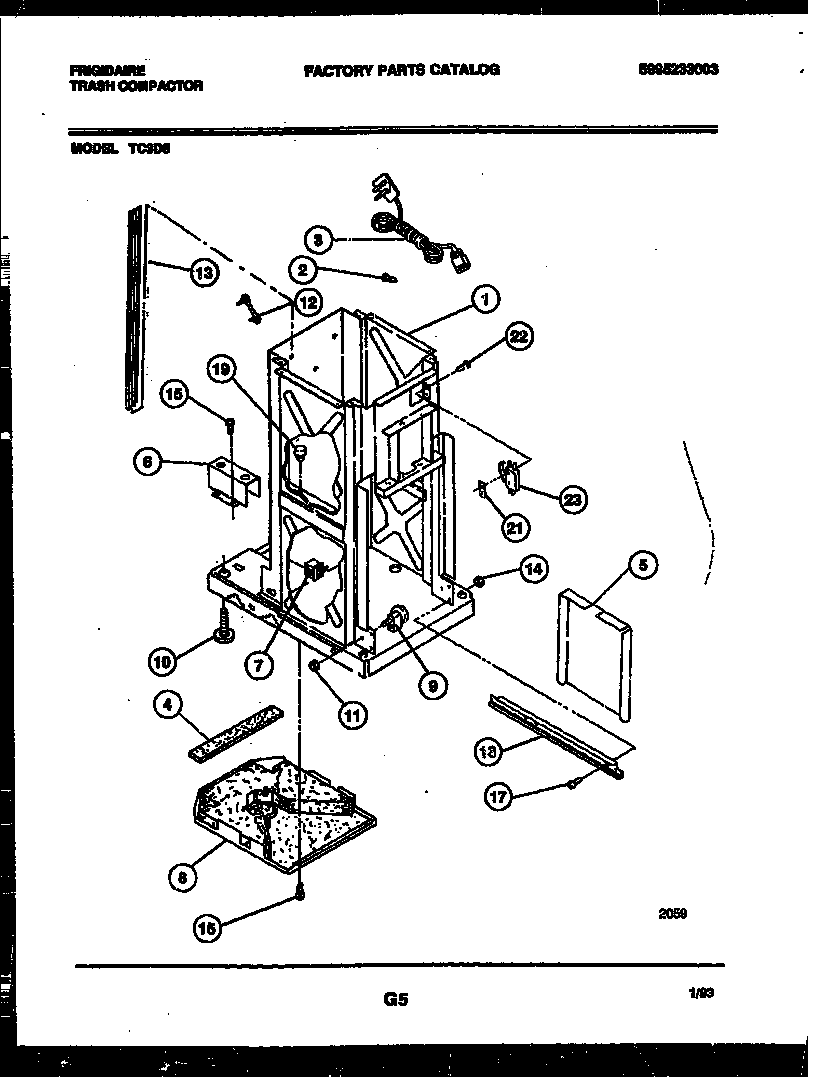

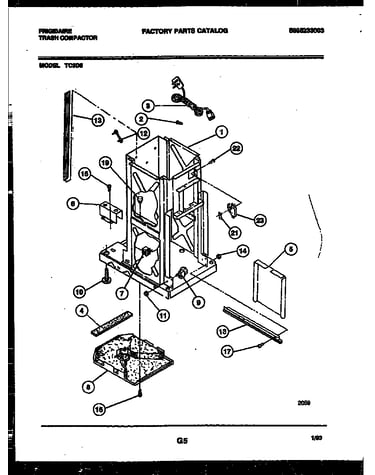

Interior parts diagram
Nut Plate
Part #08003557
The manufacturer no longer makes this part, and there's no substitute part

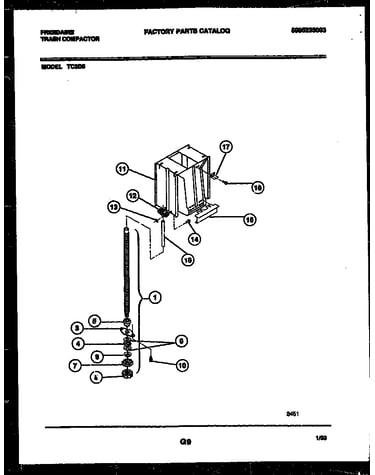

Screw-power and ram assembly diagram
Screw
Part #08003561
The manufacturer no longer makes this part, and there's no substitute part

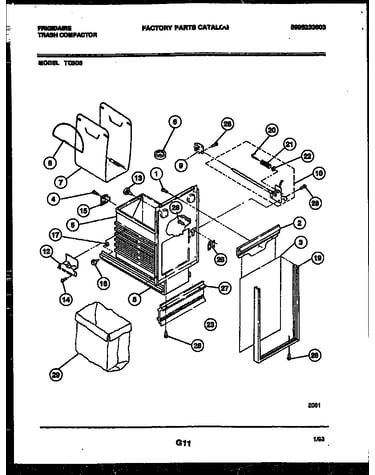

Latch and container assembly diagram
Screw
Part #08003541
The manufacturer no longer makes this part, and there's no substitute part
Latch and container assembly diagram
Bag Caddy
Part #08003524
The manufacturer no longer makes this part, and there's no substitute part
Screw-power and ram assembly diagram
Bearing Plate
Part #5303212570
The manufacturer no longer makes this part, and there's no substitute part
Screw-power and ram assembly diagram
Washer - Cone (2)
Part #08003533
The manufacturer no longer makes this part, and there's no substitute part
Interior parts diagram
Screw
Part #08003539
The manufacturer no longer makes this part, and there's no substitute part
Screw-power and ram assembly diagram
Bracket
Part #5303293185
The manufacturer no longer makes this part, and there's no substitute part
Screw-power and ram assembly diagram
Arm Stop
Part #5303293184
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your trash compactors
Choose a symptom to see related trash compactor repairs.
Main cause: faulty drawer tilt switch …
Main cause: broken top limit and directional switch…
Main causes: bent drawer support rollers, damaged trash container…
Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…
Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…
Main causes: stuck foot pedal, bad momentary start switch, power switch failure…
Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…
Most common repair guides to help fix your trash compactors
These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.
How to replace a trash compactor power switch
If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…
Repair time and Difficulty
30 minutes or less
How to replace a trash compactor motor centrifugal switch
If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…
Repair time and Difficulty
45 minutes or less
How to replace a trash compactor momentary start switch
The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your trash compactors
Use the advice and tips in these articles and videos to get the most out of your trash compactor.
Find out what’s wrong with your appliance by following a circuit.…
Learn what to check if you are having problems with the drawer sticking on your trash compactor.…
See what questions our experts most often get about trash compactors.…
