Jenn-Air JJW9130DDS electric wall oven Parts
Here are the diagrams and repair parts for Jenn-Air JJW9130DDS electric wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part

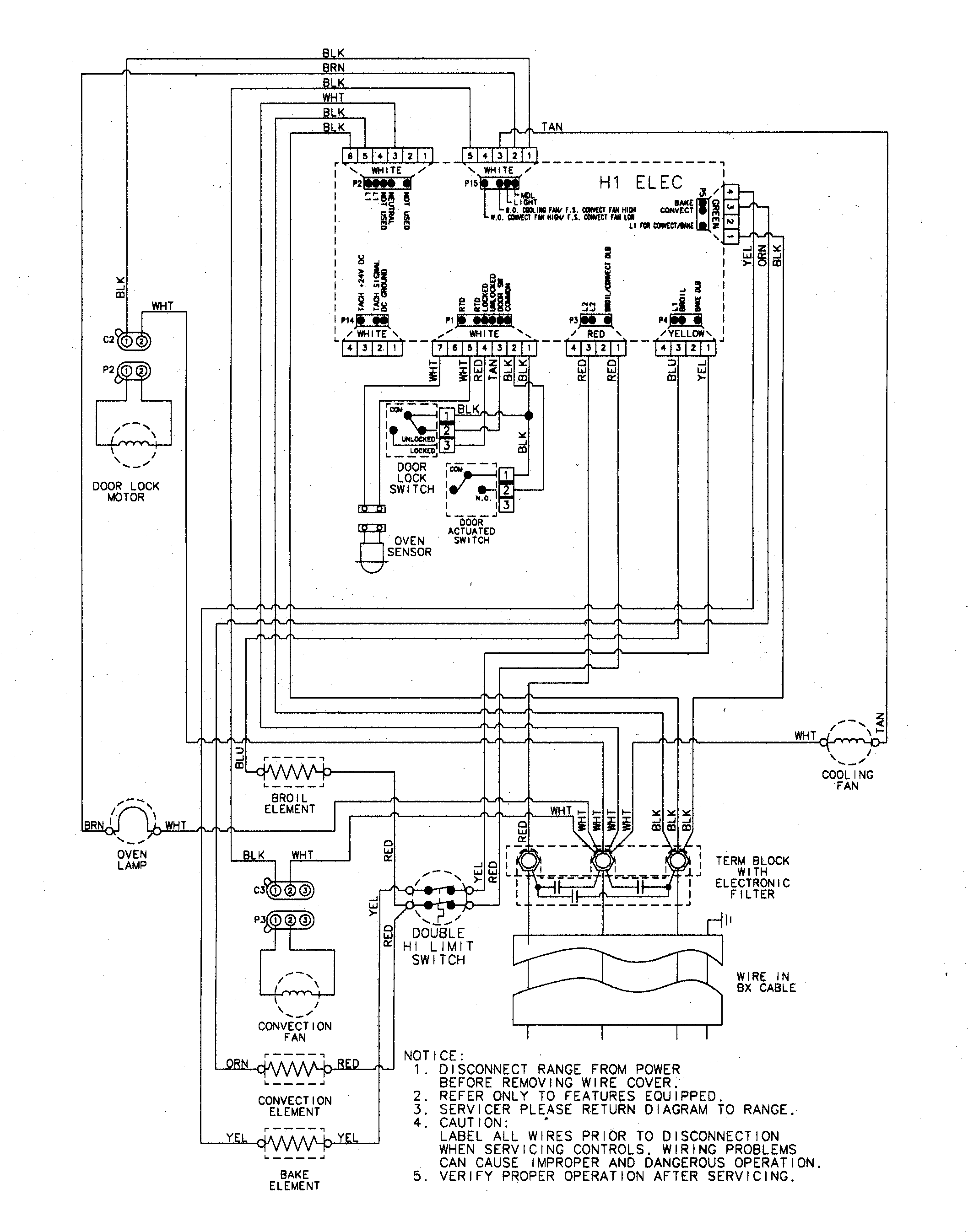

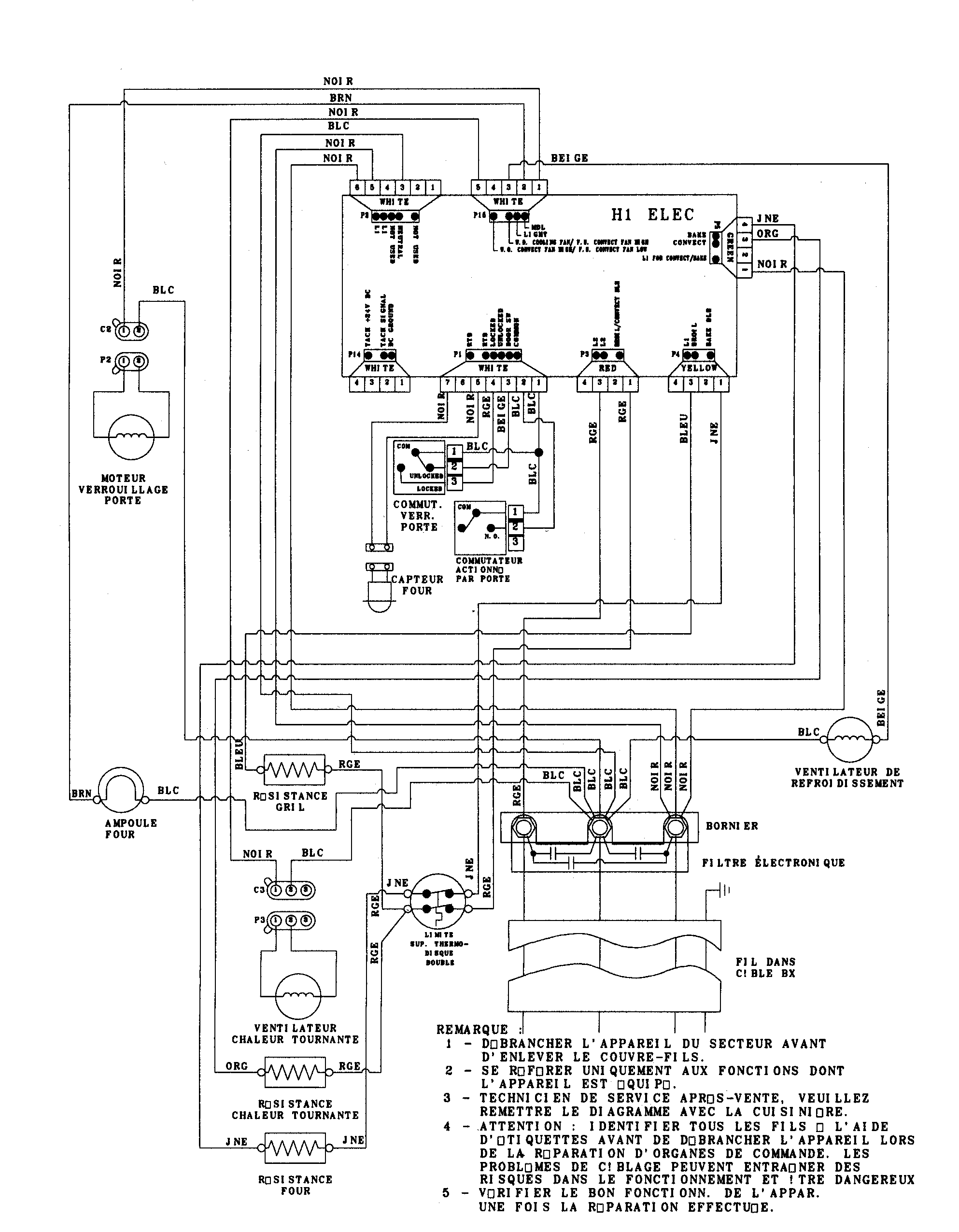

SELECT DIAGRAM
Browse Parts forJJW9130DDS Wall Ovens

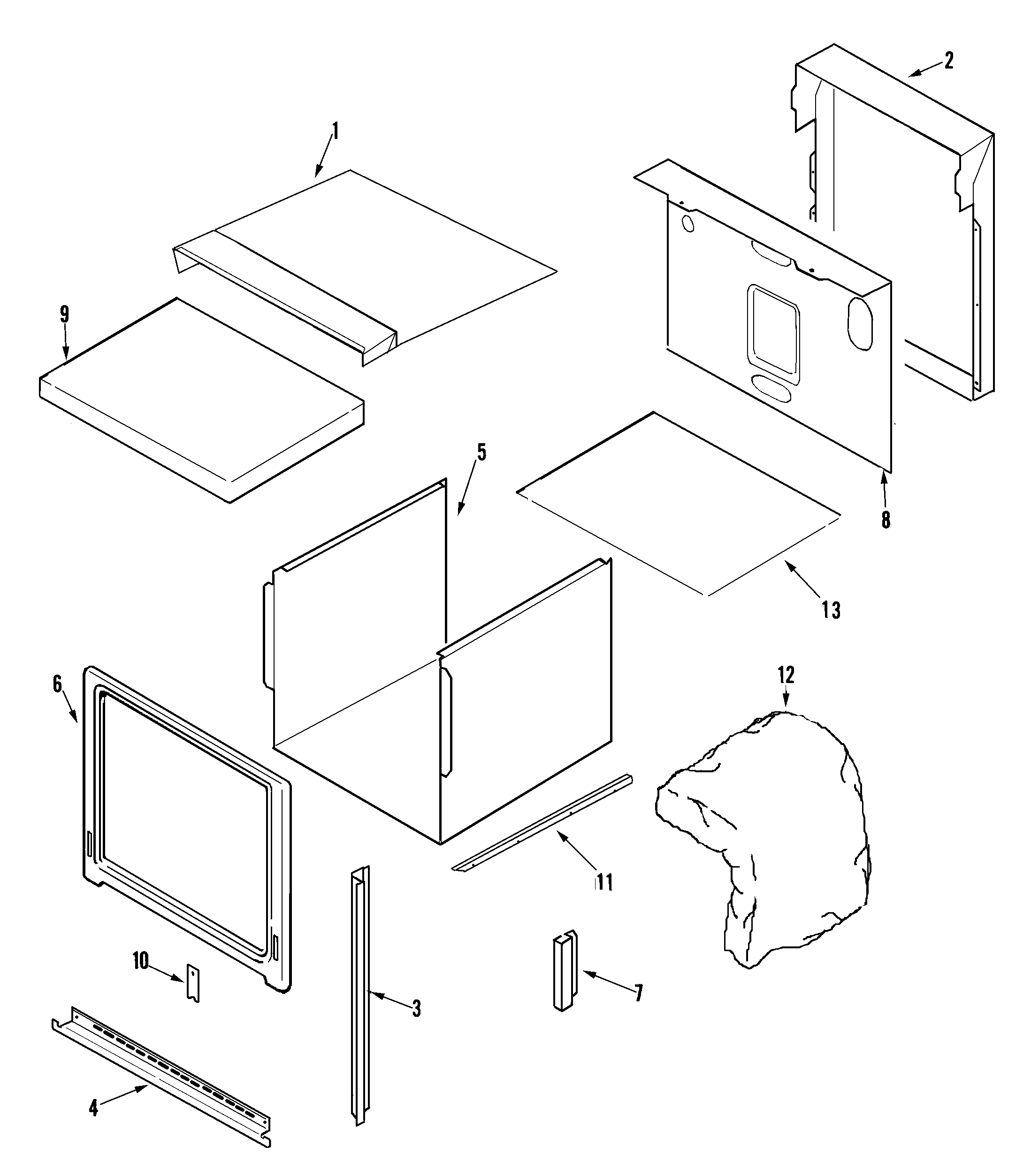

Body diagram
Bracket
Part #74008280Replaced by #3802F116-51
Manufacturer substitutionThis part replaces 74008280. Substitute parts can look different from the original.In Stock$33.21
Qty

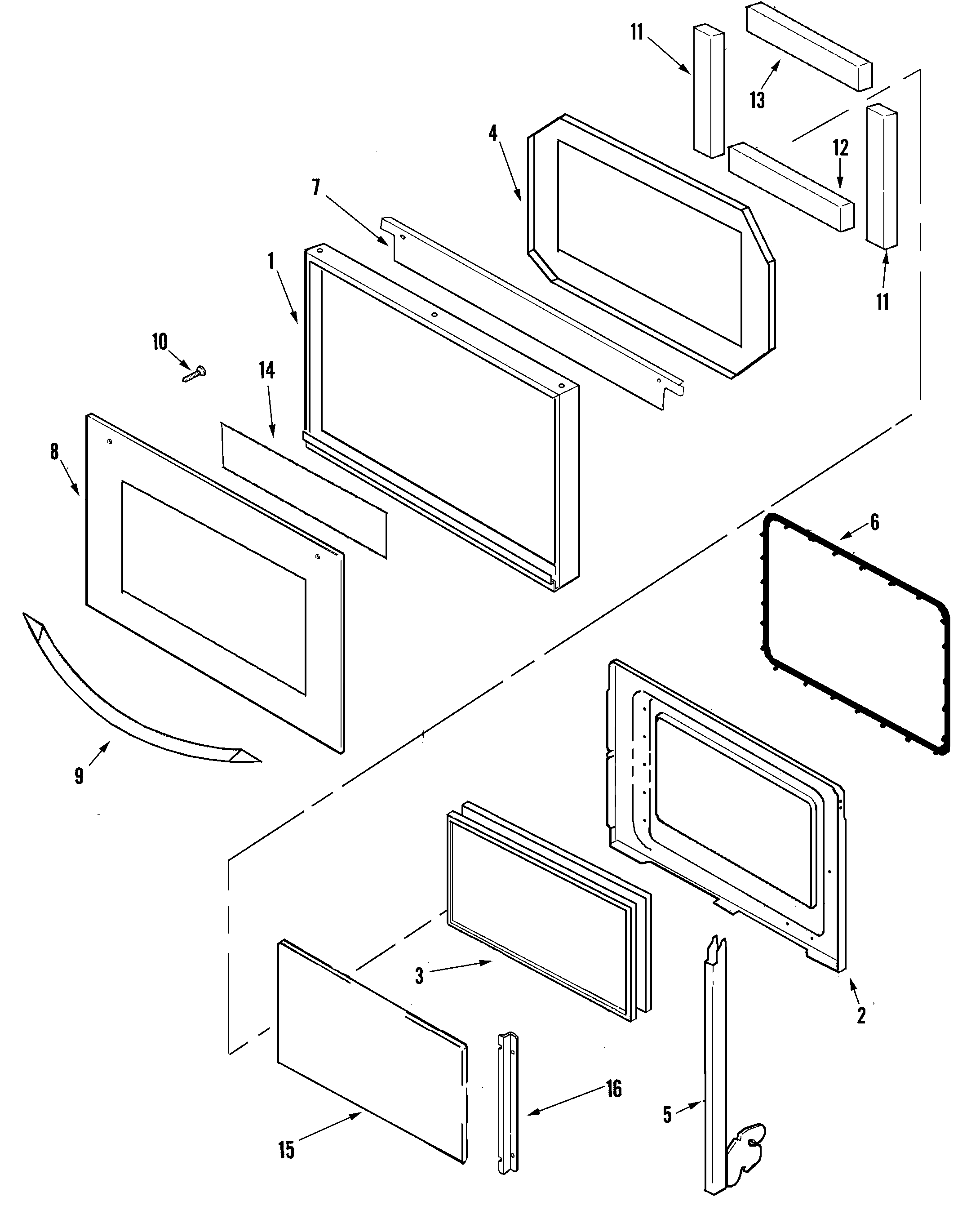

Door diagram
Screw
Part #74002483Replaced by #WP3387230
Manufacturer substitutionThis part replaces 74002483. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2316% OFF Phone Price : $6.23

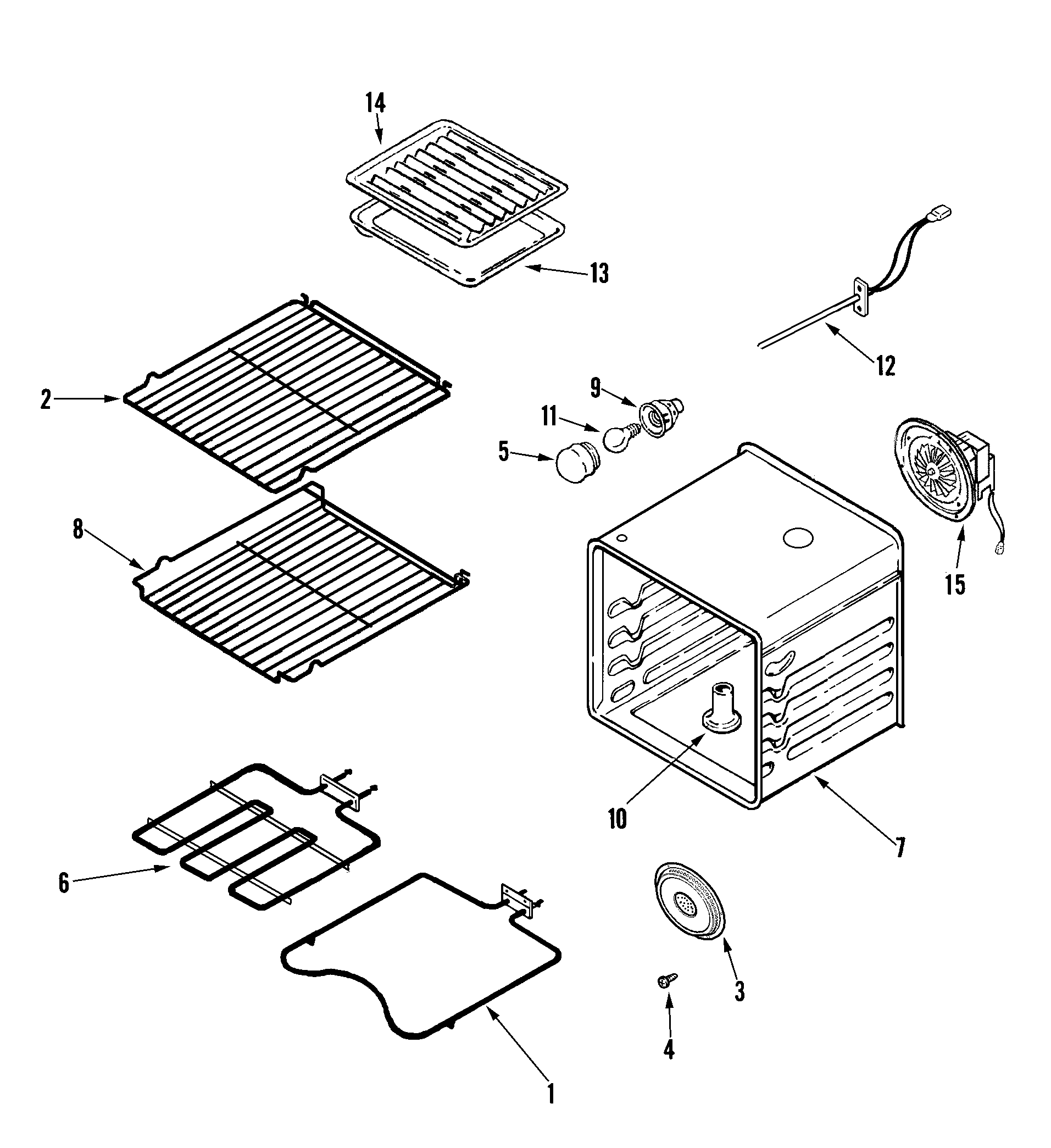

QtyOven diagram
Oven Rack
Part #71001862Replaced by #WPW10282527
Manufacturer substitutionThis part replaces 71001862. Substitute parts can look different from the original.In Stock$100.1311% OFF Phone Price : $112.13QtyControl panel and internal controls diagram
Control Bracket
Part #74008299Replaced by #3801F834-51
Manufacturer substitutionThis part replaces 74008299. Substitute parts can look different from the original.In Stock$33.21QtyControl panel and internal controls diagram
Vent
Part #71001847
The manufacturer no longer makes this part, and there's no substitute part
Supplemental information diagram
Cooking Guid
Part #74007136
The manufacturer no longer makes this part, and there's no substitute part

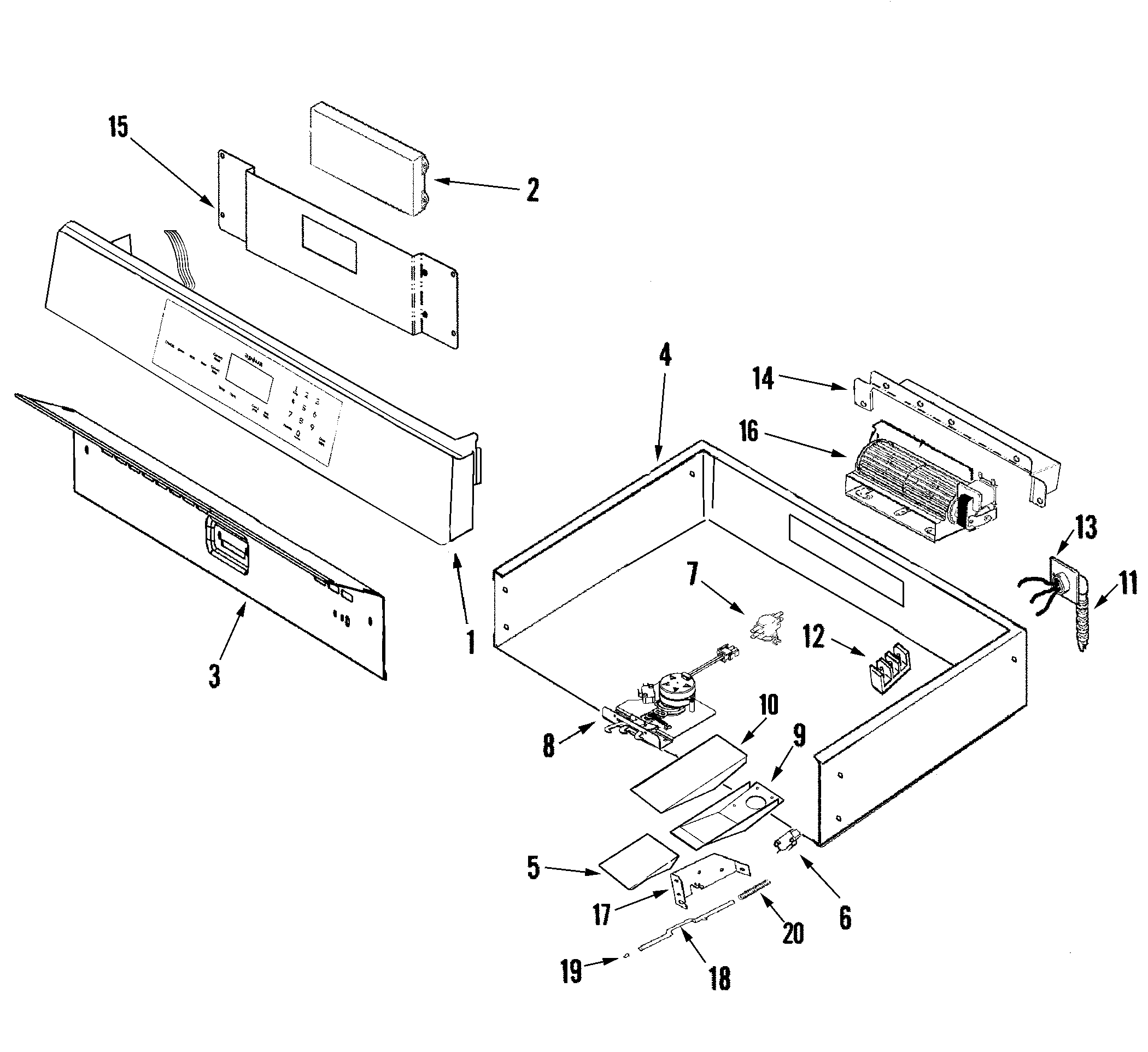

Control panel and internal controls diagram
Range Oven Control Board
Part #74008952
The manufacturer no longer makes this part, and there's no substitute part
Supplemental information diagram
Tech Sht, Wall Oven Singl Ele (series 10) (non-illus)
Part #16026545
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Top (outer)
Part #74008271
The manufacturer no longer makes this part, and there's no substitute part
Screw, Clock (qty 4) (series 10) (non-illus)
Part #314848
The manufacturer no longer makes this part, and there's no substitute part
