Jenn-Air JJW9130DDS electric wall oven Parts
Here are the diagrams and repair parts for Jenn-Air JJW9130DDS electric wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

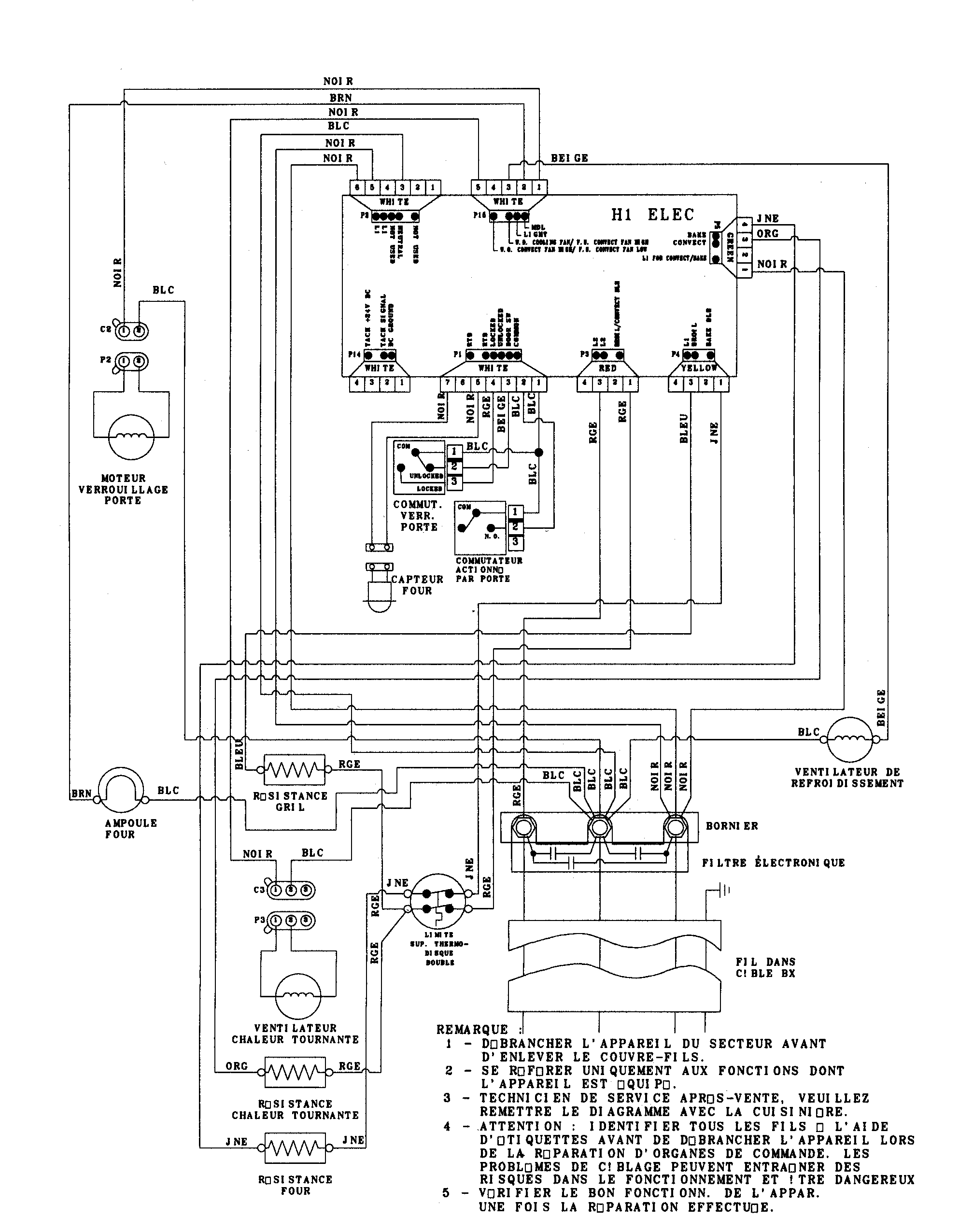

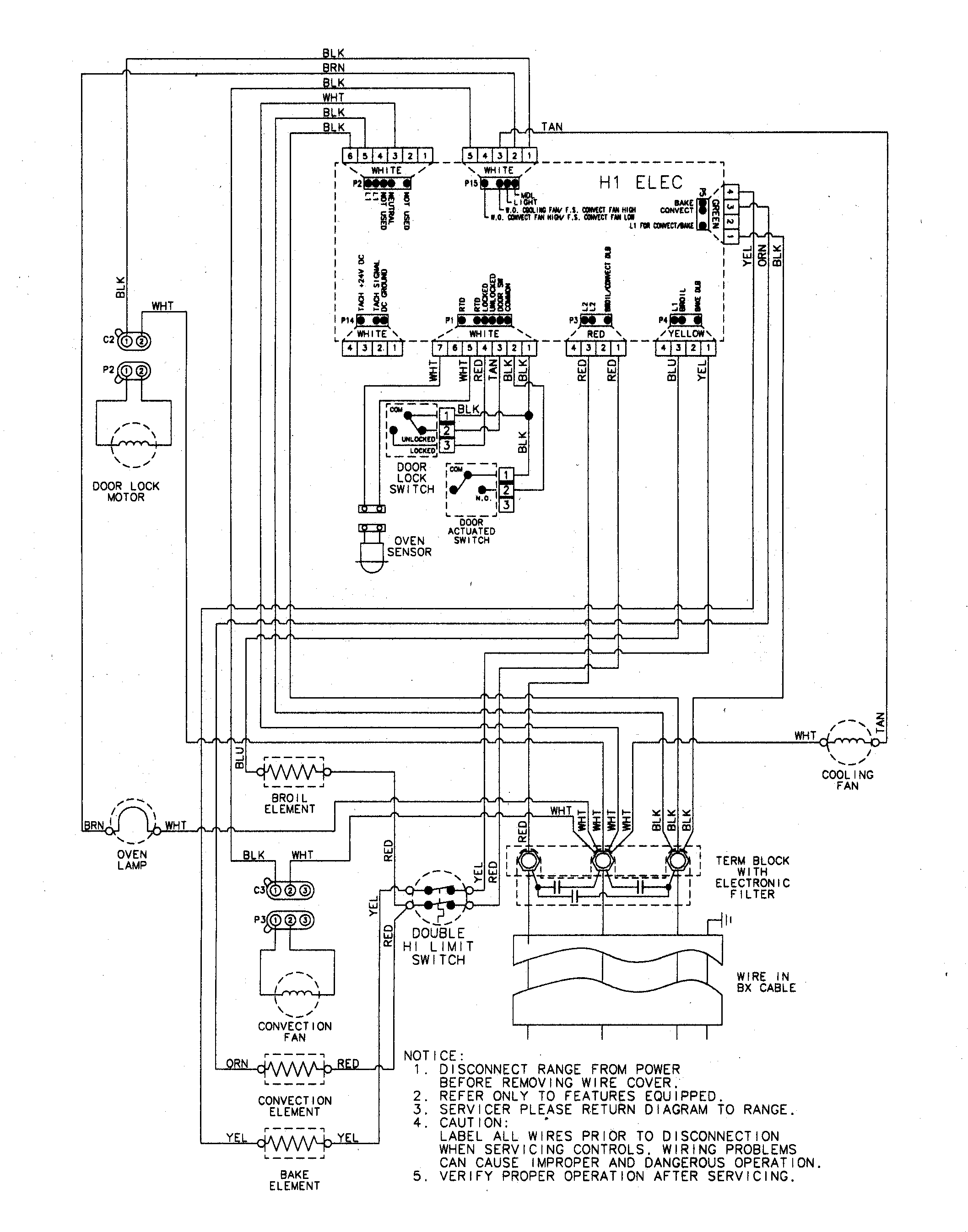

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JJW9130DDS Wall Ovens

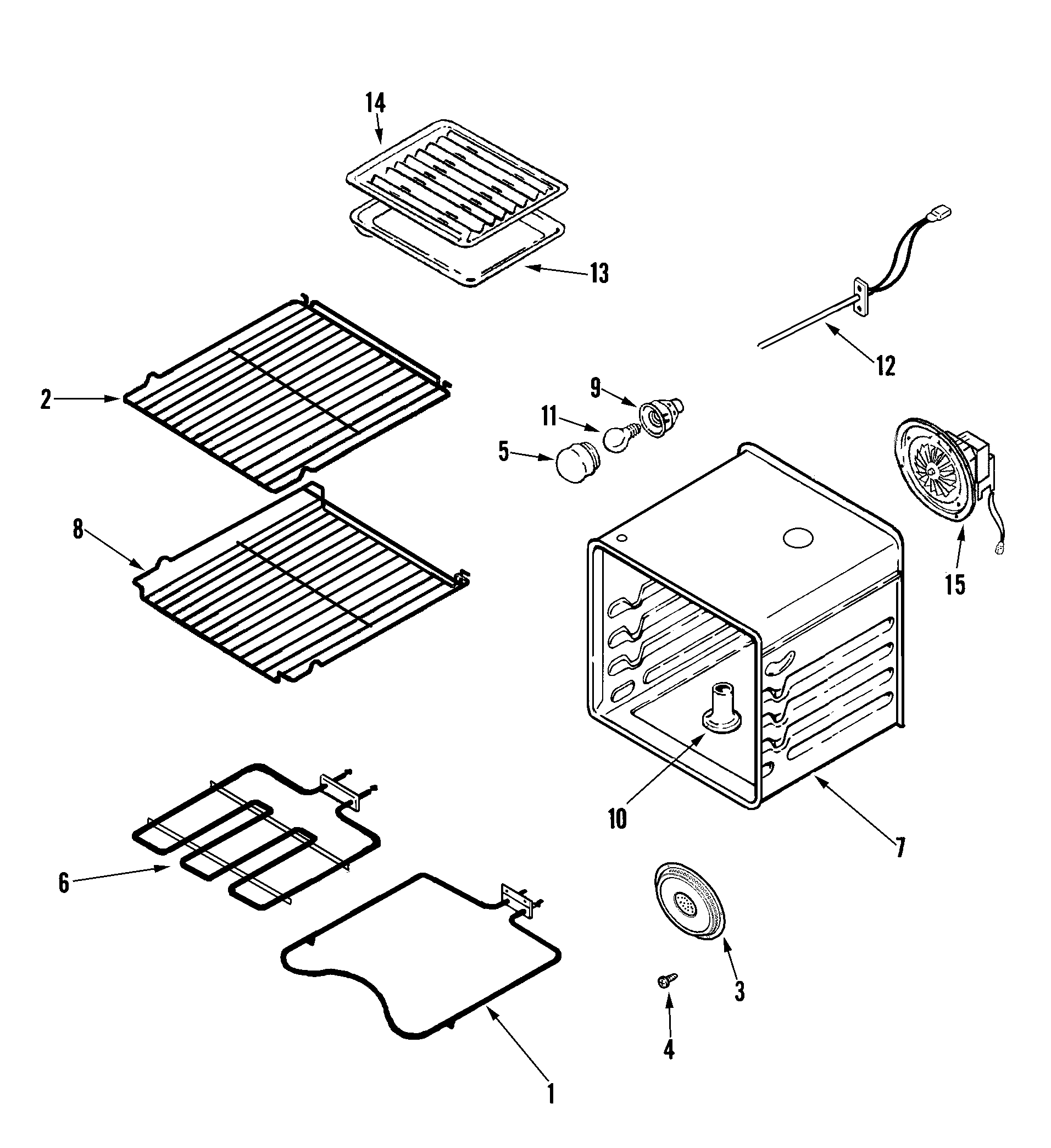

Oven diagram
Oven Sensor
Part #74004943Replaced by #12001656
Manufacturer substitutionThis part replaces 74004943. Substitute parts can look different from the original.In Stock$22.6421% OFF Phone Price : $28.64
Qty

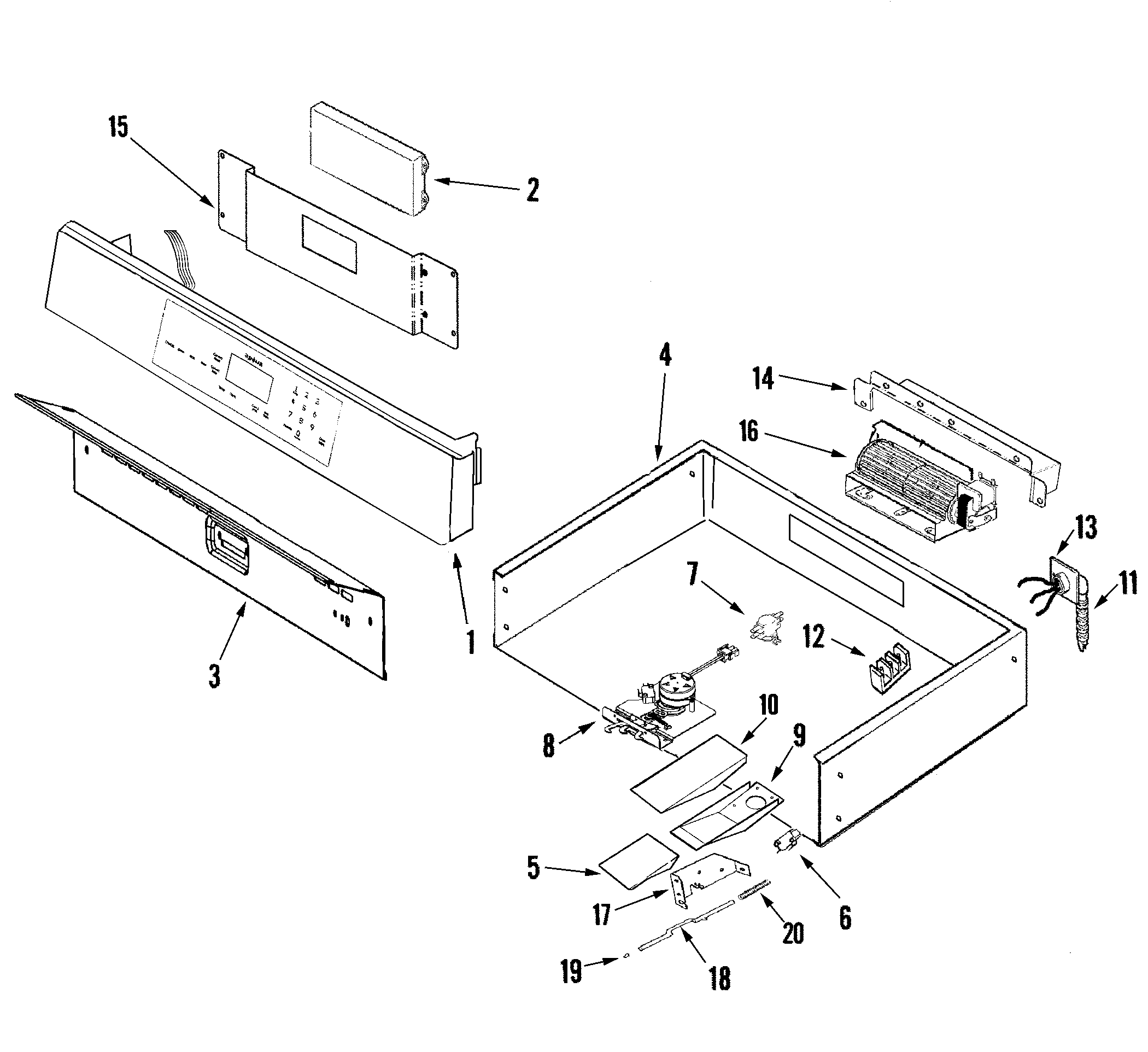

Control panel and internal controls diagram
Terminal Block
Part #7401P039-60Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91QtyDoor diagram
Wall Oven Door Hinge
Part #74008014Replaced by #WP74008014

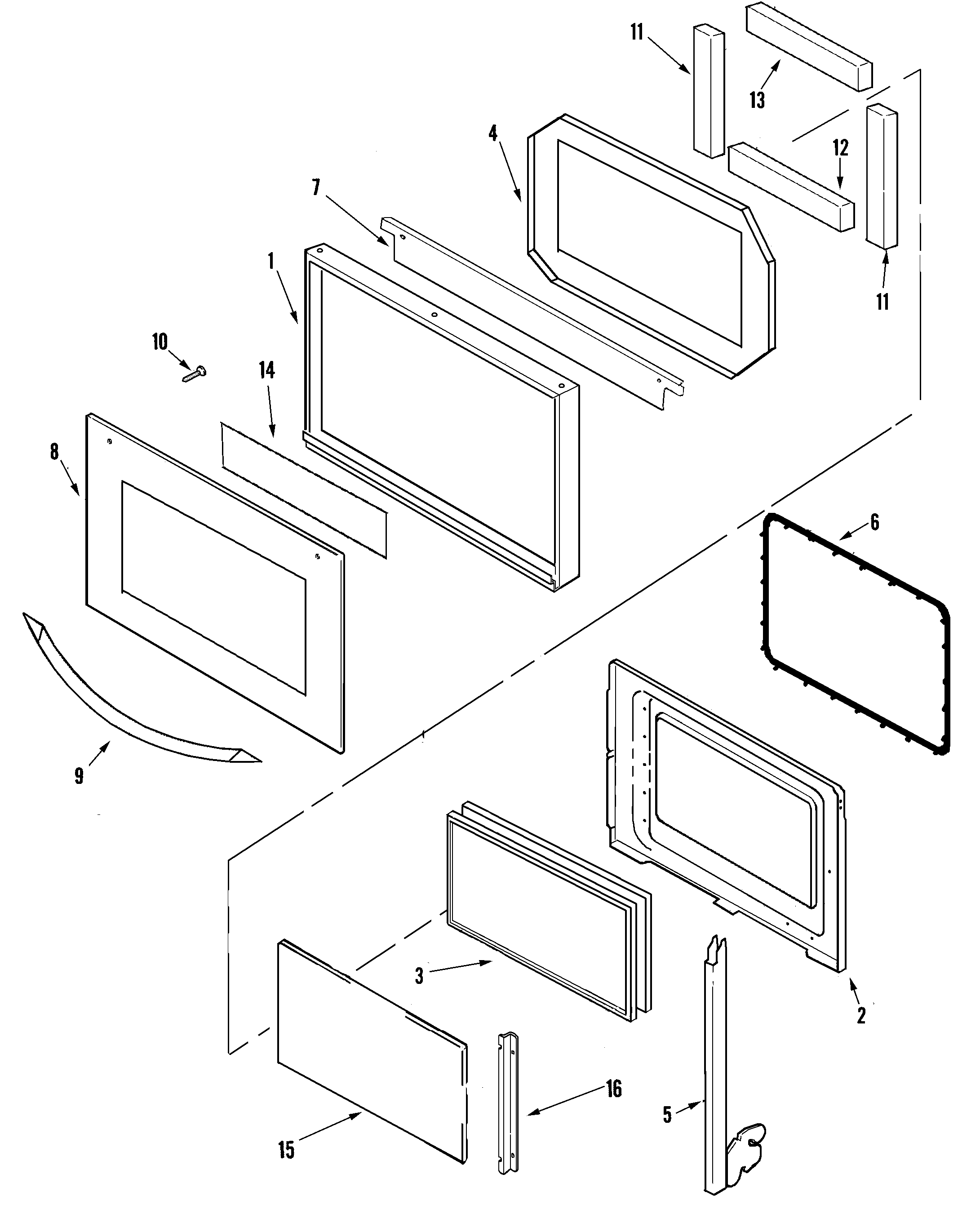

Manufacturer substitutionThis part replaces 74008014. Substitute parts can look different from the original.In Stock$99.2027% OFF Was : $135.63QtyDoor diagram
Wall Oven Door Seal
Part #71001841Replaced by #WP71001841
Manufacturer substitutionThis part replaces 71001841. Substitute parts can look different from the original.In Stock$100.9011% OFF Phone Price : $112.90QtyControl panel and internal controls diagram
Terminal Nut
Part #7103P027-60Replaced by #WP7103P027-60
Manufacturer substitutionThis part replaces 7103P027-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyOven diagram
Screw
Part #74003976Replaced by #WP74003976
Manufacturer substitutionThis part replaces 74003976. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyOven diagram
Oven Rack
Part #71001862Replaced by #WPW10282527

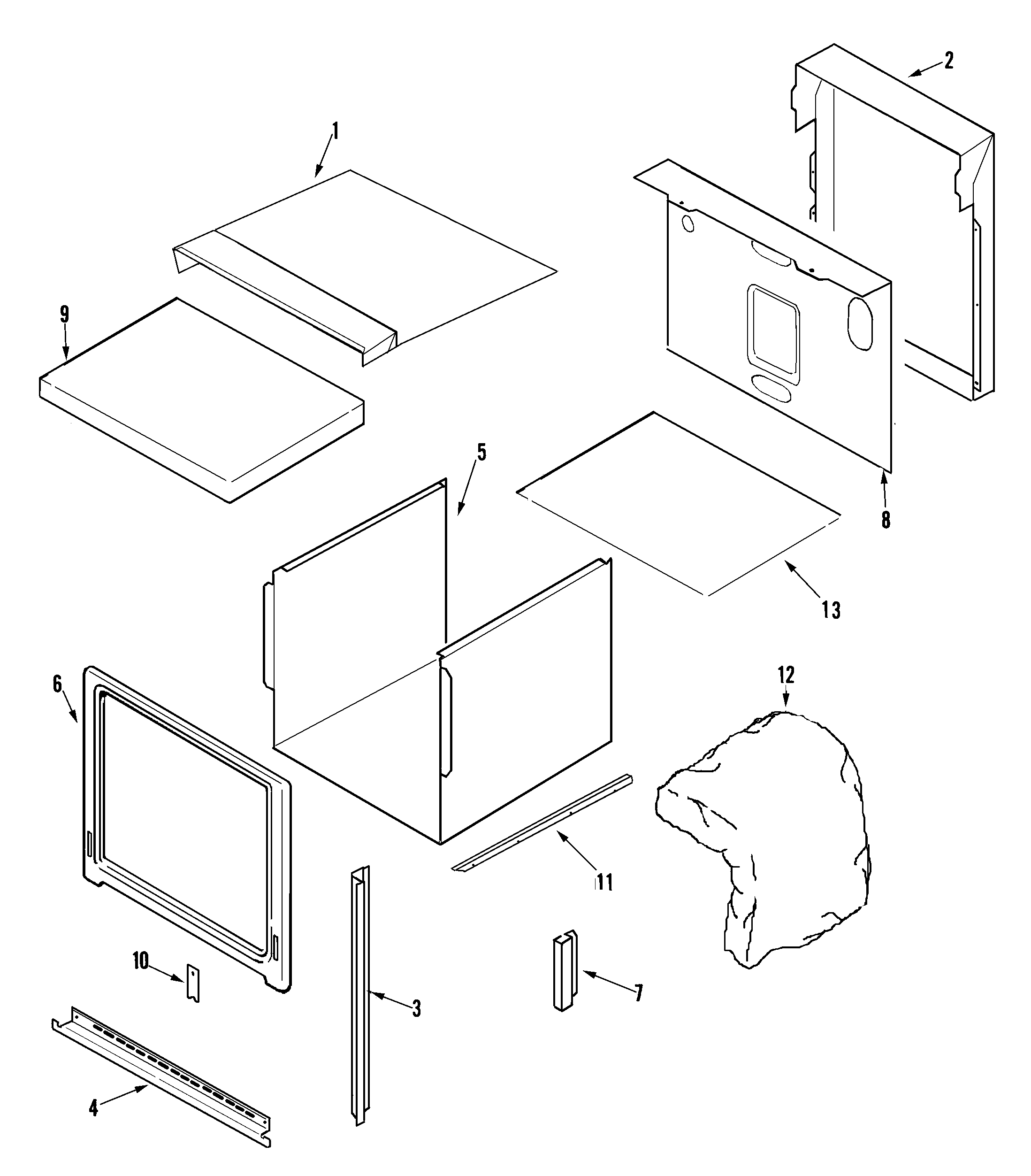

Manufacturer substitutionThis part replaces 71001862. Substitute parts can look different from the original.In Stock$69.8430% OFF Was : $100.13QtyBody diagram
Oven Door Hinge Receiver
Part #74008015Replaced by #WP74008015
Manufacturer substitutionThis part replaces 74008015. Substitute parts can look different from the original.In Stock$203.546% OFF Phone Price : $215.54QtyOven diagram
Oven Rack
Part #71001865Replaced by #WPW10282527
Manufacturer substitutionThis part replaces 71001865. Substitute parts can look different from the original.In Stock$69.8430% OFF Was : $100.13QtyControl panel and internal controls diagram
Oven Door Switch
Part #74008263Replaced by #WP74008263
Manufacturer substitutionThis part replaces 74008263. Substitute parts can look different from the original.In Stock$133.18Qty
