GE ZBD6920V00SS dishwasher Parts

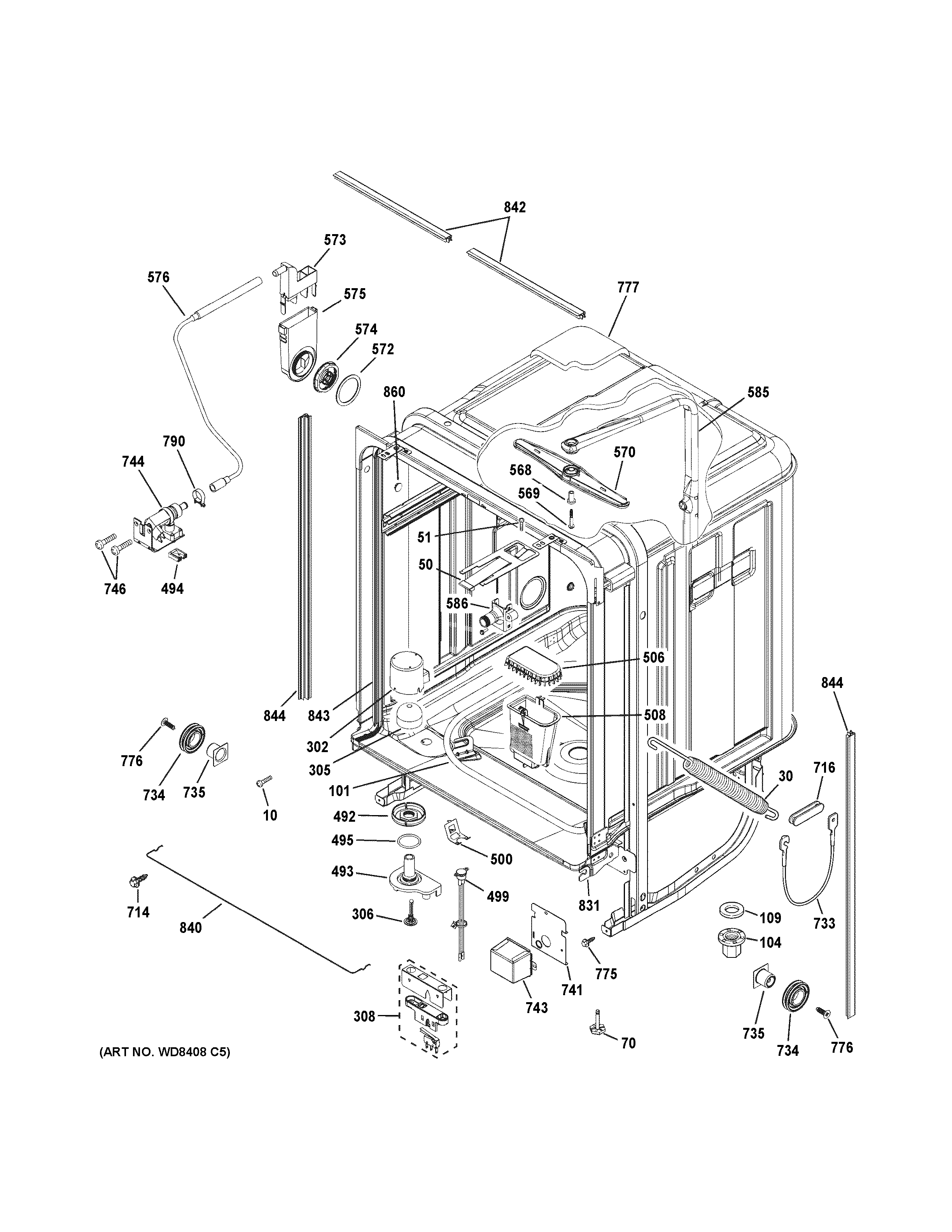

On your GE dishwasher model ZBD6920V00SS, the model number is printed on the rating label located just inside the door opening, typically along the left-hand side of the tub frame. Open the door fully and read the label for both the model and serial number.

Where to look (fast checklist)

• Open the dishwasher door and look around the inner door opening.
• Check the tub frame edge (most often the left side).
• Look for a rectangular rating label with MODEL and SERIAL fields.
• Wipe the label gently if it is cloudy or greasy.
• Write the model number exactly as shown (letters and numbers).

What the label helps you do

Having the correct model number lets us match the right GE parts and instructions for your exact dishwasher, including items like the door seal, filters, and pump components.

You need	What to use it for
Model number (example: ZBD6920V00SS)	Correct parts lookup and diagrams
Serial number	Production details and version-specific fit

Why it matters

GE dishwashers can look similar across multiple series, but parts like a dishwasher door seal or dishwasher filter can vary by model. Using the rating label prevents ordering the wrong part and helps repairs go smoothly. For additional identification and installation details, use the ZBD6920V00SS installation guide.

Last updated: February 2026

On the GE ZBD6920V00SS dishwasher, replacing the filter is a quick maintenance job: remove the lower rack, lift out the old filter from the sump area, set the new filter in place, then twist it clockwise until it locks before reinstalling the rack. Use the steps in the ZBD6920V00SS owner’s manual for the exact filter style and orientation.

Steps to replace the filter

• Turn the dishwasher off; let the tub cool if it just ran.

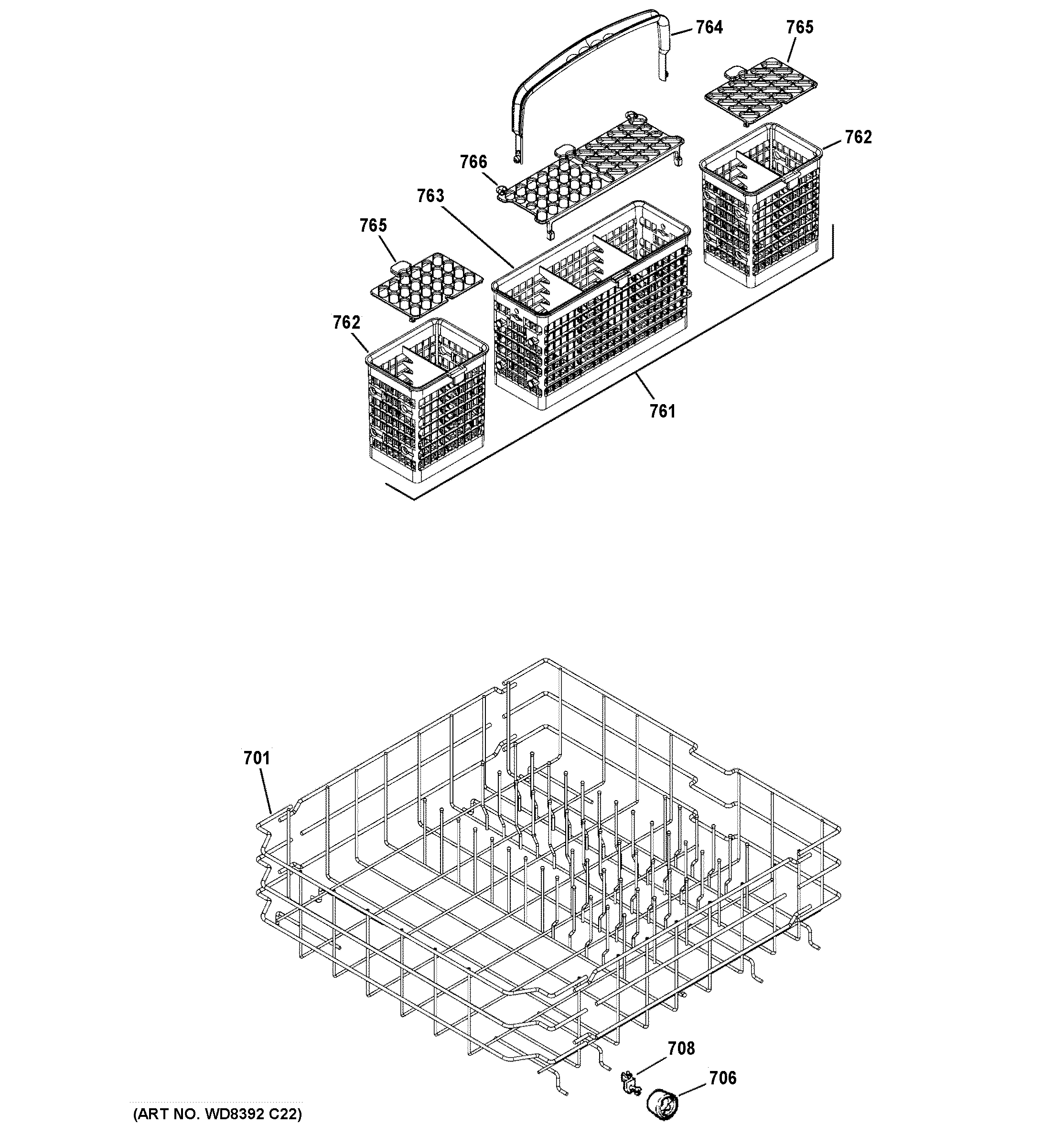

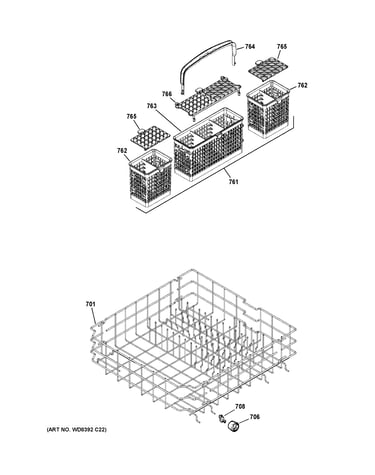

• Pull out and remove the lower rack for clear access.
• Locate the filter in the bottom sump area.
• Remove the filter (most GE filters lift out, then unlock with a short counterclockwise twist).
• Install the replacement filter; seat it fully, then twist clockwise until it locks.
• Reinstall the lower rack and run a short rinse cycle to confirm normal flow.

Which filter do I need for ZBD6920V00SS?

This model can use different filter pieces depending on the exact configuration. Match your existing filter by shape, tabs, and locking style.

What you see in the sump	What to do	Common result
A twist-lock filter assembly	Align tabs, push down, twist to lock	Better wash performance, fewer particles recirculating
A lift-out screen style	Seat flat and fully in the sump	Prevents debris from reaching the pump

If your current filter matches one of these parts, use the exact replacement: dishwasher filter WD22X10077 or dishwasher filter WD12X10109.

Why it matters

A clogged or mis-seated filter can cause poor cleaning, gritty residue, and slow draining because the circulation and drain paths rely on steady water flow through the sump.

Quick checks after replacement

• The filter sits flush and does not rock.
• The lock is fully engaged (it stops turning).
• Spray arms spin freely and are not blocked by tall items.
• No standing water remains after a cycle.

Last updated: February 2026

The most common GE dishwasher problem is a drain-related failure: the unit finishes with water left in the tub or drains slowly. On GE ZBD6920V00SS, this is usually caused by a restricted filter or drain path, or a weak drain pump, and it’s often fixed with cleaning and a quick drain-system check.

What to check first (fast, no parts)

• Turn off power at the breaker before inspecting anything under the unit.
• Clean the filter area and remove debris that can block water flow (food, labels, glass).
• Check the sink/disposer connection for a clog and confirm the knockout plug was removed (new disposer installs).
• Verify the drain hose routing: use an air gap when required, or secure a high drain loop under the countertop.
• Make sure the drain hose is not kinked, crushed, or rubbing on sharp cabinet edges.

Drain setup that causes “won’t drain” complaints

GE installation guidance is clear: if the drain hose connects to a waste tee or disposer lower than 18 inches above the floor, an air gap must be used; otherwise you need a proper high drain loop (32-inch minimum loop height). Use the routing diagrams and requirements in the installation guide.

Quick comparison: symptoms and likely causes

What you notice	Most likely cause	What usually fixes it
Standing water after cycle	Clogged filter or drain path	Clean filter area; clear hose/tee/disposer
Hums but little/no draining	Weak or jammed drain pump	Inspect for obstruction; replace pump if needed
Intermittent draining	Hose routing issue (no air gap/high loop)	Correct routing; secure loop
Leaks at the door	Worn seal or gasket	Replace seal/gasket; check alignment

When a part is commonly needed

If cleaning and hose routing are correct and the dishwasher still will not drain, the drain pump is a common repair.

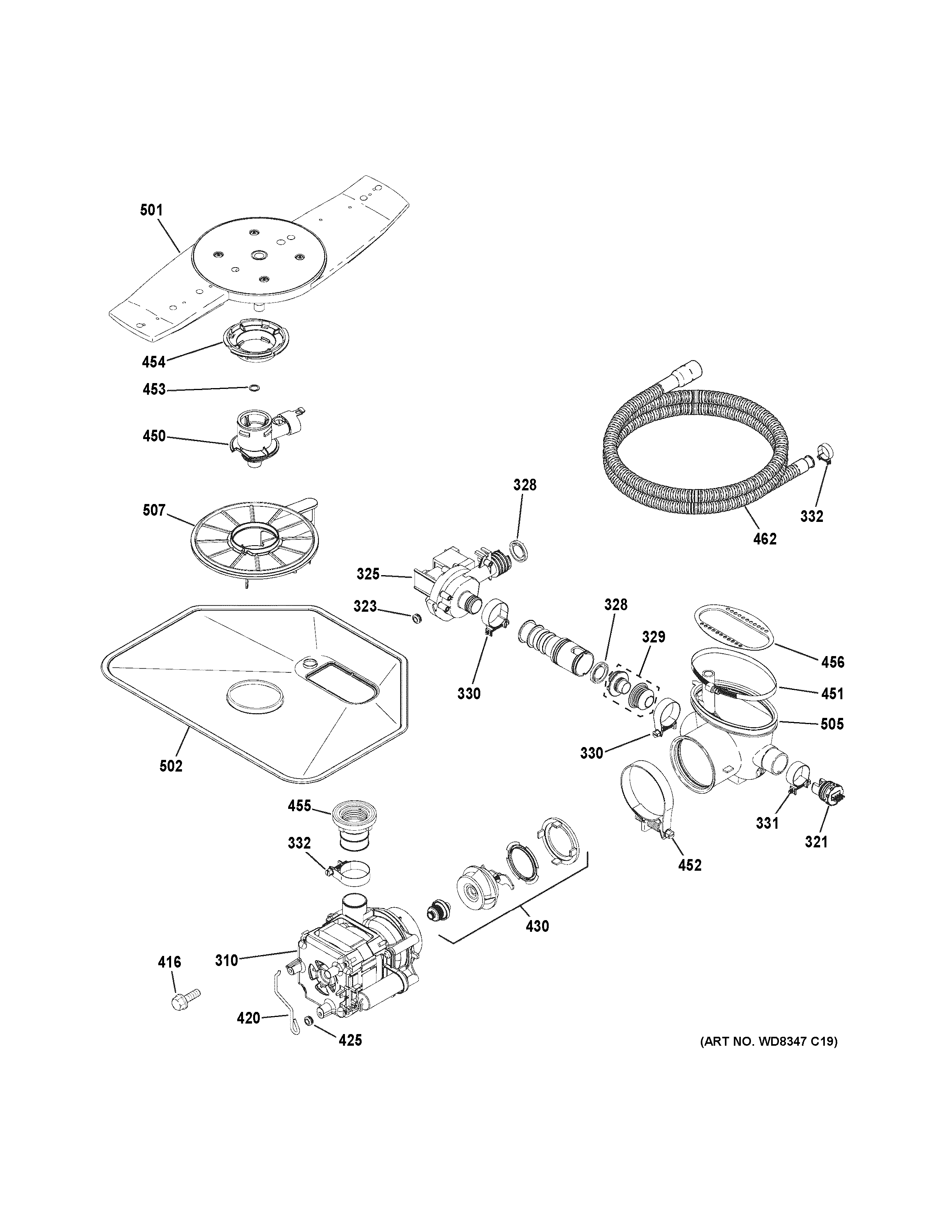

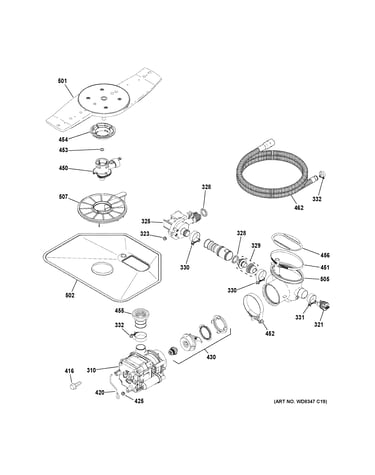

• For draining failures: consider the dishwasher drain pump WD26X10048.
• For poor wash performance that can mimic “drain issues”: check the dishwasher filter WD22X10077.

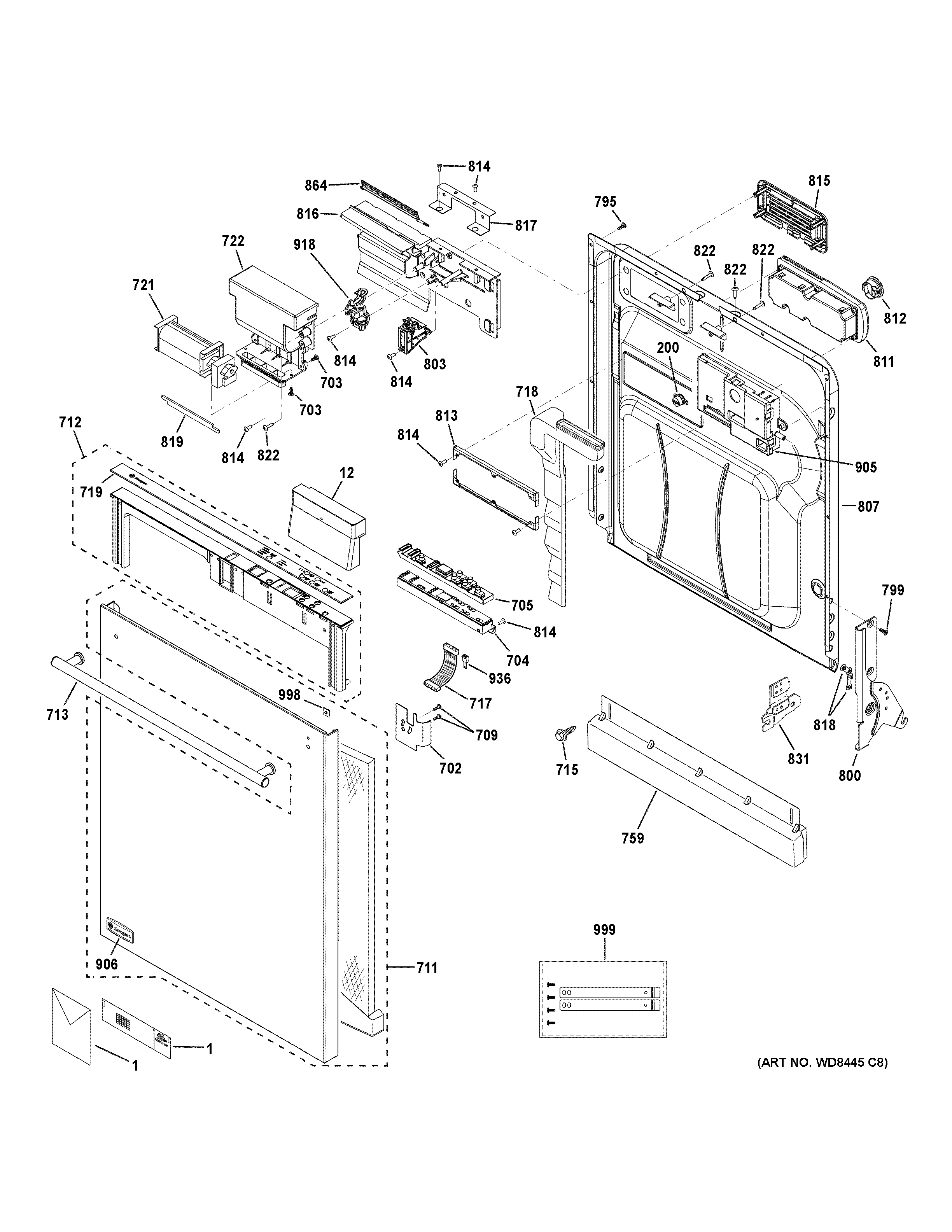

• For door leaks (another top complaint): inspect the dishwasher door seal WD08X10055 and tub sealing surfaces.

Why it matters

Drain restrictions can leave dirty water in the tub, cause odors, and make cycles seem “unfinished.” Correct drain hose height, an air gap or high loop, and a clean filter protect the pump and restore normal performance.

Last updated: February 2026
