Whirlpool
Electric Range

Model # YGY396LXPQ0 Official Whirlpool electric slide-in range

Here are the diagrams and repair parts for Official Whirlpool YGY396LXPQ0 electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |

Appliance Touch-up Paint 72017
#NI

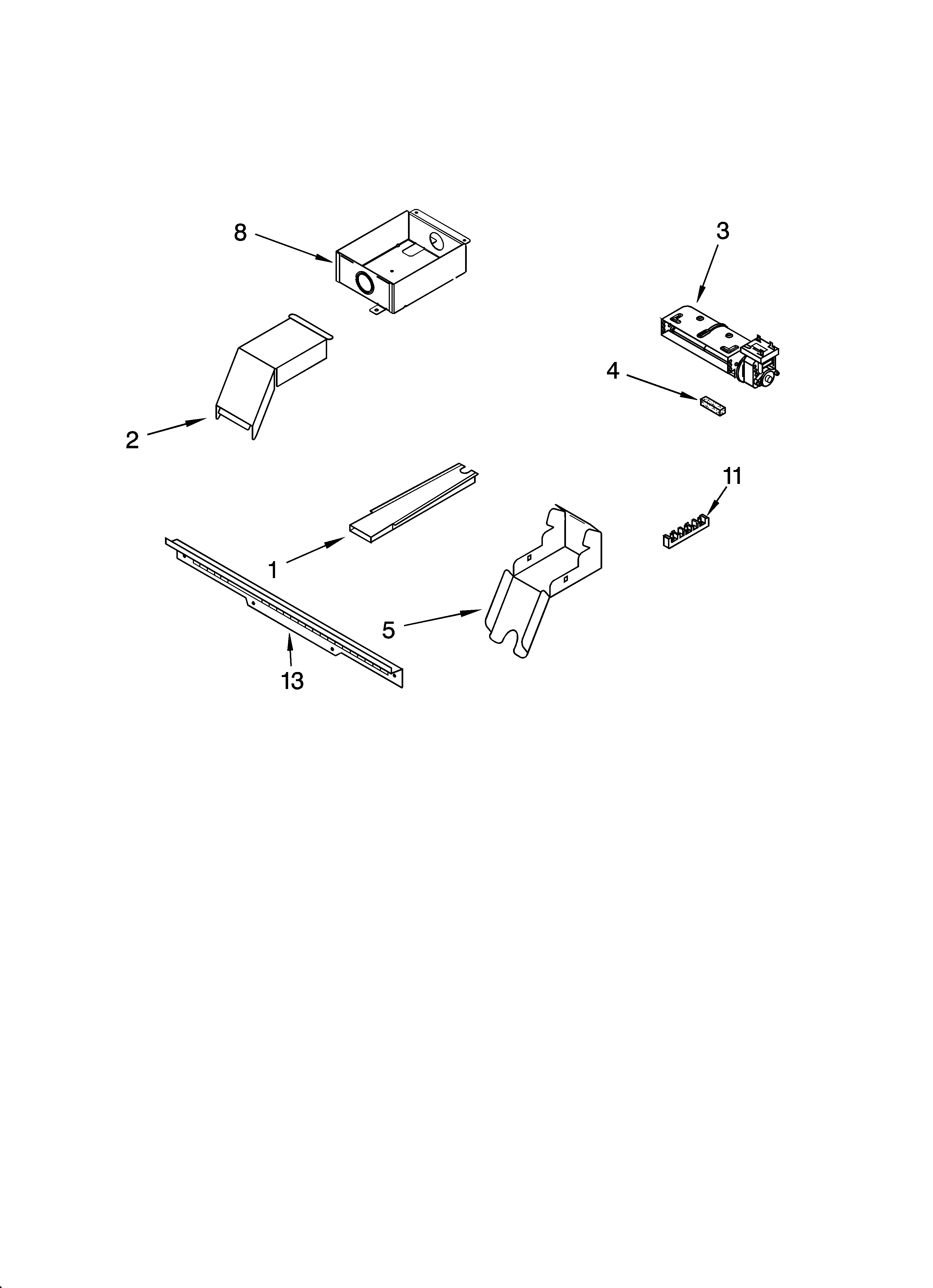

Top venting parts, optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Bake Element 4452153
#7

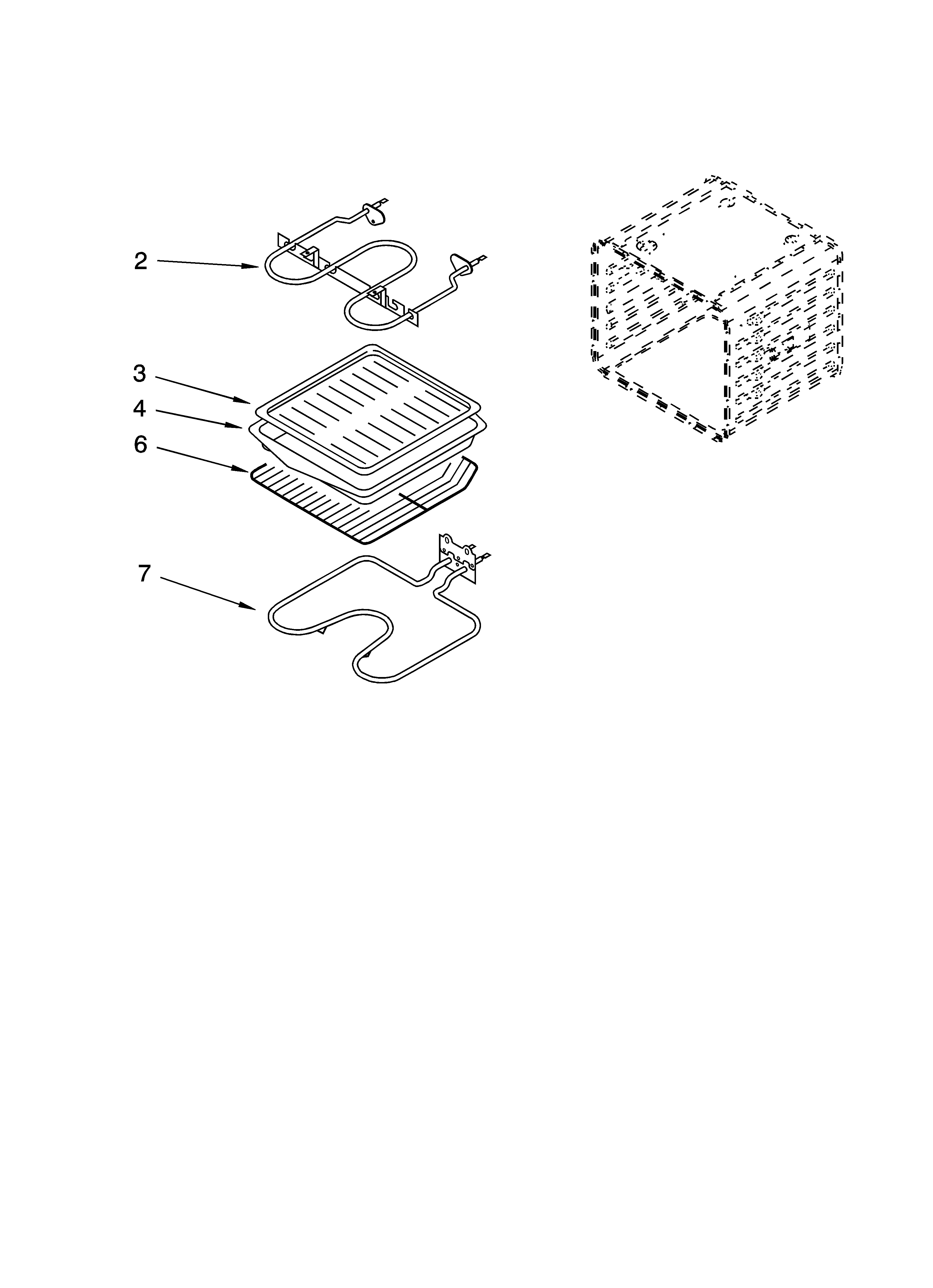

Internal oven parts diagram

Bake element

Part #4452153

Replaced by #WPW10207397

?
Manufacturer substitution
This part replaces 4452153. Substitute parts can look different from the original.
BEST SELLER
$60.97
16% OFF MSRP : $73.00
In Stock
Level Foot 312701
#11

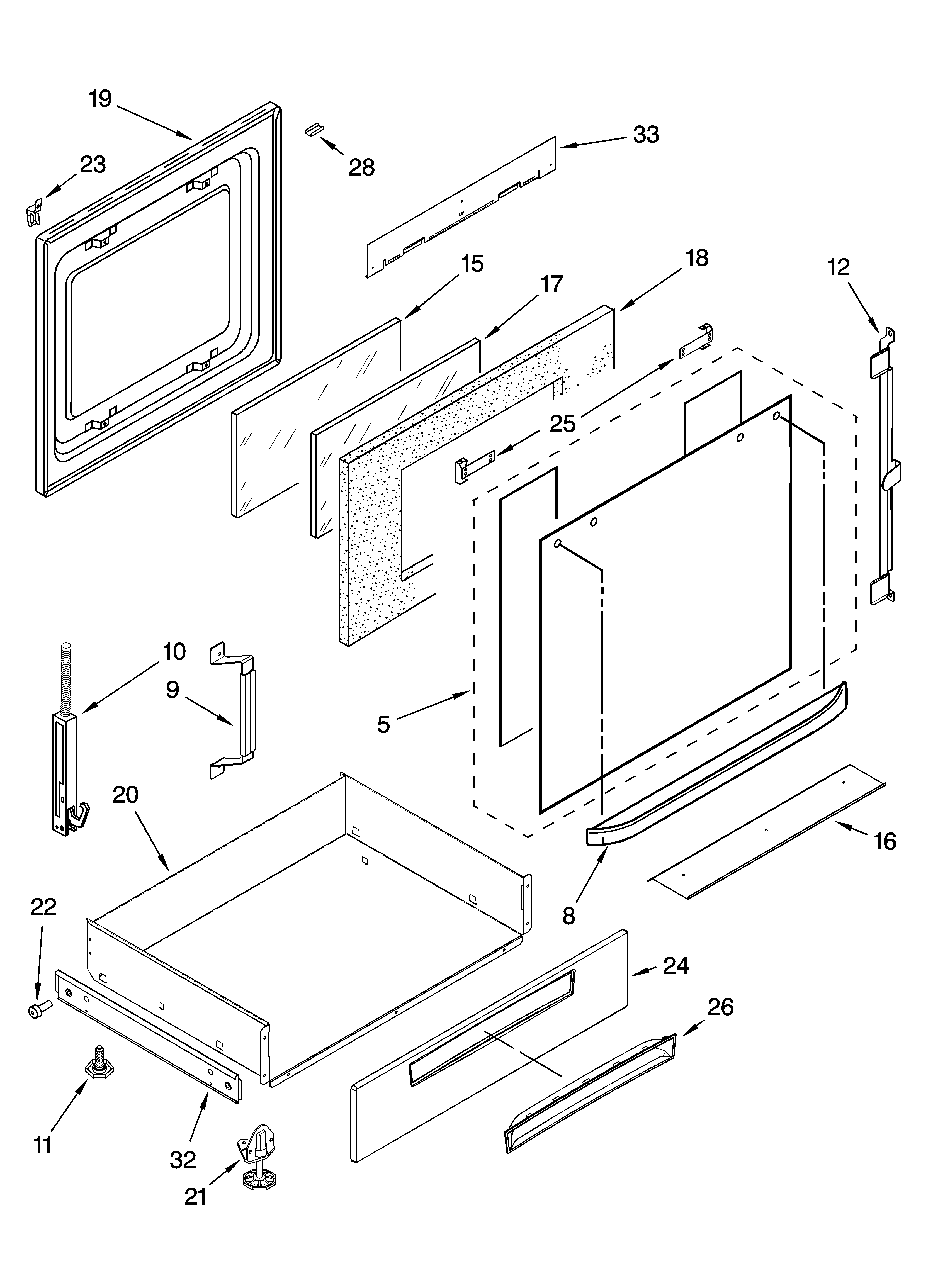

Door and drawer parts diagram

Level foot

Part #312701

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces 312701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.84
15% OFF Phone Price : $6.84
In Stock
Range Radiant Surface Element, 6-in 8523698
#12

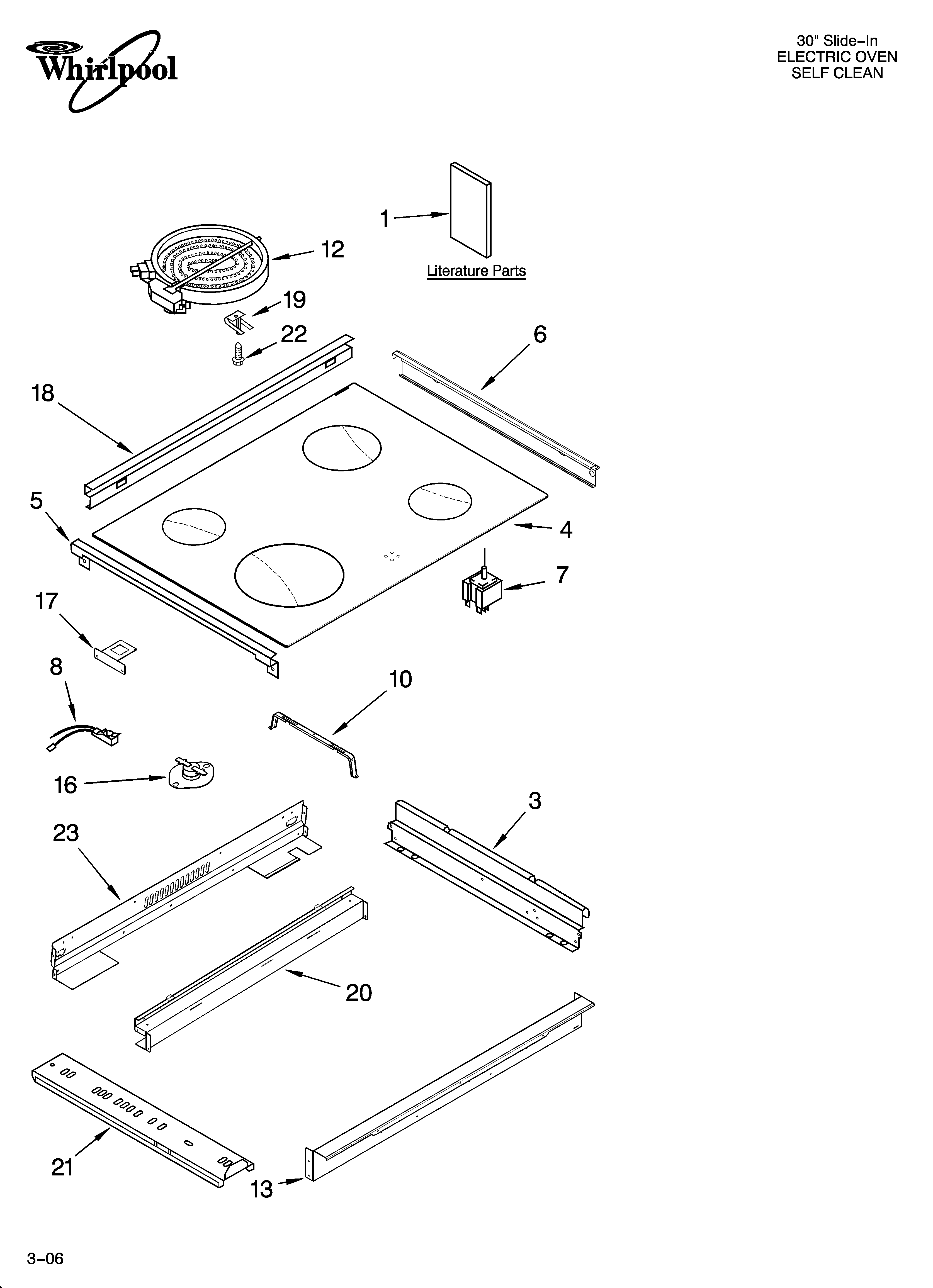

Cooktop parts diagram

Range radiant surface element, 6-in

Part #8523698

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 8523698. Substitute parts can look different from the original.
BEST SELLER
$184.51
5% OFF Phone Price : $194.51
In Stock
Light Lens 3196068
#5

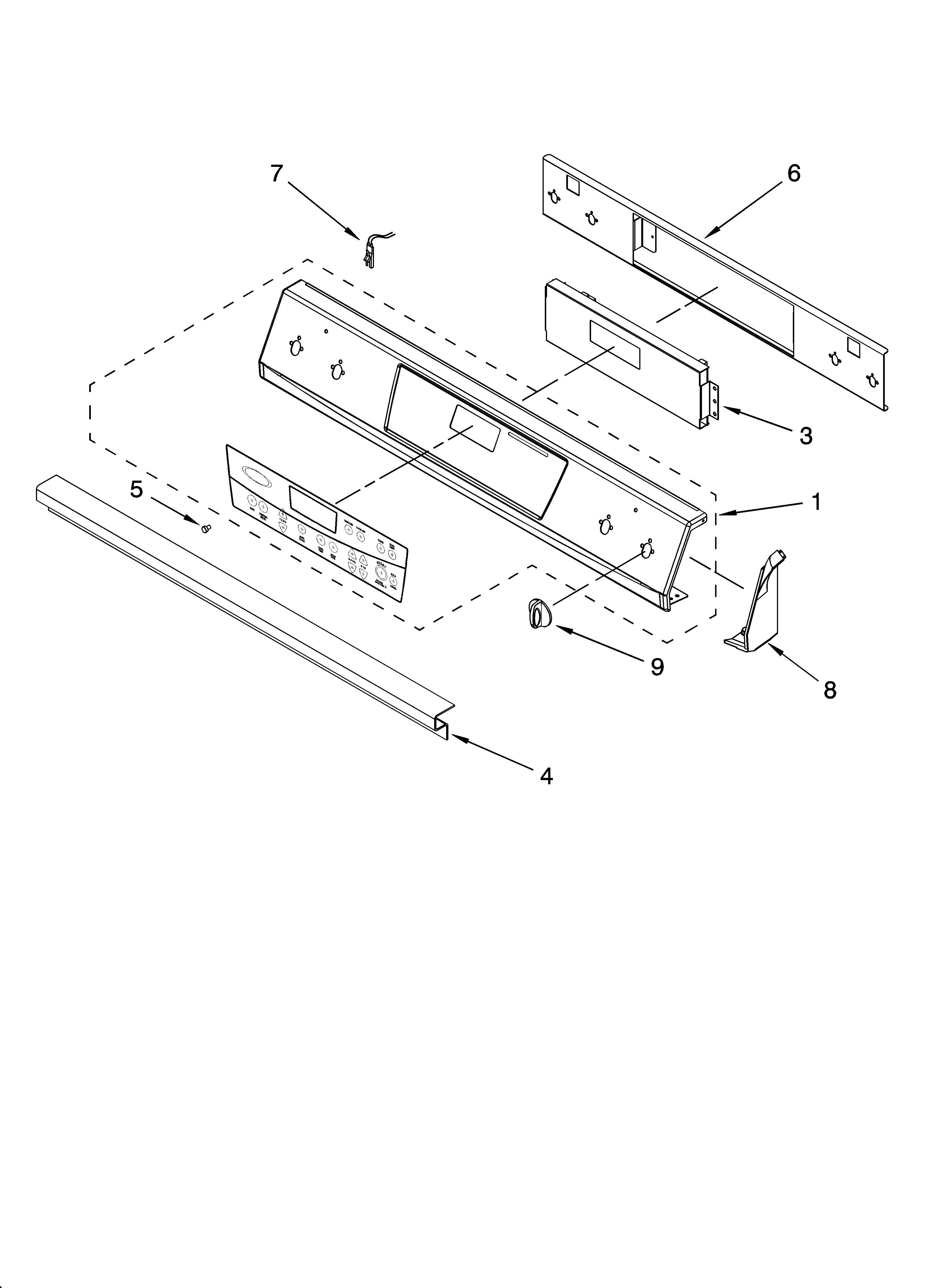

Control panel parts diagram

Light lens

Part #3196068

Replaced by #WP3196068

?
Manufacturer substitution
This part replaces 3196068. Substitute parts can look different from the original.
This item is not returnable
$4.99
17% OFF Phone Price : $5.99
In Stock
Broiler Element 4456103
#2

Internal oven parts diagram

Broiler element

Part #4456103

Replaced by #WP9760771

?
Manufacturer substitution
This part replaces 4456103. Substitute parts can look different from the original.
$76.62
9% OFF Was : $84.31
In Stock
Range High-limit Thermostat 4451442
#37

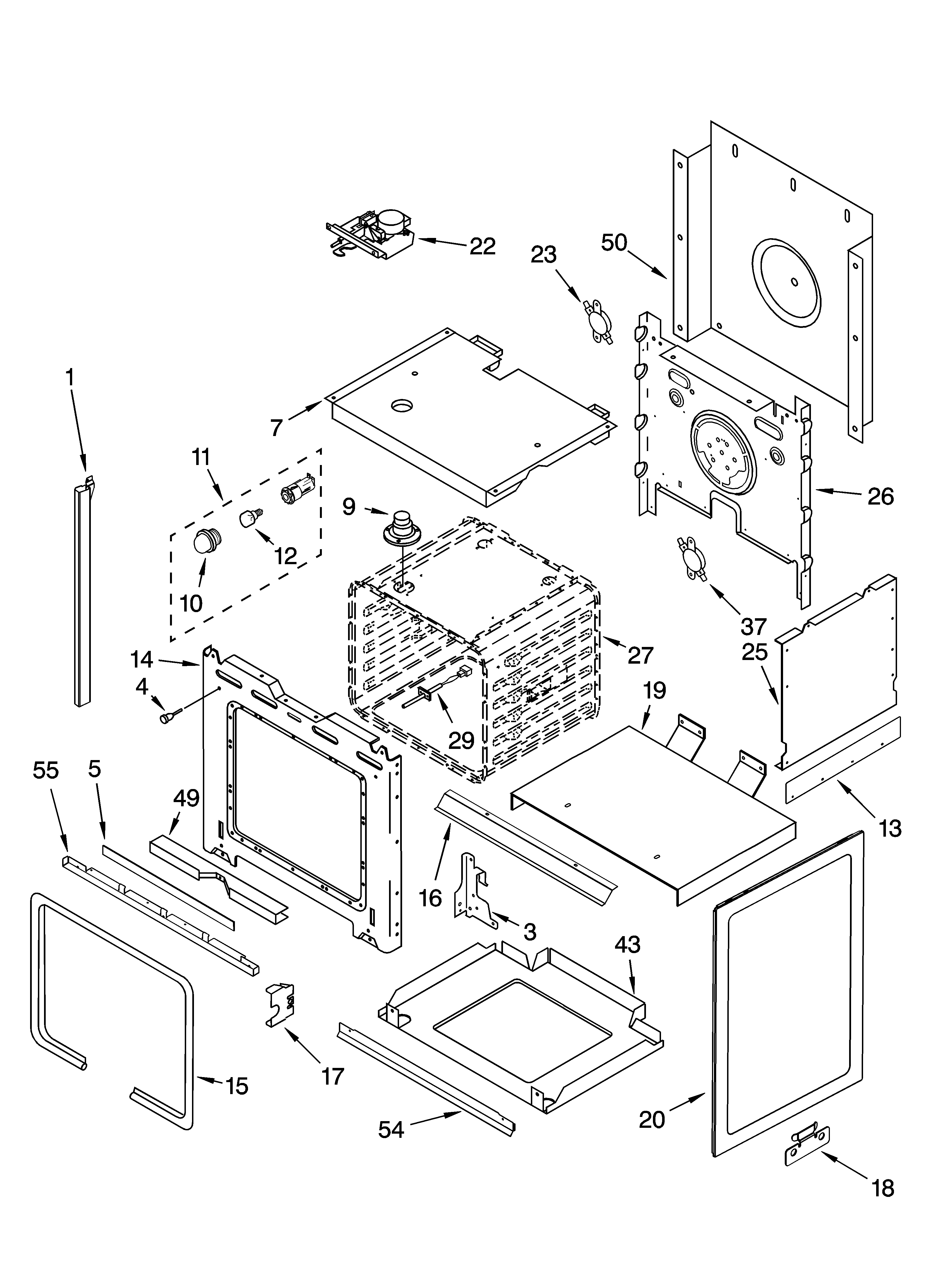

Oven parts diagram

Range high-limit thermostat

Part #4451442

Replaced by #WP9759243

?
Manufacturer substitution
This part replaces 4451442. Substitute parts can look different from the original.
$45.89
27% OFF MSRP : $63.00
In Stock
Range Oven Door Outer Panel (black) 9759641
#5A

Door and drawer parts diagram

Range oven door outer panel (black)

Part #9759641

Replaced by #WP9759641

?
Manufacturer substitution
This part replaces 9759641. Substitute parts can look different from the original.
$143.66
15% OFF MSRP : $170.00
In Stock
Range Oven Door Removal Hinge Pin Set (replaces 3186899, 3196897, 4448439) 814381
#NI

Top venting parts, optional parts (not included) diagram

Range oven door removal hinge pin set (replaces 3186899, 3196897, 4448439)

Part #814381

This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Screw 3196176
#9A

Oven parts diagram

Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
