Model # WL26CW2-96114A Official Fisher & Paykel washer

Here are the diagrams and repair parts for Official Fisher & Paykel WL26CW2-96114A washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Fisher & Paykel Washer Tub Ring Strap 420978P
#3

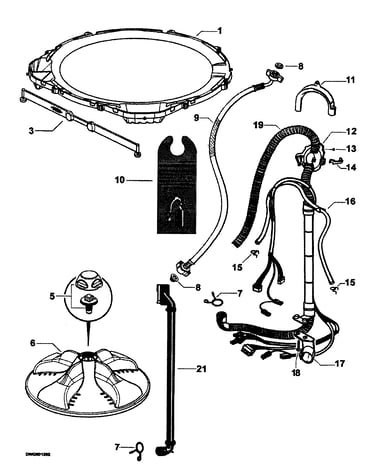

Agitator/hoses diagram

Fisher & paykel washer tub ring strap

Part #420978P

$12.41 |
14% OFF Phone Price : $14.41
In Stock
Fisher & Paykel Washer Agitator Cap And Bolt 421040P
#5

Agitator/hoses diagram

Fisher & paykel washer agitator cap and bolt

Part #421040P

This item is not returnable
$14.73 |
12% OFF Phone Price : $16.73
In Stock
Fisher & Paykel Washer Seal 479420
#20

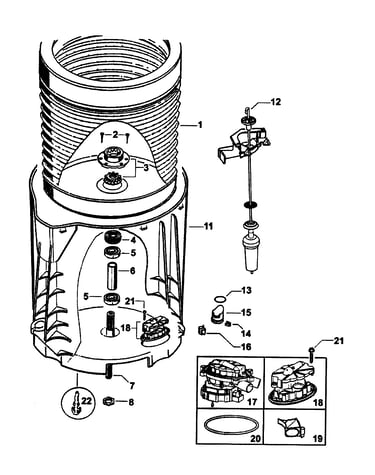

Inner/outer bowls/drain pump diagram

Fisher & paykel washer seal

Part #479420

$7.15 |
12% OFF Phone Price : $8.15
In Stock
Washer Suspension Rod Kit 421127P
#12

Inner/outer bowls/drain pump diagram

Washer suspension rod kit

Part #421127P

Replaced by #424495P

?
Manufacturer substitution
This part replaces 421127P. Substitute parts can look different from the original.
$193.31 |
5% OFF Phone Price : $203.31
In Stock
Fisher & Paykel Washer Drain Pump Bellows O-ring 425149
#13

Inner/outer bowls/drain pump diagram

Fisher & paykel washer drain pump bellows o-ring

Part #425149

$15.49 |
11% OFF Phone Price : $17.49
In Stock
Fisher & Paykel Washer Lid 478070P
#21

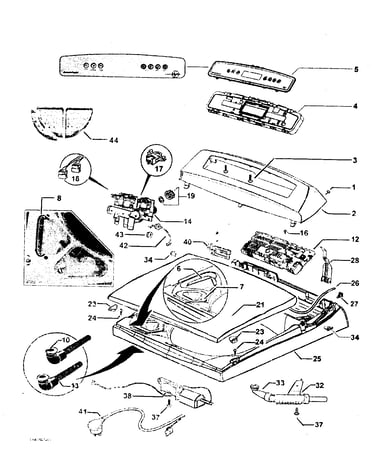

Top deck/electronics diagram

Fisher & paykel washer lid

Part #478070P

$194.13 |
5% OFF Phone Price : $204.13
In Stock
Recirculation Hose 420514
#21

Agitator/hoses diagram

Recirculation hose

Part #420514

Replaced by #420514P

?
Manufacturer substitution
This part replaces 420514. Substitute parts can look different from the original.
$20.42 |
20% OFF Phone Price : $25.42
In Stock
Fisher & Paykel Washer Tub Bearing Spacer 425007
#6

Inner/outer bowls/drain pump diagram

Fisher & paykel washer tub bearing spacer

Part #425007

$18.39
In Stock
Fisher & Paykel Kit Blower Fixtures 611812P
#24

Top deck/electronics diagram

Fisher & paykel kit blower fixtures

Part #611812P

$7.15 |
12% OFF Phone Price : $8.15
In Stock
Fisher & Paykel Dryer Screw 611933P
Fisher & paykel dryer screw

Part #611933P

$7.15 |
12% OFF Phone Price : $8.15
In Stock
