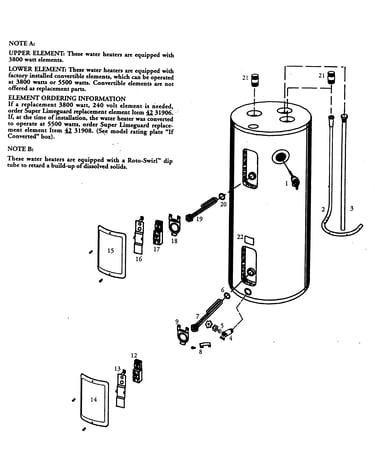

Kenmore 153326461 water heater Parts

Most electric water heaters last 10 to 15 years. For a Kenmore electric water heater like model 153326461, lifespan depends mainly on water quality, maintenance (especially anode rod condition), and whether heating elements and thermostats stay in good shape; see the 153326461 owner's manual for care and maintenance guidance.

• 10 to 15 years is the normal service life for a residential electric tank water heater.
• Hard water and heavy hot-water use shorten life.
• Regular tank draining and anode rod replacement extend life.
• Overheating events (high-limit trips) can stress components.
• Leaks from the tank itself usually mean replacement, not repair.

• Rust-colored hot water or metallic odor
• Rumbling or popping sounds (sediment buildup)
• Not enough hot water or slow recovery
• Water temperature swings
• Moisture or corrosion around the base of the tank

Replacing wear parts can restore performance, but it does not “reset” the tank’s age.

Once a tank water heater passes about 10 years, planning ahead helps avoid a no-hot-water emergency and reduces the risk of water damage from a sudden tank leak. Keeping the temperature set reasonably and maintaining the anode rod are the biggest lifespan drivers.

Last updated: January 2026

A 20-gallon tank can handle a single shower, but it is tight; most households get better shower comfort from a 30 to 50-gallon electric water heater. With Kenmore model 153326461, the real limit is how fast the tank recovers and your shower’s flow rate.

A typical shower uses about 2.0 to 2.5 GPM. That means a 10-minute shower can use 20 to 25 gallons of mixed water (hot plus cold). If your incoming cold water is very cold, you will use more hot water to reach a comfortable temperature.

Common outcomes with 20 gallons:

• One short shower is usually fine.
• Long showers often turn lukewarm near the end.
• Back-to-back showers usually require recovery time.
• Low-flow showerheads extend hot-water time.

Use the 153326461 owner’s manual to confirm your thermostat settings and troubleshooting steps for “not enough hot water.”

If showers are going cold, these are the most common causes:

• Thermostat set too low or out of calibration
• One heating element not heating (upper or lower)
• Sediment buildup reducing usable hot water
• A failing thermostat or loose wiring connection
• A leaking hot-water fixture or crossover mixing hot and cold

If testing shows a failed component, these model-matched parts are commonly involved:

• Thermostat 100108424 (temperature control)
• Element 100108346 (heating performance)

An undersized tank causes temperature swings and frequent recovery cycles, which feels like “running out” of hot water even when the heater is working normally.

Last updated: January 2026

On a Kenmore electric water heater model 153326461, a bad power switch or disconnect (or a loose connection at that switch) commonly shows up as buzzing or crackling, heat discoloration, intermittent power to the heater, or a burning smell. Turn power off before inspecting any wiring.

• Buzzing, humming, or crackling from the switch or electrical box (often from loose terminals or worn contacts)
• Switch feels hot to the touch, looks melted, or shows scorch marks
• Hot water comes and goes (heater loses power intermittently)
• Breaker trips or a fuse blows when the heater tries to run
• Burning odor near the switch, junction box, or conduit

We see these issues confused often on electric water heaters:

If power is reaching the water heater, the issue is often inside the unit. For model 153326461, common service items include the thermostat 100108424 and the element 100108346. Use the 153326461 owner's manual for access-panel removal, insulation handling, and the high-limit reset procedure.

A failing switch or loose electrical connection can overheat and damage wiring, and it can also mimic “no hot water” symptoms that are actually caused by a thermostat, heating element, or the high-temperature limit shutting the heater down.

Last updated: January 2026

Yes. On the Kenmore 153326461 electric water heater, you can replace a thermostat as long as you shut off power first, keep the thermostat flush to the tank, and reinstall the terminal cover and insulation before restoring power. Use the 153326461 owner's manual for the exact access-panel and wiring details.

• Turn OFF power at the breaker before opening any access panel.
• Confirm the tank is completely full of water before turning power back on.
• Keep the thermostat flush against the tank for accurate temperature sensing.
• Reinstall the terminal cover and insulation block/pad before energizing.
• Tighten terminal screws securely; loose connections can overheat.

1. Shut off electrical power.
2. Remove the access panel and insulation.
3. Note wire positions, then disconnect wires from the old thermostat.
4. Install the new thermostat so it sits flat against the tank.
5. Reconnect wiring, reinstall the terminal cover, insulation, and access panel.
6. Restore power only after the tank is full and water flows from a hot faucet.

If you are already inside the access area, these parts are often replaced at the same time when symptoms point to overheating, no hot water, or inconsistent temperatures:

A thermostat that is not mounted correctly or is left uncovered can misread tank temperature and trip the high-limit reset, or create unsafe wiring heat at the terminals. Setting the temperature around 120°F helps reduce scald risk and saves energy.

Last updated: January 2026
