Model #1068242050 Official Kenmore upright freezer
Here are the diagrams and repair parts for Kenmore 1068242050 upright freezer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

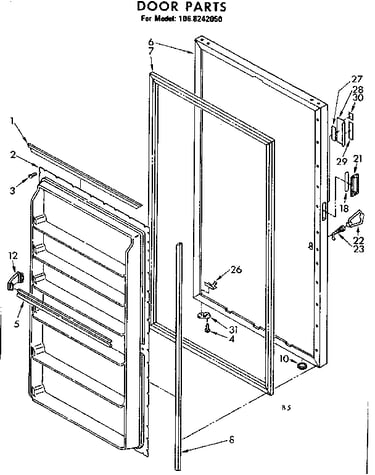

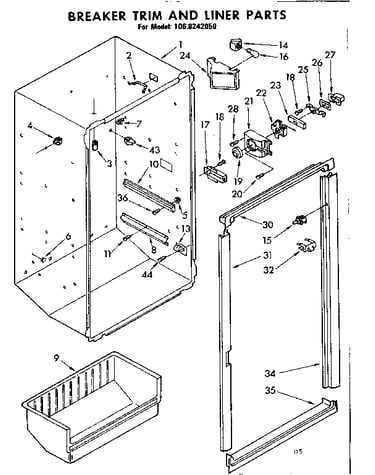

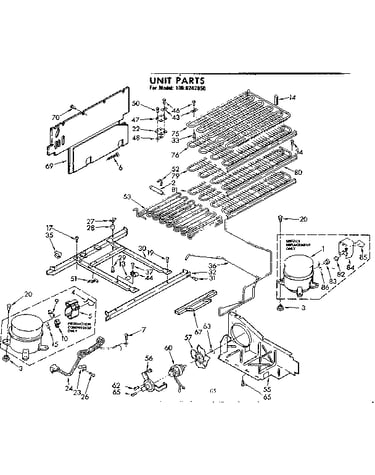

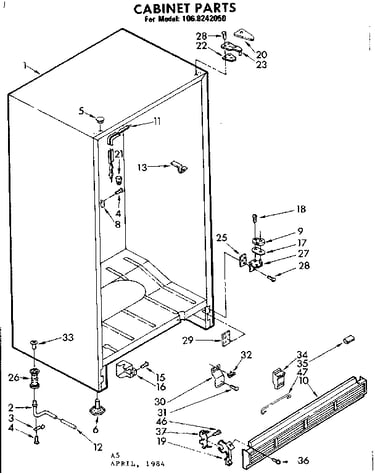

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 170 parts
Light bulb
Part #527949
Replaced by #40A15
?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
Back Order
$16.43 |
11% OFF
Phone Price: $18.43
Closure (white)
Part #986759
Replaced by #WPW10329686
?
Manufacturer substitution
This part replaces 986759. Substitute parts can look different from the original.
In Stock
$7.53 |
12% OFF
Phone Price: $8.53
#NI
All parts Diagram
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
#NI
All parts Diagram
Touch-up paint (white)
Part #799343
Replaced by #350930
?
Manufacturer substitution
This part replaces 799343. Substitute parts can look different from the original.
This item is not returnable
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Closure (white)
Part #986758
Replaced by #4318165
?
Manufacturer substitution
This part replaces 986758. Substitute parts can look different from the original.
In Stock
$8.90 |
48% OFF
MSRP: $17.00
#NI
All parts Diagram
Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)
Part #72032
This item is not returnable
In Stock
$5.37 |
42% OFF
MSRP: $9.30
Recommended maintenance parts and accessories
In Stock
$5.37 |
42% OFF
MSRP: $9.30
In Stock
$50.09 |
9% OFF
Phone Price: $55.09
In Stock
$25.09 |
17% OFF
Phone Price: $30.09
Symptoms common to all freestanding freezers
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
Repair guides for upright freezers
A freezer control panel that doesn’t show the temperature or respond when you press the buttons could be broken. This DIY repair guide and video show how to replace a freezer control panel in less than 15 minutes.
Repair difficulty
Time required
15 minutes or less
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to replace a defective freezer door switch.
Repair difficulty
Time required
15 minutes or less
When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follow these step-by-step instructions to replace a defective freezer thermistor.
Repair difficulty
Time required
45 minutes or less
