Kenmore 6289427910 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289427910 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 6289427910 Ranges

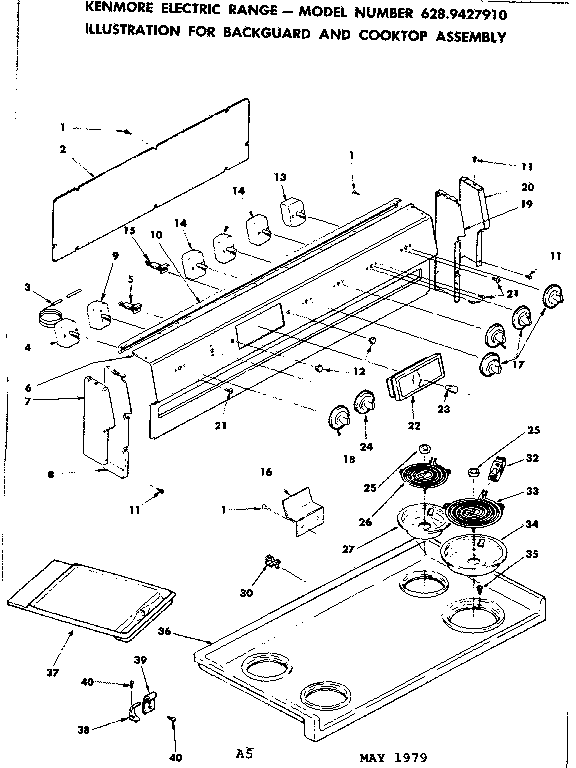

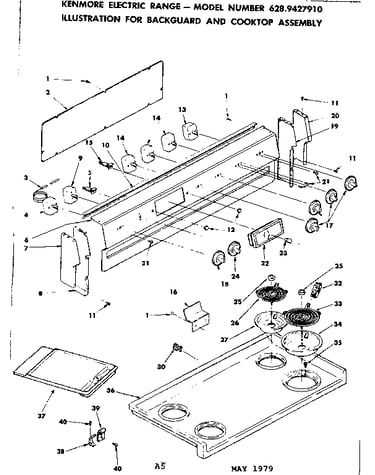

Backguard and cooktop assembly diagram
Surface Unit
Part #1314950Replaced by #318372210
Manufacturer substitutionThis part replaces 1314950. Substitute parts can look different from the original.In Stock$51.6910% OFF Phone Price : $57.69
Qty
Range Screw

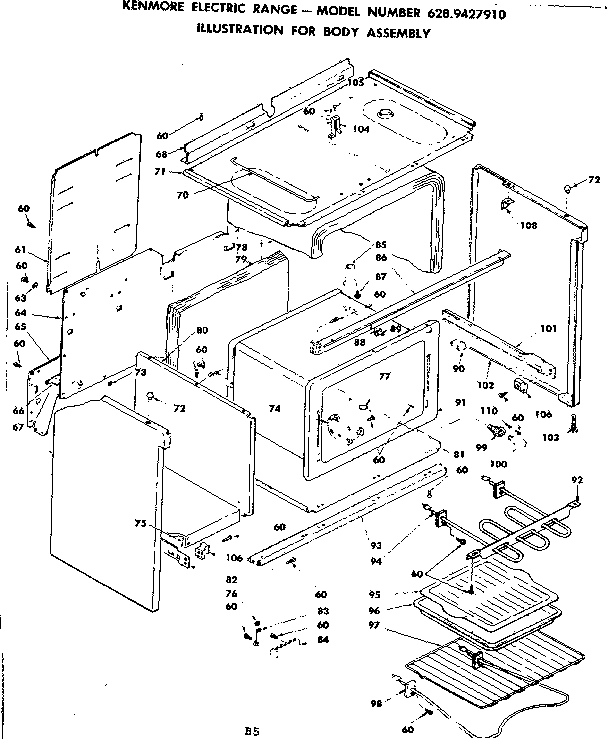

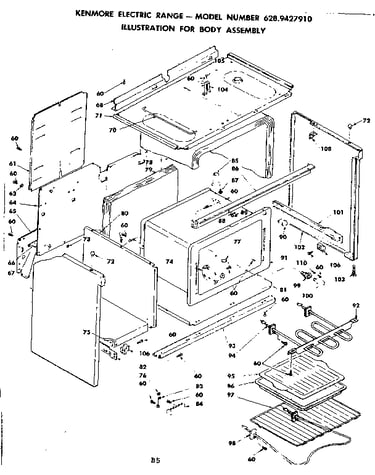

Part #1164479This item is not returnableIn Stock$3.3023% OFF Phone Price : $4.30QtyBody assembly diagram
Broiler Grid
Part #1317972Replaced by #5304442087
Manufacturer substitutionThis part replaces 1317972. Substitute parts can look different from the original.In Stock$45.3612% OFF Phone Price : $51.36QtyBody assembly diagram
Drawer Guide
Part #1315216Replaced by #318161600
Manufacturer substitutionThis part replaces 1315216. Substitute parts can look different from the original.In Stock$112.09QtyBackguard and cooktop assembly diagram
Clock-60c
Part #1318979Replaced by #5305335801
Manufacturer substitutionThis part replaces 1318979. Substitute parts can look different from the original.In Stock$216.20QtyBody assembly diagram
Drawer Rail
Part #1315218Replaced by #318161600

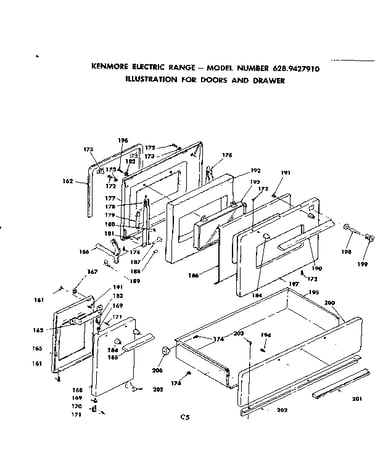

Manufacturer substitutionThis part replaces 1315218. Substitute parts can look different from the original.In Stock$112.09QtyDoors and drawer diagram
Door Hinge
Part #1311258Replaced by #5301311258
Manufacturer substitutionThis part replaces 1311258. Substitute parts can look different from the original.In Stock$27.51QtyBody assembly diagram
Terminal Block
Part #1189558Replaced by #5304409888
Manufacturer substitutionThis part replaces 1189558. Substitute parts can look different from the original.In Stock$25.3019% OFF Phone Price : $31.30QtyBackguard and cooktop assembly diagram
Hinge Pin
Part #1315631Replaced by #5301315631
Manufacturer substitutionThis part replaces 1315631. Substitute parts can look different from the original.In Stock$49.93QtyBody assembly diagram
Washer
Part #STD551025Replaced by #STD551025
Manufacturer substitutionThis part replaces STD551025. Substitute parts can look different from the original.In Stock$36.61Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
