GE
Water Softener

Model # PNSF31Z01 Official GE water treatment equipment

Here are the diagrams and repair parts for Official GE PNSF31Z01 water treatment equipment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

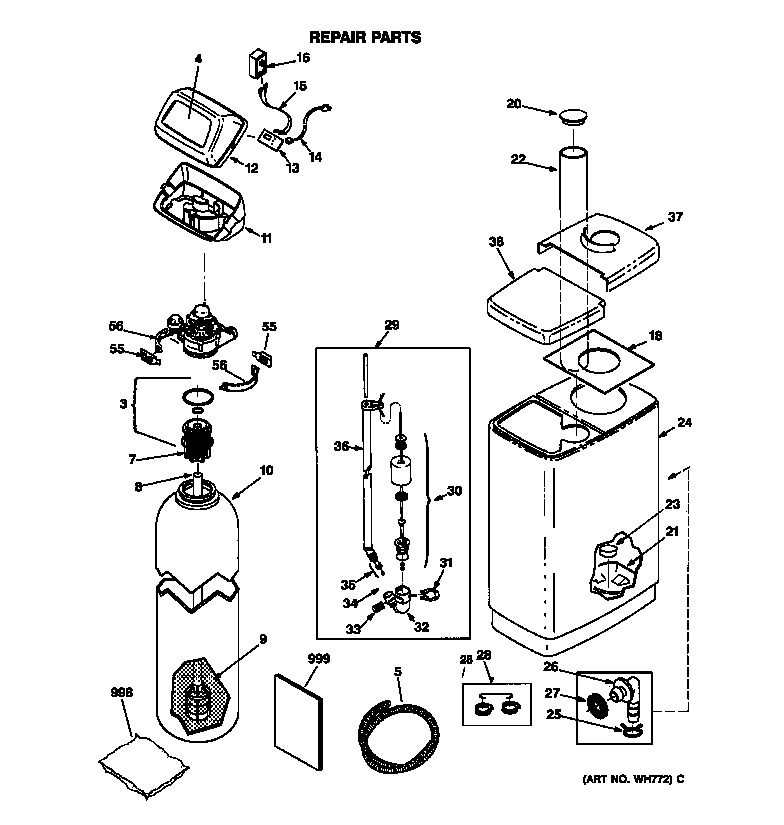

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Seal Kit WS35X10005
#130

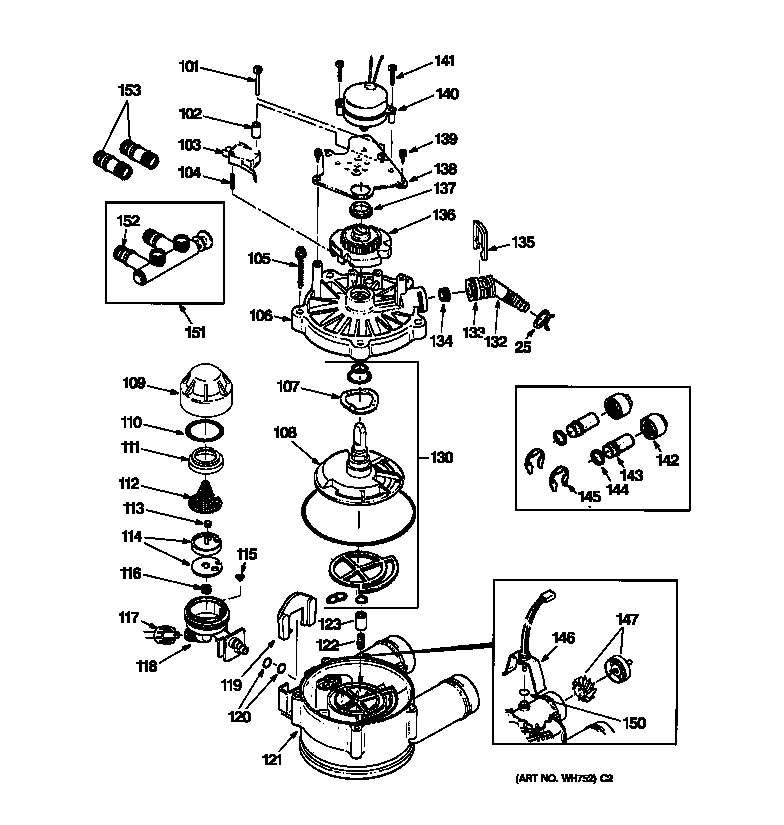

Pump diagram

Seal kit

Part #WS35X10005

Replaced by #7129716

?
Manufacturer substitution
This part replaces WS35X10005. Substitute parts can look different from the original.
BEST SELLER
$41.53 |
11% OFF Phone Price : $46.53
In Stock
Bypass Valve WS15X10012
#151

Pump diagram

Bypass valve

Part #WS15X10012

Replaced by #7129871

?
Manufacturer substitution
This part replaces WS15X10012. Substitute parts can look different from the original.
BEST SELLER
$51.70 |
9% OFF Phone Price : $56.70
In Stock
Switch WS21X10003
#103

Pump diagram

Switch

Part #WS21X10003

Replaced by #7030713

?
Manufacturer substitution
This part replaces WS21X10003. Substitute parts can look different from the original.
BEST SELLER
$25.16 |
17% OFF Phone Price : $30.16
In Stock
Rotor Disc WS26X10002
#108

Pump diagram

Rotor disc

Part #WS26X10002

Replaced by #7199232

?
Manufacturer substitution
This part replaces WS26X10002. Substitute parts can look different from the original.
BEST SELLER
$62.50 |
7% OFF Phone Price : $67.50
In Stock
Cover Plate WS31X10006
#106

Pump diagram

Cover plate

Part #WS31X10006

Replaced by #7085263

?
Manufacturer substitution
This part replaces WS31X10006. Substitute parts can look different from the original.
BEST SELLER
$29.87 |
14% OFF Phone Price : $34.87
In Stock
Gear Cam WS26X10003
#136

Pump diagram

Gear cam

Part #WS26X10003

Replaced by #7284964

?
Manufacturer substitution
This part replaces WS26X10003. Substitute parts can look different from the original.
BEST SELLER
$22.49 |
18% OFF Phone Price : $27.49
In Stock
Valve Body WS15X10010
#121

Pump diagram

Valve body

Part #WS15X10010

Replaced by #7082053

?
Manufacturer substitution
This part replaces WS15X10010. Substitute parts can look different from the original.
BEST SELLER
$81.78 |
6% OFF Phone Price : $86.78
In Stock
O-ring WS3X10011
#110

Pump diagram

O-ring

Part #WS3X10011

Replaced by #7170262

?
Manufacturer substitution
This part replaces WS3X10011. Substitute parts can look different from the original.
BEST SELLER
$15.39 |
12% OFF Phone Price : $17.39
In Stock
Nozzvent Asm WS15X10017
#118

Pump diagram

Nozzvent asm

Part #WS15X10017

Replaced by #7187065

?
Manufacturer substitution
This part replaces WS15X10017. Substitute parts can look different from the original.
BEST SELLER
$43.48 |
10% OFF Phone Price : $48.48
In Stock
Nozzvent Asm WS15X10009
#118

Pump diagram

Nozzvent asm

Part #WS15X10009

Replaced by #7187065

?
Manufacturer substitution
This part replaces WS15X10009. Substitute parts can look different from the original.
BEST SELLER
$43.48 |
10% OFF Phone Price : $48.48
In Stock
