Craftsman
Walk-Behind Mower

Model #536798602 Craftsman 26" lawn valet

Here are the diagrams and repair parts for Craftsman 536798602 26" lawn valet, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 86 parts

Hex Lock Nut, 1-pack

#31

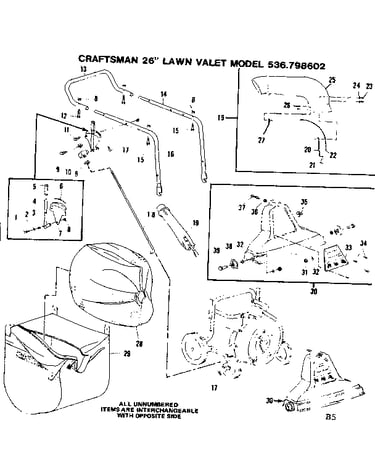

Bag and hanle assembly Diagram

Hex lock nut, 1-pack

Part #STD541425
?
Manufacturer substitution
This part replaces 271172. Substitute parts can look different from the original.
This part replaces 271172
This item is not returnable
$2.15

Back Order

Compression Spring

#3

Bag and hanle assembly Diagram

Compression spring

Part #25644MA
?
Manufacturer substitution
This part replaces 25644. Substitute parts can look different from the original.
This part replaces 25644
This item is not returnable
$3.09 |
28% OFF MSRP:$4.30

In Stock

Snowblower Wing Bolt

#35

Bag and hanle assembly Diagram

Snowblower wing bolt

Part #1501260MA
?
Manufacturer substitution
This part replaces 39276. Substitute parts can look different from the original.
This part replaces 39276
$8.70

In Stock

Hex Bolt, 5-pack

#1

Bag and hanle assembly Diagram

Hex bolt, 5-pack

Part #STD523112
?
Manufacturer substitution
This part replaces 122027. Substitute parts can look different from the original.
This part replaces 122027
This item is not returnable
$2.21

In Stock

Nut, 8-pack

#36

Bag and hanle assembly Diagram

Nut, 8-pack

Part #STD541431
?
Manufacturer substitution
This part replaces 271184. Substitute parts can look different from the original.
This part replaces 271184
This item is not returnable
$2.37

In Stock

Hex Head Screw

#11

Bag and hanle assembly Diagram

Hex head screw

Part #122040

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, 8-pack

#27

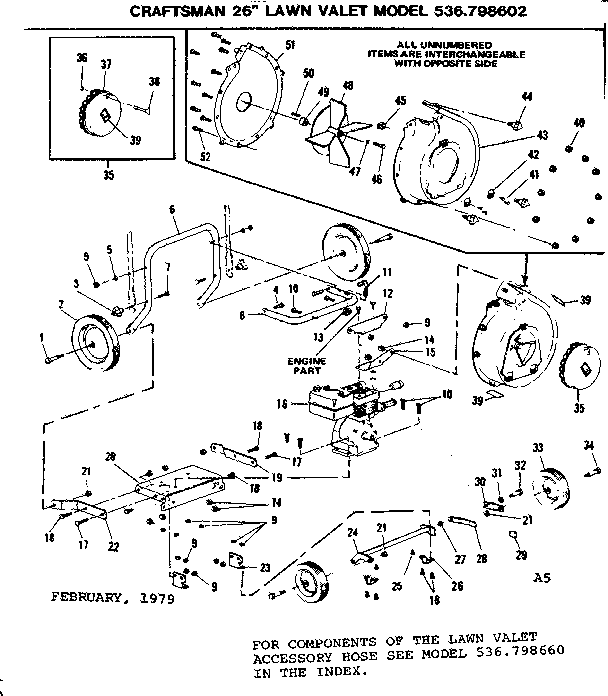

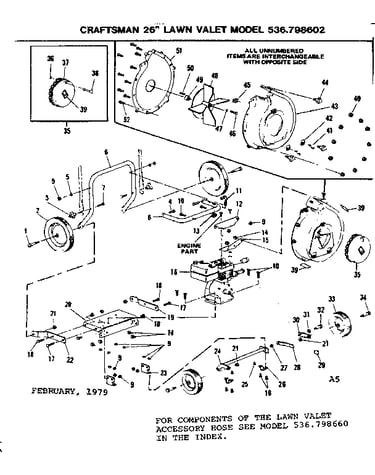

Impeller and wheel assembly Diagram

Flat washer, 8-pack

Part #STD551050
?
Manufacturer substitution
This part replaces 39024. Substitute parts can look different from the original.
This part replaces 39024
This item is not returnable
$2.15

Back Order

Lawn & Garden Equipment Washer

#5

Impeller and wheel assembly Diagram

Lawn & garden equipment washer

Part #783000MA
?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This part replaces 8728
This item is not returnable
$4.25

In Stock

Cap Screw

#17

Impeller and wheel assembly Diagram

Cap screw

Part #122017

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, 8-pack

#2

Bag and hanle assembly Diagram

Flat washer, 8-pack

Part #STD551031
?
Manufacturer substitution
This part replaces 996407. Substitute parts can look different from the original.
This part replaces 996407
This item is not returnable
$3.04

In Stock
