Admiral AER2350AMH electric wall oven Parts
Here are the diagrams and repair parts for Admiral AER2350AMH electric wall oven, as well as links to manuals and error code tables, if available.
Error Codes

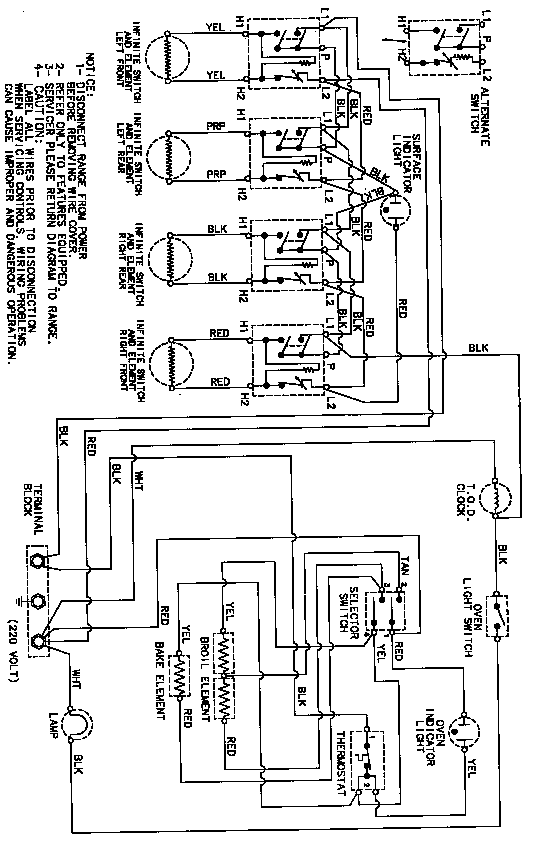

By Schematic
By Part
SELECT DIAGRAM

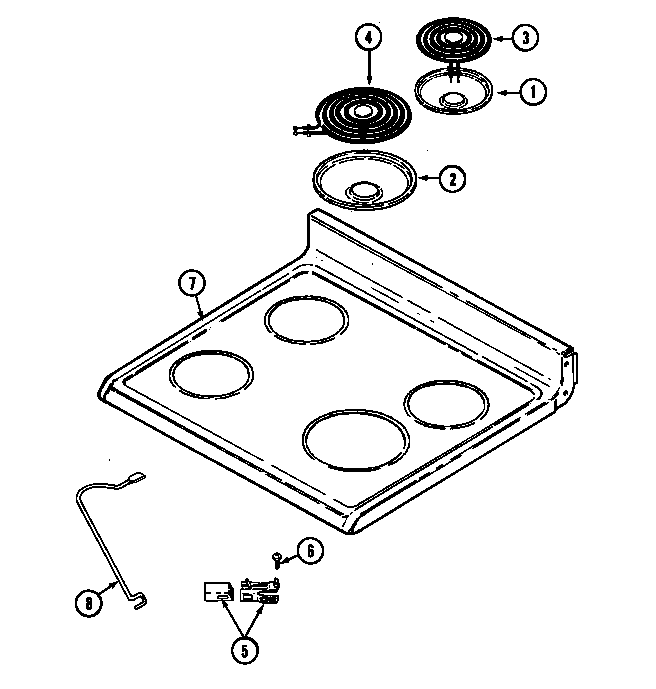

Browse Parts for AER2350AMH Wall Ovens

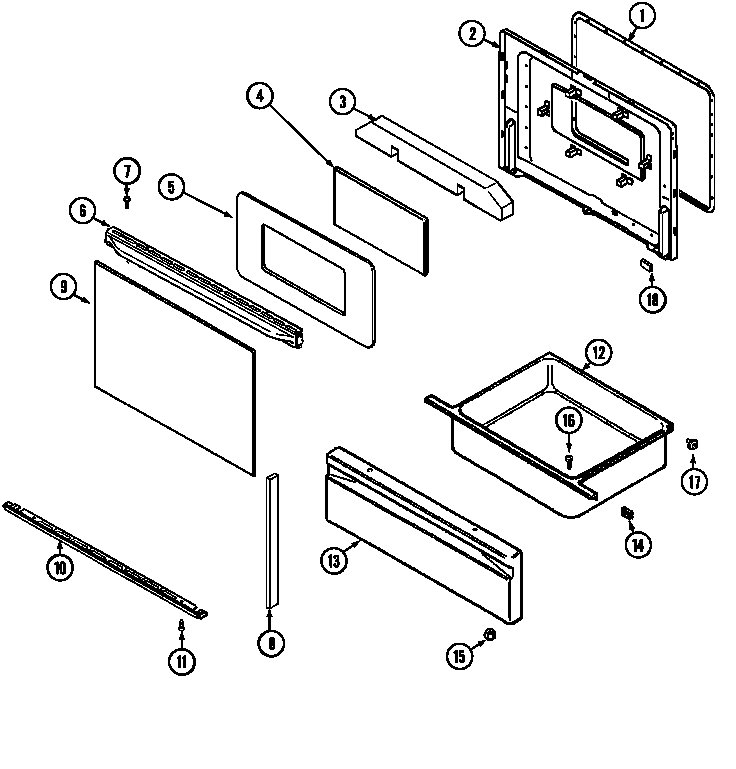

Door/drawer diagram
Screw (black)
Part #7101P072-60Replaced by #WP7101P072-60
Manufacturer substitutionThis part replaces 7101P072-60. Substitute parts can look different from the original.In Stock$28.43
Qty
Nut
Part #7103P082-60Replaced by #WP488130

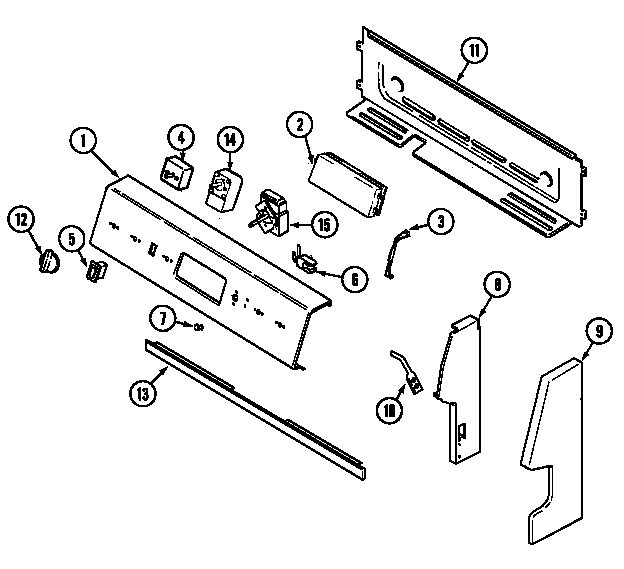

Manufacturer substitutionThis part replaces 7103P082-60. Substitute parts can look different from the original.In Stock$28.95QtyControl panel diagram
Indicator Light
Part #7407P101-60Replaced by #WP74004153
Manufacturer substitutionThis part replaces 7407P101-60. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21

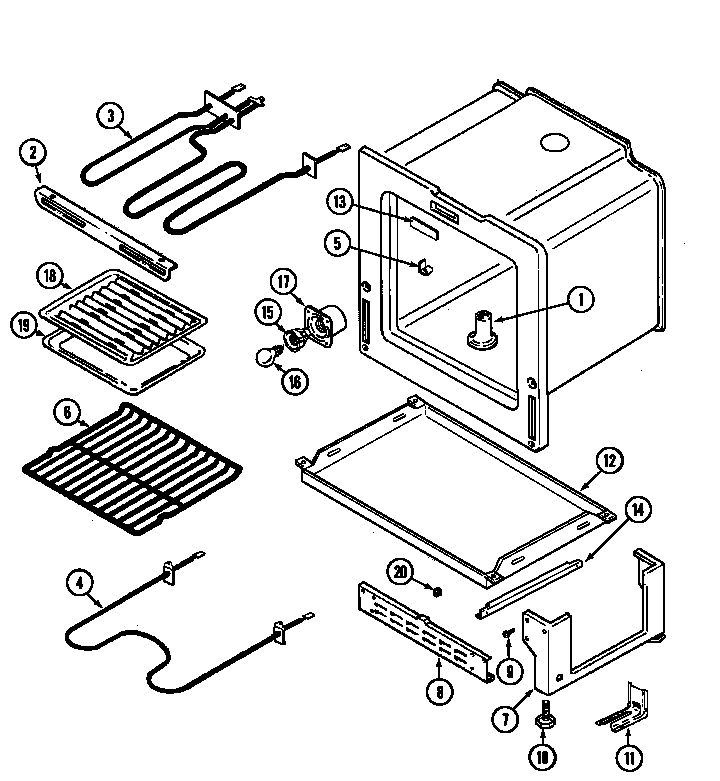

QtyOven/base diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyControl panel diagram
Screw
Part #7101P347-60Replaced by #WPY706189
Manufacturer substitutionThis part replaces 7101P347-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyControl panel diagram
Selector Switch
Part #74002929Replaced by #WP7403P255-60
Manufacturer substitutionThis part replaces 74002929. Substitute parts can look different from the original.In Stock$142.88QtyOven/base diagram
Range Leveling Leg
Part #74002373Replaced by #W11665456
Manufacturer substitutionThis part replaces 74002373. Substitute parts can look different from the original.In Stock$44.24QtyControl panel diagram
Support Control
Part #74003365
The manufacturer no longer makes this part, and there's no substitute part
Door/drawer diagram
Door Baffle
Part #74002461
The manufacturer no longer makes this part, and there's no substitute part
Oven/base diagram
Oven Broiler Element
Part #7406P072-60
The manufacturer no longer makes this part, and there's no substitute part
