KitchenAid 5KSM95PSECU4 stand mixer Parts
Here are the diagrams and repair parts for KitchenAid 5KSM95PSECU4 stand mixer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

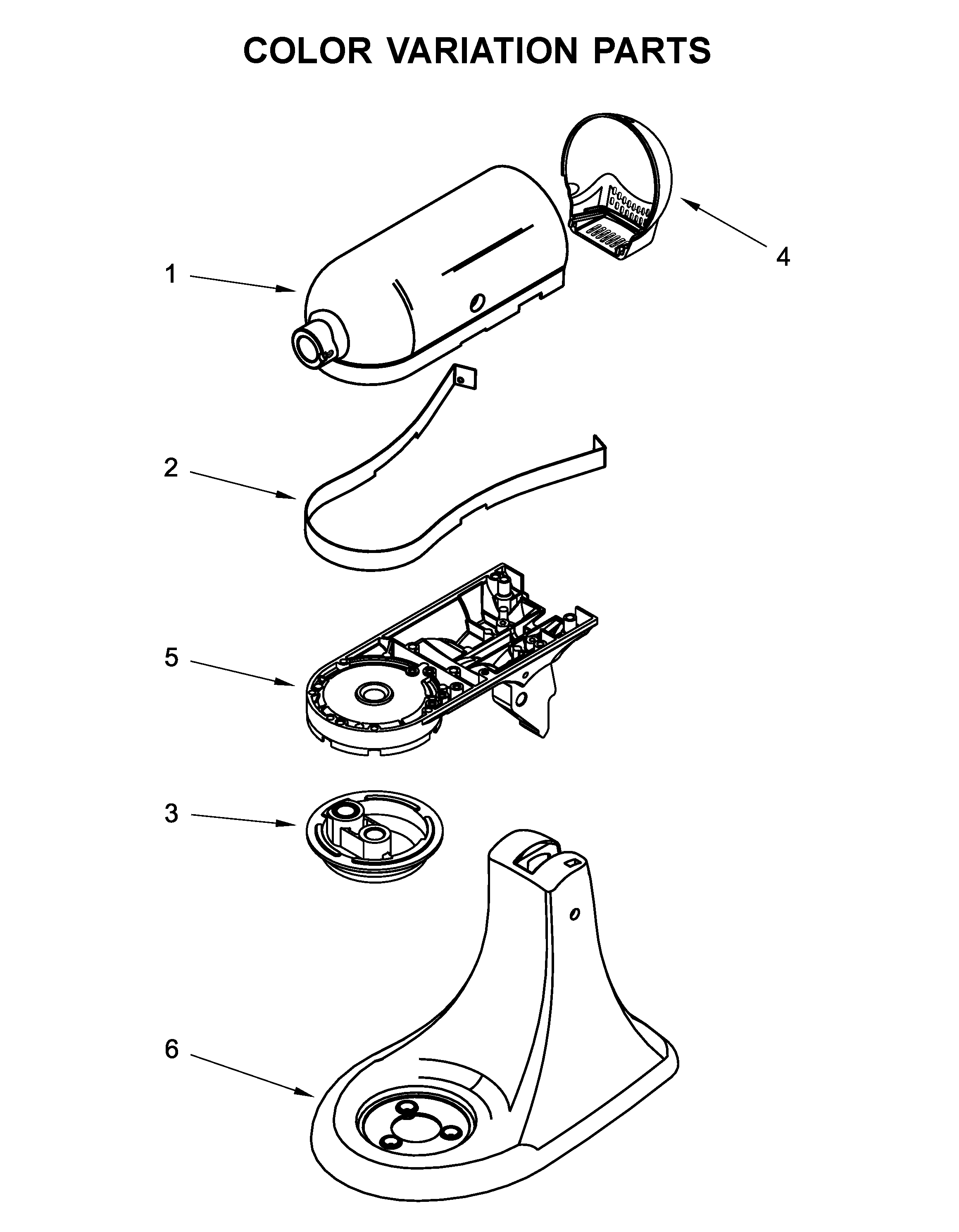

Browse Parts for 5KSM95PSECU4 Stand Mixer

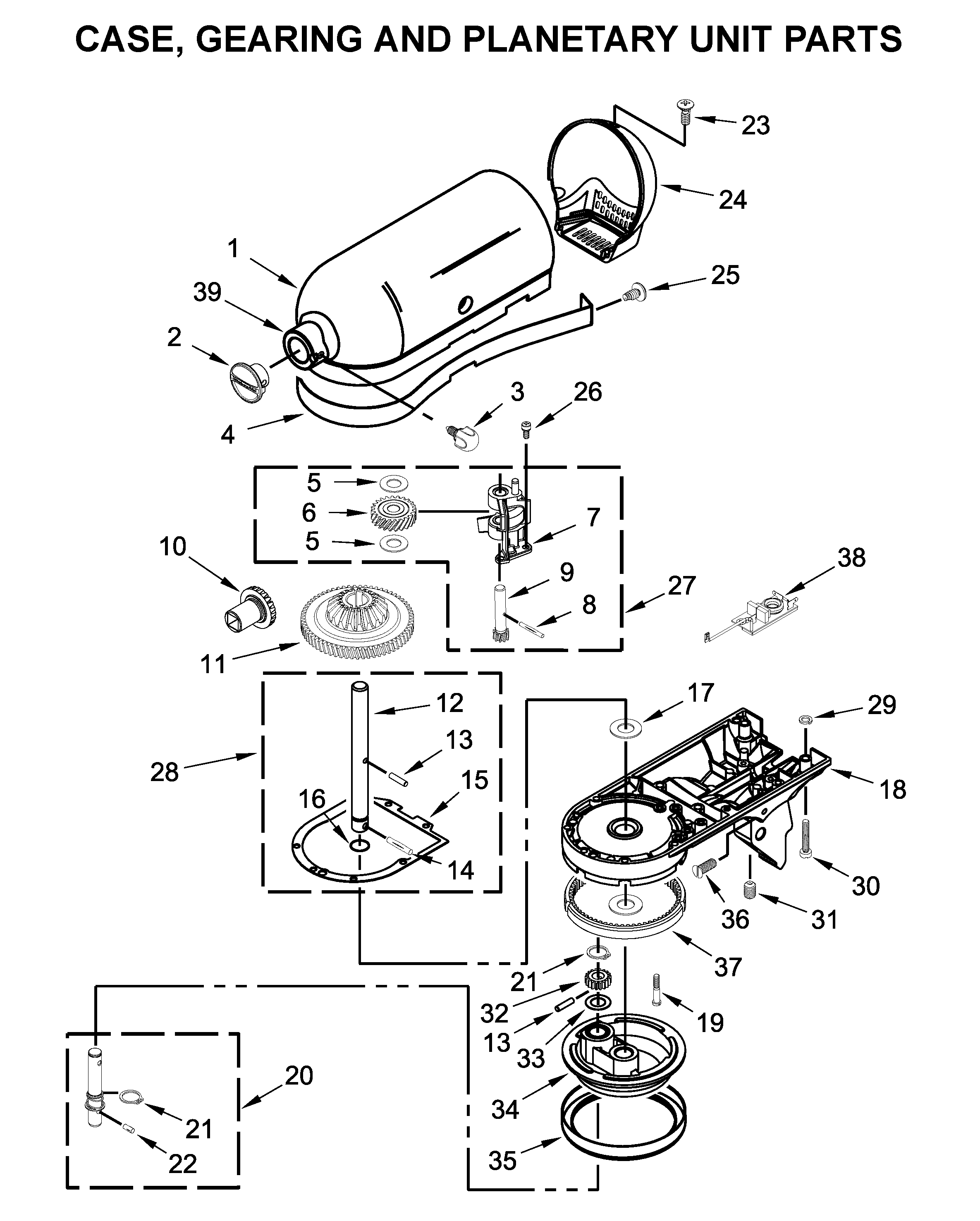

Case, gearing and planetary unit parts diagram
Gear
Part #240210-2Replaced by #WP240210-2
Manufacturer substitutionThis part replaces 240210-2. Substitute parts can look different from the original.This item is not returnableIn Stock$14.5012% OFF Phone Price : $16.50
Qty

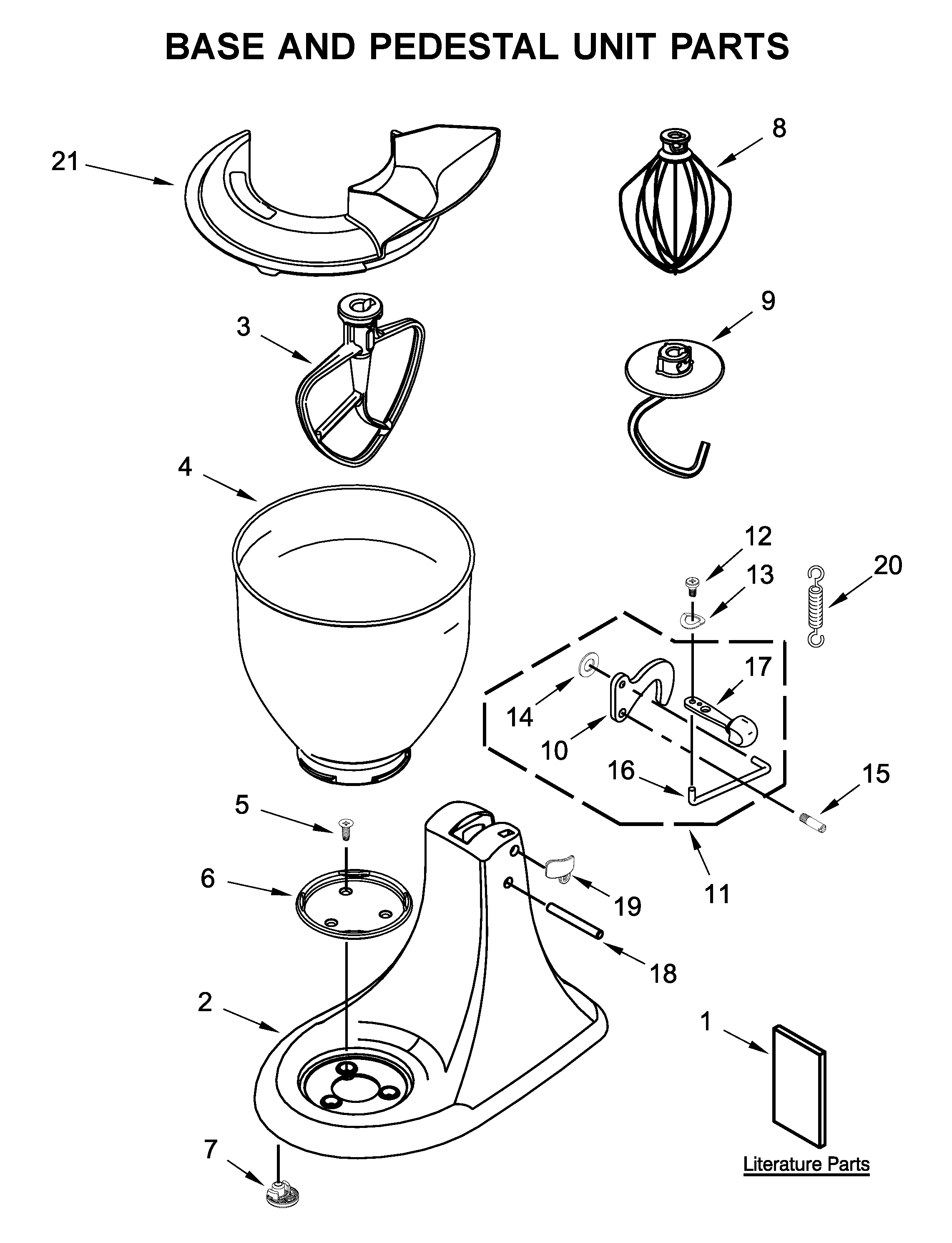

Base and pedestal unit parts diagram
Washer
Part #8533912Replaced by #W11218705

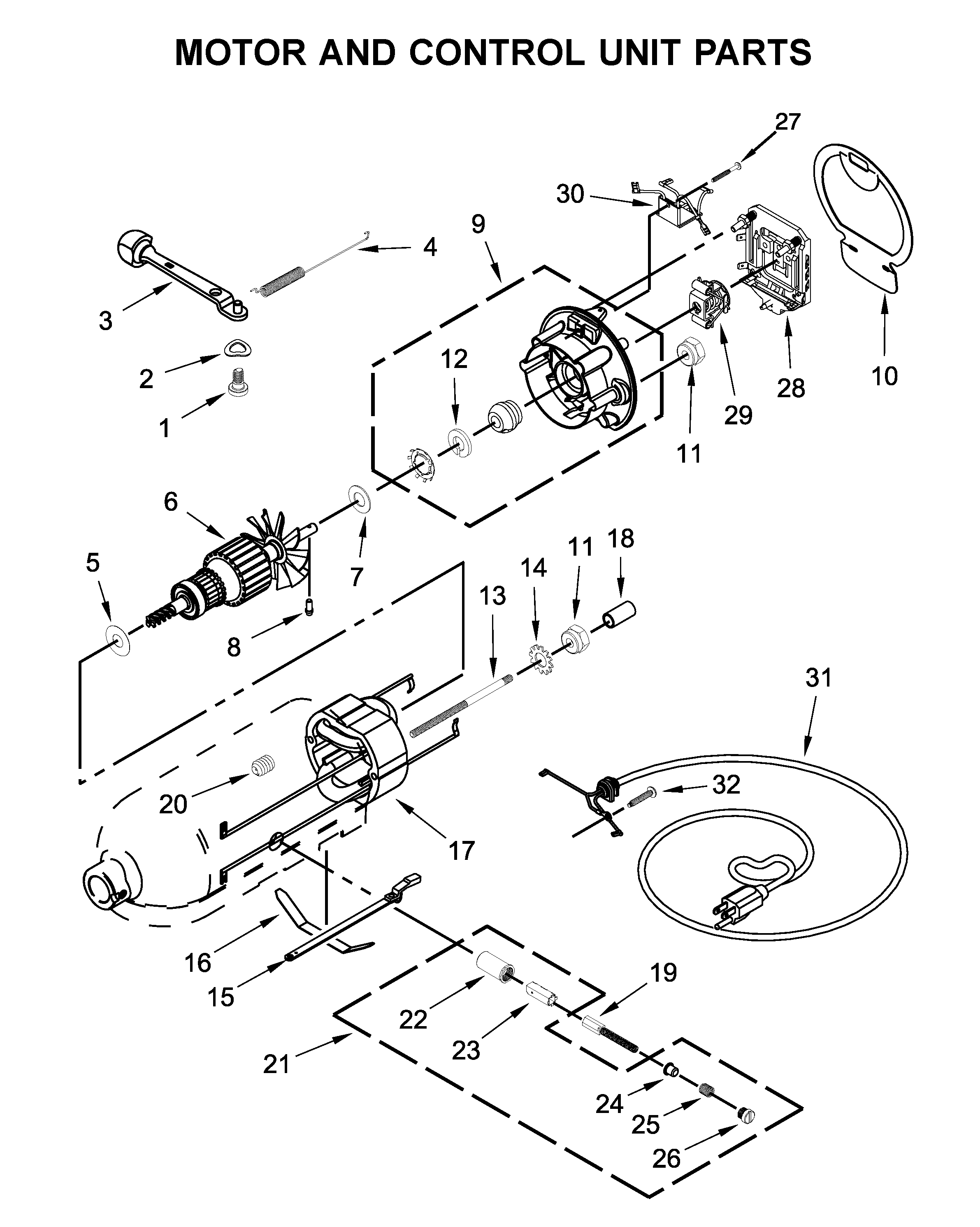

Manufacturer substitutionThis part replaces 8533912. Substitute parts can look different from the original.In Stock$28.70QtyMotor and control unit parts diagram
Nut
Part #W10131078Replaced by #WPW10131078
Manufacturer substitutionThis part replaces W10131078. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0314% OFF Phone Price : $7.03QtyBase and pedestal unit parts diagram
Foot
Part #9709707Replaced by #WP9709707
Manufacturer substitutionThis part replaces 9709707. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0514% OFF Phone Price : $7.05QtyBase and pedestal unit parts diagram
Latch
Part #9709055Replaced by #W11246352
Manufacturer substitutionThis part replaces 9709055. Substitute parts can look different from the original.In Stock$28.28QtyMotor and control unit parts diagram
Phase Contro
Part #W10911442Replaced by #W11174552
Manufacturer substitutionThis part replaces W10911442. Substitute parts can look different from the original.This item is not returnableIn Stock$22.1421% OFF Phone Price : $28.14QtyCase, gearing and planetary unit parts diagram
Assembly
Part #243368Replaced by #WP243368
Manufacturer substitutionThis part replaces 243368. Substitute parts can look different from the original.This item is not returnableIn Stock$21.5622% OFF Phone Price : $27.56QtyMotor and control unit parts diagram
Cap Spring
Part #116287Replaced by #WP116287
Manufacturer substitutionThis part replaces 116287. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0314% OFF Phone Price : $7.03QtyMotor and control unit parts diagram
Bearing Bracket
Part #3180526Replaced by #WP3180526
Manufacturer substitutionThis part replaces 3180526. Substitute parts can look different from the original.This item is not returnableIn Stock$26.6118% OFF Phone Price : $32.61QtyMotor and control unit parts diagram
Brush Cap
Part #3184212Replaced by #WP3184212
Manufacturer substitutionThis part replaces 3184212. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2514% OFF Phone Price : $7.25Qty
Most common symptoms to help you fix your stand mixers
Choose a symptom to see related stand mixer repairs.
Main causes: bad worm gear, damaged planetary gear assembly…
Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…
Main cause: worn carbon motor brushes…
Main causes: phase control board failure, wiring connection problem, faulty electronic control board…
Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…
Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…
Main cause: attachment clearance setting needs adjustment…
Most common repair guides to help fix your stand mixers
These step-by-step repair guides will help you safely fix what’s broken on your stand mixer.
How to replace a stand mixer worm gear
Here’s how to replace the worm gear in your stand mixer if it’s worn or damaged.…
Repair time and Difficulty
30 minutes or less
How to replace a stand mixer phase control board
The phase control board works with the governor and control plate to control motor speed. Replace the phase control boar…
Repair time and Difficulty
30 minutes or less
How to replace stand mixer motor brushes
If the carbon brushes are worn and damaged, replace them using these steps.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your stand mixers
Use the advice and tips in these articles and videos to get the most out of your stand mixer.
Find out what’s wrong with your appliance by following a circuit.…
Learn how to decipher symbols so you can buy the right part for your problem.…
Find out five tips and techniques to help get the most out of your stand mixer.…
