Kenmore
Upright Vacuum

Model #11631069110 Kenmore vacuum

Here are the diagrams and repair parts for Kenmore 11631069110 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 91 parts

    Vacuum Handle Wire Harness

    #3

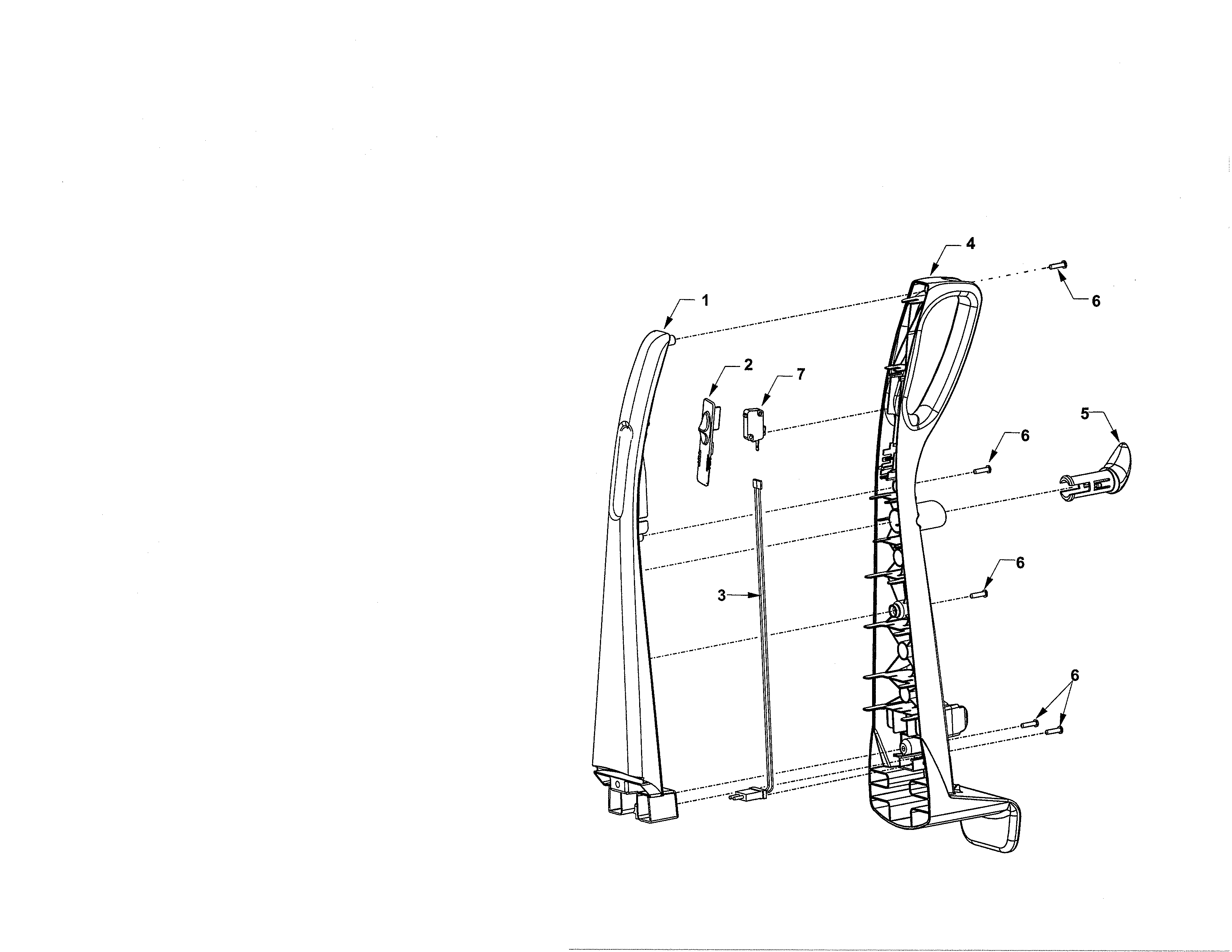

    Handle Diagram

    Vacuum handle wire harness

    Part #KC68ECTKZ000
    ?
    Manufacturer substitution
    This part replaces KC68ECTKZ000. Substitute parts can look different from the original.
    This part replaces KC68ECTKZ000
    $9.49

    In Stock

    Vacuum Owner's Manual

    #57

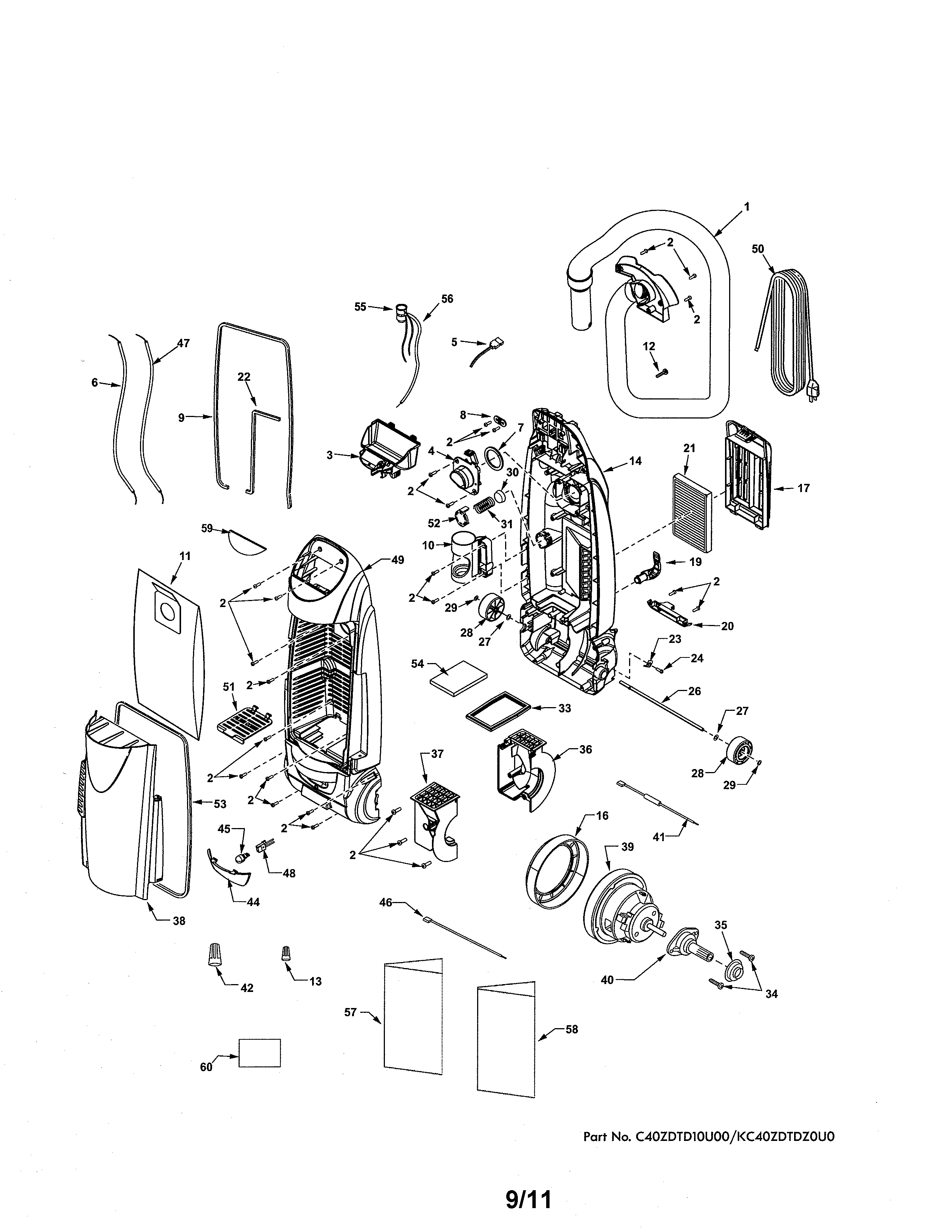

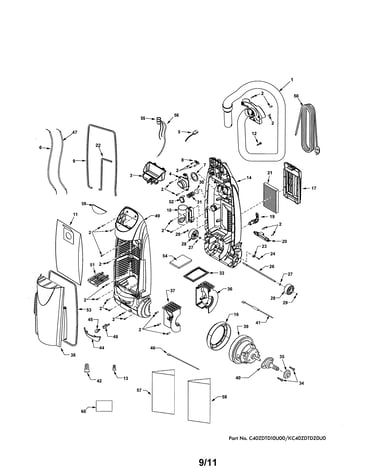

    Dust compartment Diagram

    Vacuum owner's manual

    Part #KC01ZDTDZ0U0
    ?
    Manufacturer substitution
    This part replaces KC01ZDTDZ0U0. Substitute parts can look different from the original.
    This part replaces KC01ZDTDZ0U0
    This item is not returnable
    $5.11

    In Stock

    Bag Supporter

    #4

    Dust compartment Diagram

    Bag supporter

    Part #KC10KCTNZV07
    ?
    Manufacturer substitution
    This part replaces KC10KCTNZV07. Substitute parts can look different from the original.
    This part replaces KC10KCTNZV07
    This item is not returnable
    $4.49

    In Stock

    Vacuum Hose

    #1

    Dust compartment Diagram

    Vacuum hose

    Part #KC84PDTDZV06
    ?
    Manufacturer substitution
    This part replaces KC84PDTDZV06. Substitute parts can look different from the original.
    This part replaces KC84PDTDZV06
    $67.99

    In Stock

    Vacuum Secondary Filter Seal

    #33

    Dust compartment Diagram

    Vacuum secondary filter seal

    Part #KC45LCRCZ000
    ?
    Manufacturer substitution
    This part replaces KC45LCRCZ000. Substitute parts can look different from the original.
    This part replaces KC45LCRCZ000
    This item is not returnable
    $4.59

    In Stock

    Vacuum Beater Bar Belt

    #11

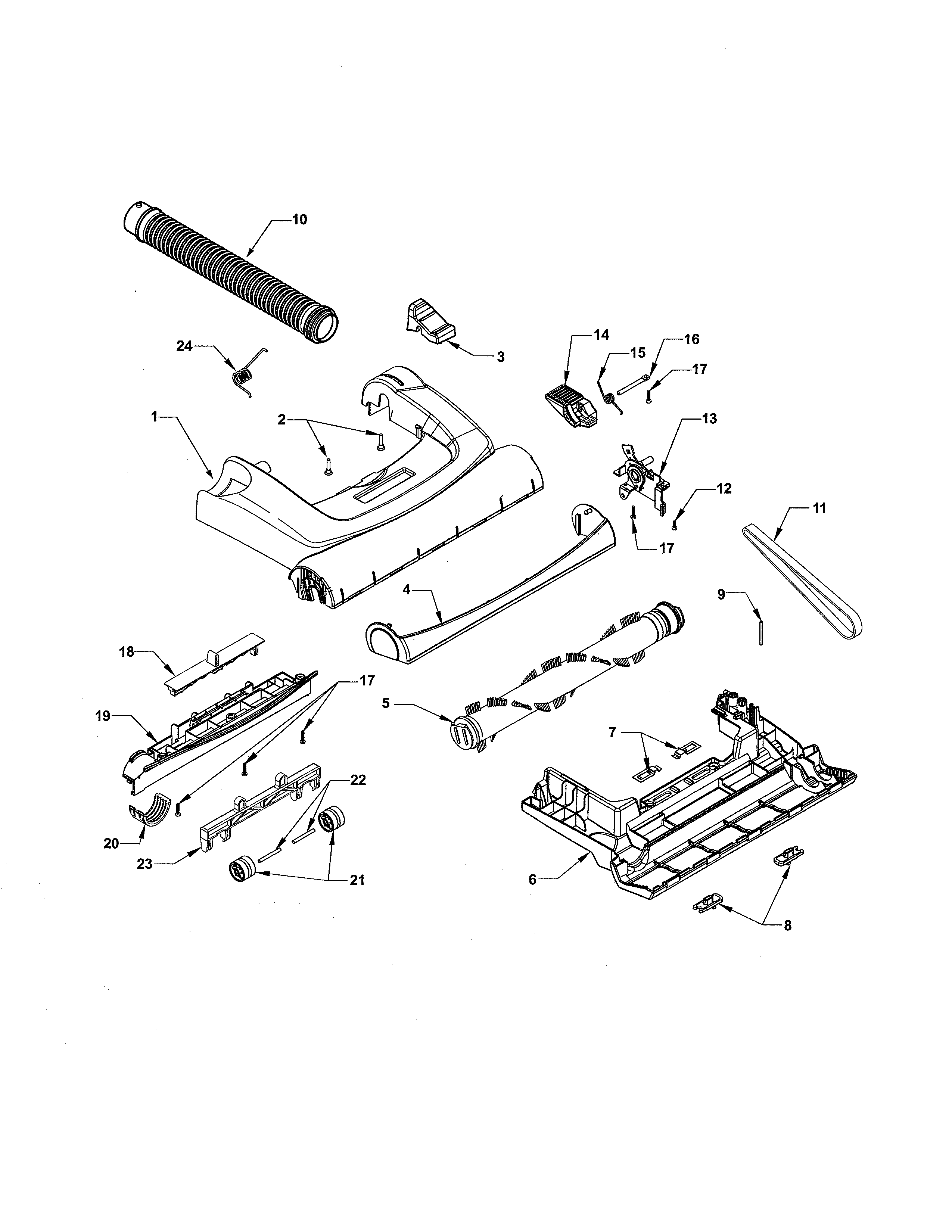

    Nozzle Diagram

    Vacuum beater bar belt

    Part #KC28SCZPZ000
    ?
    Manufacturer substitution
    This part replaces 4369591. Substitute parts can look different from the original.
    This part replaces 4369591
    This item is not returnable
    $7.49

    In Stock

    Kenmore Vacuum HEPA Bag, Type Q, 2-pack

    #11

    Dust compartment Diagram

    Kenmore vacuum hepa bag, type q, 2-pack

    Part #53291
    ?
    Manufacturer substitution
    This part replaces KC16KCMPZ000. Substitute parts can look different from the original.
    This part replaces KC16KCMPZ000
    $11.99

    Back Order

    Vacuum On/Off Switch

    #7

    Handle Diagram

    Vacuum on/off switch

    Part #4368653
    ?
    Manufacturer substitution
    This part replaces 4368653. Substitute parts can look different from the original.
    This part replaces 4368653
    $7.59

    In Stock

    Vacuum Hose Holder

    #19

    Dust compartment Diagram

    Vacuum hose holder

    Part #KC53PCHEZV06
    ?
    Manufacturer substitution
    This part replaces KC53PCHEZV06. Substitute parts can look different from the original.
    This part replaces KC53PCHEZV06
    This item is not returnable
    $4.81

    In Stock

    Vacuum Pet HandiMate

    #5

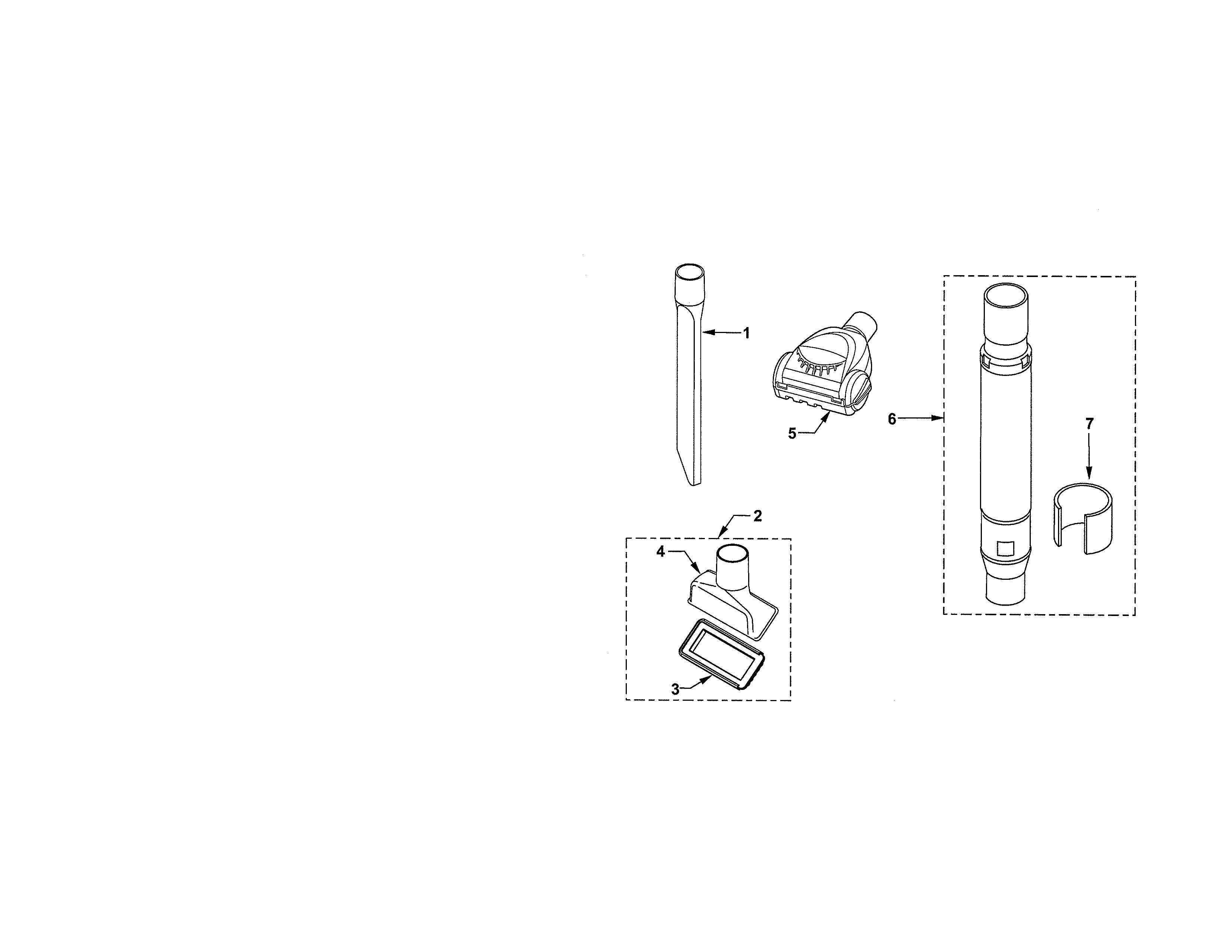

    Attachment Diagram

    Vacuum pet handimate

    Part #KC80SDTDZV0N
    ?
    Manufacturer substitution
    This part replaces KC80SDTDZV0N. Substitute parts can look different from the original.
    This part replaces KC80SDTDZV0N
    $21.99

    Back Order
