Side-By-Side Refrigerator

Model # FRS26KF7AB3 Official Frigidaire side-by-side refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRS26KF7AB3 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFRS26KF7AB3 Refrigerators

  • Ice Maker Mold 5303320545
    #17

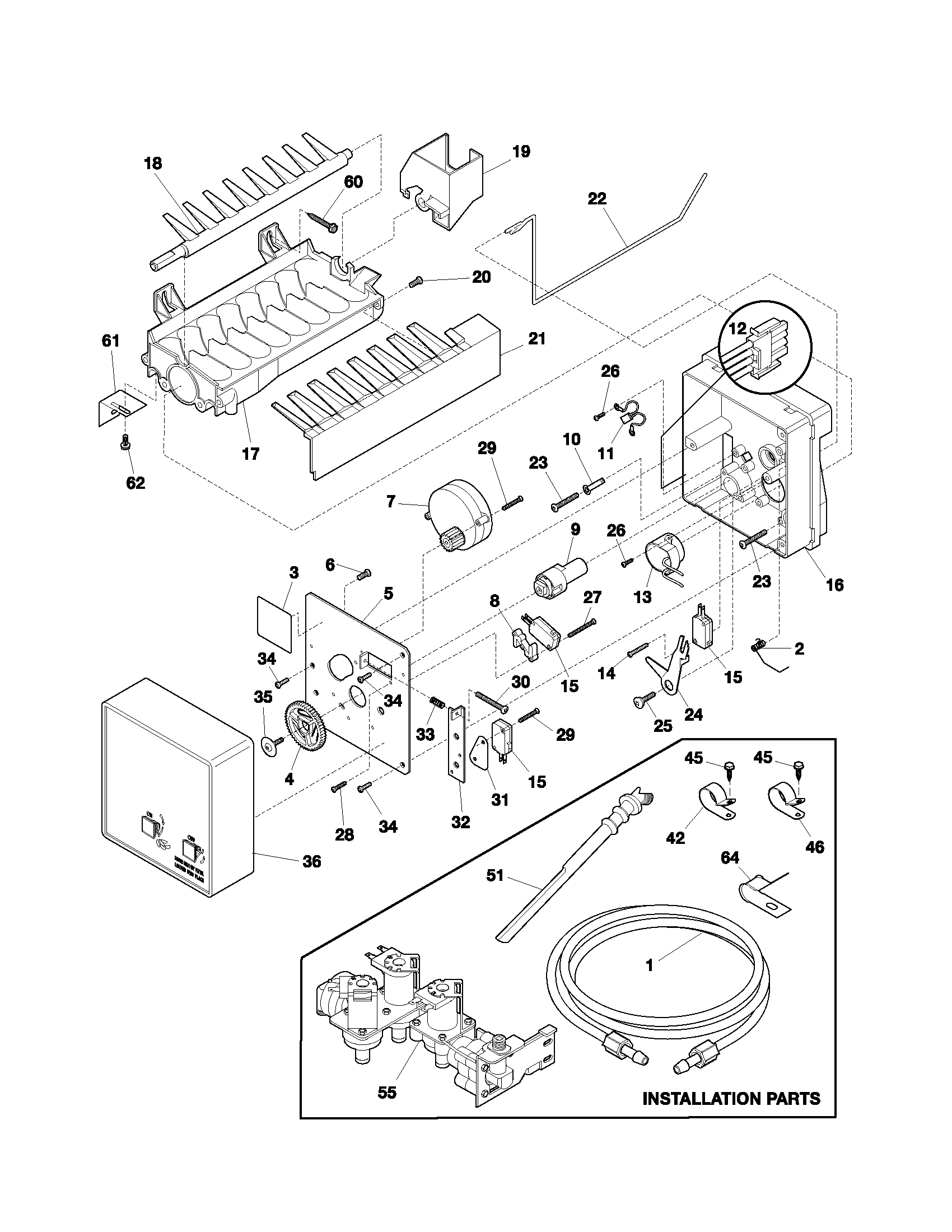

    Ice maker diagram

    Ice maker mold

    Part #5303320545

    Replaced by #241798231

    ?
    Manufacturer substitution
    This part replaces 5303320545. Substitute parts can look different from the original.
    BEST SELLER
    $122.72 |
    9% OFF Phone Price : $134.72
    In Stock
  • Refrigerator Filter Drier 218944001
    #4

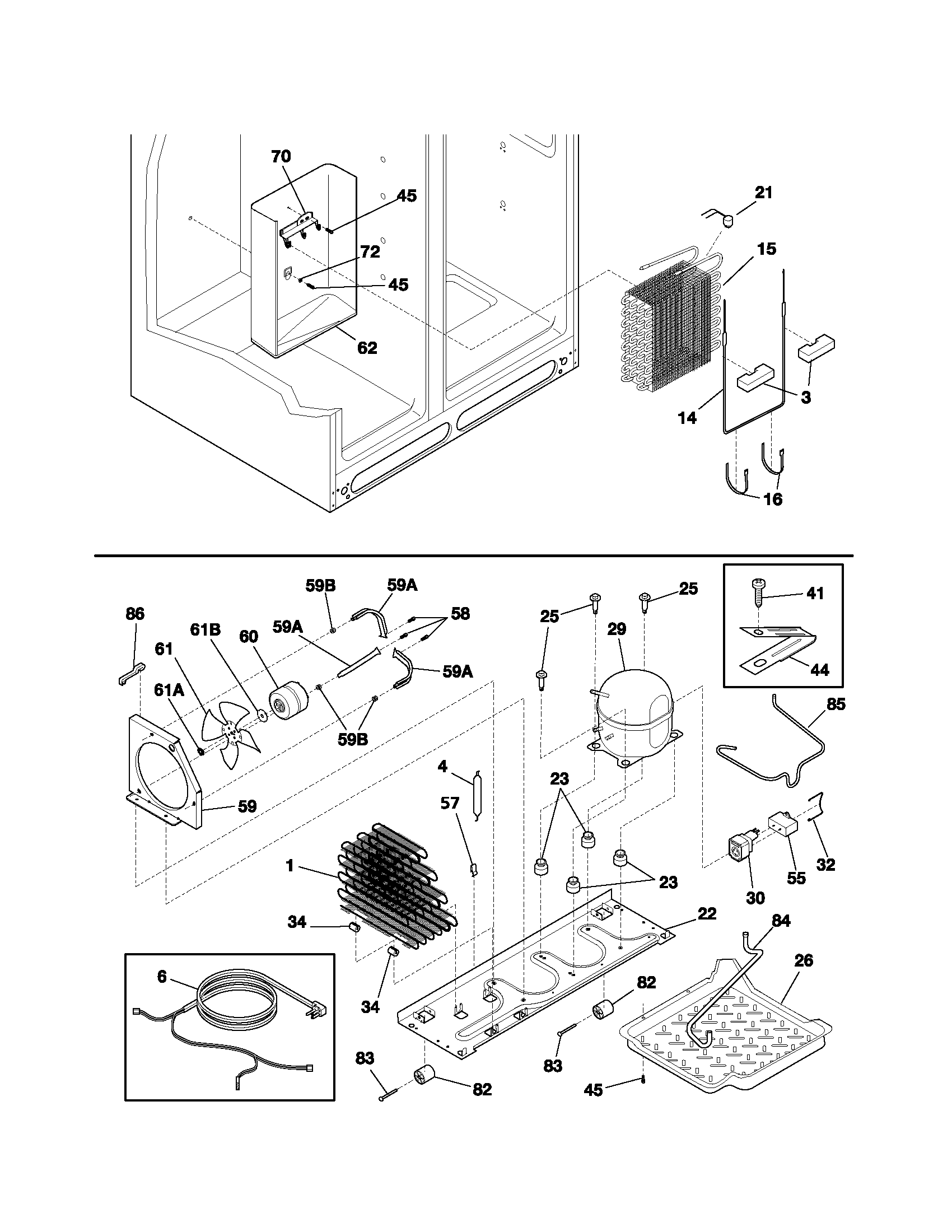

    System diagram

    Refrigerator filter drier

    Part #218944001

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 218944001. Substitute parts can look different from the original.
    BEST SELLER
    $20.18 |
    23% OFF Phone Price : $26.18
    In Stock
  • Refrigerator Water Valve 240321801
    #55

    Ice maker diagram

    Refrigerator water valve

    Part #240321801

    Replaced by #242252702

    ?
    Manufacturer substitution
    This part replaces 240321801. Substitute parts can look different from the original.
    BEST SELLER
    $58.29 |
    9% OFF Phone Price : $64.29
    In Stock
  • Water Solenoid 240508101
    #NI

    Ice maker diagram

    Water solenoid

    Part #240508101

    Replaced by #242252702

    ?
    Manufacturer substitution
    This part replaces 240508101. Substitute parts can look different from the original.
    BEST SELLER
    $58.29 |
    9% OFF Phone Price : $64.29
    In Stock
  • Frigidaire Puresource2 Refrigerator Water Filter WF2CB
    #137

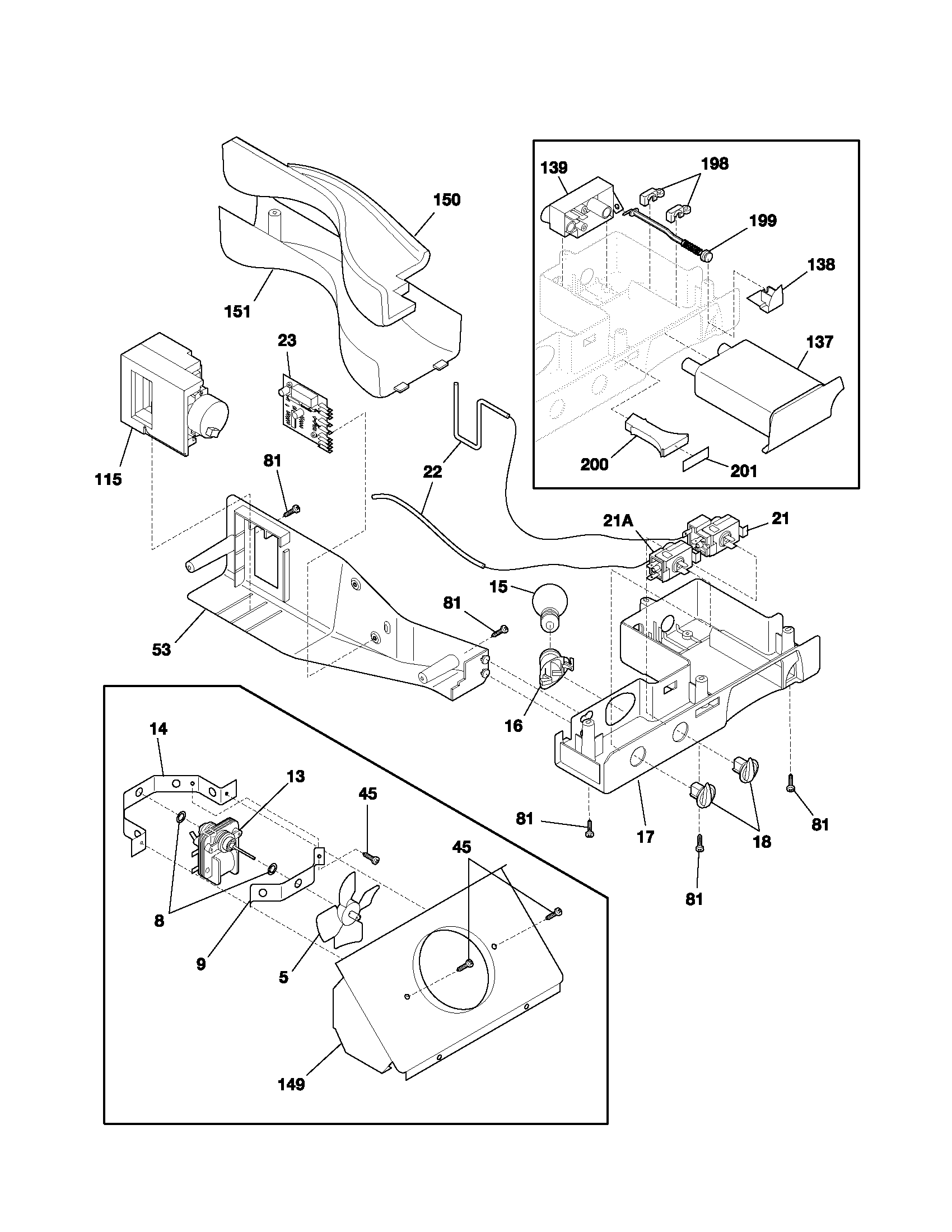

    Controls diagram

    Frigidaire puresource2 refrigerator water filter

    Part #WF2CB

    BEST SELLER

    Get free shipping with Automatic Reorder

    $67.93 |
    8% OFF Phone Price : $73.93
    In Stock
  • Appliance Light Bulb, 40-watt 5303001179
    Appliance light bulb, 40-watt

    Part #5303001179

    Replaced by #316538904

    ?
    Manufacturer substitution
    This part replaces 5303001179. Substitute parts can look different from the original.
    BEST SELLER
    $17.25 |
    10% OFF Phone Price : $19.25
    In Stock
  • Refrigerator Light Bulb 240436701
    #15

    Controls diagram

    Refrigerator light bulb

    Part #240436701

    Replaced by #316538904

    ?
    Manufacturer substitution
    This part replaces 240436701. Substitute parts can look different from the original.
    BEST SELLER
    $17.25 |
    10% OFF Phone Price : $19.25
    In Stock
  • Refrigerator Defrost Bi-metal Thermostat 5303918214
    #21

    System diagram

    Refrigerator defrost bi-metal thermostat

    Part #5303918214

    BEST SELLER
    $23.34 |
    20% OFF Phone Price : $29.34
    In Stock
  • Kenmore Refrigerator Door Bin 240323001
    #4

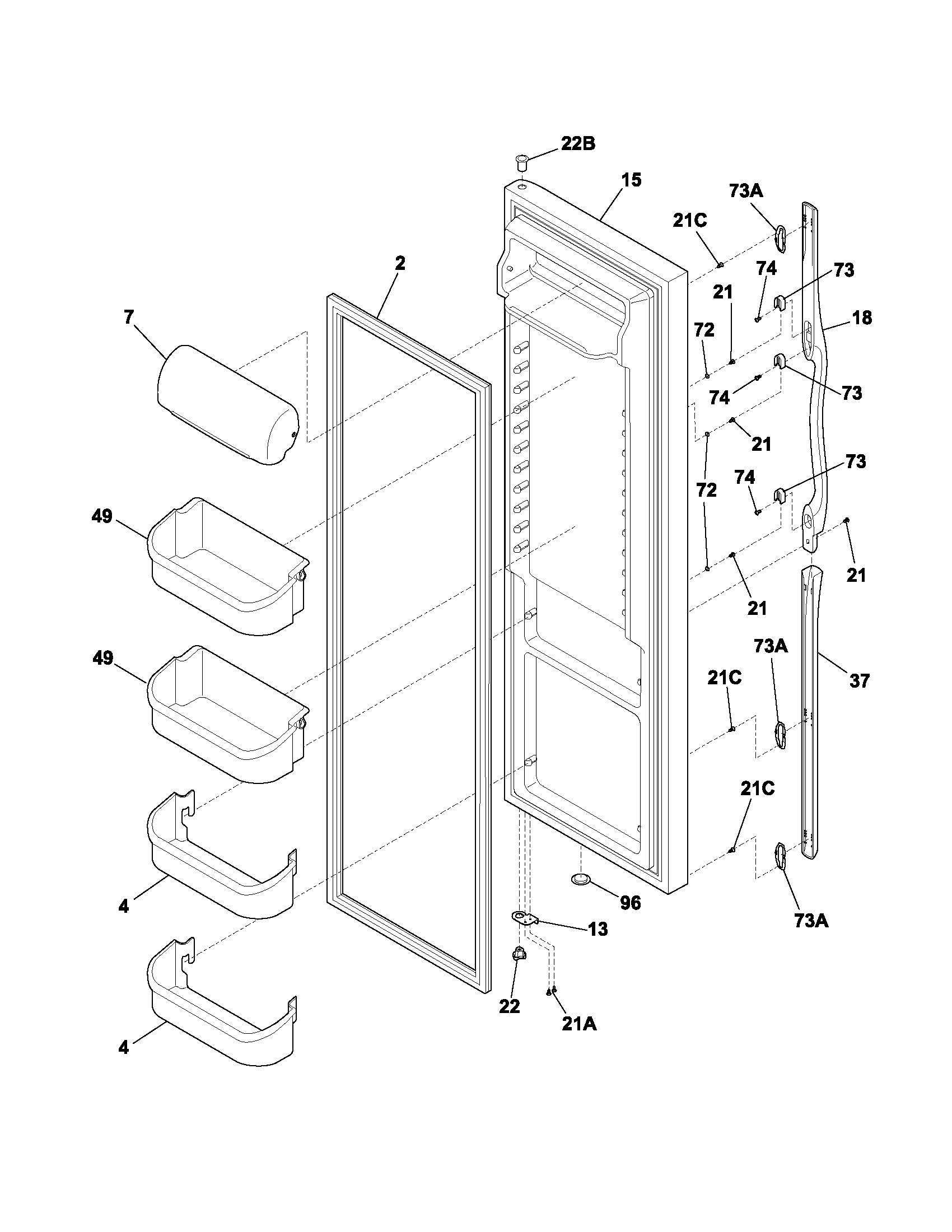

    Refrigerator door diagram

    Kenmore refrigerator door bin

    Part #240323001

    BEST SELLER
    $34.28 |
    15% OFF Phone Price : $40.28
    Back Order
  • Refrigerator Evaporator Fan Blade 5308000010
    #5

    Controls diagram

    Refrigerator evaporator fan blade

    Part #5308000010

    BEST SELLER
    $43.26 |
    12% OFF Phone Price : $49.26
    In Stock
