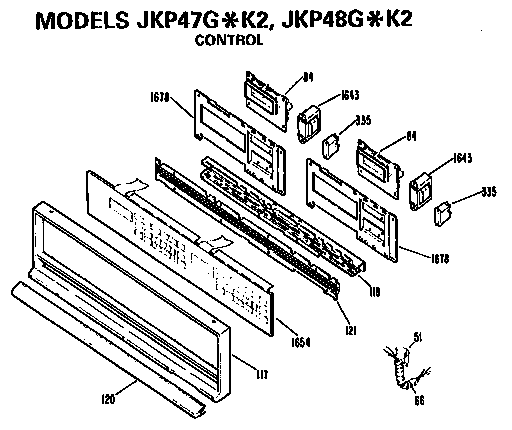

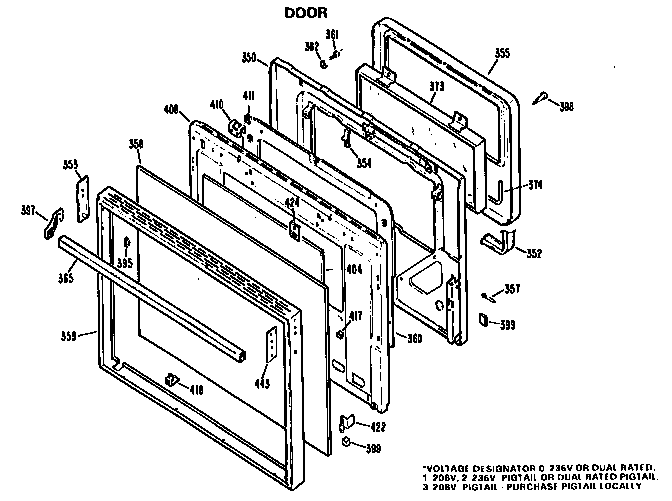

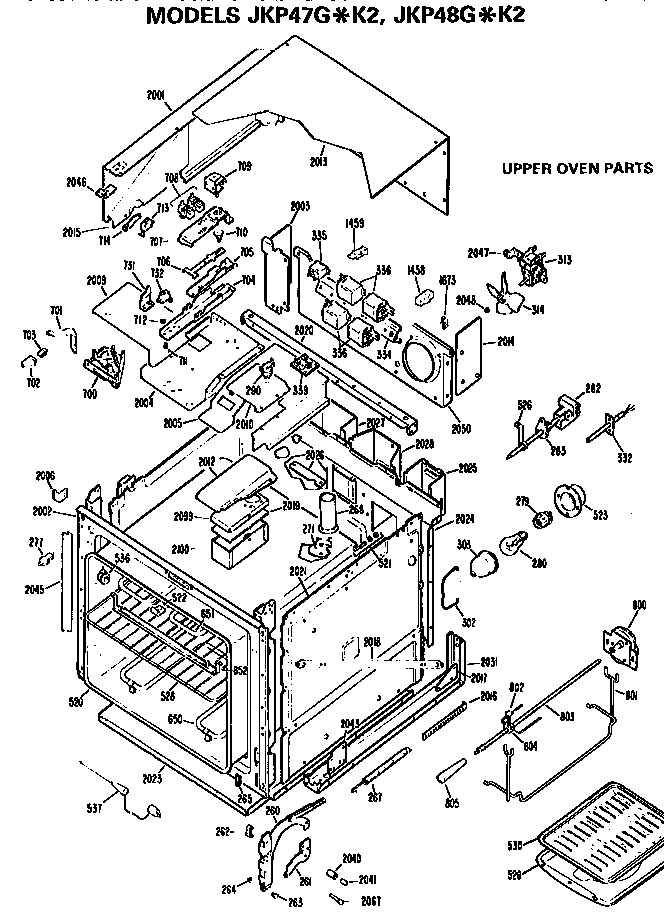

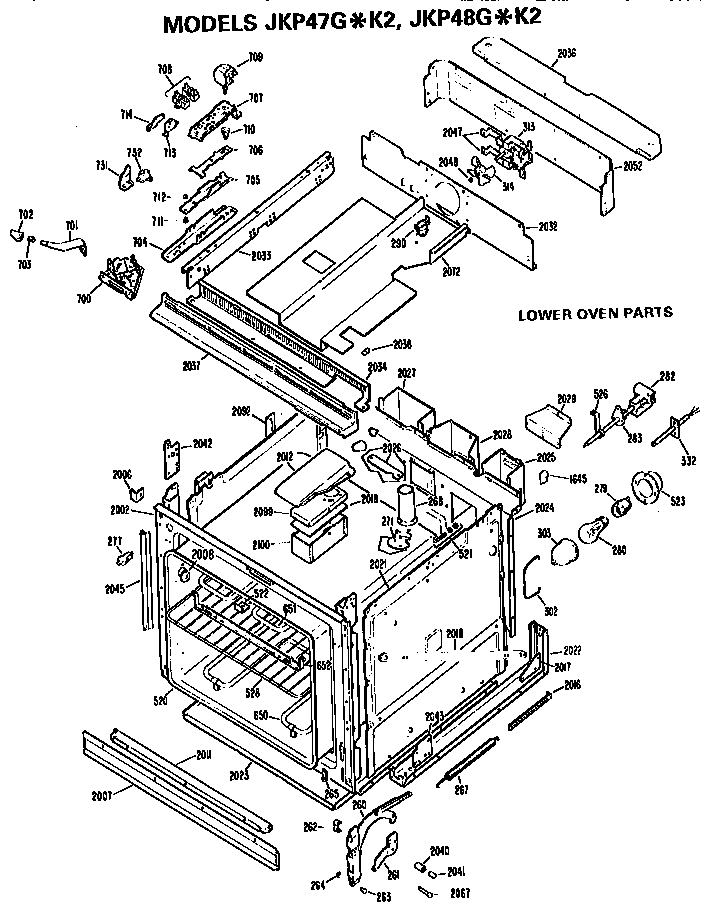

GE JKP47G*K2 built-in convection oven Parts
Here are the diagrams and repair parts for GE JKP47G*K2 built-in convection oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JKP47G*K2 Wall Ovens
#279
All parts diagram
Receptacle
Part #WB8X5095Replaced by #WB08T10026
Manufacturer substitutionThis part replaces WB8X5095. Substitute parts can look different from the original.This item is not returnableIn Stock$10.1516% OFF Phone Price : $12.15
Qty
#613
All parts diagram
Refrigerator Fan Blade
Part #WR2X3198Replaced by #WR60X114
Manufacturer substitutionThis part replaces WR2X3198. Substitute parts can look different from the original.This item is not returnableIn Stock$23.4420% OFF Phone Price : $29.44Qty#259
All parts diagram
Lamp Cover
Part #WB36X389Replaced by #WB36X192
Manufacturer substitutionThis part replaces WB36X389. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3912% OFF Phone Price : $17.39Qty#529
All parts diagram
Broiler Pan
Part #WB49X5380Replaced by #WB48X10056
Manufacturer substitutionThis part replaces WB49X5380. Substitute parts can look different from the original.In Stock$36.1114% OFF Phone Price : $42.11Qty#741
All parts diagram
Fustat 15amp Type S
Part #OBT LOCAL
The manufacturer no longer makes this part, and there's no substitute part
#397
All parts diagram
Screw
Part #WZ4X384
The manufacturer no longer makes this part, and there's no substitute part
#2045
All parts diagram
Gasket
Part #WB2X3422
The manufacturer no longer makes this part, and there's no substitute part
#2037
All parts diagram
Trim
Part #WB7X1125
The manufacturer no longer makes this part, and there's no substitute part
#1643
All parts diagram
Transformer
Part #WB27X5286
The manufacturer no longer makes this part, and there's no substitute part
#424
All parts diagram
Clamp
Part #WB2X3331
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
