Jenn-Air
Freestanding Ice Maker

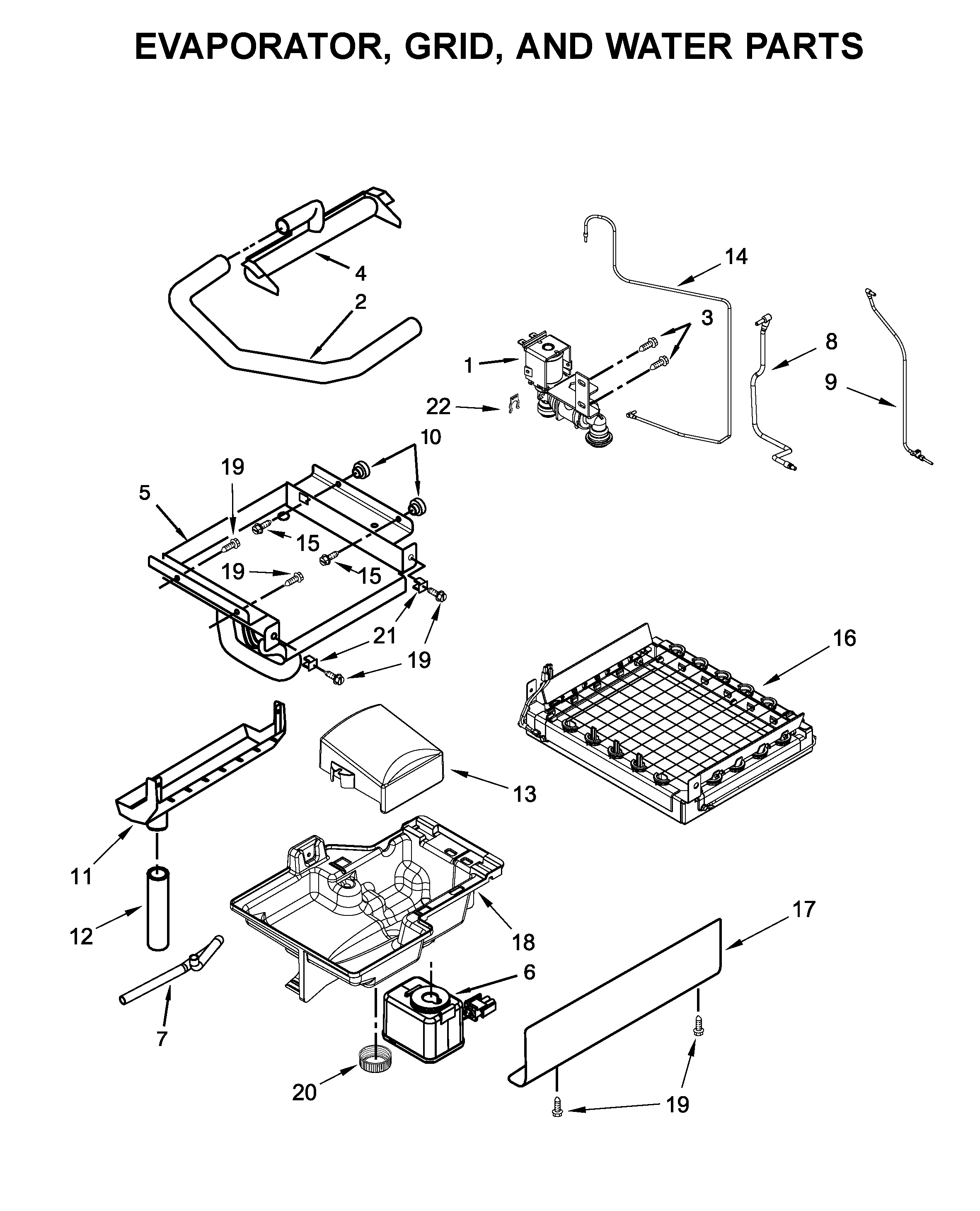

Model #JUIFX15HX00 Jenn-Air freestanding icemaker

Here are the diagrams and repair parts for Jenn-Air JUIFX15HX00 freestanding icemaker, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 136 parts

    Refrigerator Ice Maker Installation Kit

    #NI

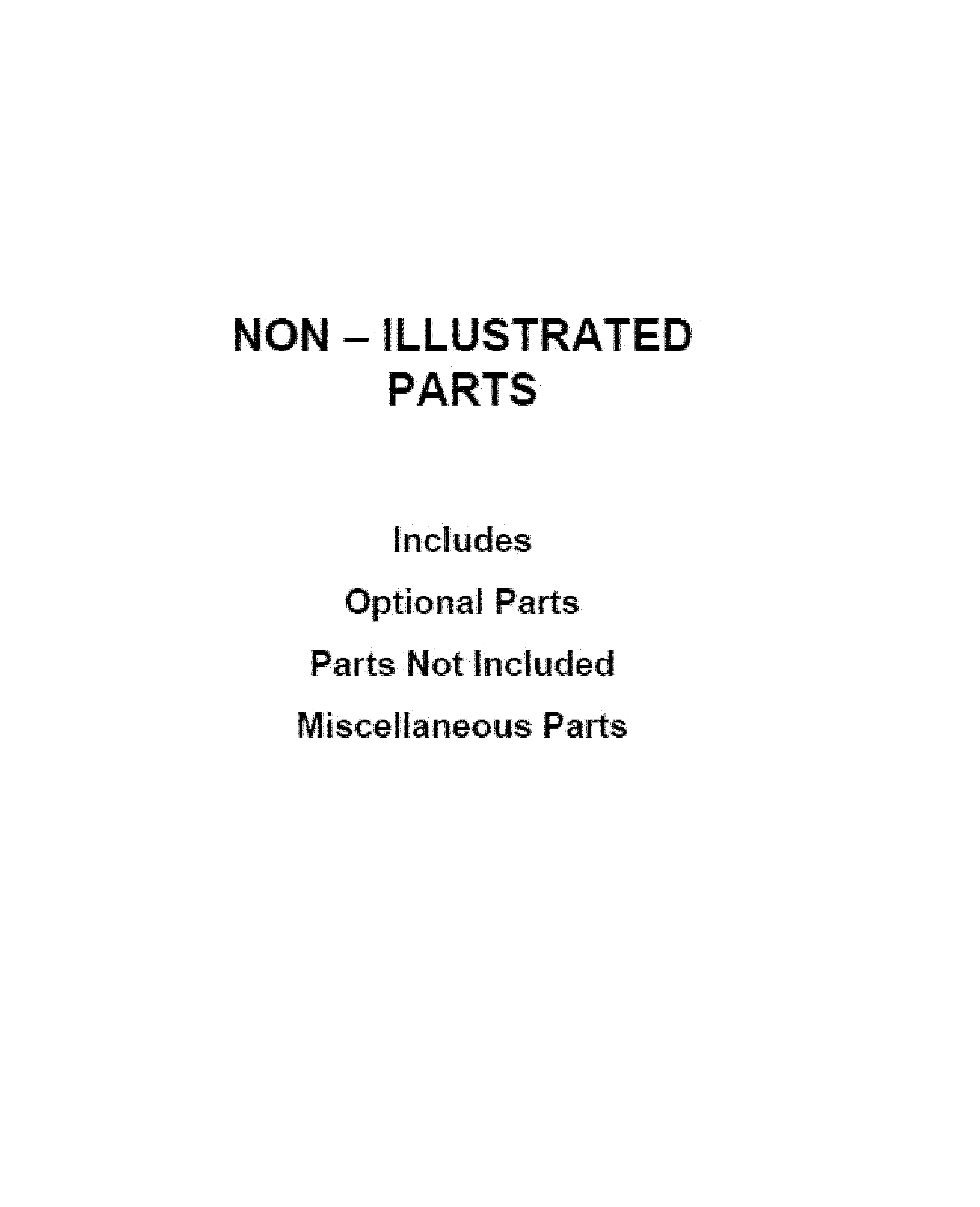

    Optional parts Diagram

    $34.14

    In Stock

    Appliance Touch-Up Paint, 2-oz (White)

    #NI

    Optional parts Diagram

    $22.88

    In Stock

    Refrigerator Permagum Sealer

    #NI

    Optional parts Diagram

    $28.32 |
    23% OFF MSRP:$37.00

    In Stock

    Appliance Porcelain Touch-Up Paint, 1-qt (White)

    #NI

    Optional parts Diagram

    $88.11 |
    9% OFF MSRP:$96.48

    In Stock

    Filter Cover

    #8

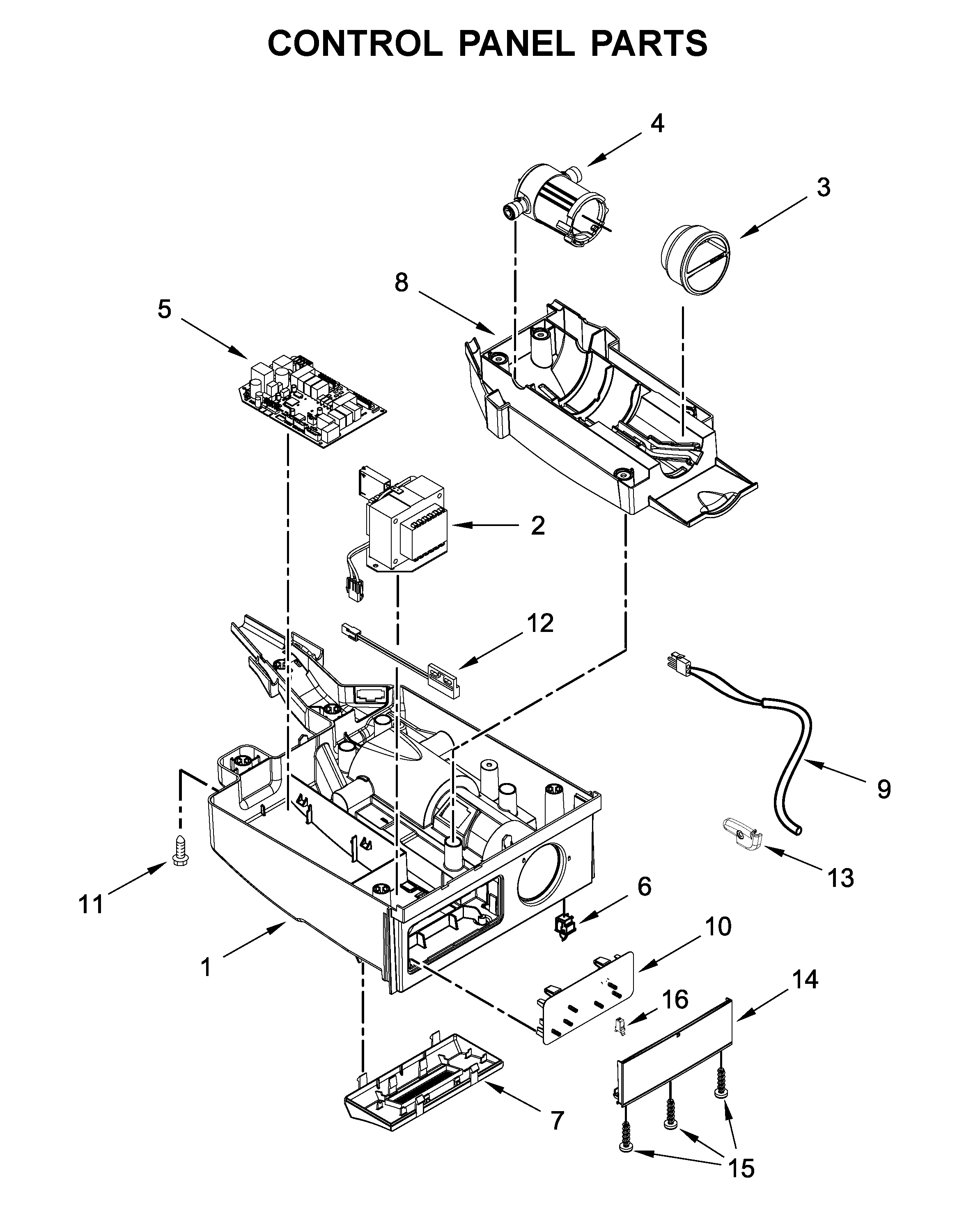

    Control panel parts Diagram

    Filter cover

    Part #W10475416
    $28.50 |
    38% OFF MSRP:$46.00

    In Stock

    Filter Cap

    #3

    Control panel parts Diagram

    Filter cap

    Part #W10800355
    $17.69

    In Stock

    TRAY-DRIP, C

    #29

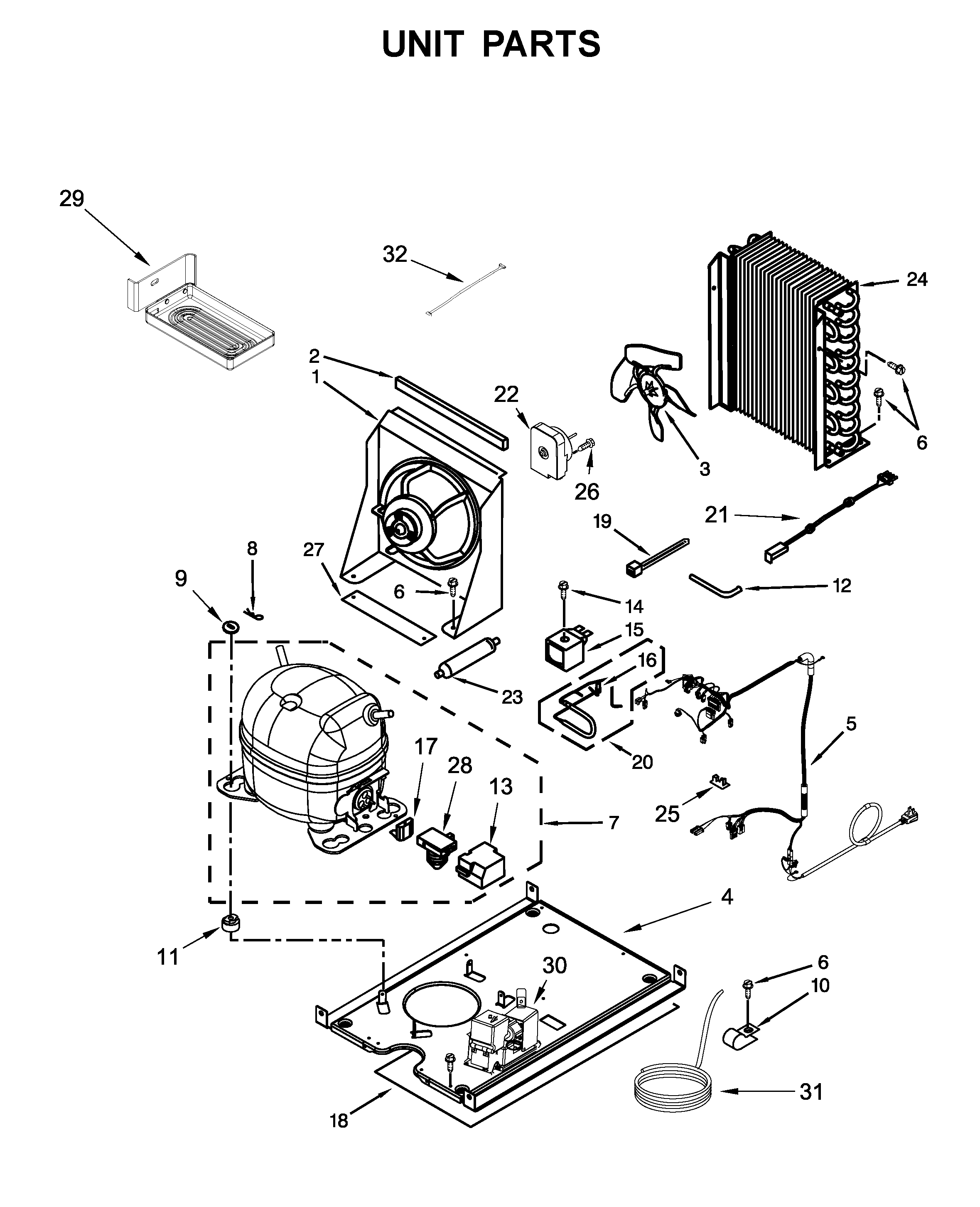

    Unit parts Diagram

    Tray-drip, c

    Part #W11268770
    $62.62

    In Stock

    Control Housing

    #1

    Control panel parts Diagram

    Control housing

    Part #W10475405
    $63.17

    In Stock

    Fascia Assembly

    #14

    Control panel parts Diagram

    Fascia assembly

    Part #W10545363
    $94.01

    In Stock

    Group-top Pa

    #32

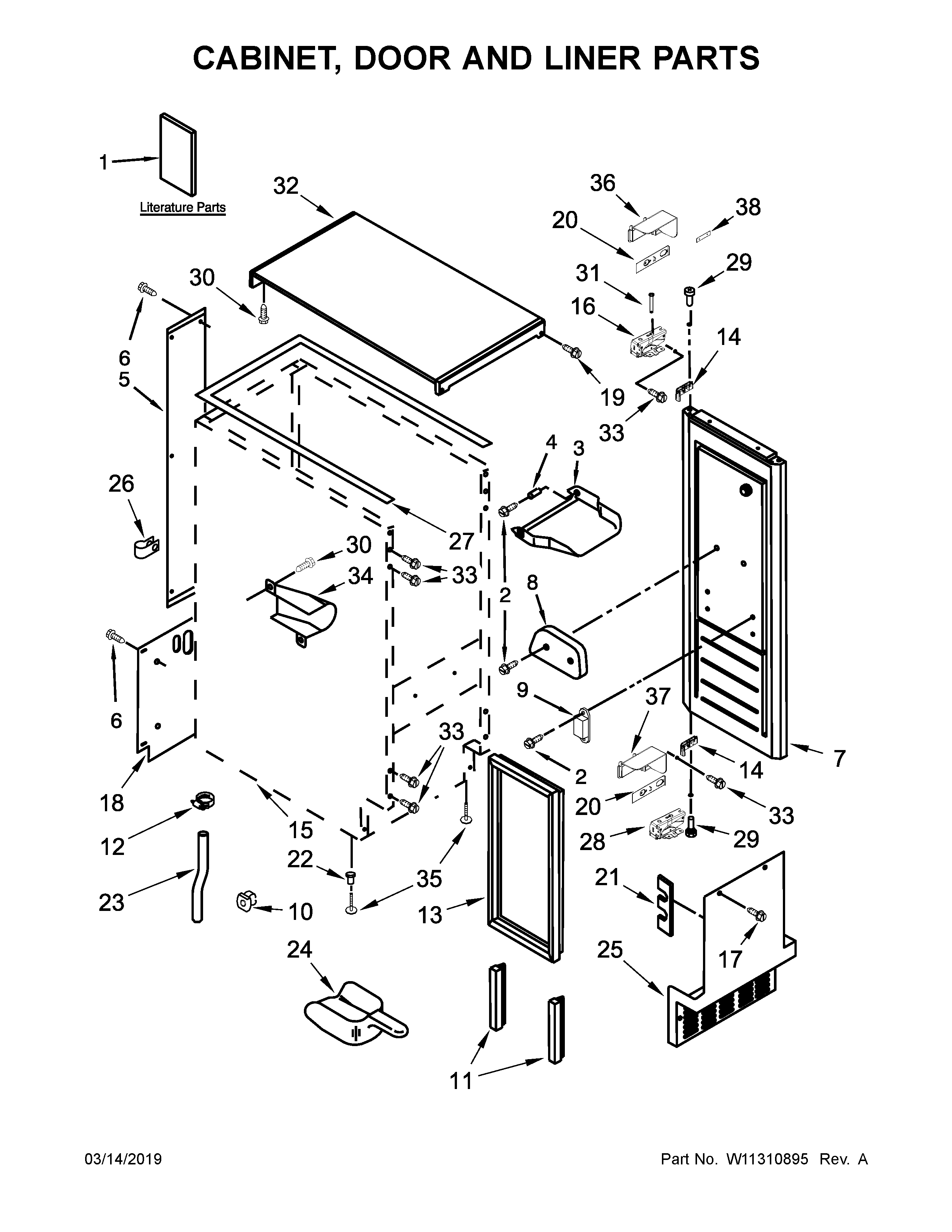

    Cabinet, door and liner parts Diagram

    Group-top pa

    Part #W10320117
    $252.41

    In Stock

    Symptoms common to all freestanding ice makers

    Choose a symptom to see related ice maker repairs.

    Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply problems, bad water valve
    Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin
    Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cutting grid
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad evaporator thermistor
    Main causes: bad bin thermistor, condenser fan failure, faulty control board
    Main causes: wiring failure, broken cutting grid, faulty electronic control board
    Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, broken cutting grid
    Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin

    Repair guides common to all freestanding ice makers

    These step-by-step repair guides will help you safely fix what’s broken on your ice maker.

    How to replace a freestanding ice maker cutter grid

    When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a broken cutter grid.

    Repair difficulty
    Time required
     15 minutes or less
    How to replace a freestanding ice maker electronic control board

    When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.

    Repair difficulty
    Time required
     45 minutes or less

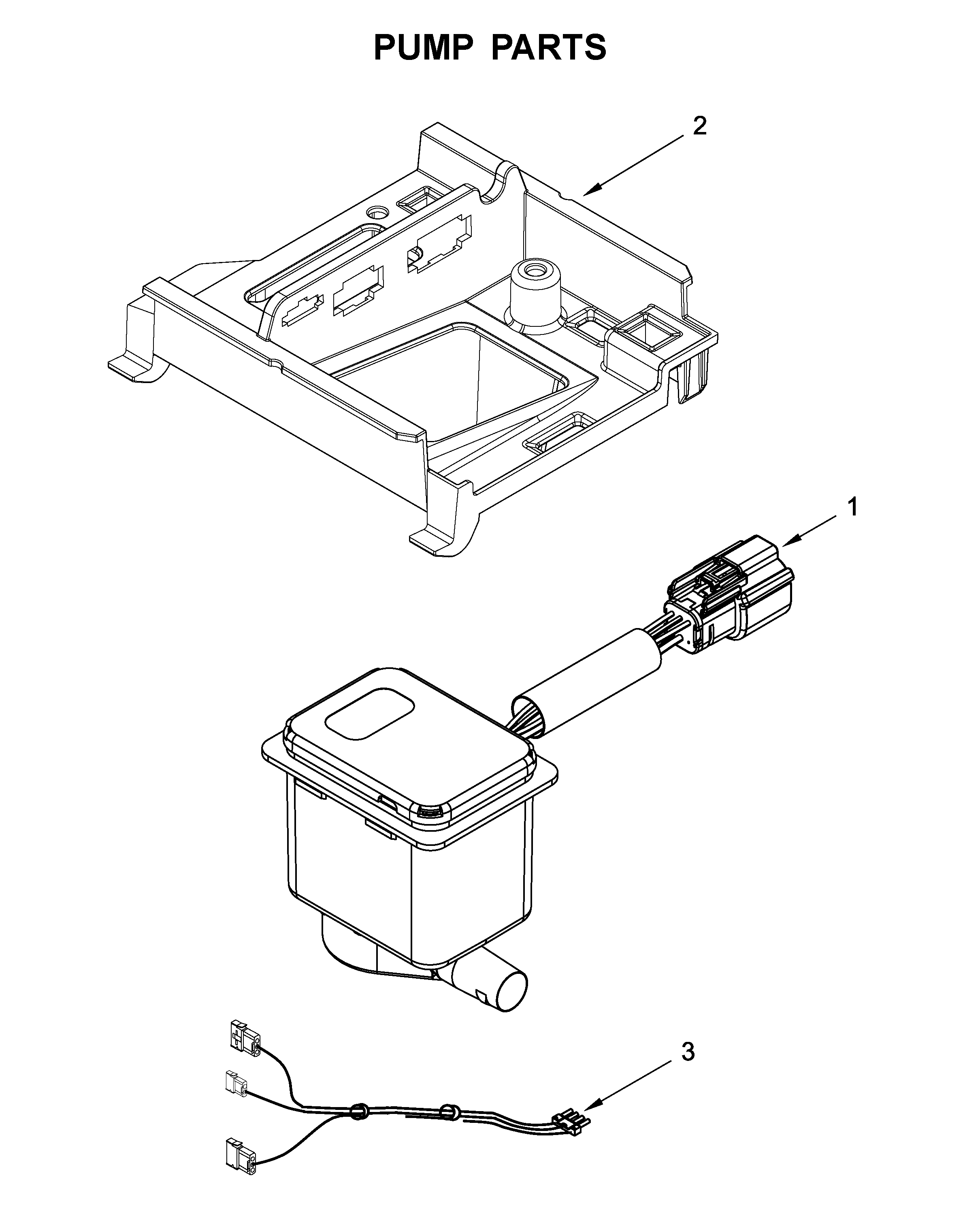

    How to replace a freestanding ice maker recirculation pump

    If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it.

    Repair difficulty
    Time required
     45 minutes or less

    Articles and videos common to all freestanding ice makers

    Use the advice and tips in these articles and videos to get the most out of your ice maker.

    October 26, 2016

    How to repair broken or damaged wires video

    By Sears PartsDirect staff

    Learn how to repair broken, frayed or damaged wires in your appliances.

    January 18, 2016

    How to use a multimeter to test electrical parts video

    By Sears PartsDirect staff

    Learn how to use a multimeter to check for wiring problems in an appliance that's not working

    December 15, 2014

    4 tips for better ice from an ice maker

    By Sears PartsDirect staff

    If your ice doesn't live up to your expectations, these tips can help.
