Hoover
Upright Vacuum

Model # U4257930 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U4257930 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Seal 38784016
#28

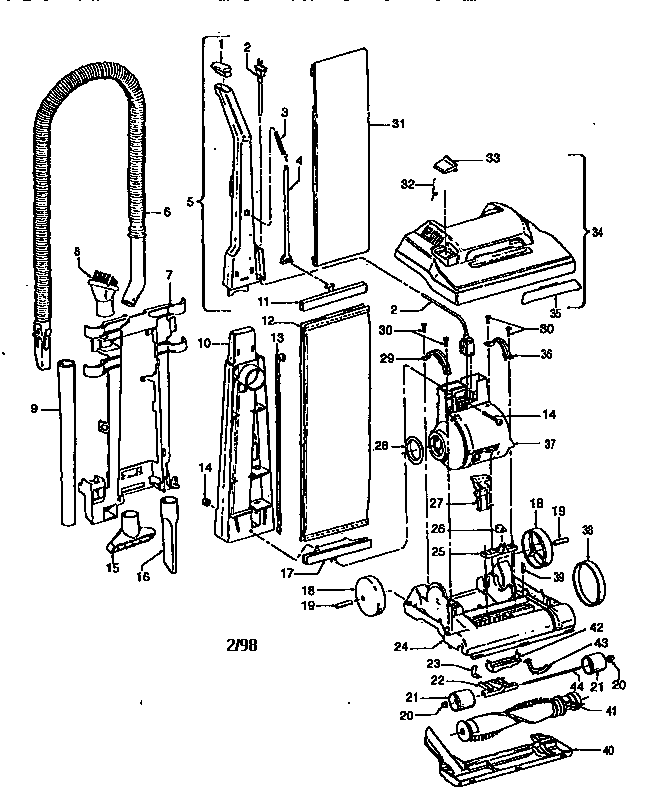

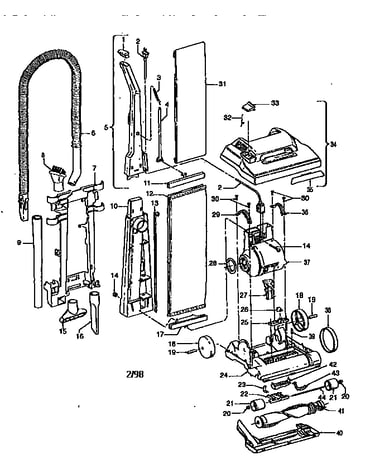

Elite ii sprint diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 38617024
#16

Elite ii sprint diagram

Crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Panel 37246048
#35A

Elite ii sprint diagram

Panel

Part #37246048

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Nozzle 38614029
#15

Elite ii sprint diagram

Vacuum furniture nozzle

Part #38614029

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mounting Bolt And Nut 40201085
#14

Elite ii sprint diagram

Vacuum motor mounting bolt and nut

Part #40201085

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447217
#30

Elite ii sprint diagram

Vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#23

Elite ii sprint diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Hood 42252394
#34

Elite ii sprint diagram

Hood

Part #42252394

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 37911079
#1

Elite ii sprint diagram

Handle cap

Part #37911079

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Bag, Type A, 3-pack 4010001A
#31

Elite ii sprint diagram

Hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part
