Model # JA624RN1SS Official GE electric range

Here are the diagrams and repair parts for Official GE JA624RN1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)
#235

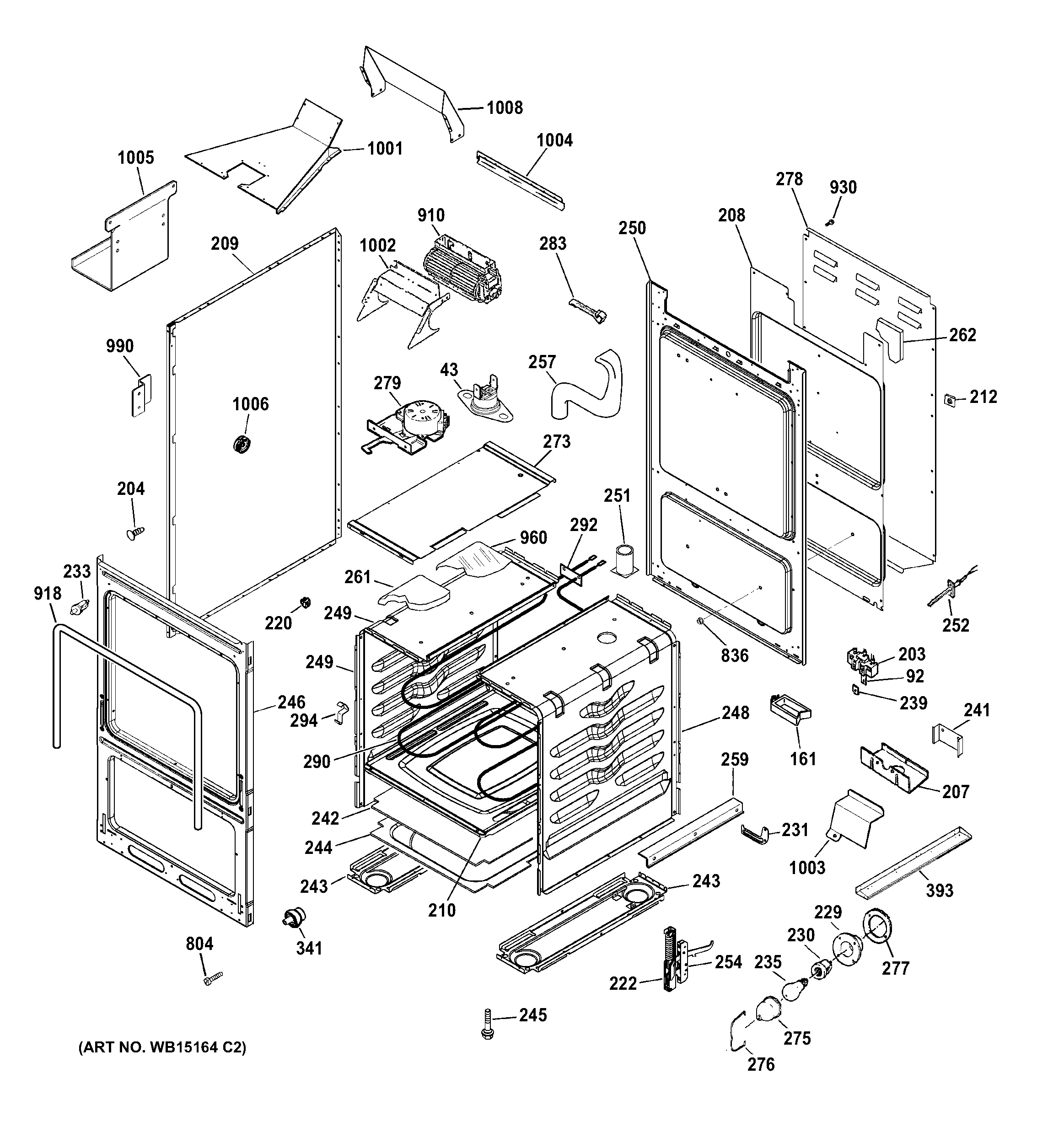

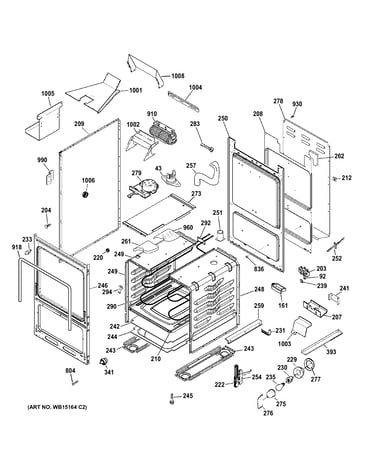

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Range Surface Element Control Switch, 1,500-watt
#4

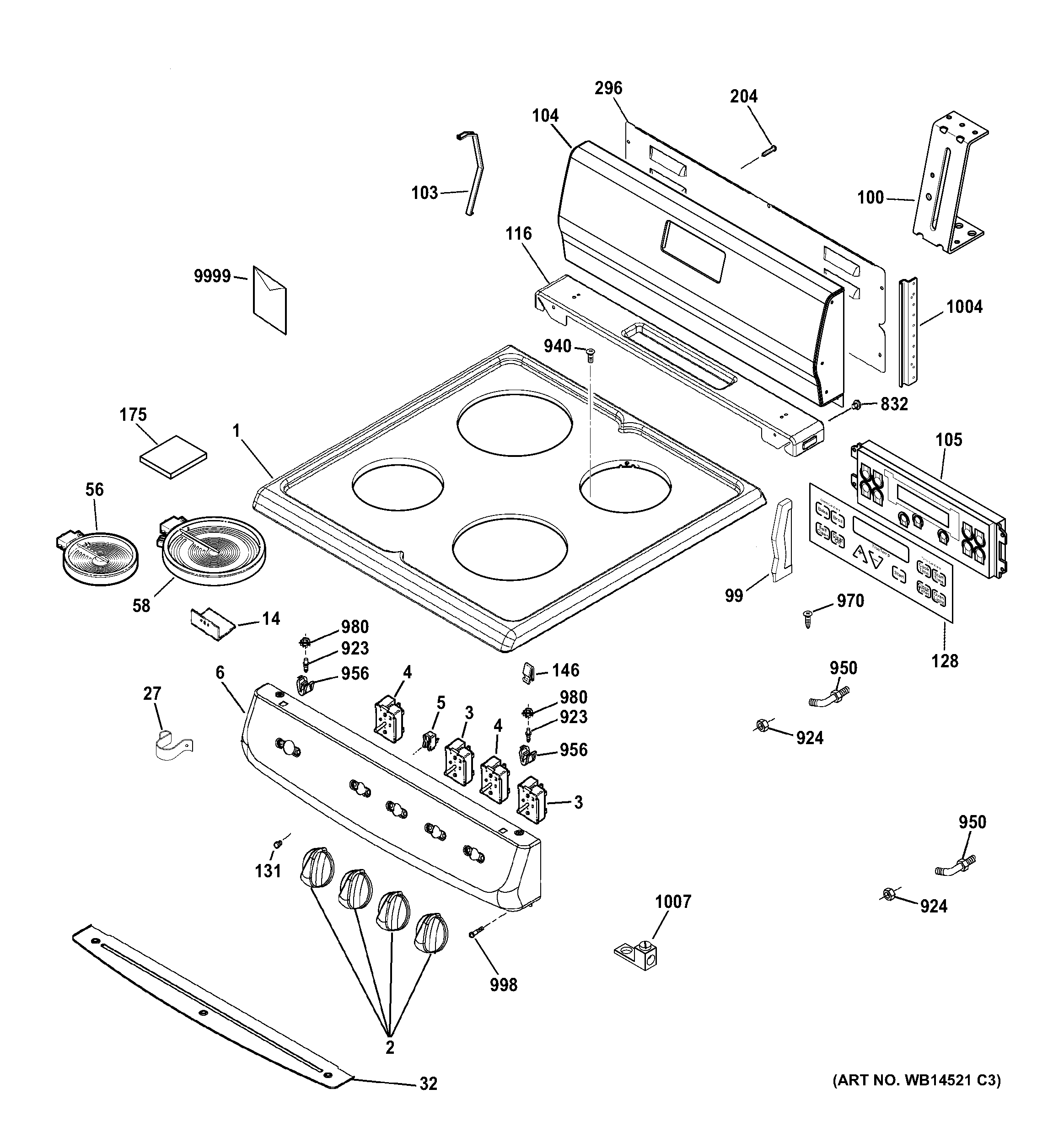

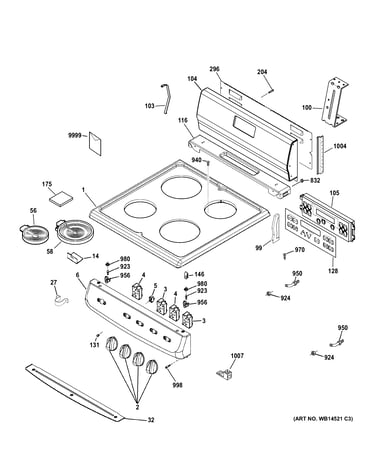

Control panel & cooktop diagram

Range surface element control switch, 1,500-watt

Part #WB24T10029

BEST SELLER
$43.13
10% OFF Phone Price : $48.13
In Stock
Cerama Bryte Cooktop Cleaner (replaces WB02X11121)
#9999

Control panel & cooktop diagram

Cleaner

Part #WB02X11121

Replaced by #WX10X300

?
Manufacturer substitution
This part replaces WB02X11121. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$16.03
11% OFF Phone Price : $18.03
In Stock
Range Broil Element Support (replaces WB02K9719, WB02X9719, WB2X9438, WB2X9576)
#294

Body parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Oven Light Lens (replaces WB2X6211, WB36X0192, WB36X279, WB36X299, WB36X389, WB8K5)
#275

Body parts diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.54
9% OFF Phone Price : $10.54
In Stock
Range Light Socket (replaces WB08T10004)
#230

Body parts diagram

Pushin receptacle

Part #WB08K0002

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08K0002. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Surface Element Control Switch
#3

Control panel & cooktop diagram

Range surface element control switch

Part #WB24T10027

$93.92
5% OFF Phone Price : $98.92
In Stock
Range Indicator Light Lens (Red) (replaces WB25K2)
#131

Control panel & cooktop diagram

Lens

Part #WB25K0002

Replaced by #WB25T10041

?
Manufacturer substitution
This part replaces WB25K0002. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Drawer Glide
#343

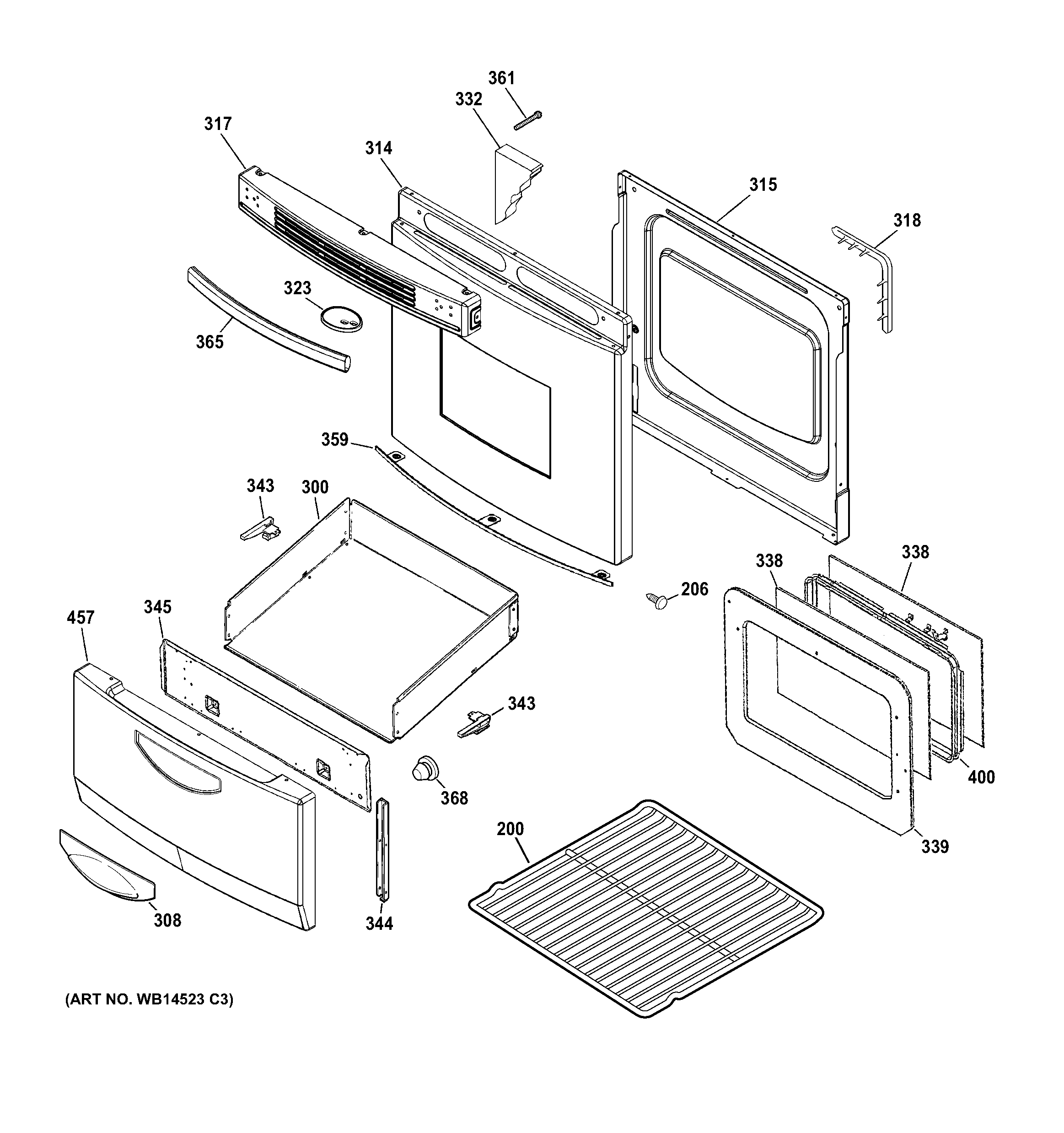

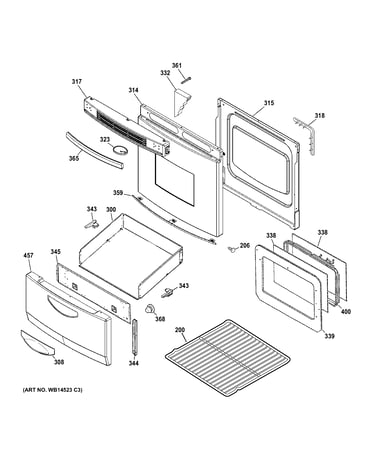

Door & drawer parts diagram

Range drawer glide

Part #WB02K10062

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Range Door Bumper (replaces WB02K0015, WB02X10905)
#368

Door & drawer parts diagram

Bumper

Part #WB02K0015

Replaced by #WB2K15

?
Manufacturer substitution
This part replaces WB02K0015. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
