Craftsman 917295460 high pulling force compression stroke tiller Parts
Here are the diagrams and repair parts for Craftsman 917295460 high pulling force compression stroke tiller, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

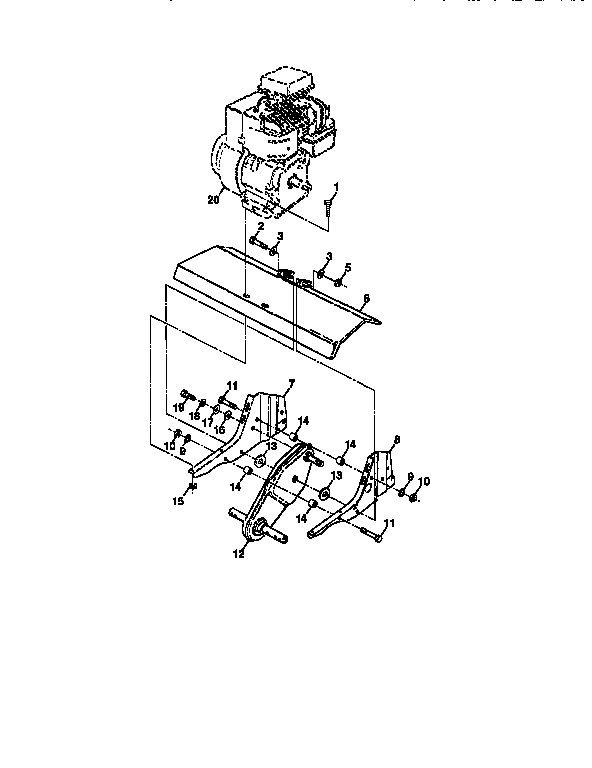

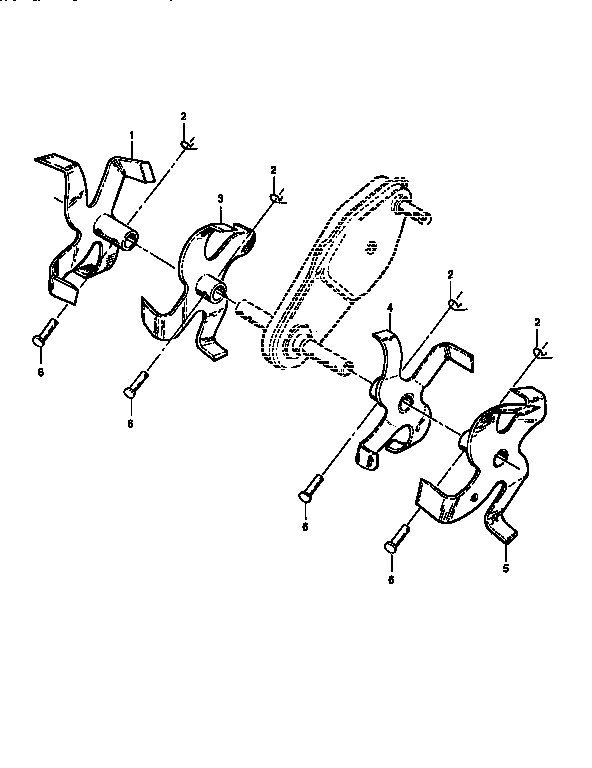

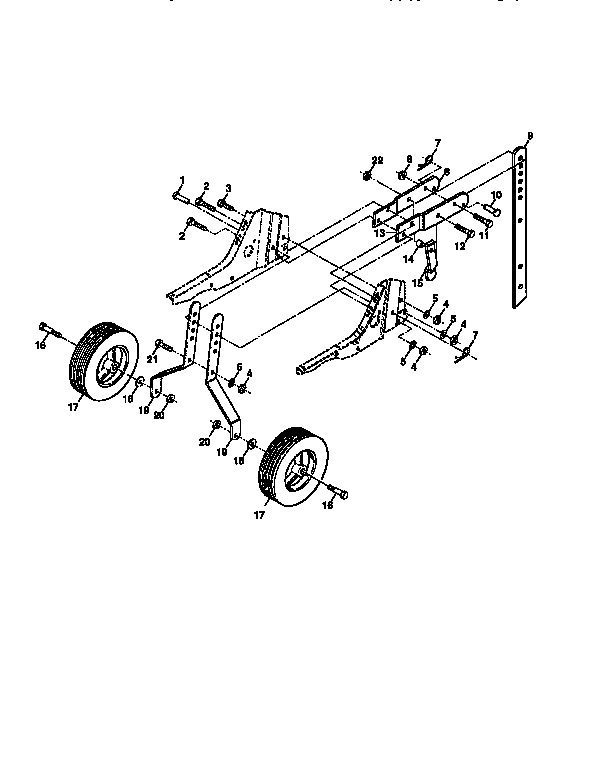

Browse Parts for 917295460 Tillers

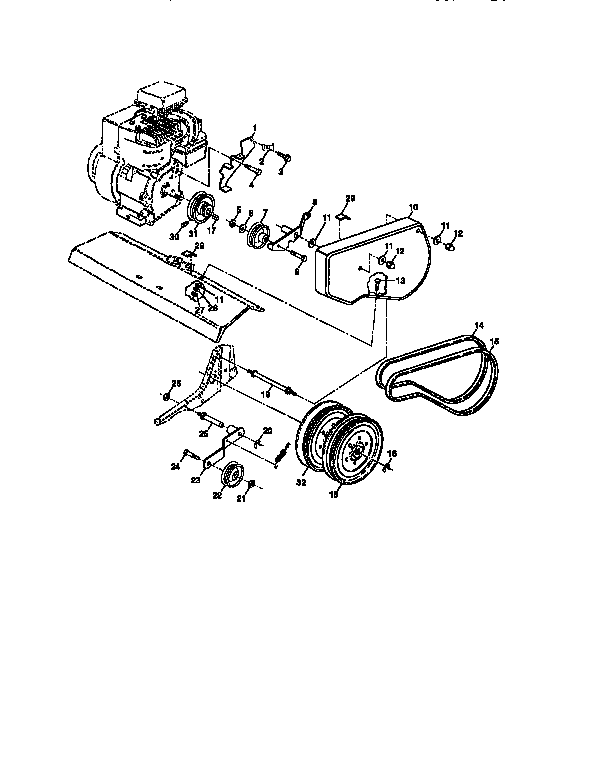

Belt guard and pulley assembly diagram
Key
Part #2649MReplaced by #532002649
Manufacturer substitutionThis part replaces 2649M. Substitute parts can look different from the original.In Stock$12.97
Qty
Belt guard and pulley assembly diagram
Washer
Part #19131316Replaced by #819131316
Manufacturer substitutionThis part replaces 19131316. Substitute parts can look different from the original.This item is not returnableIn Stock$27.3618% OFF Phone Price : $33.36

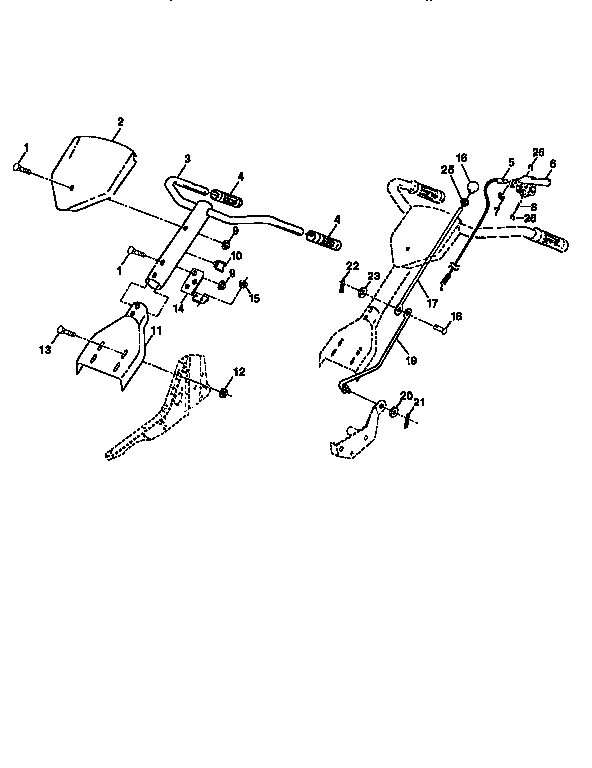

QtyHandle assembly diagram
Lock Nut
Part #73970500Replaced by #596040501
Manufacturer substitutionThis part replaces 73970500. Substitute parts can look different from the original.In Stock$56.1210% OFF Phone Price : $62.12QtyBelt guard and pulley assembly diagram
Tiller Reverse Drive Belt
Part #2614JReplaced by #599385301
Manufacturer substitutionThis part replaces 2614J. Substitute parts can look different from the original.This item is not returnableIn Stock$19.599% OFF Phone Price : $21.59QtyHandle assembly diagram
Rally Lawn & Garden Equipment Bolt
Part #72010520Replaced by #872010520
Manufacturer substitutionThis part replaces 72010520. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyHandle assembly diagram
Lawn Tractor Shifter Knob
Part #106932XReplaced by #532106932
Manufacturer substitutionThis part replaces 106932X. Substitute parts can look different from the original.This item is not returnableIn Stock$13.0713% OFF Phone Price : $15.07QtyHandle assembly diagram
Pivot Pin
Part #151463
The manufacturer no longer makes this part, and there's no substitute part

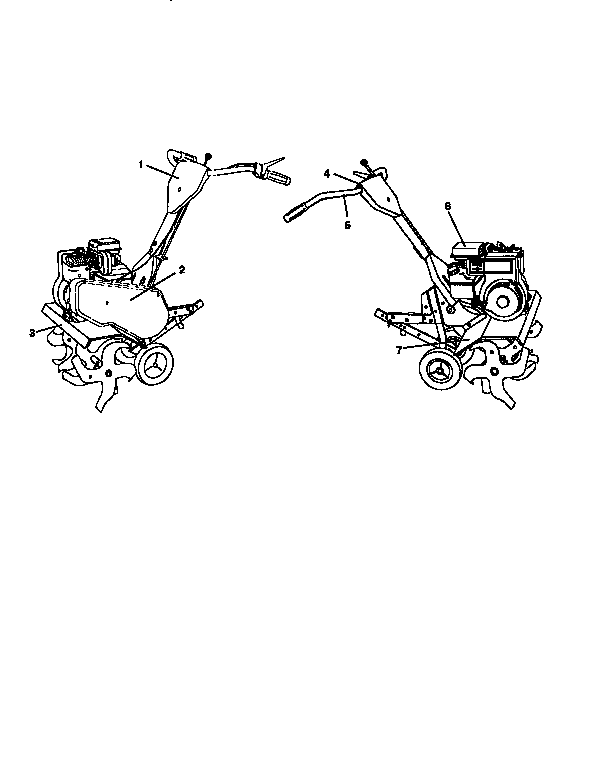

Decals diagram
Decal
Part #110719X
The manufacturer no longer makes this part, and there's no substitute part
Decals diagram
Logo Decal
Part #152344
The manufacturer no longer makes this part, and there's no substitute part
Belt guard and pulley assembly diagram
Tiller Engine Pulley
Part #101189L
The manufacturer no longer makes this part, and there's no substitute part
