Kenmore Elite
Microwave/Hood Combo

Model # 72180829500 Official Kenmore Elite microwave

Here are the diagrams and repair parts for Official Kenmore Elite 72180829500 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

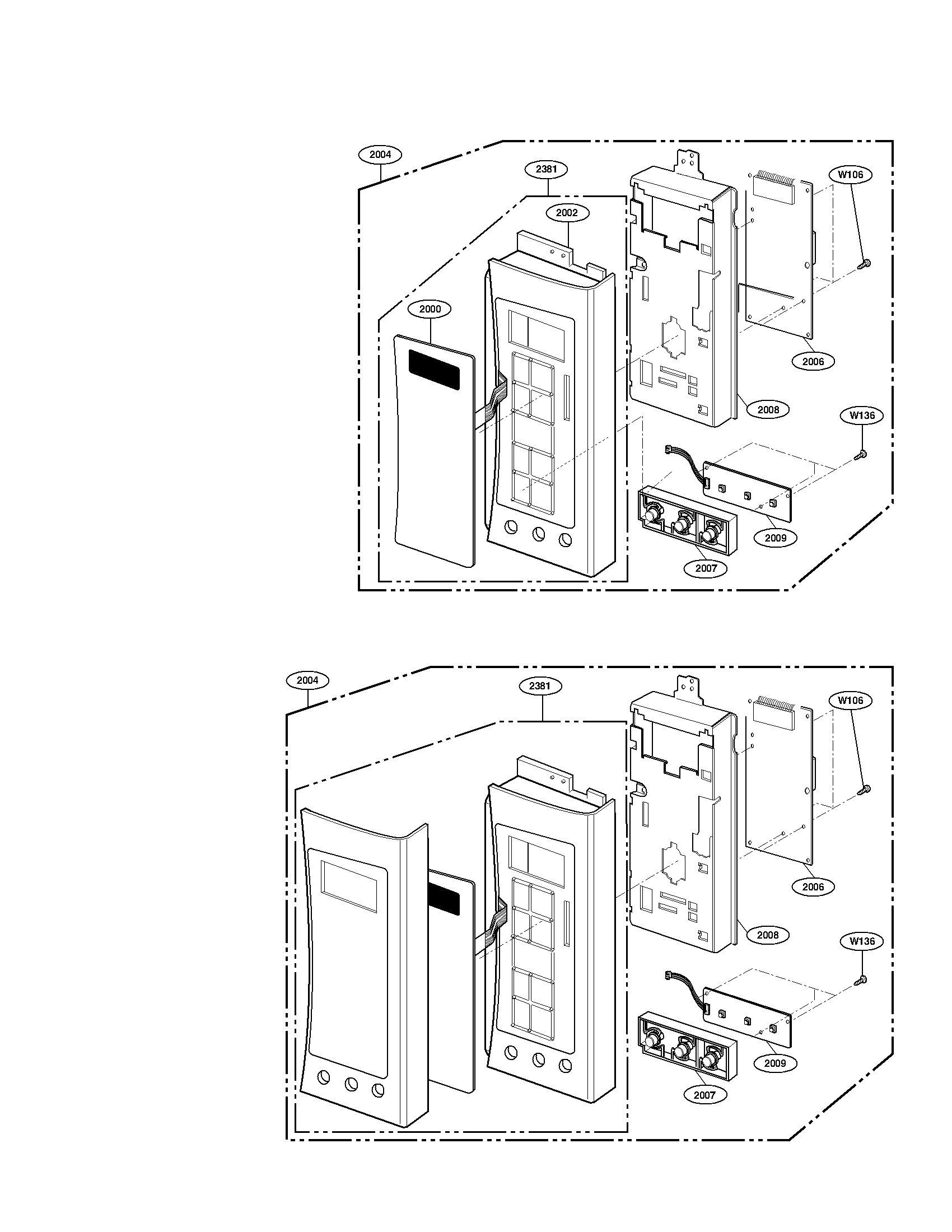

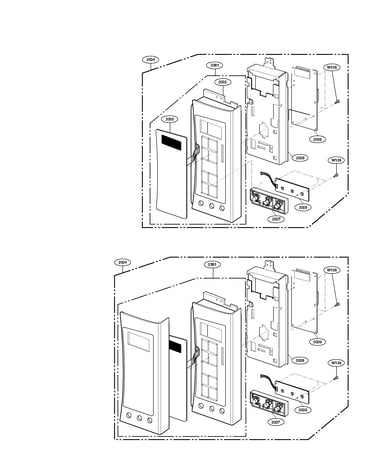

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

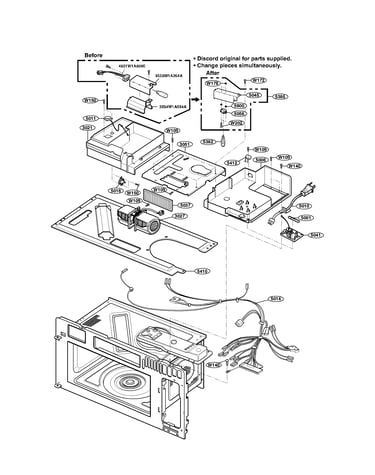

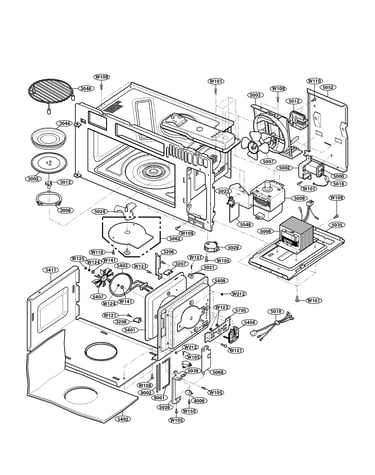

Interior parts 2 diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19 |
15% OFF Phone Price : $33.19
In Stock
High-voltage Diode 6021W3B001Q
#5018

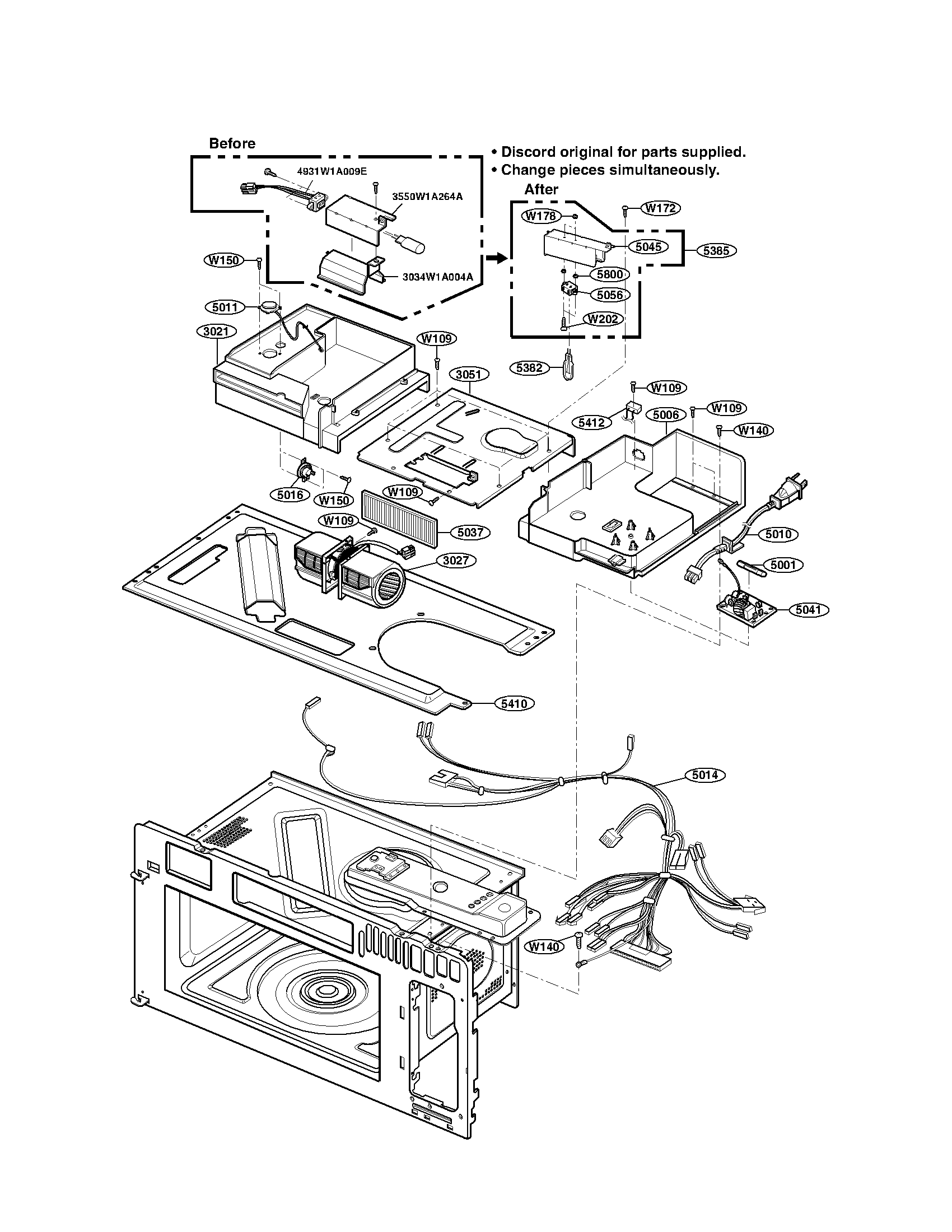

Interior parts diagram

High-voltage diode

Part #6021W3B001Q

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001Q. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#5000

Interior parts diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Parts Assembly 383EW1A077D
#5382

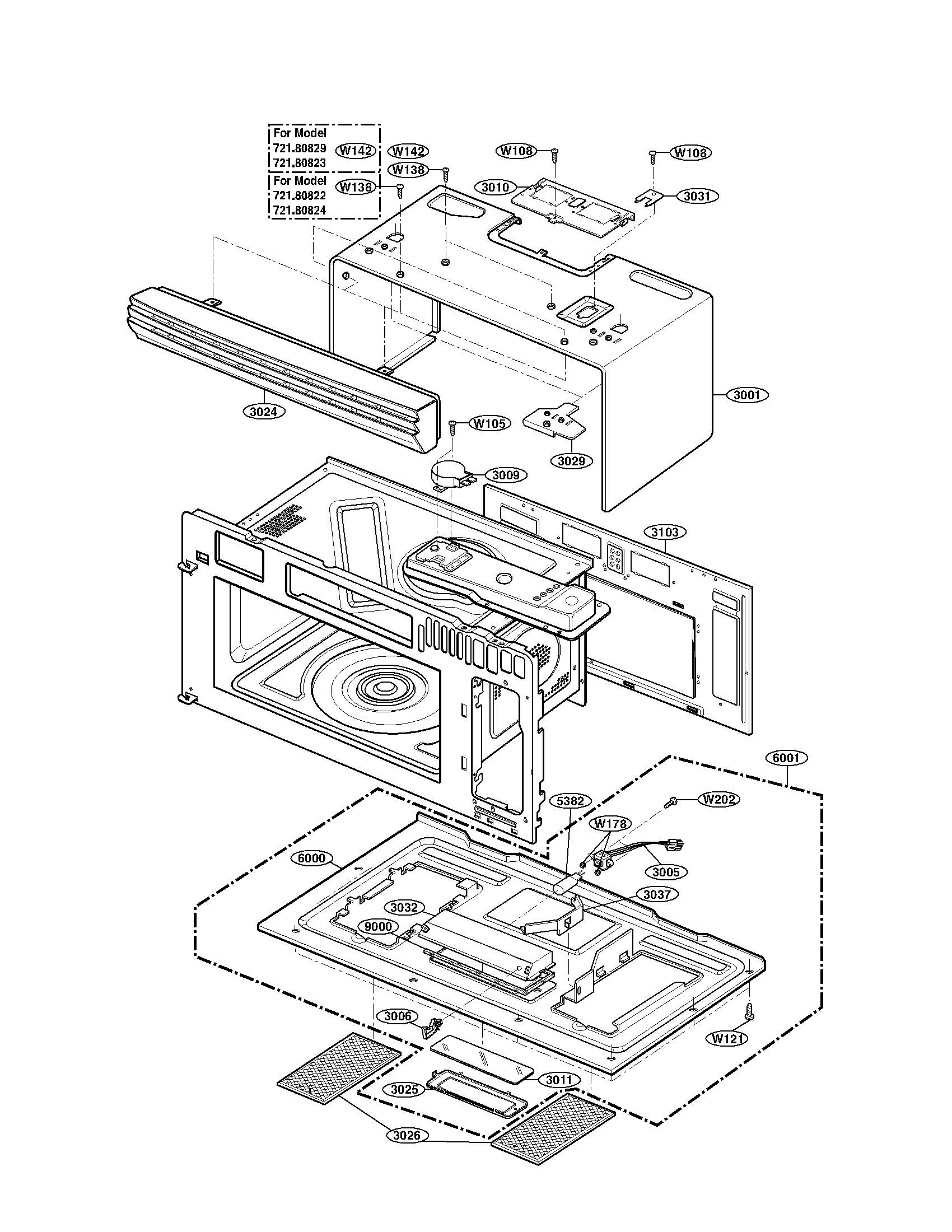

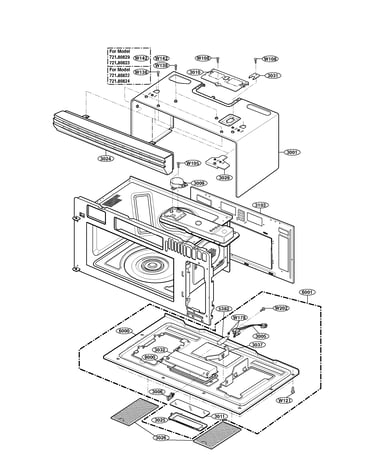

Oven cavity parts diagram

Parts assembly

Part #383EW1A077D

Replaced by #6912A40002E

?
Manufacturer substitution
This part replaces 383EW1A077D. Substitute parts can look different from the original.
BEST SELLER
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Microwave Micro-switch (replaces 46-692286-3) 3B73362F
#4002

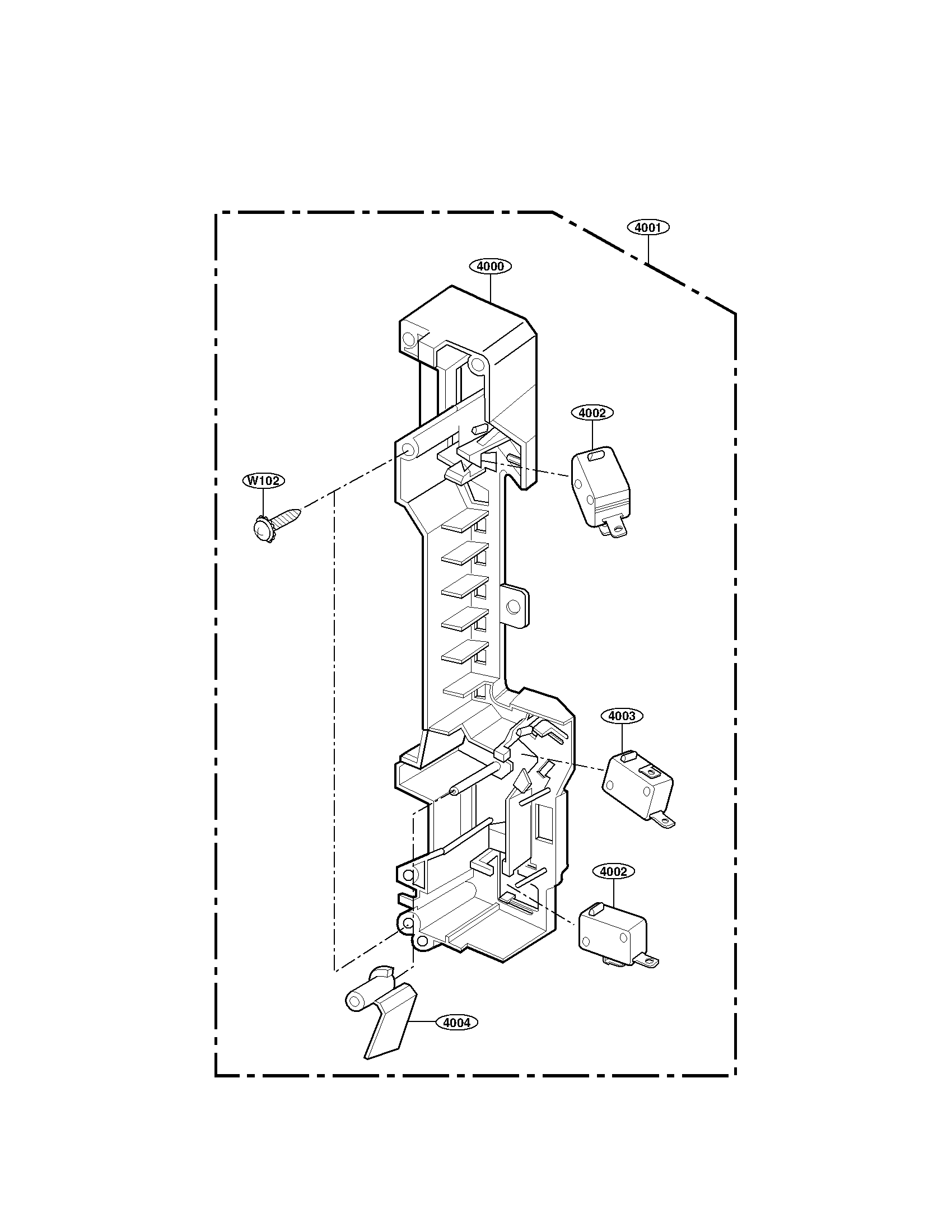

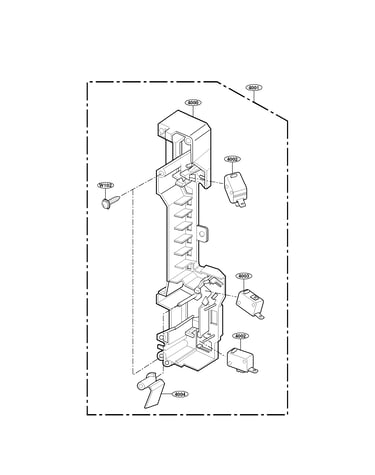

Latch board parts diagram

Microwave micro-switch (replaces 46-692286-3)

Part #3B73362F

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Glass Turntable Tray (replaces 3390w1a019b) 3390W1A019A
#3002

Interior parts diagram

Microwave glass turntable tray (replaces 3390w1a019b)

Part #3390W1A019A

BEST SELLER
$29.47 |
15% OFF Phone Price : $34.47
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

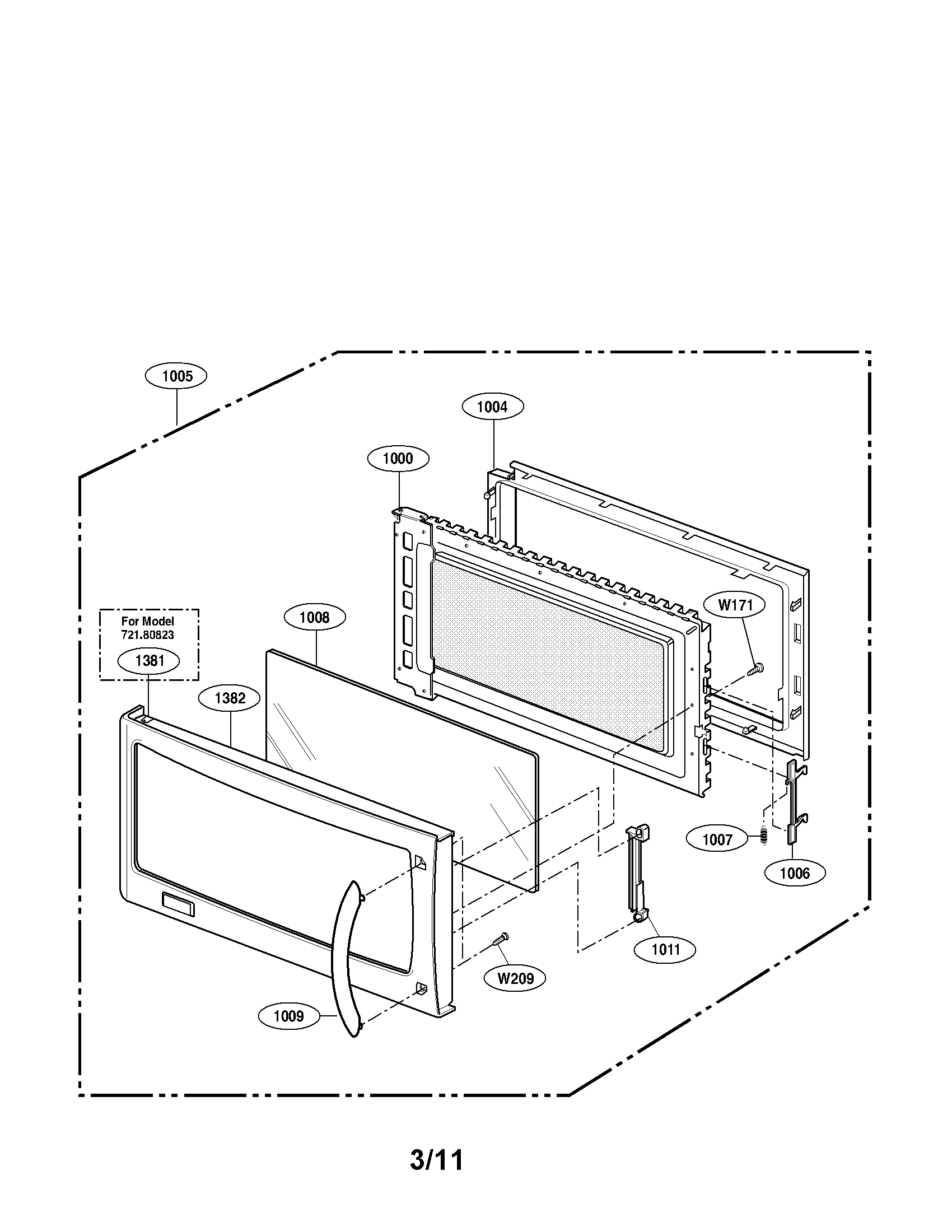

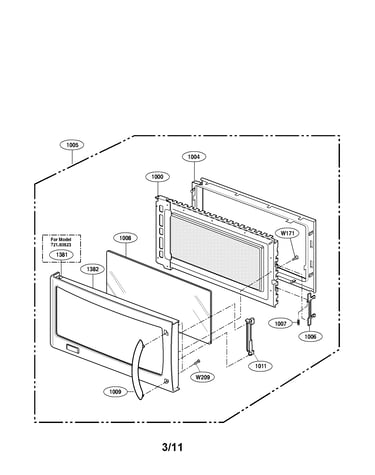

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Installation Hardware Kit (replaces 2b72771f, 2b72771h, 3861w1a043g, 4b72059b) 3861W1A043C
#6009

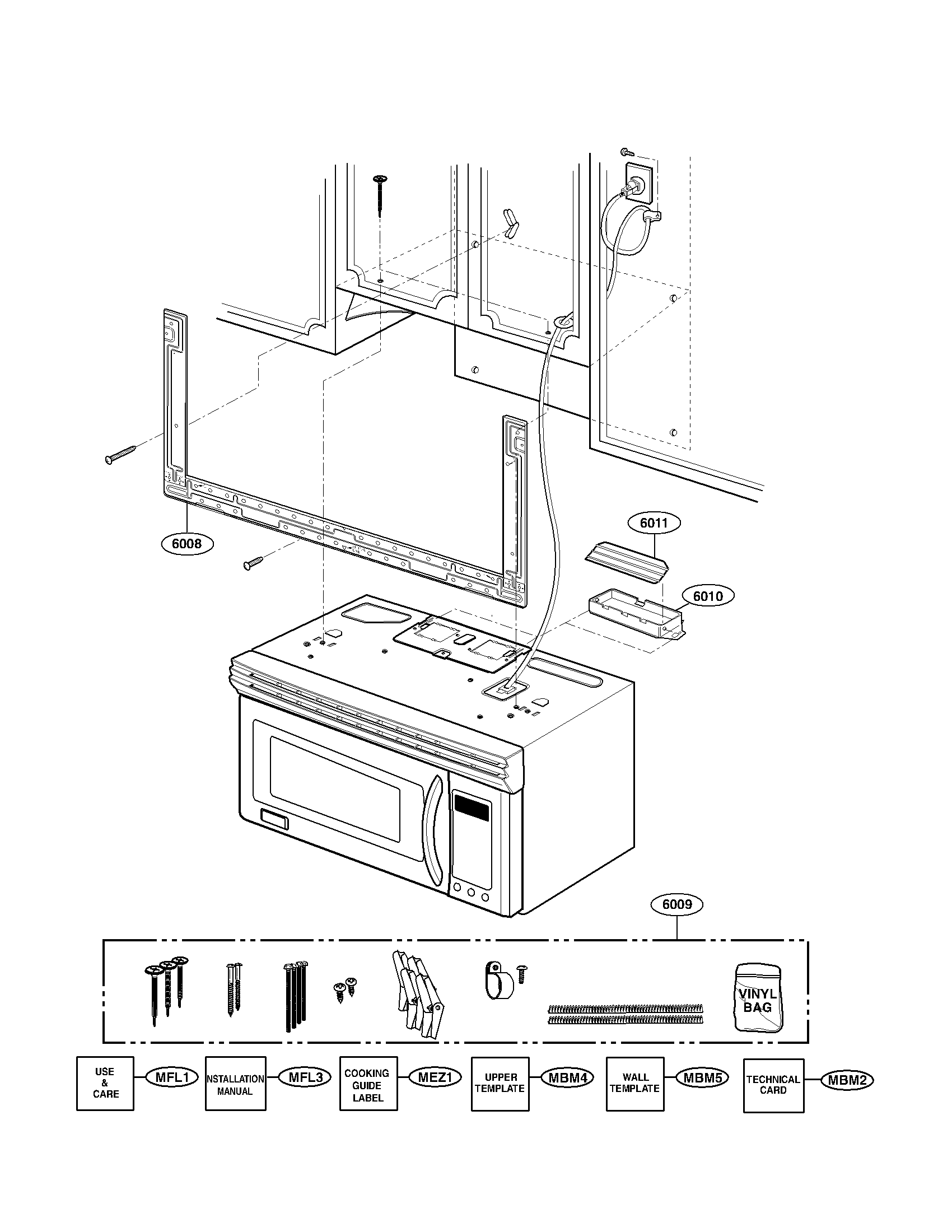

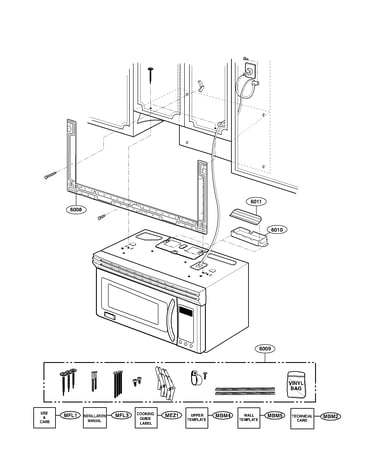

Installation parts diagram

Microwave installation hardware kit (replaces 2b72771f, 2b72771h, 3861w1a043g, 4b72059b)

Part #3861W1A043C

This item is not returnable
$23.98 |
17% OFF Phone Price : $28.98
In Stock
Microwave Turntable Motor 6549W1S013D
#5029

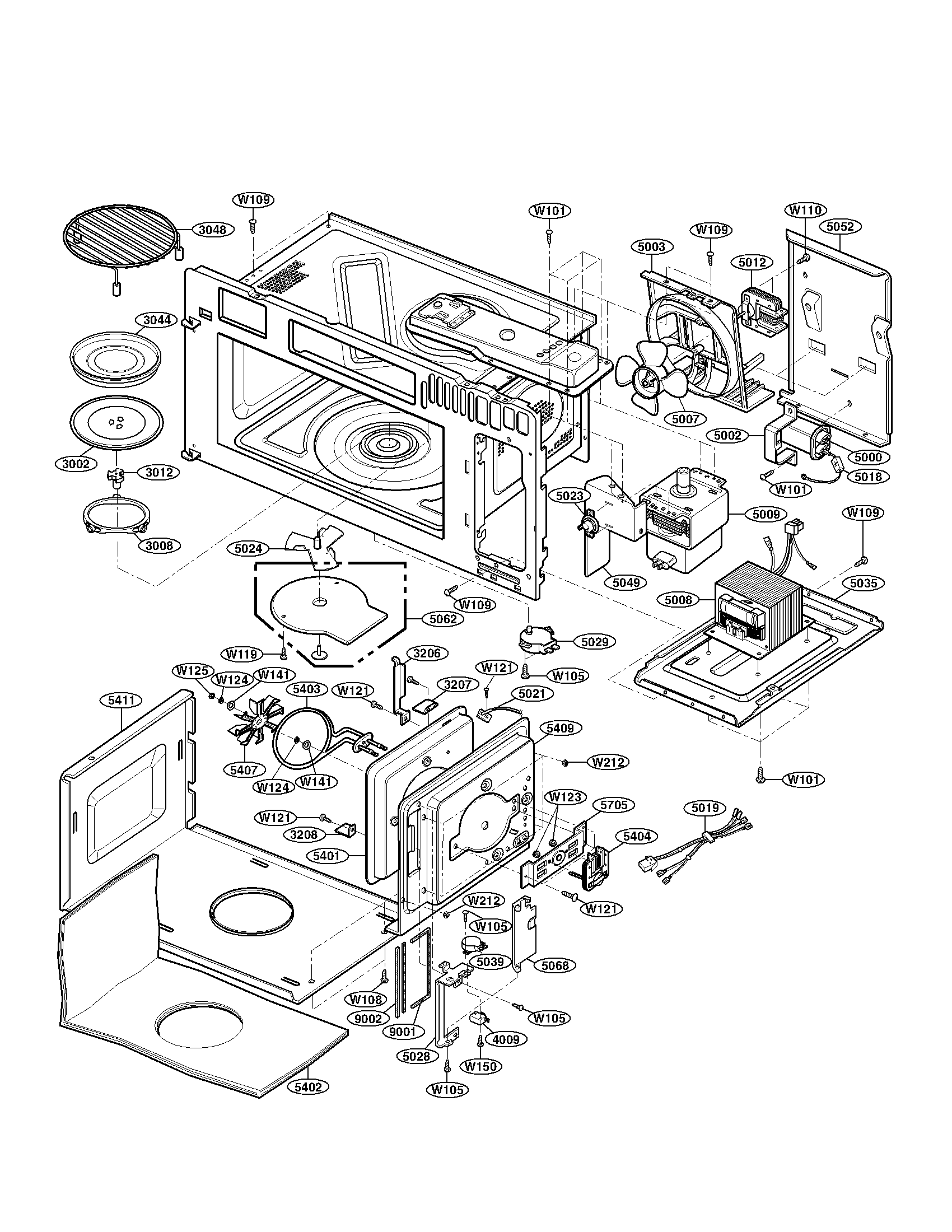

Interior parts diagram

Microwave turntable motor

Part #6549W1S013D

This item is not returnable
$30.76 |
14% OFF Phone Price : $35.76
In Stock
Microwave Light Socket And Harness Assembly (replaces 4931w1a009a) 4931W1A009G
Microwave light socket and harness assembly (replaces 4931w1a009a)

Part #4931W1A009G

This item is not returnable
$20.53 |
20% OFF Phone Price : $25.53
In Stock
