Kenmore Elite
Microwave/Hood Combo

Model # 72188512900 Official Kenmore Elite microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore Elite 72188512900 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

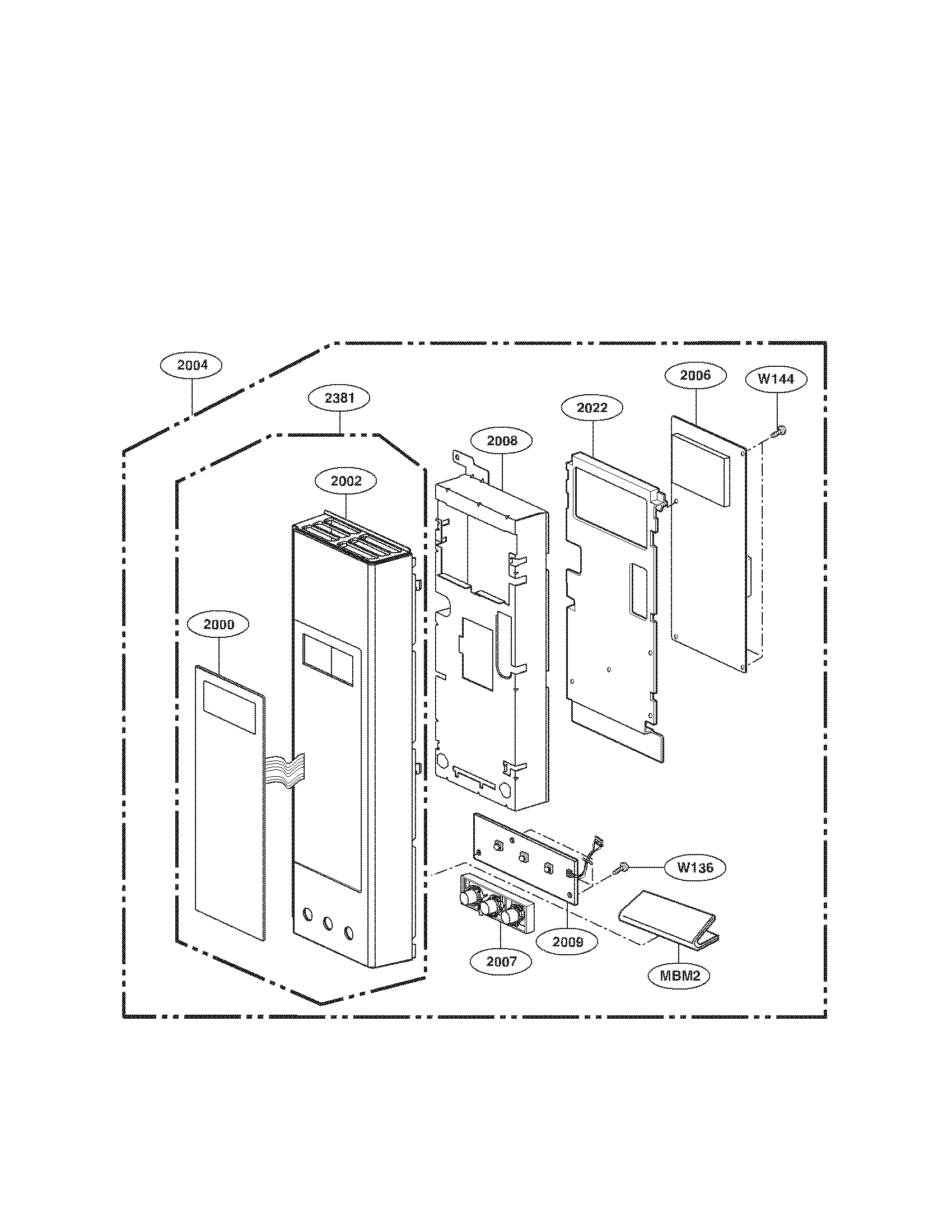

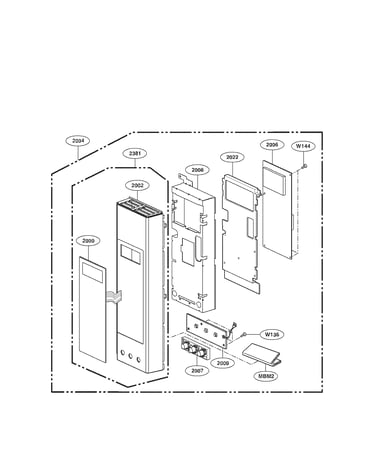

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

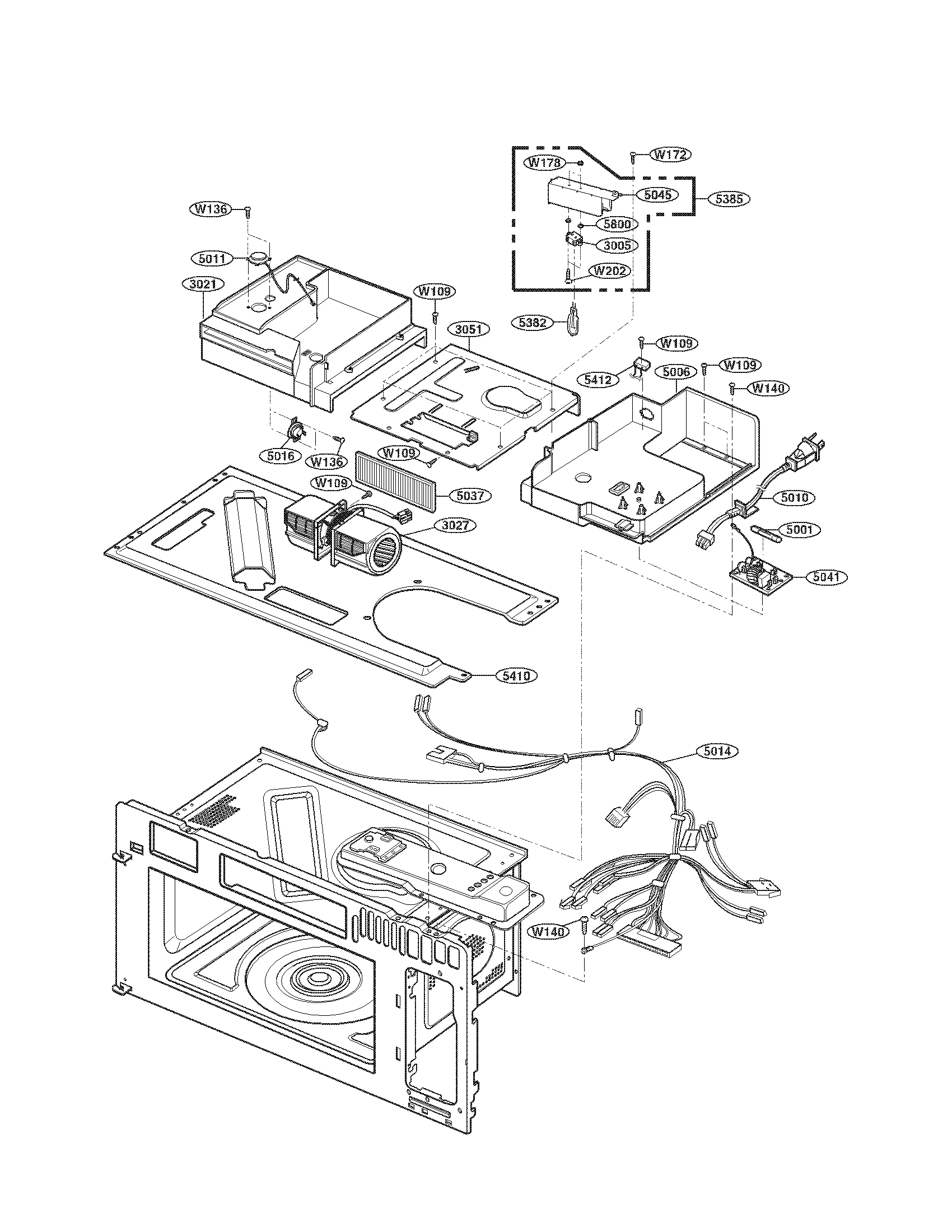

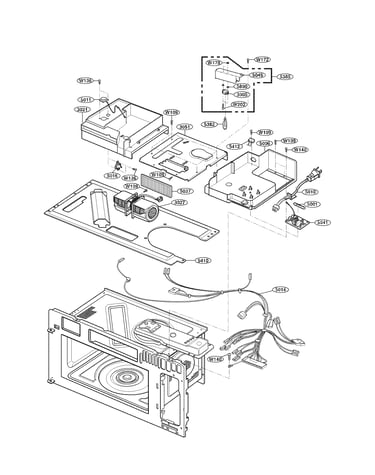

Interior parts 2 diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$31.25 |
14% OFF Phone Price : $36.25
In Stock
Grease Filter 2B72705B
#3026

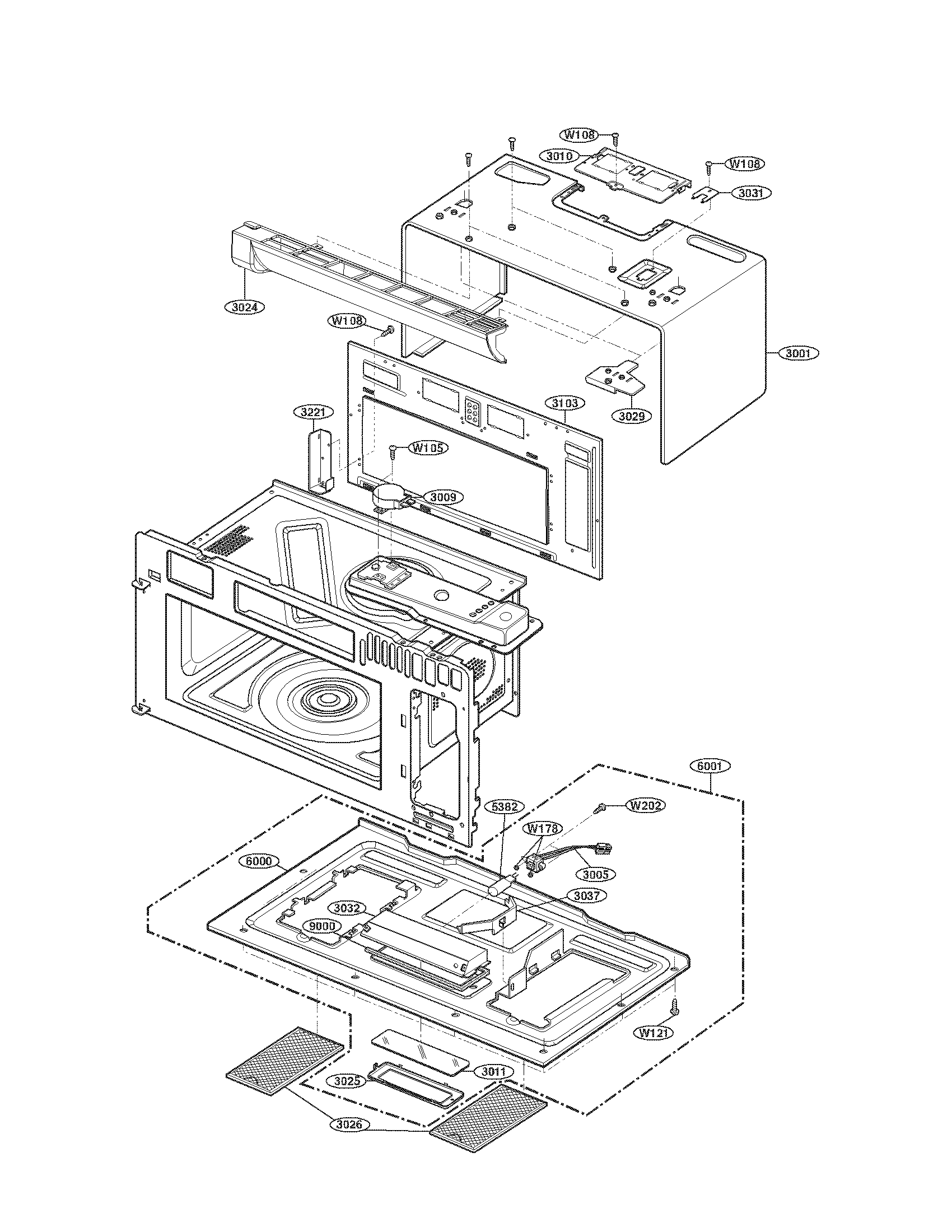

Cavity parts diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$11.62 |
15% OFF Phone Price : $13.62
In Stock
Microwave High-voltage Diode 6021W3B001M
#5018

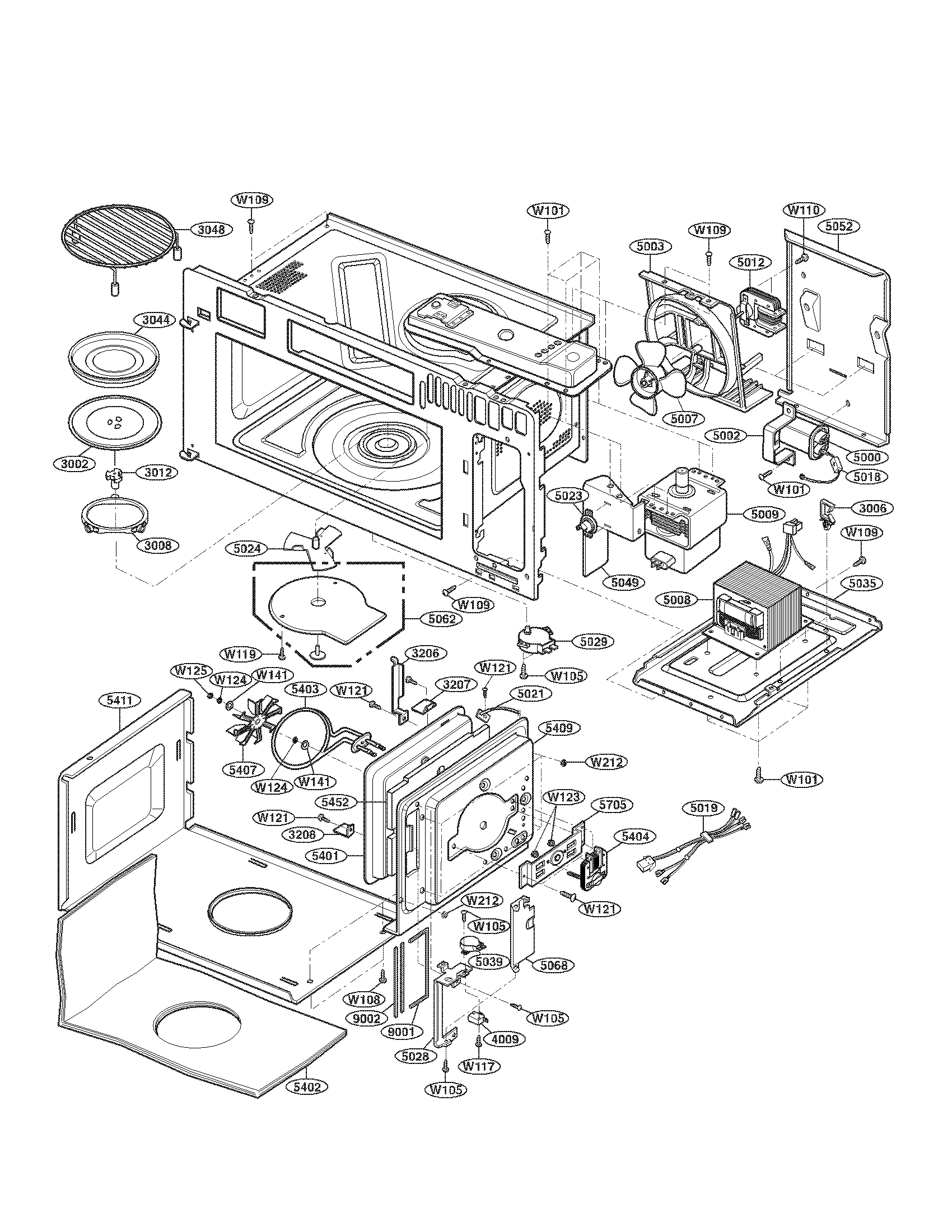

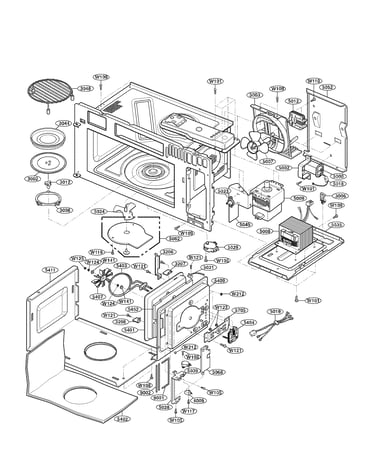

Interior parts 1 diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave Vent Grille MDX61171701
#3024

Cavity parts diagram

Microwave vent grille

Part #MDX61171701

Replaced by #MDX61171703

?
Manufacturer substitution
This part replaces MDX61171701. Substitute parts can look different from the original.
BEST SELLER
$37.85 |
12% OFF Phone Price : $42.85
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#5000

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Microwave Turntable Ring 5889W2A012D
#3008

Interior parts 1 diagram

Microwave turntable ring

Part #5889W2A012D

Replaced by #5889W2A012P

?
Manufacturer substitution
This part replaces 5889W2A012D. Substitute parts can look different from the original.
BEST SELLER
$20.81 |
19% OFF Phone Price : $25.81
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

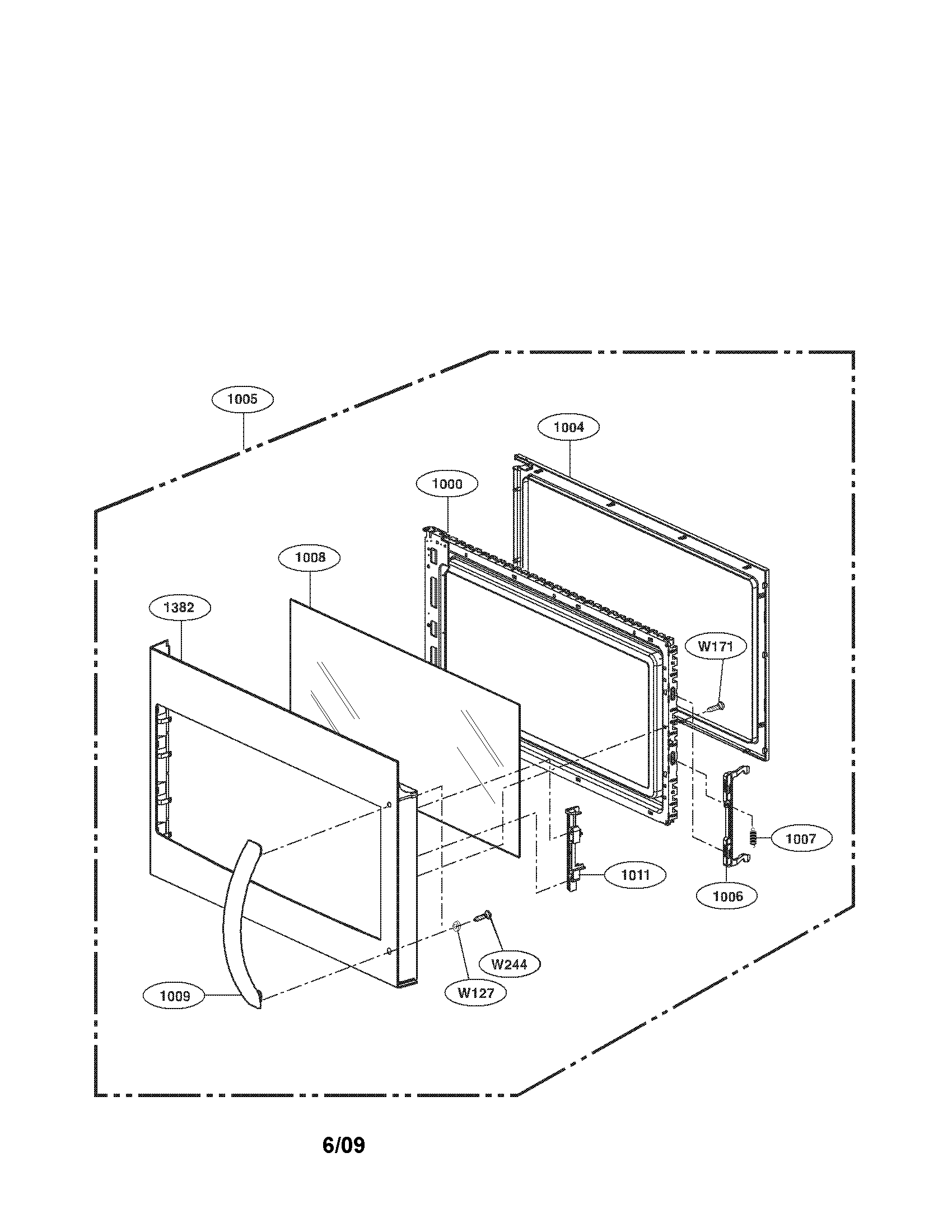

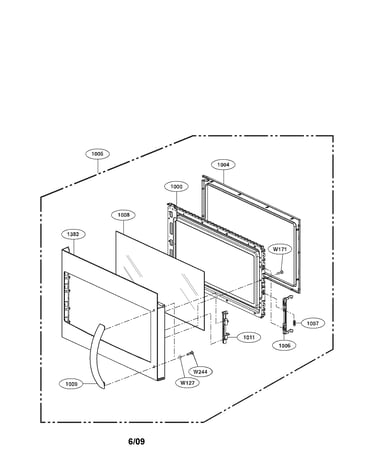

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave/hood Holder Locker Assembly 3501W1A019A
#4001

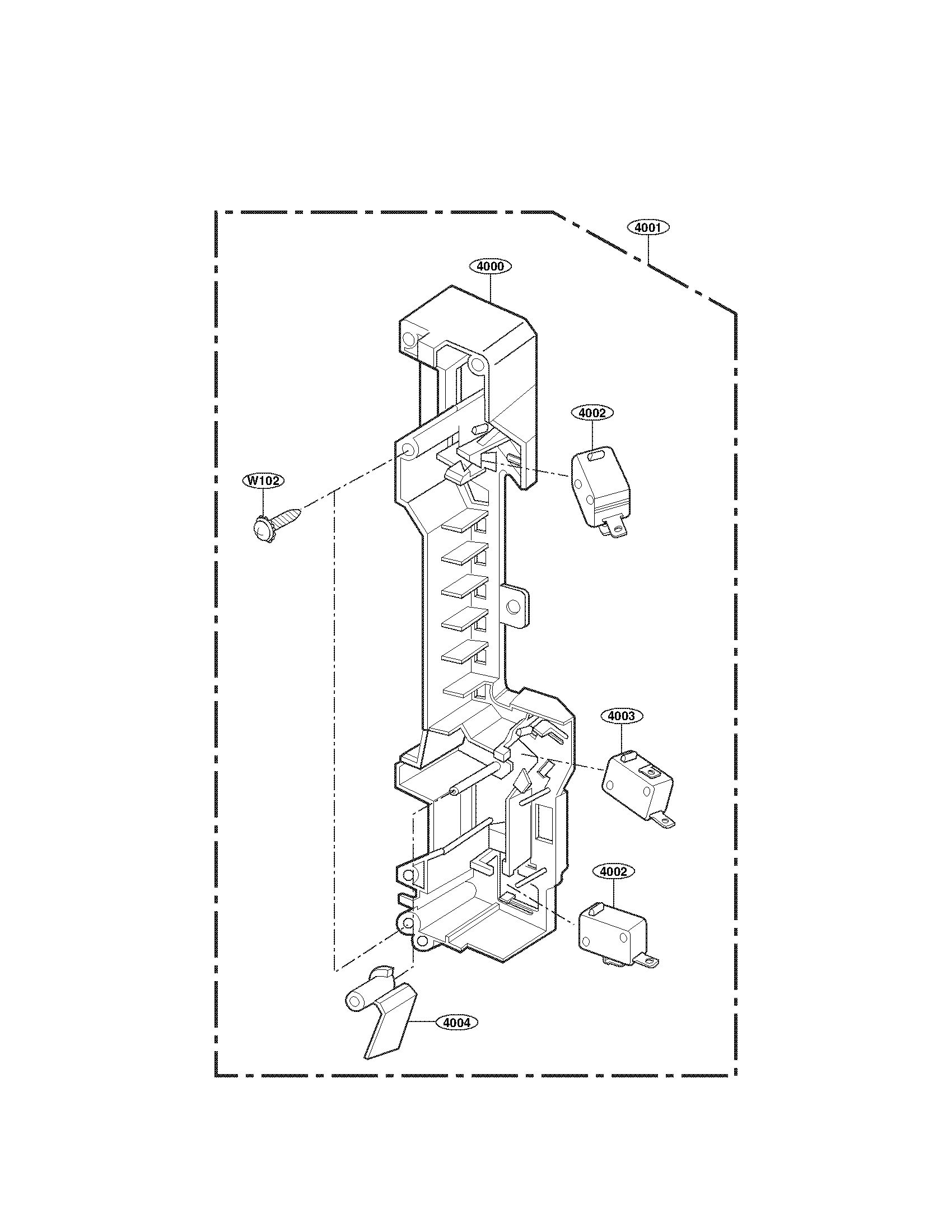

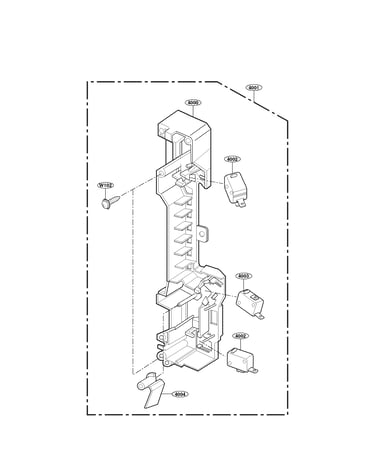

Latchboard parts diagram

Microwave/hood holder locker assembly

Part #3501W1A019A

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Damper 3B71432A
#6011

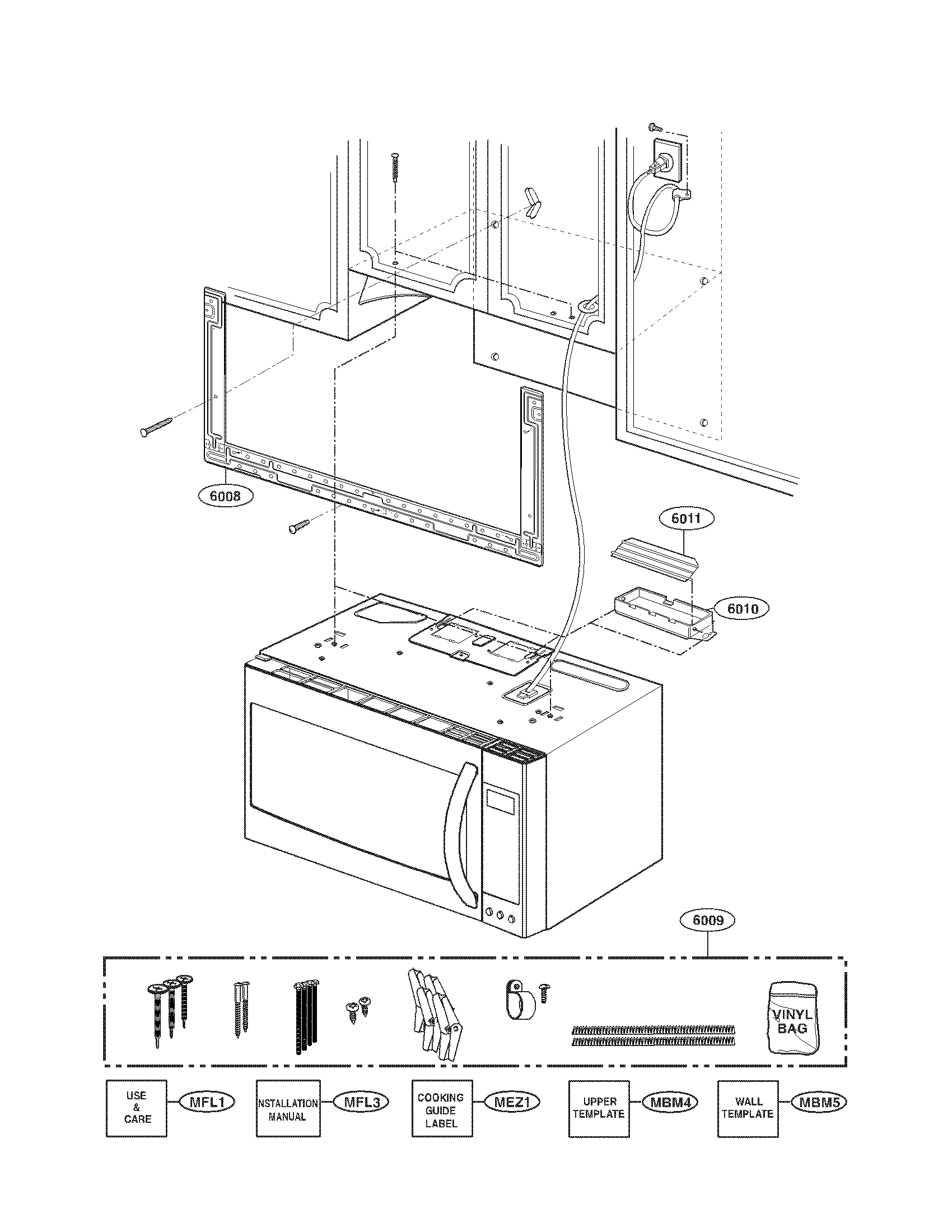

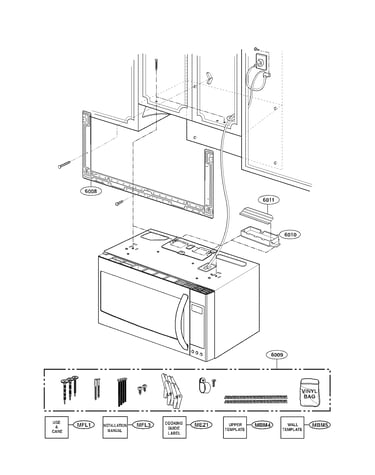

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Glass Turntable Tray (replaces 3390w1a019b) 3390W1A019A
#3002

Interior parts 1 diagram

Microwave glass turntable tray (replaces 3390w1a019b)

Part #3390W1A019A

BEST SELLER
$29.47 |
15% OFF Phone Price : $34.47
In Stock
