KitchenAid KBRS36FMX02 bottom-mount built-in refrigerator Parts

A bottom-mount refrigerator like the KitchenAid KBRS36FMX02 keeps the fresh-food section at eye and waist level, so you reach everyday items with less bending. The freezer sits below, which is convenient if you access refrigerated foods more often than frozen foods.

Key benefits you’ll notice day to day

• Less bending for fresh foods: produce, drinks, and leftovers are easier to grab.
• Better organization for refrigerated items: shelves and bins are more visible at eye level.
• Freezer space is still generous: bottom freezers typically use deep drawers or baskets.
• Good airflow when used correctly: keeping vents clear helps maintain stable temperatures.
• Built-in look and fit options: many bottom-mount built-ins support panel-ready installations.

What to keep in mind (trade-offs)

Bottom-mount designs are a great fit for most kitchens, but these are common considerations:

Consideration	What it means for you
Freezer access	You’ll bend more often when using the freezer drawer/baskets.
Heavier freezer items	Large frozen foods may be harder to lift up and out.
Installation details	Built-in units often require precise clearances and panel thickness planning.

Why it matters for performance

This style depends on proper airflow between the refrigerator and freezer sections. When vents are blocked by food packages, airflow drops and you can see temperature swings, moisture issues, or uneven cooling. For vent locations and loading tips specific to your KBRS36FMX02, use the owner's manual.

Related installation note for built-in bottom-mount models

If you’re using custom overlay panels, the installation guide includes panel thickness guidance so the grille and door panels sit flush. For those measurements and fit details, use the installation guide.

Last updated: February 2026

KitchenAid refrigerators typically last 12 to 15 years on average, and many run 10 to 17 years with normal use and good maintenance. For your KitchenAid KBRS36FMX02 built-in bottom-mount refrigerator, consistent temperatures, clean airflow, and timely part replacement make the biggest difference.

Typical lifespan and what affects it

A refrigerator’s life is mostly determined by how hard the sealed system and fans have to work.

• Installation and ventilation: built-in units need proper airflow around the machine compartment.
• Condenser cleanliness: dust buildup raises operating temperatures and run time.
• Door sealing: air leaks force longer compressor cycles.
• Water system upkeep: restricted filters can reduce dispenser flow and stress valves.
• Fan performance: weak airflow causes warm spots and longer run times.

Maintenance checklist (high impact)

Use these habits to help your KBRS36FMX02 reach its expected service life:

• Replace the water filter on schedule; use the correct refrigerator filter EDR5RXD1.
• Keep doors closing fully; avoid overloading door bins and shelves.
• Clean the condenser area and ensure vents are not blocked.
• Confirm the freezer drawer seals evenly all the way around.
• Address unusual noises early (often related to evaporator or condenser fan airflow).

What “warranty years” tell you (quick guide)

Your owner's manual includes warranty coverage that helps explain which systems are designed for long service.

Component area	What it includes	Why it matters for lifespan
Sealed refrigeration system	Compressor, evaporator, condenser, dryer, connecting tubing	Core cooling components; failures are typically the most expensive
Water filter (models with filter)	Filter coverage is limited	Filters are routine maintenance items
Door bins	Covered for the life of the product (per manual terms)	Indicates high-durability design for common-use parts

Why it matters

Knowing the typical lifespan helps you decide when maintenance and repairs are cost-effective. If your KBRS36FMX02 is under about 12 years old, fixing airflow, sealing, or filtration issues often restores performance and extends service life.

Last updated: February 2026

On the KitchenAid KBRS36FMX02 built-in bottom-mount refrigerator, the bottom grille (base grille) typically comes off by removing the screws at each end, then pulling the grille straight forward. This gives you access for cleaning and service tasks like checking the defrost pan.

Steps to remove the bottom grille (base grille)

1. Unplug the refrigerator or switch power OFF (recommended for safety while working near wiring and fans).
2. Locate the screws at the left and right ends of the base grille.
3. Remove the end screws with a Phillips screwdriver.
4. Pull the base grille straight forward to remove it.

• Use a soft towel or cardboard on the floor to protect the grille finish.
• Keep the screws together so they do not get lost.
• Pull straight out; twisting can crack plastic tabs or bend trim.
• If the grille feels stuck, re-check for hidden screws or a skirt piece attached to the grille.

Reinstalling the grille

Reinstall is the reverse of removal: align the grille to the lower frame, seat it evenly, then reinstall the end screws.

Quick check before you tighten screws

• Grille sits flush and level across the front
• No gaps at the corners
• Doors open freely without rubbing the grille

What you might be removing it for (and why it matters)

Removing the base grille is commonly done to clean the defrost pan area and improve airflow. Keeping these areas clean helps reduce odors, helps efficiency, and supports stable refrigerator temperatures.

Task	Why you remove the grille	Typical frequency
Clean defrost pan area	Helps prevent odors and buildup	As needed
General cleaning access	Improves airflow around service area	Periodically
Service access	Allows inspection during troubleshooting	As needed

Related model-specific notes

• Some installations use a two-piece base grille setup (a grille plus a skirt) for a custom fit to the floor.
• For diagrams and the exact fastener locations for your configuration, use the installation guide.

Last updated: February 2026

The most common KitchenAid refrigerator issues are ice maker problems and cooling or temperature swings. On your KitchenAid KBRS36FMX02 built-in bottom-mount, these symptoms usually trace back to airflow problems (dirty condenser area, fan issues), water supply or filter restrictions, or a sensor/control problem; start with the quick checks in the owner's manual.

Most common symptoms we see

• Ice maker not making ice, slow ice production, or small/hollow cubes
• Refrigerator section too warm or freezer too warm
• Frost buildup on the back wall or around vents
• Unusual fan noise (whirring, rubbing, intermittent buzzing)
• Water leaking inside the fresh food section (often after defrost)

Quick checks that fix many “common problems”

1. Confirm temperatures: set refrigerator to about 37°F and freezer to about 0°F.
2. Check airflow: keep vents clear; avoid packing items tight against the back wall.
3. Clean the condenser area: dust buildup reduces cooling and can trigger temperature complaints.
4. Inspect the water filter and flow: a restricted filter can reduce ice production and water flow.
5. Listen for fans: a failing evaporator fan can cause warm temps and uneven cooling.

Parts that commonly relate to these problems (KBRS36FMX02)

If troubleshooting points to a failed component, these are common matches for the symptoms above:

Symptom	Common suspect	Example part for this model

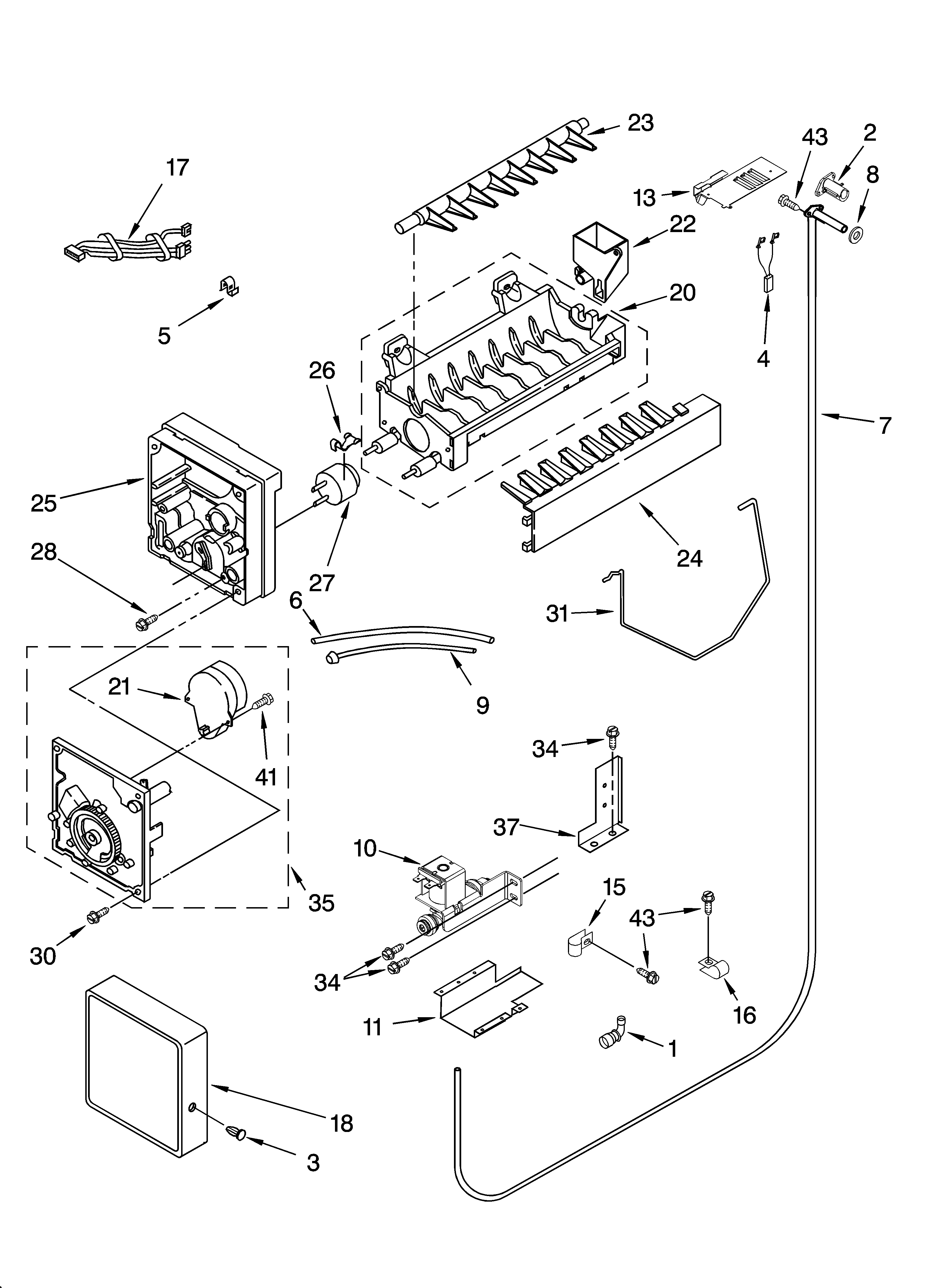

Ice maker not working or slow	Ice maker assembly	Refrigerator ice maker WPW10277450
Warm temps, poor circulation, fan noise	Evaporator fan motor	Refrigerator evaporator fan motor W11671461
Temps fluctuate or seem inaccurate	Temperature sensor	Refrigerator temperature sensor WP2188820
Low ice output, poor water flow	Water filter	Refrigerator filter EDR5RXD1

Why it matters

Ice maker and temperature problems usually get worse over time: restricted airflow can overwork the compressor, and a weak fan or inaccurate sensor can lead to food spoilage and heavy frost. Catching the root cause early keeps the sealed system running efficiently.

When to use the installation information

If the issue started right after moving the refrigerator, replacing a filter, or reconnecting the water line, verify the water line routing, shutoff valve position, and leveling steps in the installation guide.

Last updated: February 2026
