GE GFE29HGDAWW bottom-mount refrigerator Parts

For your GE GFE29HGDAWW bottom-mount refrigerator, we recommend ordering replacement parts by matching your full model number and the exact part ID from the parts list, then confirming fit using the GFE29HGDAWW owner's manual. For broader part searches by model number, use Sears PartsDirect.

What to have ready before you order

Having the right details prevents wrong-part returns and delays.

• Full model number: GFE29HGDAWW
• Serial number (helps confirm production variation)
• The exact part ID and part name (example: refrigerator water filter RPWFE)
• A quick symptom description (example: “no ice,” “warm fridge,” “slow water flow”)
• Basic appliance details (bottom-mount, French door style)

Common parts customers order for this model

These are frequently replaced items for the GFE29HGDAWW, depending on the symptom.

Symptom	Likely part to check	Example part on this page
Slow water flow or bad taste	Water filter	Refrigerator water filter RPWFE

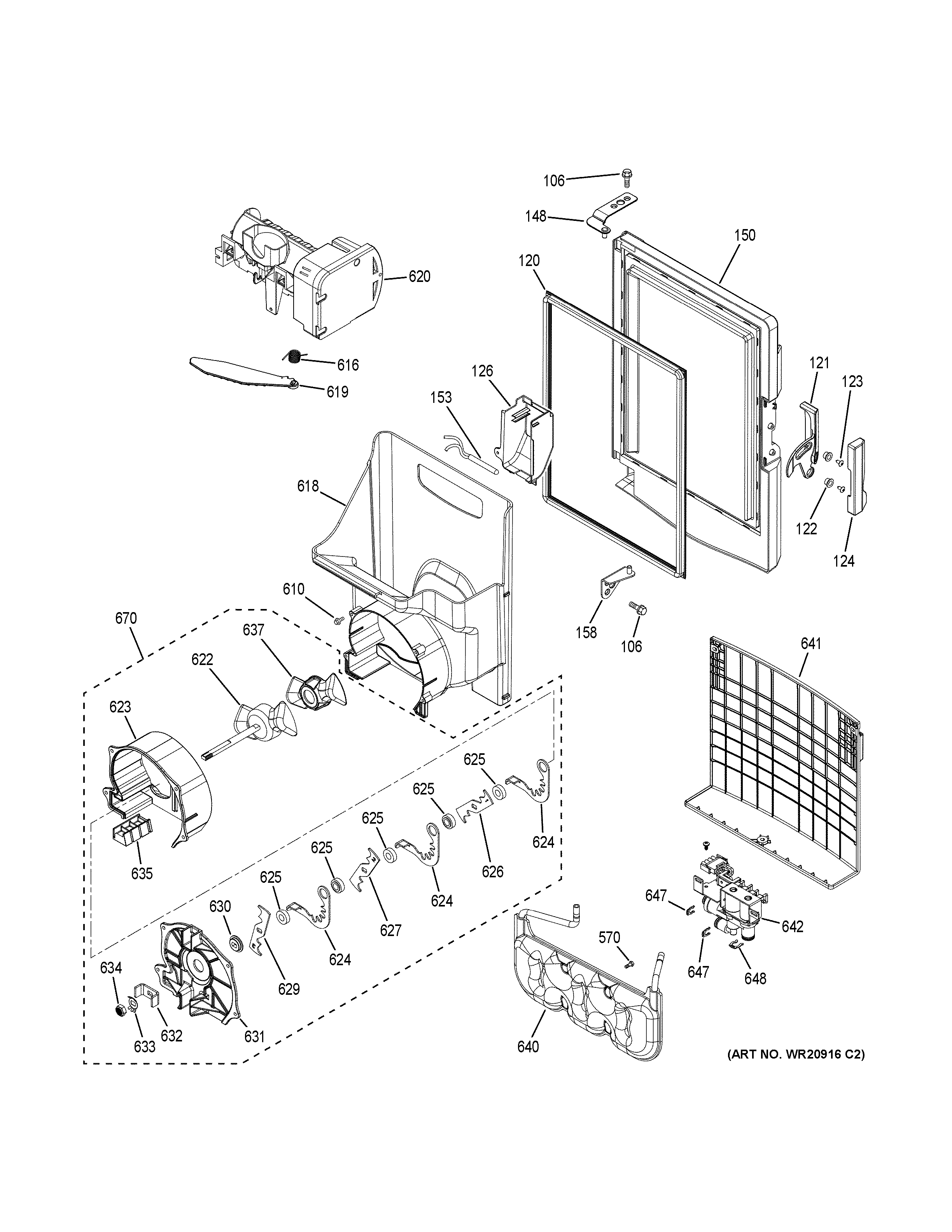

No ice or small cubes	Ice maker or water supply components	Refrigerator ice maker assembly WR30X28731
Not cooling evenly	Temperature sensing or airflow	Refrigerator temperature sensor WR55X10025
No water at dispenser	Water inlet valve	Refrigerator water inlet valve WR57X10098

Fit and compatibility tips (avoid ordering the wrong part)

• Match the part ID exactly (letters and numbers).
• Compare the part name to what you are replacing (example: “water inlet valve” vs “water filter”).
• If your refrigerator has multiple similar parts, use the diagrams and part list to confirm location.
• For water filters, replace about every 6 months or sooner if flow drops noticeably.

Why it matters

Ordering by model number alone is not enough when a refrigerator has multiple revisions. Using the correct part ID for the GE GFE29HGDAWW helps ensure proper fit, correct electrical connections (boards, sensors), and reliable water and ice performance.

Last updated: February 2026

Cooling complaints are the most common issue we see with GE refrigerators like model GFE29HGDAWW; temperatures drift warmer, ice cream gets soft, or fresh food spoils. The usual causes are restricted airflow (dirty condenser coils), defrost system trouble, a weak evaporator fan, or an electronic control problem.

Most common causes to check first

Start with the simple, high-impact checks before replacing parts.

• Confirm the temperature settings and give the unit 24 hours to stabilize after changes.
• Clean the condenser area (dust buildup makes the compressor run longer and cool worse).
• Make sure vents inside the refrigerator are not blocked by food packages.
• Check door closing and sealing; warm air leaks create frost and poor cooling.
• Listen for normal operating sounds; newer high-efficiency compressors can sound different (see the owner's manual).

Symptoms and likely problem areas

Symptom	Most likely area	What to look for
Fresh food warm, freezer OK	Airflow/evaporator section	Weak or noisy fan, blocked vents
Frost buildup, warming over time	Defrost system	Heavy frost on evaporator cover
Both sections warm	Condenser/compressor/control	Dirty coils, long run times, no cooling recovery
Temps swing up and down	Sensors/control	Inconsistent readings, erratic cycling

Parts that commonly relate to cooling problems

If troubleshooting points to a failed component, these are common cooling-related parts for GFE29HGDAWW:

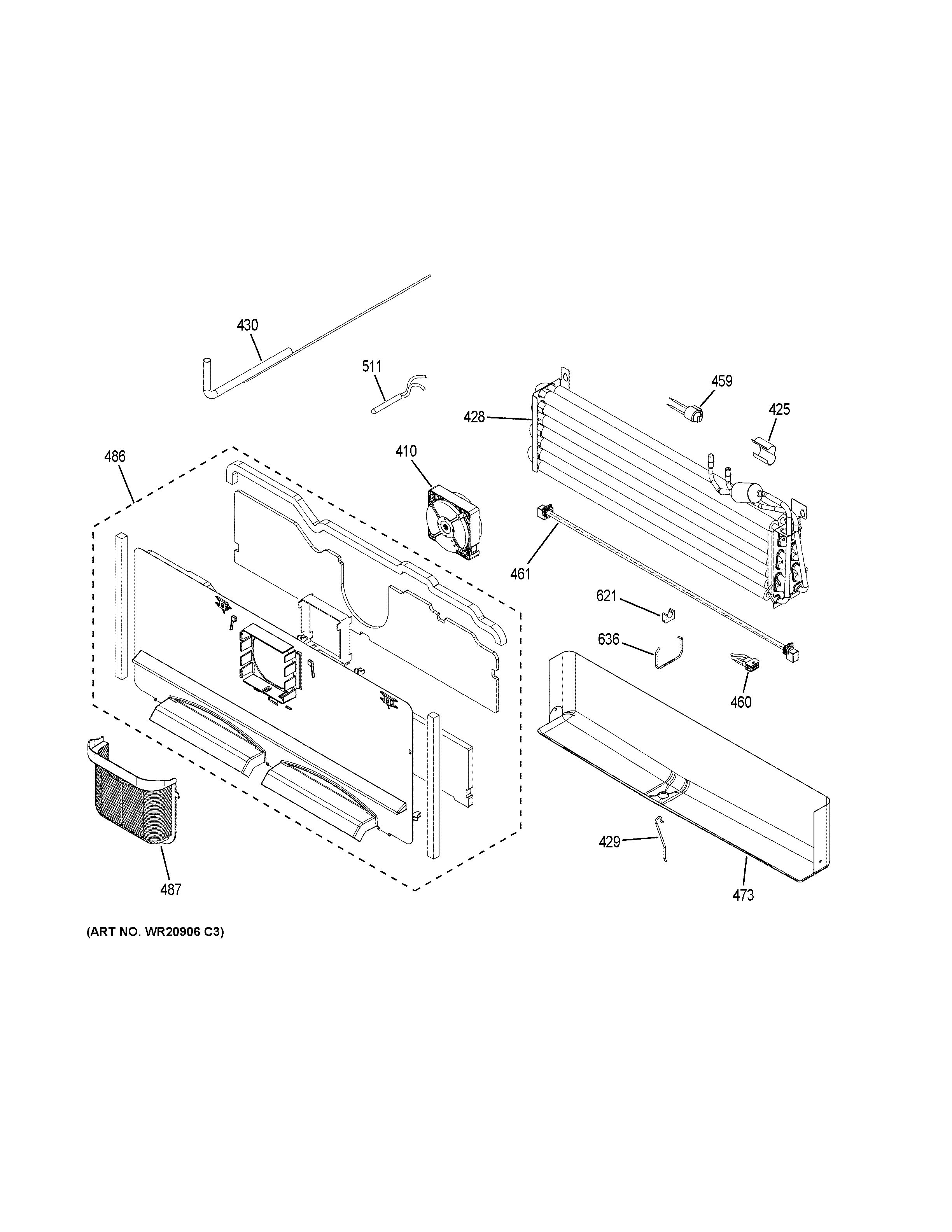

• Refrigerator evaporator fan motor WR60X25858 (moves cold air through the compartments)
• Refrigerator defrost heater WR51X10131 (melts frost off the evaporator)
• Refrigerator defrost bi-metal thermostat WR50X10108 (helps control defrost heating)
• Refrigerator temperature sensor WR55X10025 (feeds temperature data to the control)
• Refrigerator main board assembly WR55X46805 (manages compressor, fans, and defrost)

Why it matters

A refrigerator can look like it is “running fine” while temperatures slowly rise. Catching airflow restrictions or defrost frost buildup early helps prevent food loss and reduces strain on the compressor and sealed system.

You can order replacement parts for your GE GFE29HGDAWW from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

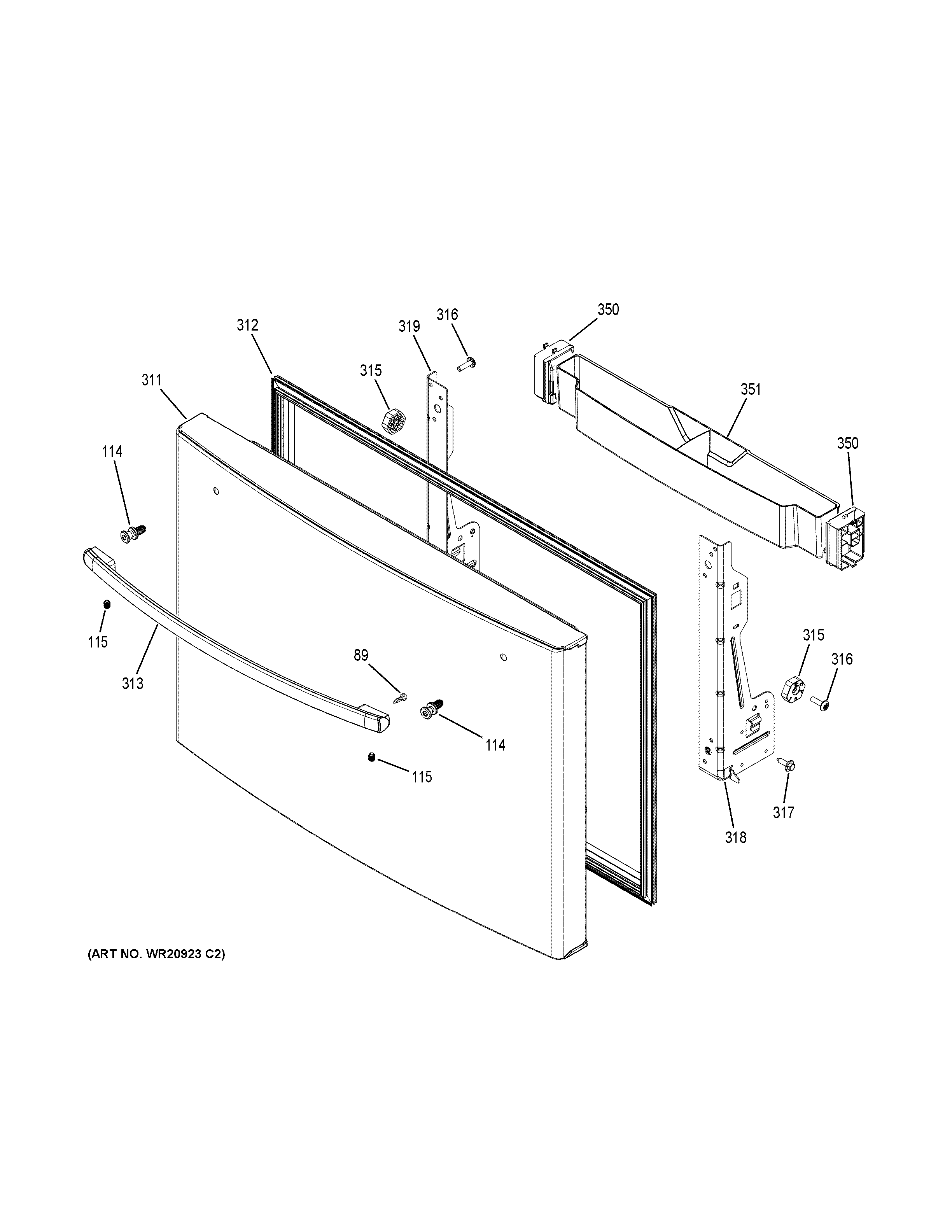

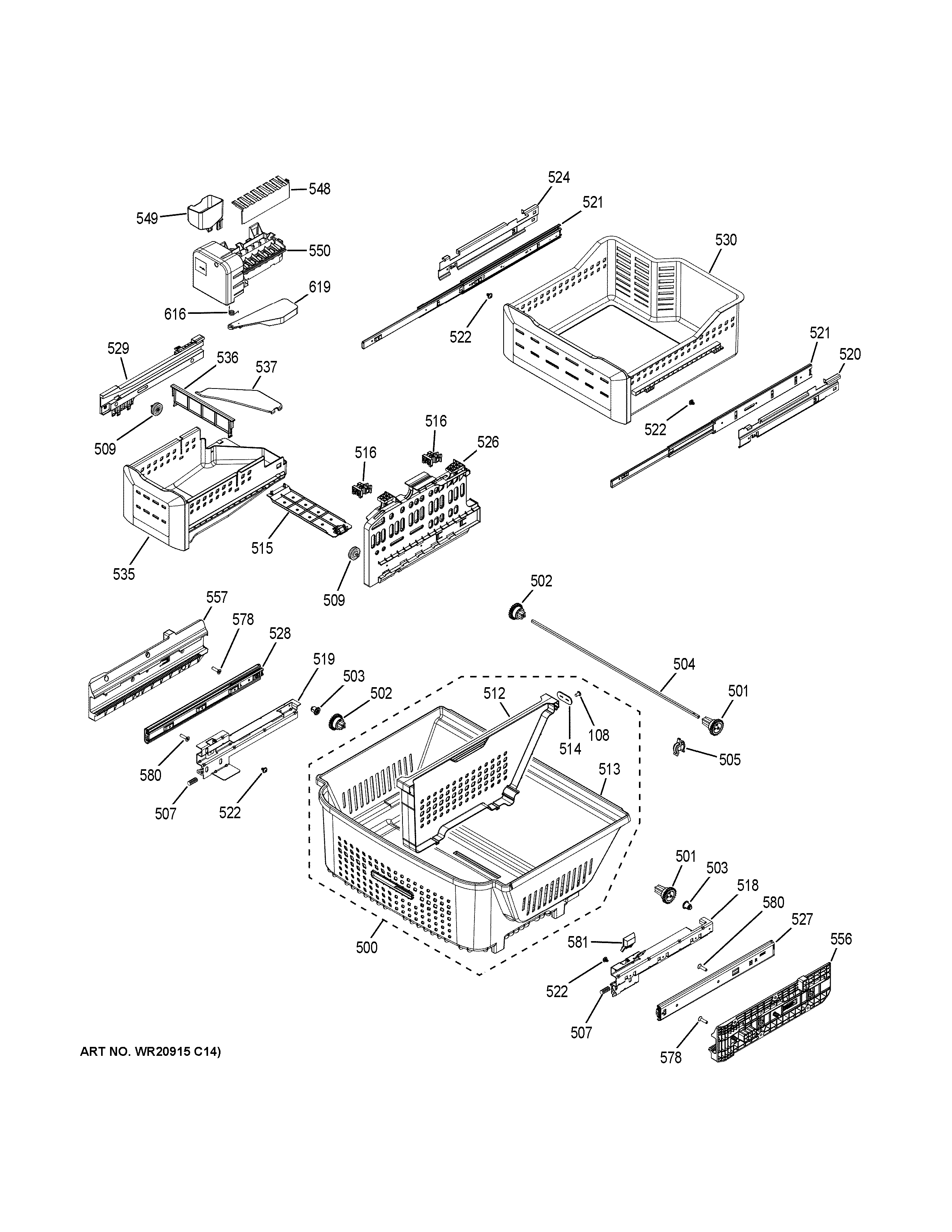

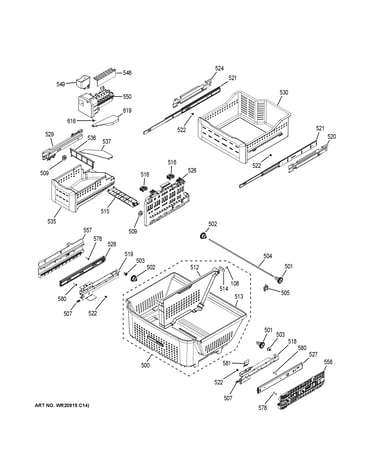

To remove the bottom freezer drawer/basket on your GE GFE29HGDAWW bottom-mount refrigerator, open the freezer door fully, then lift the rear of the freezer basket up and move it rearward until the front can rotate upward and out; lift it out. Follow the same steps in the installation guide.

What to remove first (so the drawer comes out cleanly)

We recommend clearing the freezer area in this order:

• Remove loose food items and the ice bucket/utility bin first.
• Remove the freezer door bin by pushing the plastic tab on either the left or right side to release it.
• Pull the freezer drawer open to the stop position.
• Lift the rear of the freezer basket up.
• Slide the basket rearward, rotate the front upward, then lift it out.

Standard depth vs. other versions (what you will notice)

The manual describes slightly different handling depending on configuration. Use this quick guide:

What you see	What to do	Why
Freezer door opens to a firm stop	Remove basket with the rear-lift then rearward-slide motion	Prevents binding on the front lip/rails
Freezer door bin installed	Pop the bin out first using the side tab	Gives you clearance to lift the basket
Basket feels stuck at the front	Lift the rear higher, then rotate the front up	The front edge must clear before it can lift out

Reinstalling the bottom drawer/basket

Reinstall is the reverse of removal:

• Set the basket in with the front slightly raised.
• Lower the front into position.
• Slide the basket forward until it seats.
• Reinstall the freezer door bin until it locks.

Why it matters

Removing the bottom drawer the right way prevents cracked plastic, bent slide rails, and misalignment that can cause the freezer door to not close fully (which can lead to frost buildup and temperature swings).

If you need replacement parts related to drawer operation or freezer cooling, you can shop model-matched parts on this page or search by model number on Sears PartsDirect.

Last updated: February 2026

For your GE GFE29HGDAWW bottom-mount refrigerator, the right part number starts with the exact model number from the ID label, then matching the part by location and description in the parts diagram. We recommend confirming the model and serial number on the label inside the fresh food section before ordering.

Where to find the model number (GFE29HGDAWW)

On this model, the manual notes the model and serial number label is on the left side, near the middle of the refrigerator compartment. Use that exact model number to avoid ordering a similar looking but incompatible part.

• Open the fresh food (refrigerator) doors
• Look on the left interior wall near the middle
• Write down MODEL: GFE29HGDAWW and the serial number
• Use the model number to pull up the correct parts list and diagrams
• Match the part by section (ice maker, dispenser, evaporator area, controls)

How we match the correct part number

Use a two-step match: (1) model number, then (2) part function and placement. For example, if you are troubleshooting temperature issues, a common match is the refrigerator temperature sensor WR55X10025. If you are replacing the filter, match the cartridge style to the refrigerator water filter RPWFE.

Quick match table (common needs)

Symptom or task	Part type to look up	Example part on this model
Warm temps, erratic cooling	Temperature sensor	WR55X10025
Slow water flow, bad taste/odor	Water filter	RPWFE
No ice or small cubes	Ice maker assembly	WR30X28731
No water to dispenser/ice maker	Water inlet valve	WR57X10098

Why it matters

GE refrigerators often have multiple revisions of similar parts across close model families. Using the exact GFE29HGDAWW model number and matching the part by diagram position prevents fit issues, wiring mismatches, and repeat repairs.

Ordering tips we use to prevent mistakes

• Compare the part name and part ID, not just the photo
• Check whether the issue is electrical (board, sensor, fan motor) or water-related (filter, valve)
• Replace wear items on schedule; the RPWF style filter is typically replaced about every 6 months (or sooner if flow drops)
• If you are unsure between control parts, confirm connectors and mounting points before ordering
• Order directly from the parts list for this model, or search by model number on Sears PartsDirect

Last updated: February 2026

On the GE GFE29HGDAWW bottom-mount refrigerator, the bottom grille (base grille) removes from the lower front by releasing any mounting screws (if used) and disengaging the retaining tabs, then pulling the grille straight out. For model-specific access and safety notes, use the GFE29HGDAWW installation guide.

Before you start (safety and access)

• Unplug the refrigerator or switch off power at the breaker.
• If you need more room, pull the refrigerator straight out, not sideways.
• Raise the leveling legs slightly before moving the unit.
• Protect the water line and power cord from kinks or snags.
• Keep any screws and clips together for reassembly.

Steps to remove the bottom grille

1. Look along the grille edges for screws (often at corners or along the top lip).
2. If screws are present, remove them with the correct driver.
3. Grip the grille near both ends.
4. Pull outward evenly to release the tabs.
5. If it resists, press near the clip locations while pulling forward to free the tabs.

Reinstalling the grille

Align the grille tabs with the slots, push until it seats flush, then reinstall any screws you removed.

What you see	What it means	What to do
No screws visible	Tab-locked grille	Pull evenly from both ends to release tabs
Screws at corners/edge	Screw-retained grille	Remove screws first, then pull grille forward
Grille will not release	Tabs bound or unit not level	Raise leveling legs slightly, then retry

Why it matters

Removing the base grille the right way prevents broken tabs and rattles. It also gives you access for cleaning and airflow checks that help the GE refrigerator cool efficiently.

Ordering related parts (if you find a cooling issue)

If grille removal leads you to a temperature or airflow problem, these model-matched parts are commonly involved:

• Refrigerator temperature sensor WR55X10025 (Part number WR55X11121)
• Refrigerator evaporator fan motor WR60X25858 (Part number WR60X10340)

You can order replacement parts from the parts list for your model, or search by model number on Sears PartsDirect.

Last updated: February 2026
