Bosch SMU4052US/09 (FD 7210) dishwasher Parts
Here are the diagrams and repair parts for Bosch SMU4052US/09 (FD 7210) dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

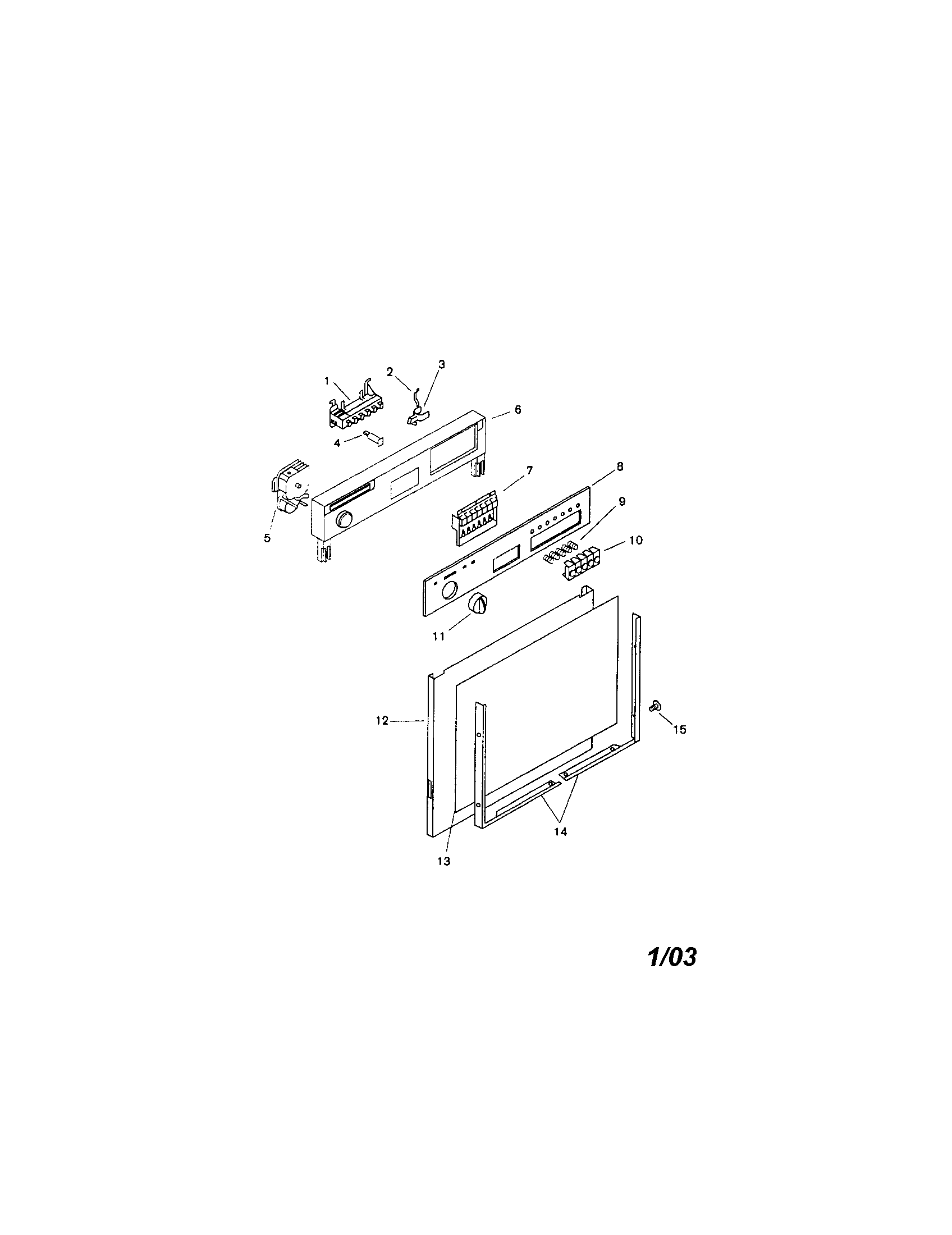

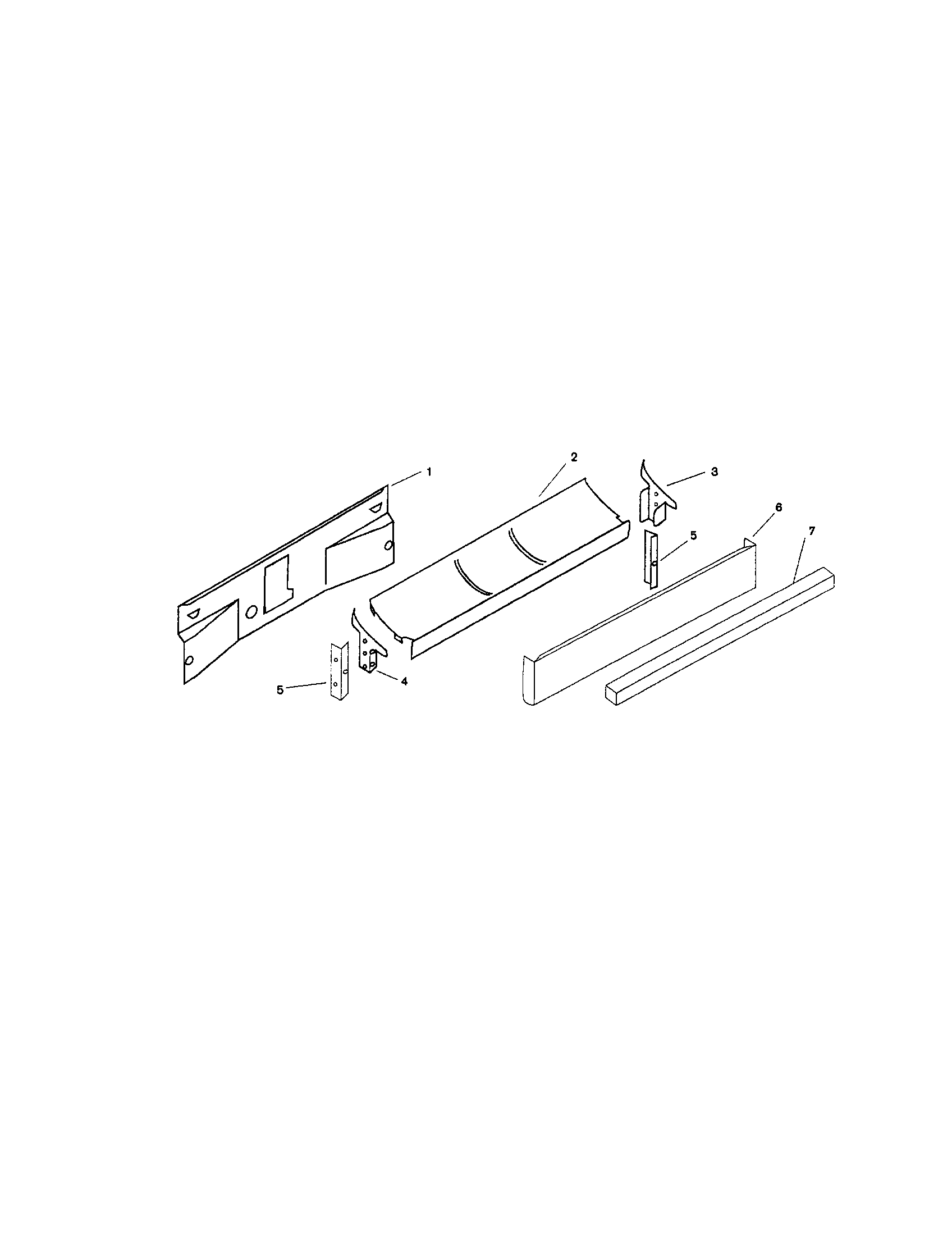

Browse Parts for SMU4052US/09 (FD 7210) Dishwasher

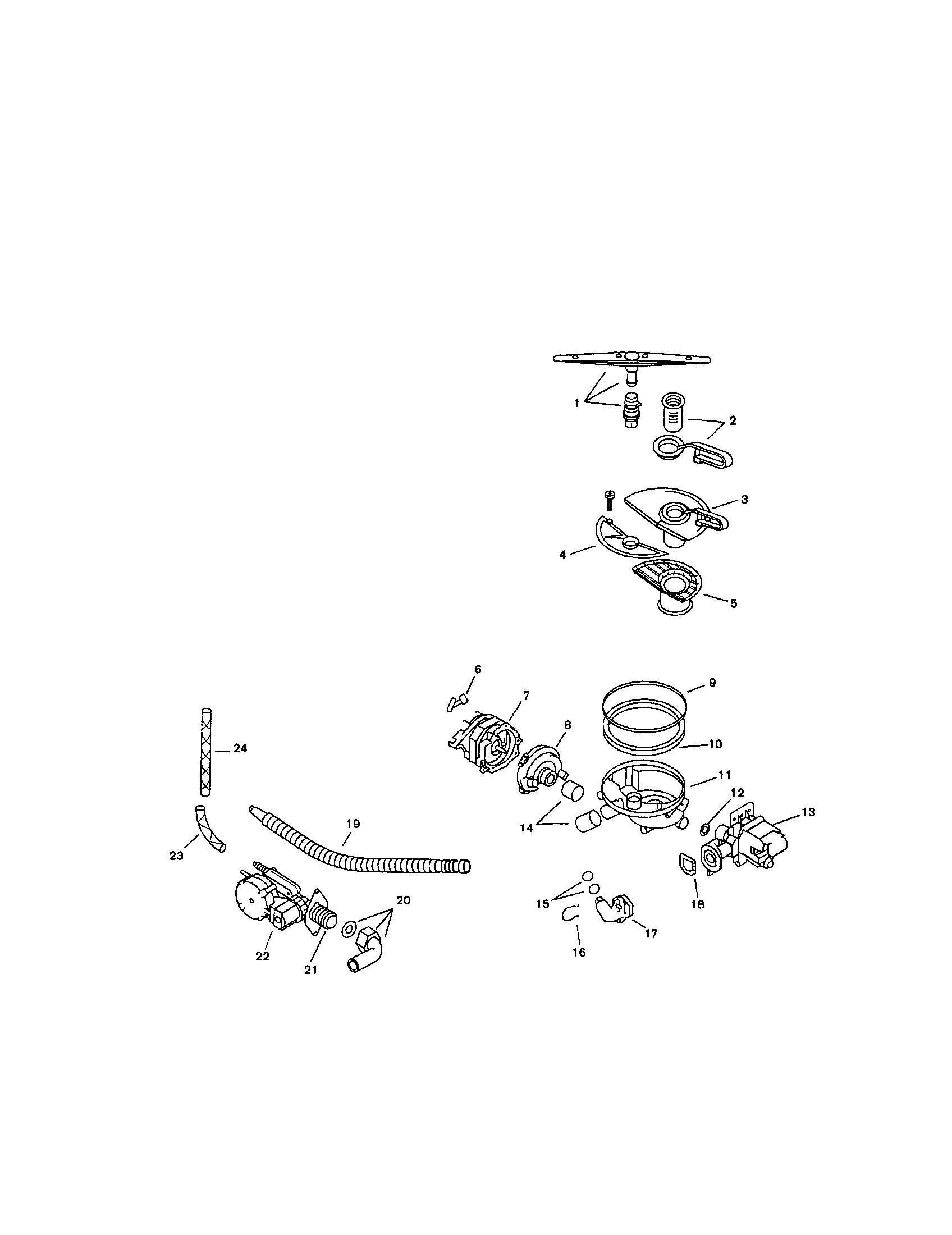

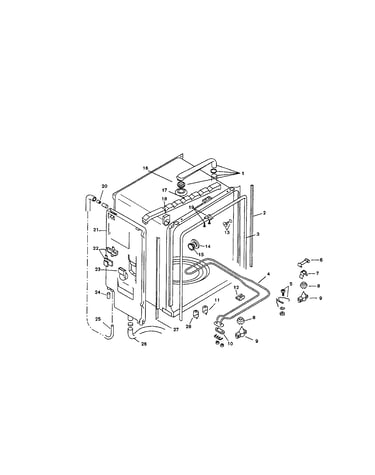

Component assemblies diagram
Drain Hose
Part #284311Replaced by #00298564
Manufacturer substitutionThis part replaces 284311. Substitute parts can look different from the original.In Stock$22.9631% OFF Was : $33.40
Qty
Component assemblies diagram
Water Solenoid
Part #092188Replaced by #00092188
Manufacturer substitutionThis part replaces 092188. Substitute parts can look different from the original.In Stock$238.765% OFF Phone Price : $250.76QtyRacks diagram

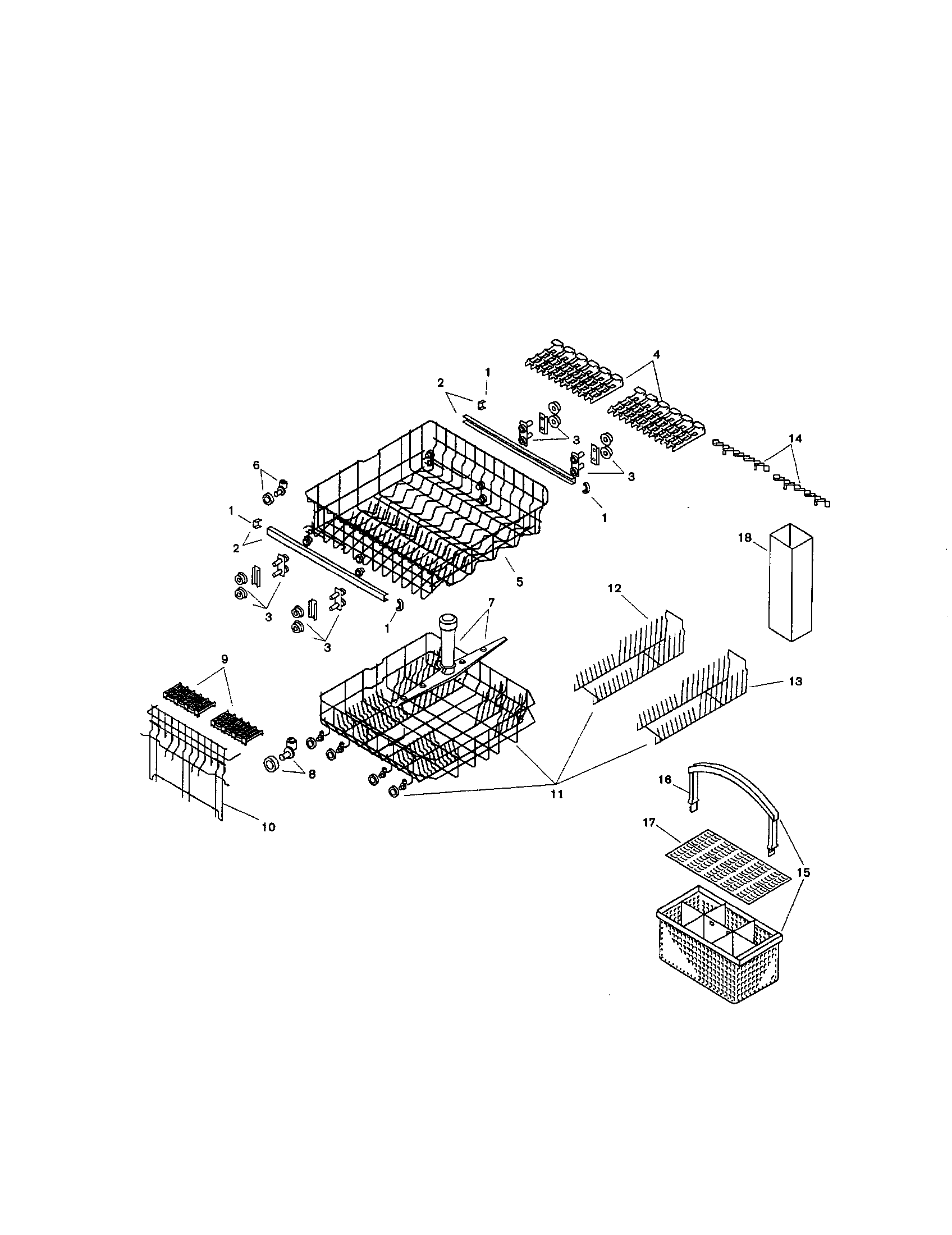

Dishwasher Rack
Part #207799Replaced by #00207799
Manufacturer substitutionThis part replaces 207799. Substitute parts can look different from the original.In Stock$364.46QtyDispenser diagram

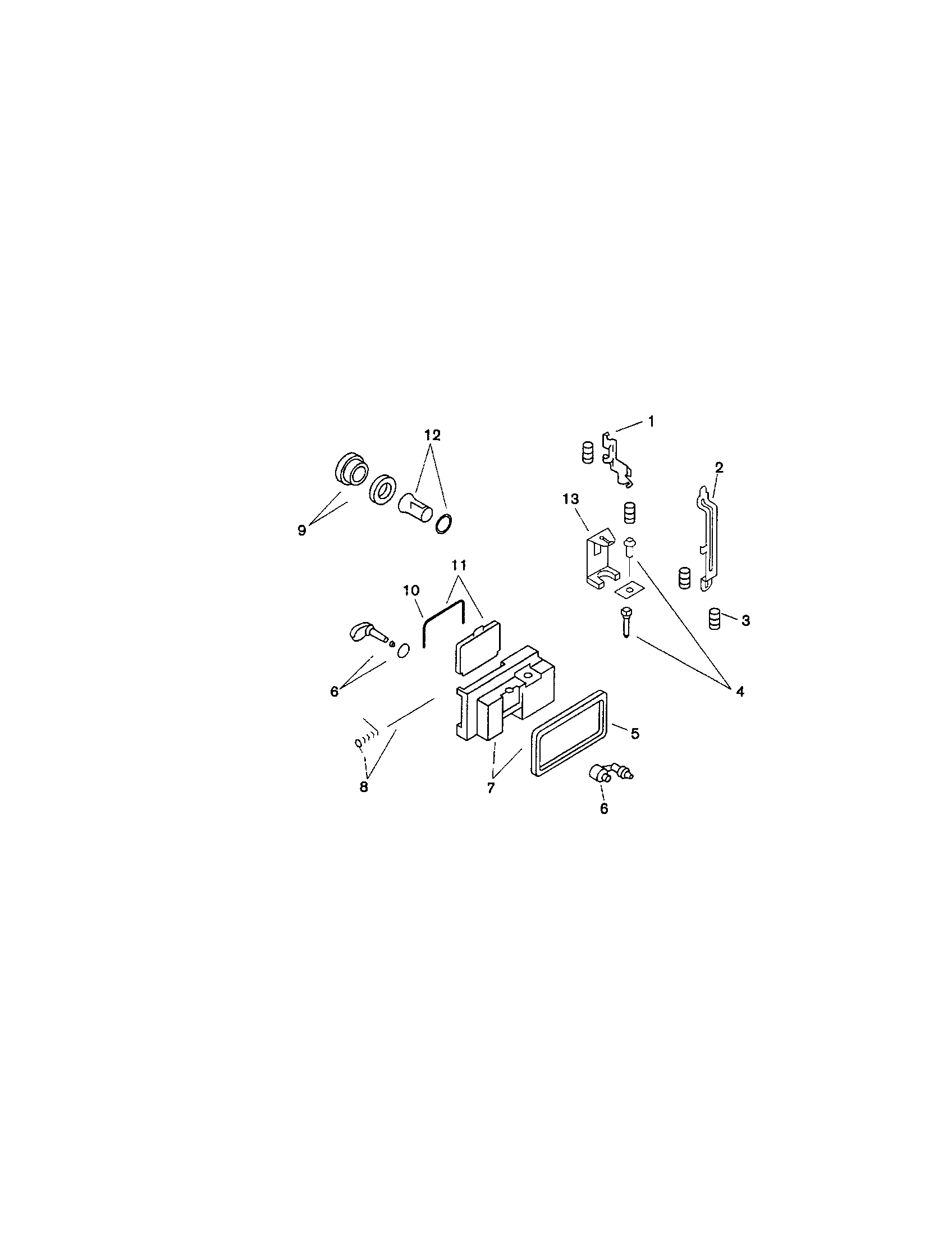

Latch (gry
Part #068956Replaced by #00068956
Manufacturer substitutionThis part replaces 068956. Substitute parts can look different from the original.In Stock$61.84QtyRacks diagram
Clip Rack
Part #282973Replaced by #00282973

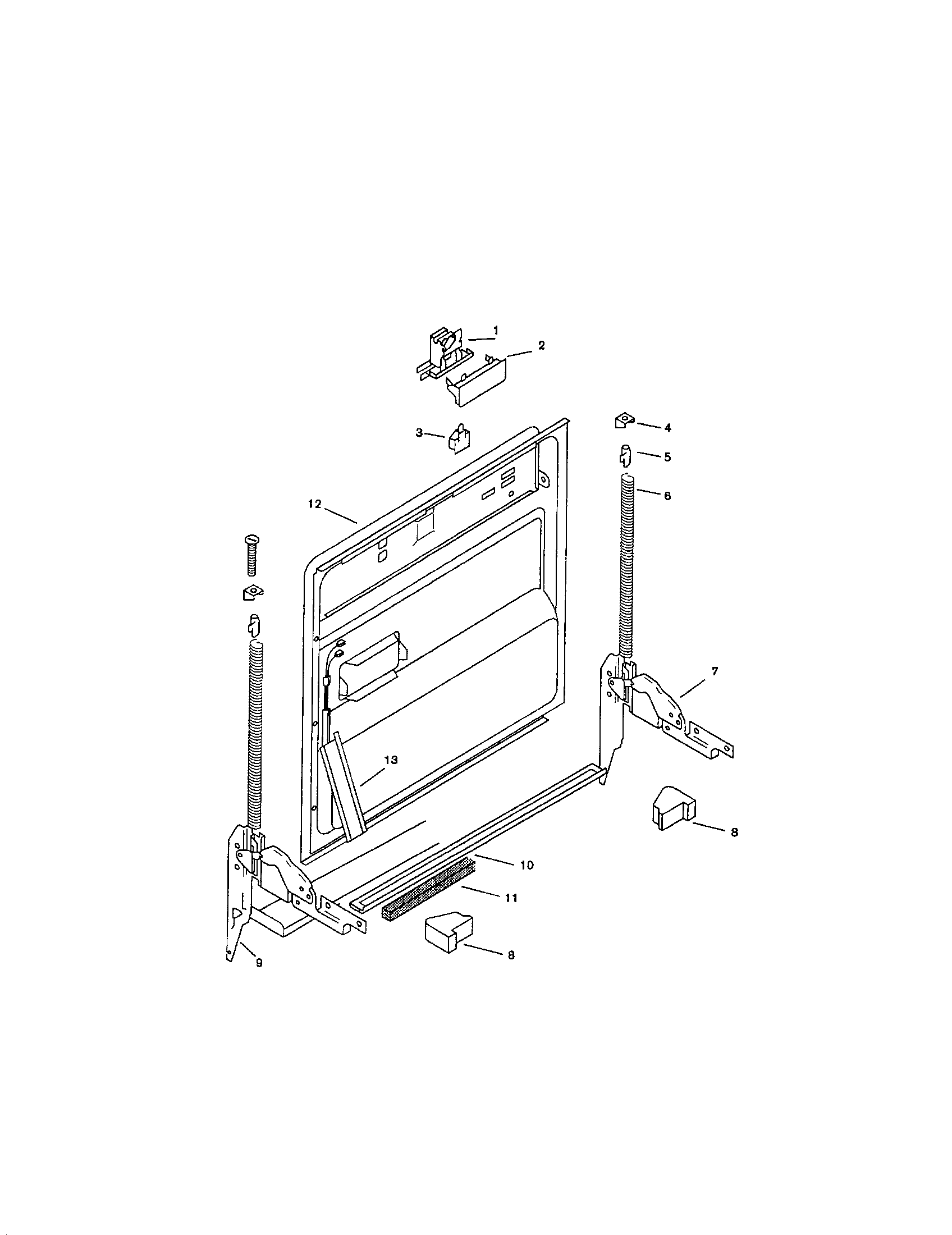

Manufacturer substitutionThis part replaces 282973. Substitute parts can look different from the original.In Stock$46.73QtyInner door diagram
Dishwasher Door Latch
Part #056218Replaced by #00056218

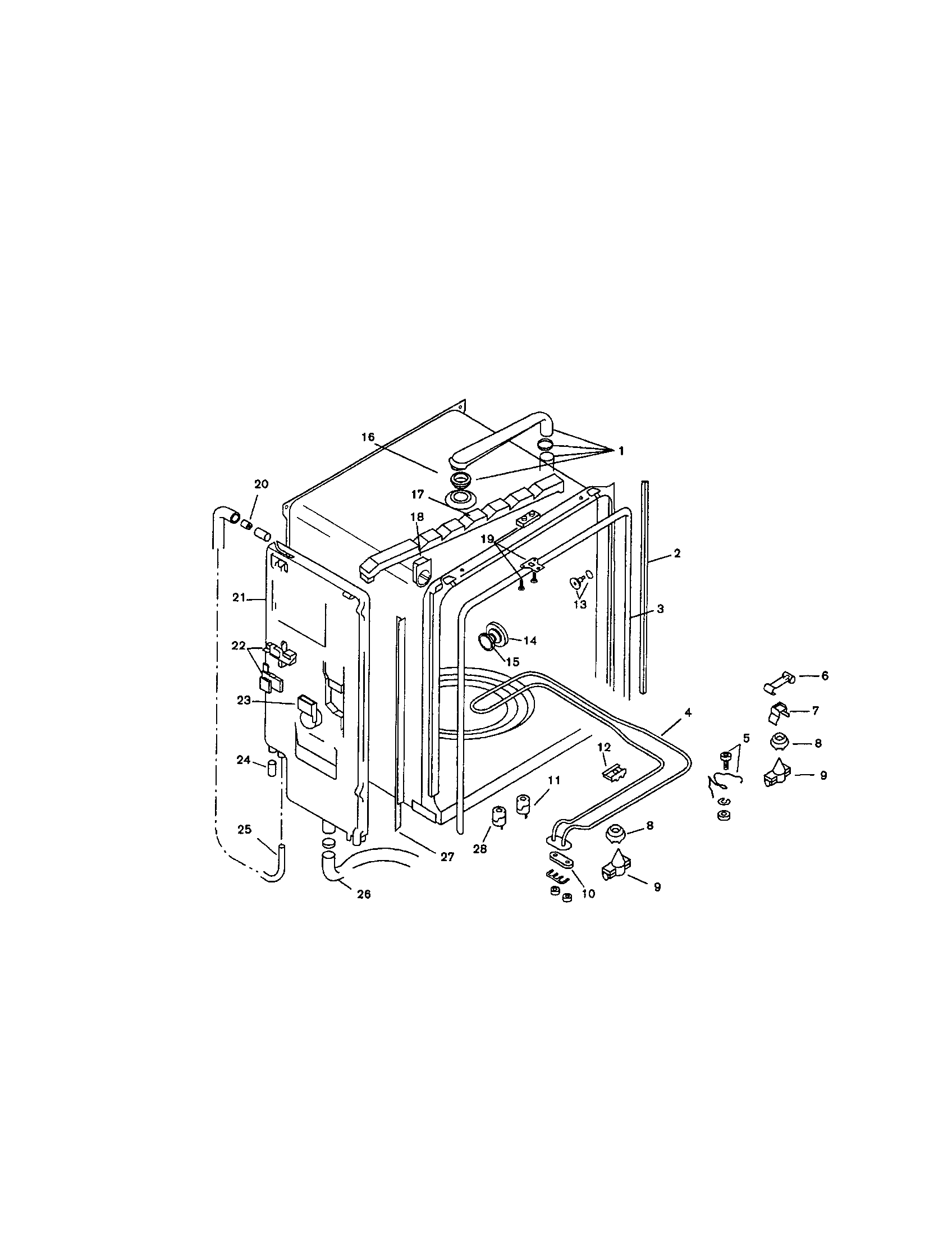

Manufacturer substitutionThis part replaces 056218. Substitute parts can look different from the original.In Stock$181.10QtyInner liner diagram
Door Seal
Part #092491Replaced by #00094758
Manufacturer substitutionThis part replaces 092491. Substitute parts can look different from the original.In Stock$135.66QtyDispenser diagram
Detergent Cover
Part #066319Replaced by #00066319

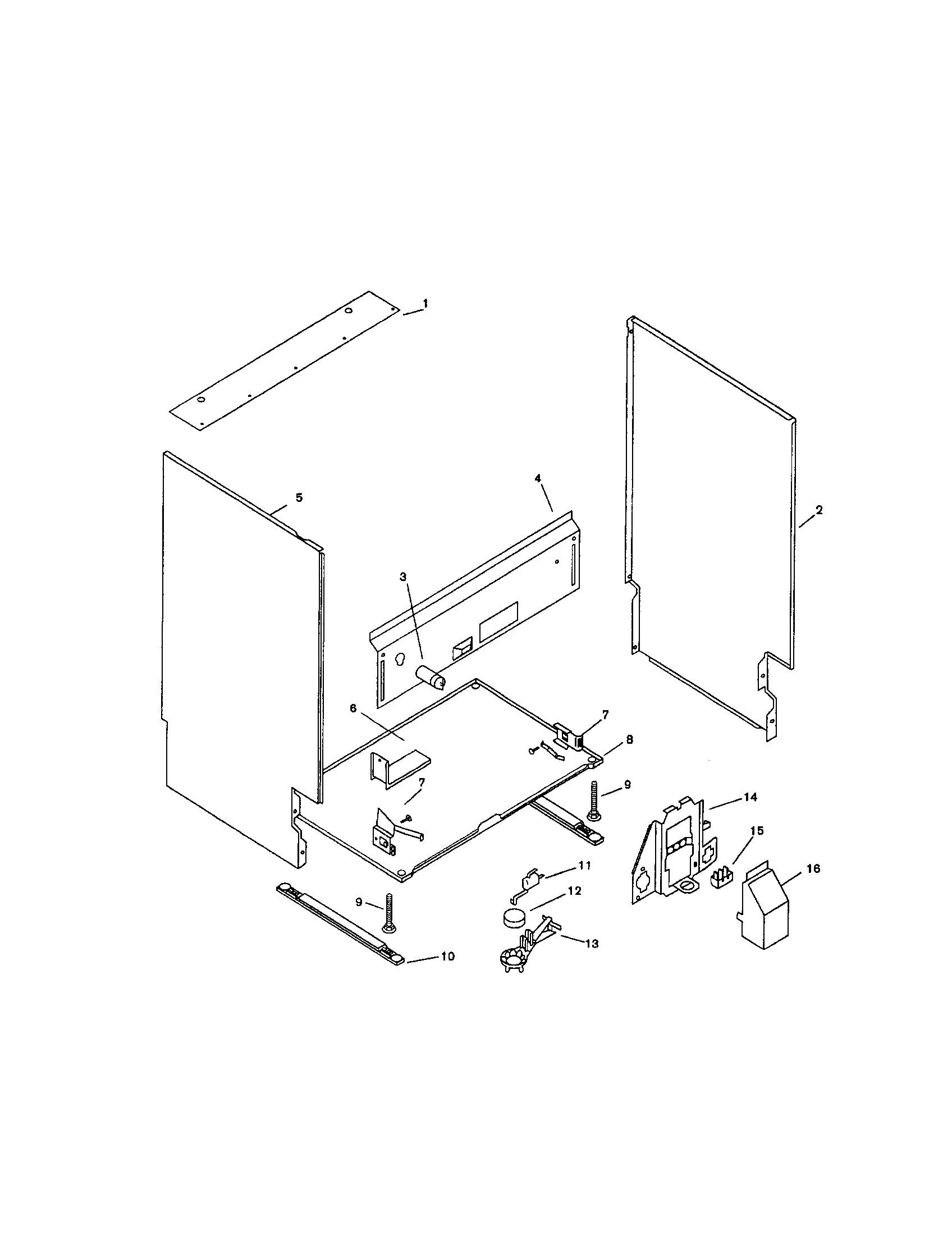

Manufacturer substitutionThis part replaces 066319. Substitute parts can look different from the original.In Stock$43.56QtyBody diagram
Moisture Shi
Part #114294Replaced by #00114294
Manufacturer substitutionThis part replaces 114294. Substitute parts can look different from the original.In Stock$44.3212% OFF Phone Price : $50.32QtyInner liner diagram
Gasket
Part #018516Replaced by #00018516
Manufacturer substitutionThis part replaces 018516. Substitute parts can look different from the original.In Stock$41.98Qty
