Craftsman 917881060 snow thrower Parts

The “best rated” gas snow blower is the one that matches your snowfall depth, driveway size, and comfort features; for most homeowners, a quality two-stage gas unit is the top choice for power and throw distance. For your Craftsman snow thrower model 917881060, we focus on keeping it performing like a top-rated machine using the correct fuel, oil, and maintenance from the 917881060 owner's manual.

How to choose the right gas snow blower (what ratings usually reward)

Most high ratings come from machines that start reliably, clear consistently, and are easy to control.

• Single-stage: best for lighter snow and smaller areas; lighter and simpler.
• Two-stage: best for heavier snow and larger driveways; augers feed an impeller for stronger discharge.
• Clearing width and intake height: wider is faster, but heavier to maneuver.
• Traction and steering: self-propelled drive and turn triggers reduce effort.
• Cold-start features: primer, choke, and electric start (if equipped) improve winter starts.

What “top-rated performance” looks like on the Craftsman 917881060

Your 917881060 is designed with common two-stage style controls and features (such as chute controls and steering triggers). Keeping it within spec is what preserves performance.

Key specs from the manual

Item	Specification
Gasoline capacity and type	3.0 quarts, unleaded regular only
Oil type	SAE 5W-30 or 10W-30 (API SG-SL); synthetic SAE 5W-30
Oil capacity	18 ounces
Spark plug	Champion RJ19LM (gap 0.030 in.)

Maintenance that most improves ratings (reliability and clearing)

These are the same areas reviewers praise when a machine “just works” every storm.

• Use fresh unleaded regular fuel; avoid old fuel before storage.
• Keep engine oil at the “FULL” mark; do not overfill.
• Replace the spark plug at the start of each season or every 100 hours.
• Keep the housing clean; avoid spraying water into the engine area.
• Inspect wear items before the season; replace as needed.

If your auger stops throwing snow effectively, a worn belt is a common cause; replacing the snowblower auger drive belt 532408007 restores auger drive power.

Why it matters

“Best rated” usually means fewer mid-storm problems. Correct oil viscosity (especially in cold weather), proper spark plug condition, and a strong auger drive system directly affect starting, power, and throwing distance.

Ordering parts

We list model-matched replacement parts for Craftsman 917881060 on this page; for additional parts searches by model number, use Sears PartsDirect.

Last updated: February 2026

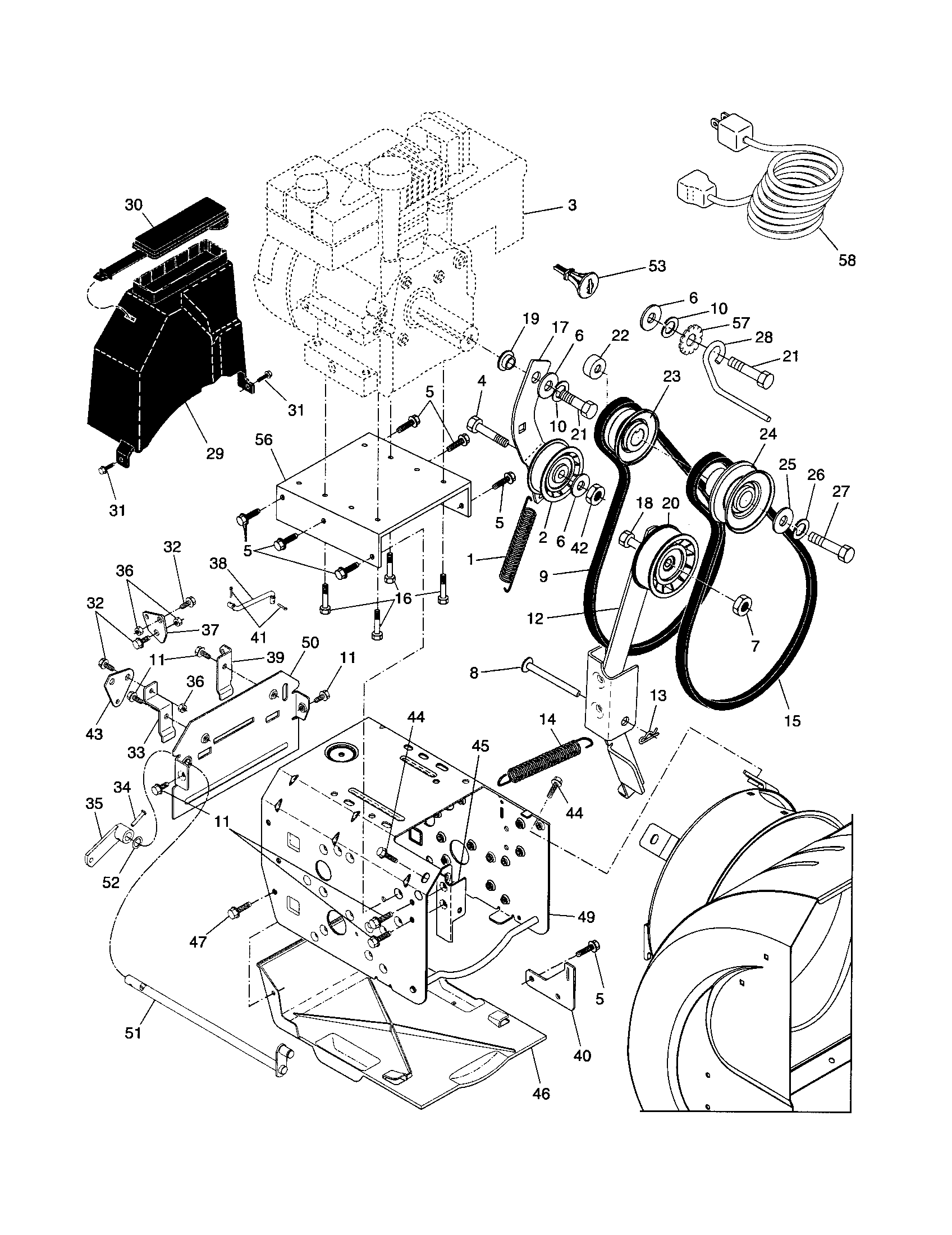

On the Craftsman snow thrower model 917881060, a bad auger belt shows up as the augers not turning, weak snow throwing, or belt slip under load. Our manual says to inspect V-belts every 50 hours and replace them if they’re worn or begin to slip; these belts are not adjustable. See the 917881060 owner's manual.

Quick signs the auger belt is worn

• Auger stops or hesitates when you hit heavier snow
• Snow discharge is weak even at normal engine speed
• Squealing noise when you engage the auger control
• Burning rubber smell after engaging the auger
• Belt looks shiny (glazed), cracked, frayed, or has missing chunks
• Belt feels loose or rides low in the pulley groove

What to check (safe, practical inspection)

1. Shut the engine off, remove the key (if equipped), and disconnect the spark plug wire.
2. Remove the belt cover (the manual shows the cover removal steps).
3. Inspect the belt surface and edges for damage and glazing.
4. Check for rubber dust near pulleys or belt keepers (a common sign of slipping).
5. Engage the auger control with the engine off and confirm the belt tightens and tracks straight.

Common symptoms and what they usually mean

Symptom	Most likely cause	What to do next
Auger won’t turn at all	Belt broken or off the pulleys	Reinstall or replace the belt
Auger turns but slips in snow	Belt stretched or glazed	Replace the belt
Loud squeal on engagement	Belt slipping or pulley/idler issue	Inspect belt and pulleys; replace belt if worn
Burning smell	Severe slip from wear or misrouting	Stop using; inspect routing and belt condition

Model-specific notes for 917881060

• Inspect interval: check V-belts after every 50 hours of operation.
• Adjustment: the auger and traction drive belts are not adjustable.
• Replacement guidance: replace belts if they begin to slip from wear.
• Best practice: replace the auger and traction belts at the same time when you’re doing belt service.

If you’re replacing the belt, the model-specific auger belt listed for this snowblower is the snowblower auger drive belt 532408007. You can also order parts from the parts list for model 917881060, or search by model on Sears PartsDirect.

Why it matters

A slipping auger belt reduces throwing distance and can overheat, leaving rubber debris in the belt area and accelerating wear on pulleys and belt keepers. Catching belt slip early helps prevent bigger drive-system repairs.

Last updated: February 2026

Yes, it’s worth fixing a Craftsman snow thrower like model 917881060 when the problem is a normal wear item (belt, skid shoes, springs, cables) and the machine is otherwise solid; those repairs restore performance for far less than replacing the entire unit.

Quick decision checklist (repair vs. replace)

• Repair when the engine starts and runs well, and the issue is drive, auger, or chute related.
• Repair when you can correct it with routine maintenance (oil change, spark plug, lubrication).
• Repair when the fix is a single part and labor is straightforward.
• Replace when the engine has severe internal damage (low compression, heavy smoke, metal noise).
• Replace when the drivetrain is extensively worn and multiple major assemblies are failing.

Common “worth fixing” repairs on 917881060

These are typical, high-impact fixes that often bring a snowblower back to full use:

• Replace a worn auger belt such as the snowblower auger drive belt 532408007.
• Replace worn skid shoes (for example, snowblower skid shoe, left 532174762) to protect the housing and improve scraping height.

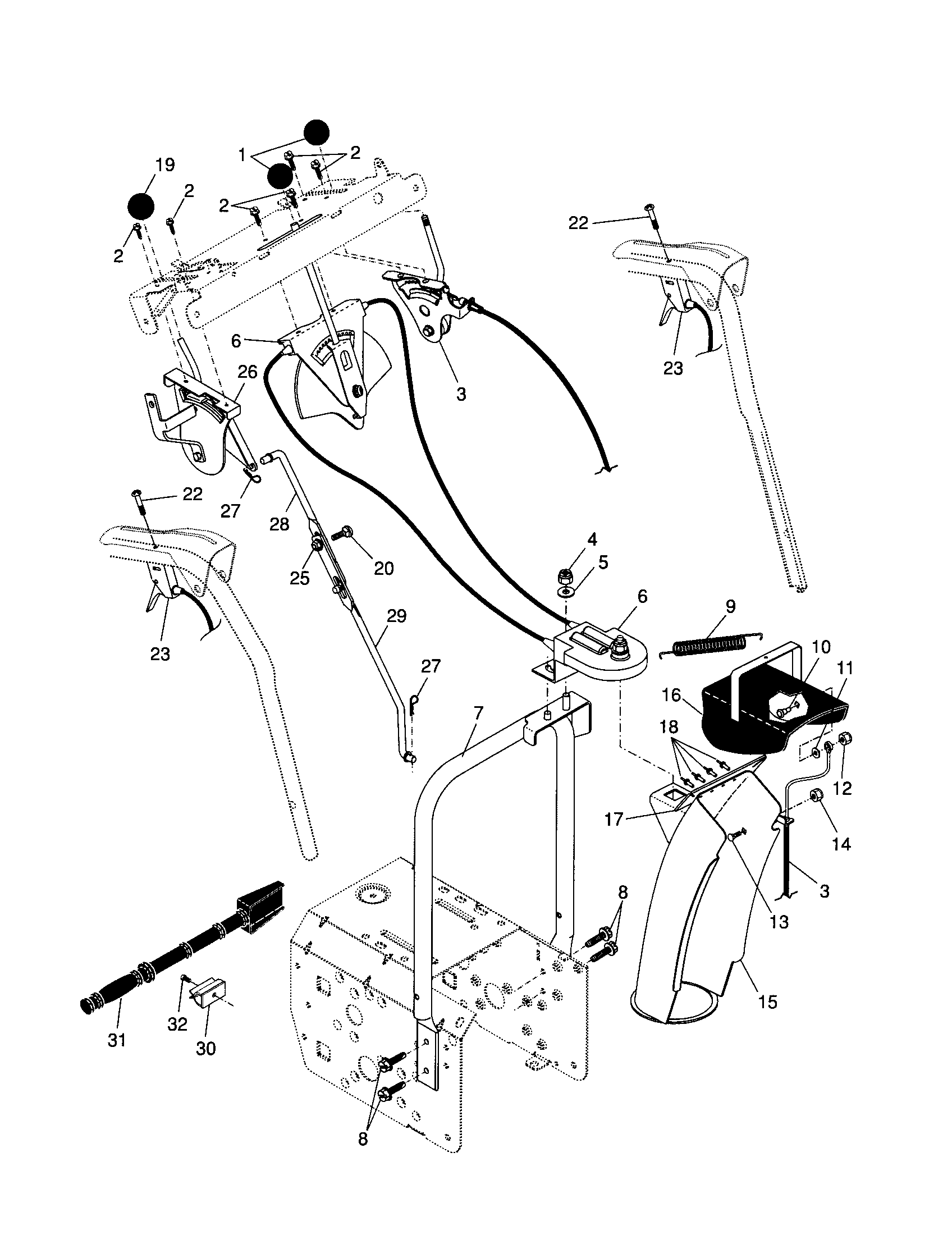

• Restore chute control and discharge performance by addressing bent or worn chute components.

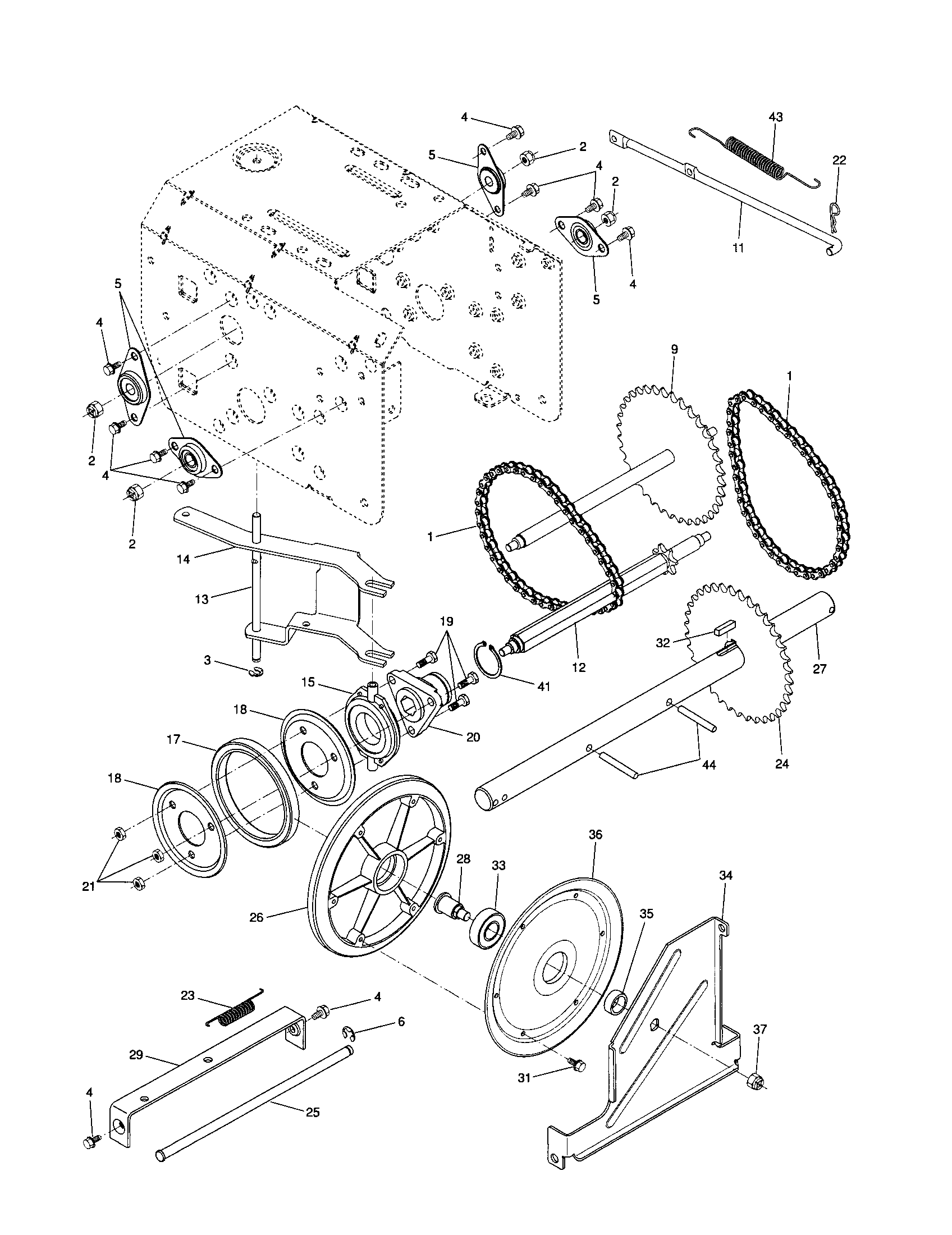

• Fix traction issues by replacing a weak spring such as the traction spring 532180926 and then adjusting controls.

Cost-to-value guide

Situation	Usually worth fixing?	Why
Belt slipping, auger not turning	Yes	Wear item; restores throwing power quickly
Poor traction or drive engagement	Yes	Often adjustment, lubrication, or a spring/cable
Routine tune-up needed	Yes	Extends life and improves starting
Major engine failure	No	Repair cost and downtime typically exceed value

Why it matters

A snowblower’s performance depends on basic maintenance and a few key wear parts. The 917881060 manual calls out regular checks like belt inspection, oil service, and seasonal spark plug replacement; staying on that schedule prevents repeat breakdowns and protects the auger and impeller system.

Safety and planning before you repair

• Disconnect the spark plug wire before any repair or adjustment.
• Let the muffler and engine cool completely before working near them.
• After throwing snow, run the machine a few minutes to help prevent freeze-up.
• Use the owner's manual for maintenance intervals, specifications, and adjustment procedures.

Ordering parts

We list model-matched replacement parts for 917881060 on this page; you can also search by model number on Sears PartsDirect if you’re comparing options or building a full repair list.

Last updated: February 2026

A gas snowblower typically lasts 10 to 20 years. For your Craftsman 917881060 snow thrower, lifespan is driven by routine engine care, belt and fastener checks, and correct off-season storage practices in the 917881060 owner's manual.

Typical lifespan ranges

• 15 to 20 years: light to moderate use with consistent maintenance
• 10 to 15 years: average use with occasional missed maintenance
• 8 to 12 years: heavy use or poor storage (rust, fuel issues, repeated belt wear)

Care level	Typical lifespan	Most common failure points
Consistent maintenance	15 to 20 years	corrosion, drivetrain wear
Average maintenance	10 to 15 years	belts, carburetor/fuel issues
Minimal maintenance	8 to 12 years	engine wear, rust damage

Maintenance that adds years

These habits protect the engine and drive system on model 917881060:

• Change engine oil on schedule; use detergent oil rated API SG-SL.
• Replace the spark plug at the start of each season or every 100 hours.
• After blowing snow, run the machine a few minutes to help prevent collector and impeller freeze-up.
• Keep the housing clean; avoid forcing water into the engine area because it shortens engine life.
• Check shear bolts and other fasteners frequently for tightness.

Storage that prevents costly damage

• Never store the unit indoors with fuel in the tank near ignition sources.
• Let the engine cool before storing.
• Clean thoroughly and store in a clean, dry area.
• Inspect and replace worn belts before the next season.

Parts that commonly restore performance

If the engine runs well but performance drops, these wear items often help:

• Snowblower auger drive belt 532408007
• Snowblower skid shoe, left 532174762

Why it matters

Most “short lifespan” snowblowers fail early from neglected oil changes, water intrusion during cleaning, and poor storage. Following the maintenance and storage steps keeps your Craftsman snowblower reliable for many seasons.

You can order replacement parts from the parts list for model 917881060, or search by model number on Sears PartsDirect.

Last updated: February 2026

For Craftsman snow thrower model 917881060, the serial number decal tells you the unit’s build information; the first step is locating that decal on the rear housing and recording the serial exactly. Then match your serial’s format to the correct date-code style using the 917881060 owner's manual.

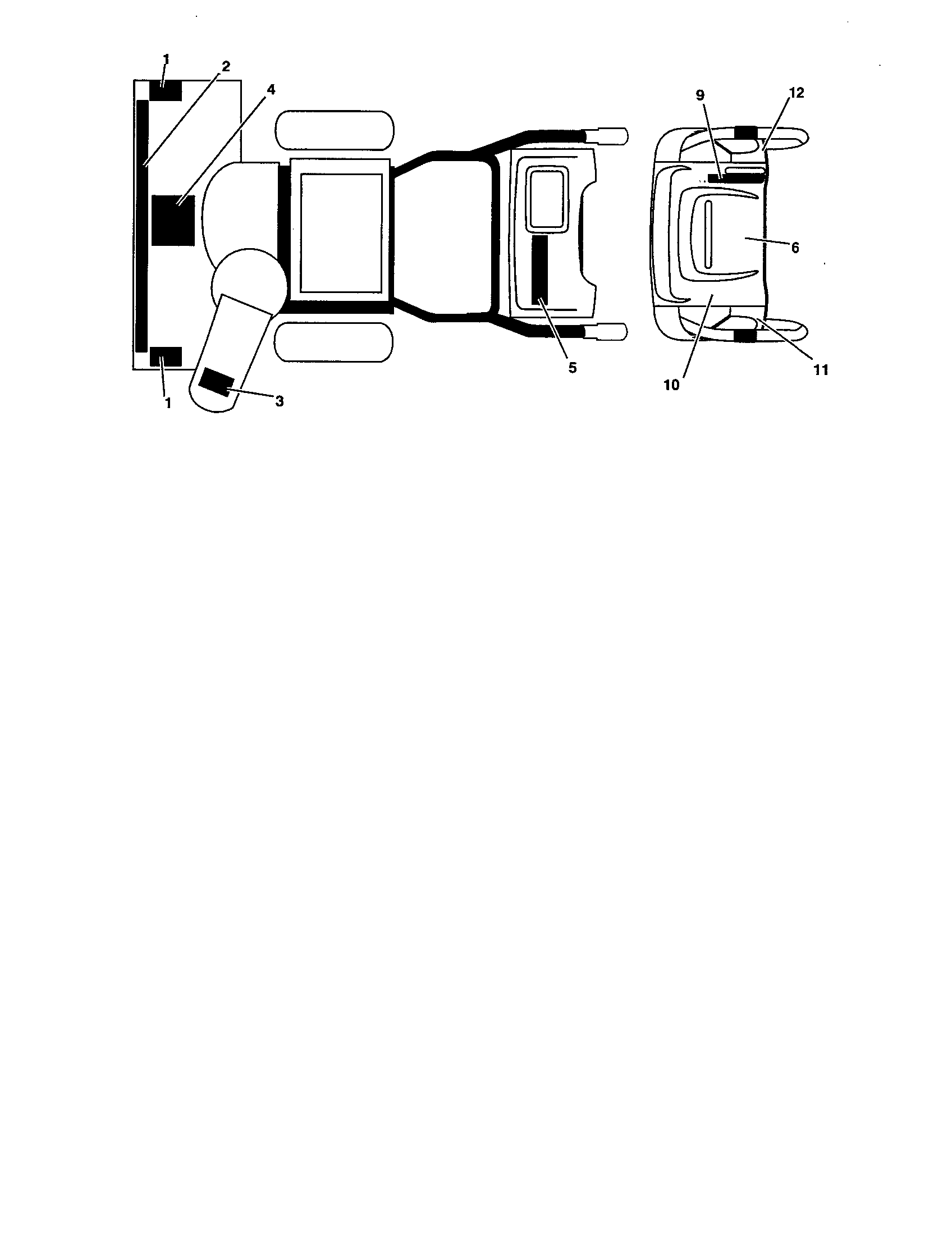

Where to find the serial number on 917881060

The model and serial numbers are printed on a decal attached to the rear of the snow thrower housing.

• Look at the back of the auger housing area for a rectangular decal
• Copy the serial number exactly (include letters, dashes, and leading zeros)
• Take a clear photo so characters are not misread
• Record the purchase date (it helps confirm the decade)
• Keep the serial with your maintenance records

How to decode the year from the serial number

Craftsman used more than one serial-number date-code style across snowblower production. Use the pattern you see on your decal to choose the right method.

• Position-based year digit: one character in the serial (commonly the 5th character in that style) is a single digit 0 to 9 that indicates the year within a decade.
• Letter-month style: a letter indicates the month (A = Jan through L = Dec), followed by digits for the day and a digit for the year within the decade.

Quick guide to confirming the decade

If the year digit is	The year ends in	Confirm the decade by checking
1	1	purchase date, engine label, and parts diagrams used on your unit
4	4	purchase date and whether the design matches earlier or later revisions
9	9	purchase date and wear-part styles (belts, cables, chute parts)

Why it matters

The correct production year helps us match the right parts diagrams and ensures you order compatible replacement parts for your Craftsman 917881060.

Parts that often depend on the exact build

Once you confirm the serial format and year, match common wear items to your diagrams, such as the snowblower auger drive belt 532408007. You can order from the parts list for this model, or search by model number on Sears PartsDirect if you are comparing similar Craftsman units.
