Model # 1199646740 Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 1199646740 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

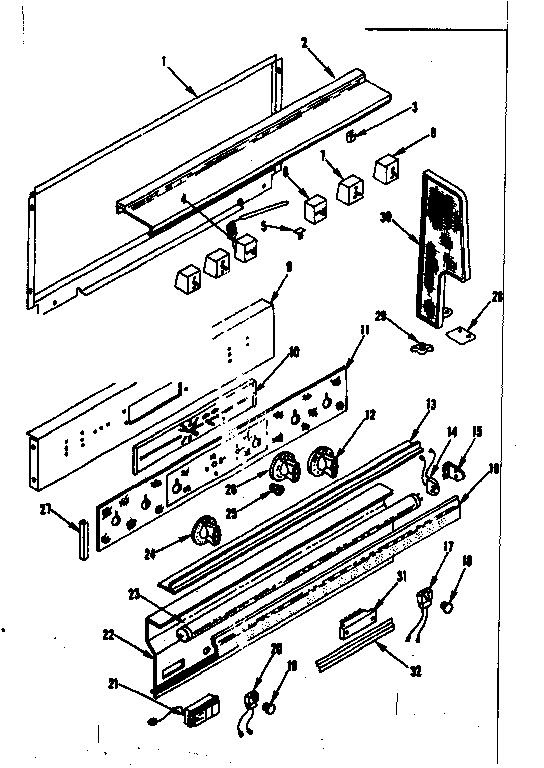

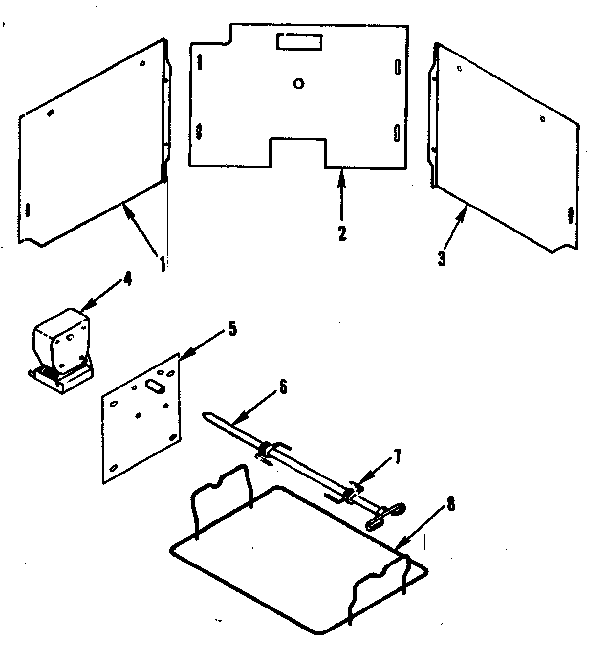

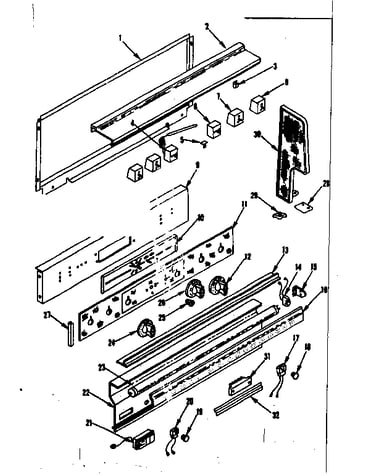

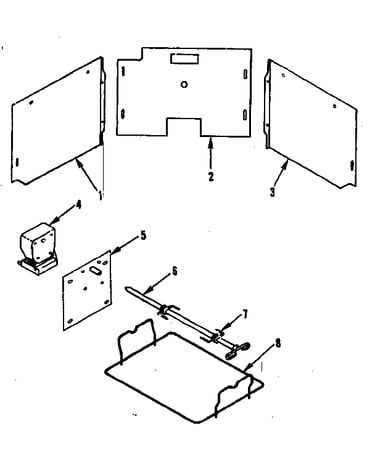

SELECT DIAGRAM
Browse Parts for1199646740 Ranges
- #3

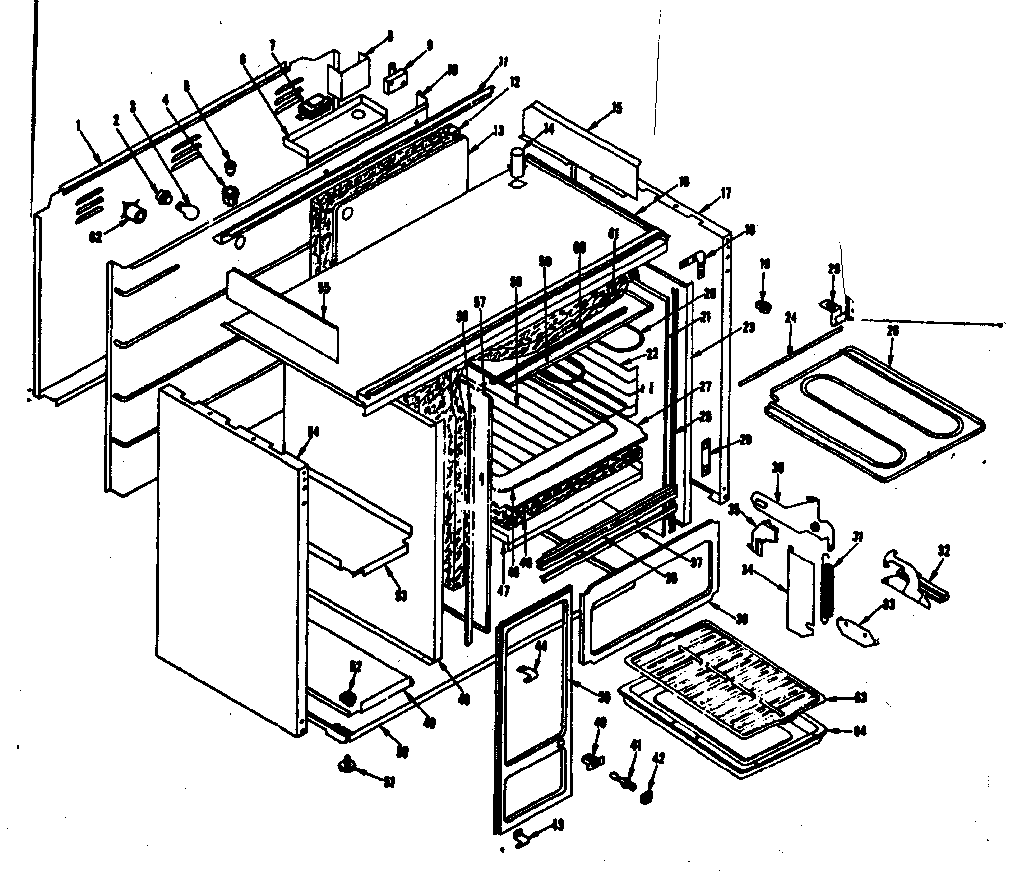

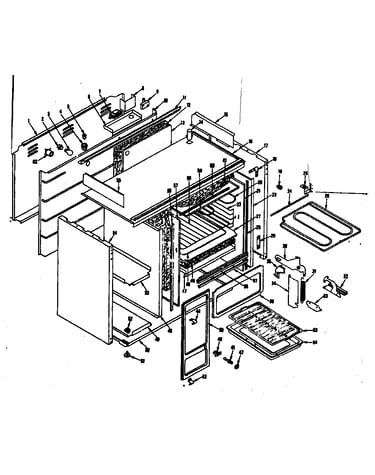

Body section diagram
Light bulbPart #2911
Replaced by #40A15
?Manufacturer substitutionThis part replaces 2911. Substitute parts can look different from the original.$15.06 |12% OFF Phone Price : $17.06In Stock - #8

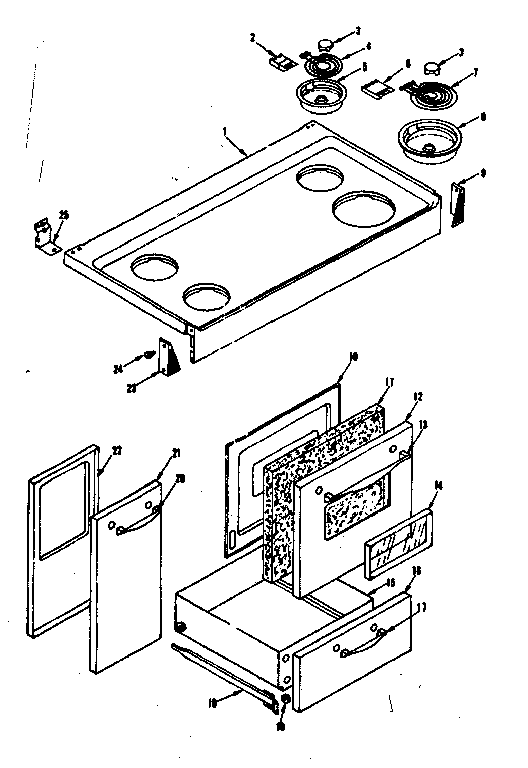

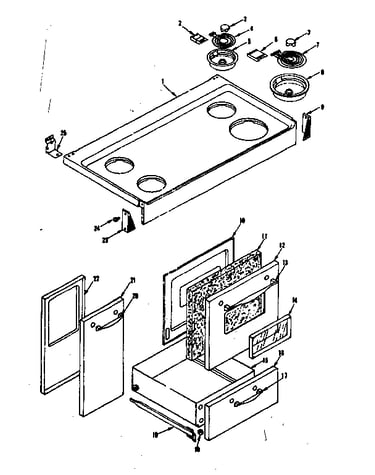

Top section diagram
Large bowlPart #5317
Replaced by #WB32X106
?Manufacturer substitutionThis part replaces 5317. Substitute parts can look different from the original.$18.45 |10% OFF Phone Price : $20.45In Stock - #5
Top section diagram
BowlPart #5316
Replaced by #WB32X107
?Manufacturer substitutionThis part replaces 5316. Substitute parts can look different from the original.$11.84 |14% OFF Phone Price : $13.84In Stock - #3
Top section diagram
MedallionPart #5665
The manufacturer no longer makes this part, and there's no substitute part
- #46
Body section diagram
Bake elementPart #5321
The manufacturer no longer makes this part, and there's no substitute part
- #19B
Top section diagram
TrackPart #4408
The manufacturer no longer makes this part, and there's no substitute part
- #19A
Top section diagram
TrackPart #4407
The manufacturer no longer makes this part, and there's no substitute part
- #19
Body section diagram
GrommetPart #3604
The manufacturer no longer makes this part, and there's no substitute part
- #57
Body section diagram
OvenPart #5305
The manufacturer no longer makes this part, and there's no substitute part
- #7
Top section diagram
Large unitPart #5667
The manufacturer no longer makes this part, and there's no substitute part
