Hoover
Upright Vacuum

Model #UH70830 Hoover vacuum

Here are the diagrams and repair parts for Hoover UH70830 vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 38 parts

    Vacuum Carbon Exhaust Filter

    #16

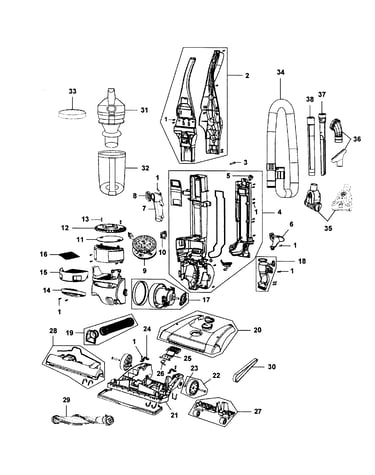

    Main assy Diagram

    Vacuum carbon exhaust filter

    Part #902404001

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Handle Release Pedal Spring

    #26

    Main assy Diagram

    Vacuum handle release pedal spring

    Part #633197001

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum On/Off Switch

    #5

    Main assy Diagram

    Vacuum on/off switch

    Part #440003992

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Foam Filter

    #15

    Main assy Diagram

    Vacuum foam filter

    Part #305687001

    The manufacturer no longer makes this part, and there's no substitute part

    Handle

    #2

    Main assy Diagram

    Handle

    Part #440003994

    The manufacturer no longer makes this part, and there's no substitute part

    Clamp

    #24

    Main assy Diagram

    Clamp

    Part #440004033

    The manufacturer no longer makes this part, and there's no substitute part

    Turbo Tool

    #35

    Main assy Diagram

    Turbo tool

    Part #440004118

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Cord Reel Assembly

    #9

    Main assy Diagram

    Vacuum cord reel assembly

    Part #303238002

    The manufacturer no longer makes this part, and there's no substitute part

    Hose Wrap

    #6

    Main assy Diagram

    Hose wrap

    Part #521088001

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Hose Assembly

    #34

    Main assy Diagram

    Vacuum hose assembly

    Part #303239003

    The manufacturer no longer makes this part, and there's no substitute part
