Whirlpool WRT148FZDW00 refrigerator Parts

Here are the diagrams and repair parts for Whirlpool WRT148FZDW00 refrigerator, as well as links to manuals and error code tables, if available.

Whirlpool WRT148FZDW00 refrigerator
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRT148FZDW00 Refrigerators

  • Whirlpool Refrigerator Evaporator Fan Motor for Whirlpool WRT148FZDW00 - Part WP2315539

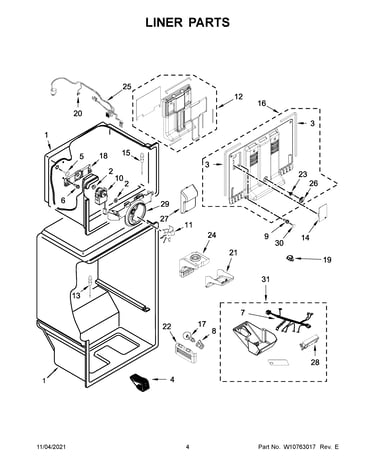

    Liner parts diagram

    Refrigerator Evaporator Fan Motor

    Part #2315539

    Replaced by #WP2315539

    Info Icon
    Manufacturer substitution
    This part replaces 2315539. Substitute parts can look different from the original.
    In Stock
    $52.02
    10% OFF Phone Price : $58.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Whirlpool WRT148FZDW00 - Part W10823511

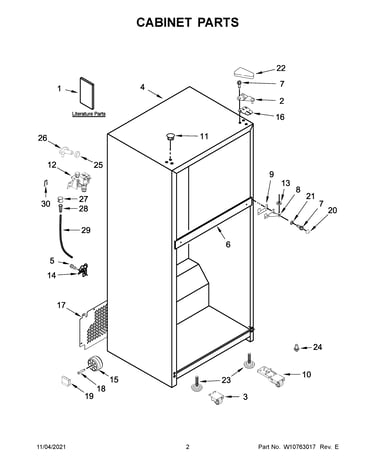

    Cabinet parts diagram

    Refrigerator Water Tube

    Part #2181944

    Replaced by #W10823511

    Info Icon
    Manufacturer substitution
    This part replaces 2181944. Substitute parts can look different from the original.
    In Stock
    $37.48
    14% OFF Phone Price : $43.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Whirlpool WRT148FZDW00 - Part WP2163777

    Liner parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2163777

    Replaced by #WP2163777

    Info Icon
    Manufacturer substitution
    This part replaces 2163777. Substitute parts can look different from the original.
    In Stock
    $41.97
    13% OFF Phone Price : $47.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Whirlpool WRT148FZDW00 - Part 350930

    Optional parts diagram

    Spray Paint (white)

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Gasket for Whirlpool WRT148FZDW00 - Part W10838574

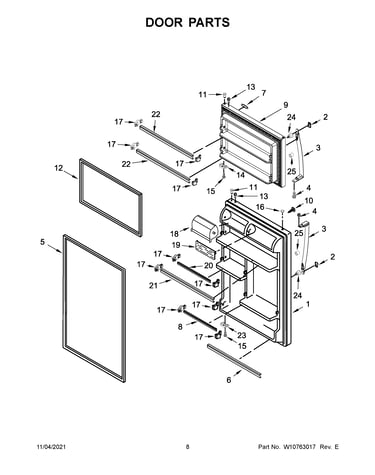

    Door parts diagram

    Refrigerator Door Gasket (white)

    Part #W10638676

    Replaced by #W10838574

    Info Icon
    Manufacturer substitution
    This part replaces W10638676. Substitute parts can look different from the original.
    In Stock
    $80.44
    7% OFF Phone Price : $86.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Washer for Whirlpool WRT148FZDW00 - Part WP489467

    Cabinet parts diagram

    Washer

    Part #489341

    Replaced by #WP489467

    Info Icon
    Manufacturer substitution
    This part replaces 489341. Substitute parts can look different from the original.
    In Stock
    $8.71
    10% OFF Phone Price : $9.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Electronic Control Board for Whirlpool WRT148FZDW00 - Part W11436574

    Liner parts diagram

    Elek Control

    Part #W11176863

    Replaced by #W11436574

    Info Icon
    Manufacturer substitution
    This part replaces W11176863. Substitute parts can look different from the original.
    In Stock
    $90.59
    6% OFF Phone Price : $96.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Control Box Assembly for Whirlpool WRT148FZDW00 - Part W11353813

    Liner parts diagram

    Assy Ctrl-bo

    Part #W11207397

    Replaced by #W11353813

    Info Icon
    Manufacturer substitution
    This part replaces W11207397. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $116.90
    9% OFF Phone Price : $128.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Motor for Whirlpool WRT148FZDW00 - Part W11127829

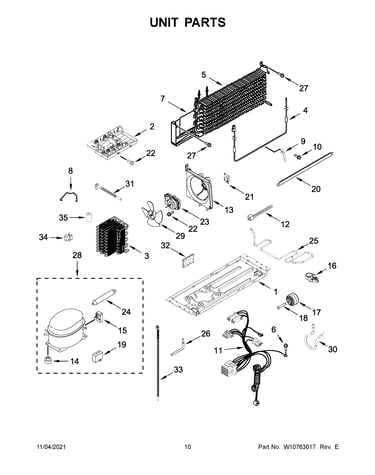

    Unit parts diagram

    Cond Fan,mla

    Part #W10909387

    Replaced by #W11127829

    Info Icon
    Manufacturer substitution
    This part replaces W10909387. Substitute parts can look different from the original.
    In Stock
    $115.65
    9% OFF Phone Price : $127.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Shelf Rail End Cap for Whirlpool WRT148FZDW00 - Part WP2156003

    Door parts diagram

    Refrigerator Door Shelf Trim End Cap

    Part #2156003

    Replaced by #WP2156003

    Info Icon
    Manufacturer substitution
    This part replaces 2156003. Substitute parts can look different from the original.
    In Stock
    $9.60
    9% OFF Phone Price : $10.60Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool Refrigerator WRT148FZDW00 FAQs

Top-mount and bottom-mount refrigerators are both “better” depending on how you use your kitchen. For a Whirlpool WRT148FZDW00 top-mount refrigerator, the biggest advantages are typically lower purchase cost, simpler design, and easy access to frozen foods; bottom-mount models usually win on fresh-food convenience and organization.

Quick comparison
Feature Top-mount (freezer on top) Bottom-mount (freezer on bottom)
Fresh-food access You bend more often More eye-level access
Freezer access Most convenient You bend more often
Organization Usually simpler layout Often more drawers/baskets
Efficiency and upkeep Often very good; fewer complex features Can be very good; may have more components
Best for Frozen-food heavy households Fresh-food heavy households
How we recommend choosing
  • Choose top-mount if you use the freezer daily, want a straightforward layout, or prefer fewer “extras” to maintain.
  • Choose bottom-mount if you cook often and want the refrigerator section at eye level for faster access and better visibility.
  • If you have back or knee discomfort, prioritize the section you use most (fresh food vs. frozen) and pick the layout that reduces bending.
  • If you are tight on space, measure door swing and clearance; many installs need extra hinge-side room.
Installation and clearance notes that matter

Your refrigerator needs breathing room to cool efficiently. For this style, allow about 1/2 inch on the sides and top, 1 inch behind, and about 2 inches on the hinge side so the door can open fully (some setups need more). Confirm the exact guidance for your kitchen in the owner's manual.

Why it matters

The “better” mount is the one that matches your habits. If the layout fights your routine, you will waste time, overload shelves, and block airflow, which can lead to temperature swings and more frost or moisture issues.

Last updated: February 2026

A top-freezer (top-mount) refrigerator like the Whirlpool WRT148FZDW00 typically lasts 10 to 15 years. With consistent care (especially cleaning and keeping doors sealing well), many units reach the upper end of that range.

Typical lifespan and what affects it

Most top-freezer refrigerators last longer than more complex designs because they have fewer features to fail. Lifespan is mainly influenced by:

  • Condenser coil cleanliness (dust buildup makes the compressor work harder)
  • Door gasket condition (air leaks cause longer run times and frost issues)
  • Temperature settings and airflow (blocked vents cause uneven cooling)
  • Room conditions (hot garages and tight clearances shorten life)
  • Usage habits (frequent door openings, overpacking, warm food loads)
Maintenance that helps you reach 15 years

Your manual calls out regular cleaning and good airflow as key to normal operation. Use these habits to extend service life:

  • Clean the refrigerator and freezer sections about once a month to prevent odor buildup
  • Keep air vents clear before changing temperature settings
  • Wait 24 hours after startup for full cooling before loading food
  • Check door seals for gaps; clean and condition them if they feel dry
  • Vacuum dust from the condenser area periodically (frequency depends on pets and dust)
Quick guide: when to repair vs. replace
What you’re seeing Common meaning Usual next step
Temps drift but unit still runs Airflow, dirty coils, weak door seal Clean, check vents, inspect gaskets
Warm fridge and noisy/freezer frost Air circulation or defrost issue Inspect evaporator fan and frost pattern
Water leaks/puddles Drain or water line issue Check drain path and water tubing
Repeated clicking/no cooling Sealed system or start components Service diagnosis recommended
Why it matters

A refrigerator that runs longer to hold temperature uses more energy and wears out major components faster. Simple upkeep (cleaning, airflow, sealing) protects the compressor and helps food stay safely cold.

For model-specific care steps and control settings, follow the owner's manual.

Last updated: February 2026

A top-mount refrigerator like the Whirlpool WRT148FZDW00 is reliable and space-efficient, but its main drawbacks are convenience and features: fresh-food items sit lower (more bending), freezer access is easiest, and many models have fewer built-in organization and dispenser options. See the owner's manual for layout and use details.

Common disadvantages (what most owners notice)
  • More bending for daily use: the refrigerator compartment is below the freezer, so fresh food is lower.
  • Less premium organization: many top-mount designs have fewer adjustable storage features than higher-end layouts.
  • Fewer dispenser options: top-mount models often do not include an external water or ice dispenser.
  • Door swing and clearance needs: you may need extra side clearance for the door to open fully.
  • Can feel smaller for wide platters: shelf geometry can be less flexible for large items.
Installation and access considerations for WRT148FZDW00

Your refrigerator needs clearance and a suitable room environment for best performance.

Item Typical requirement for this model type
Side and top clearance About 1/2 inch
Rear clearance About 1 inch
Hinge-side clearance (next to a wall) About 2 inches minimum
Room temperature range 55°F to 110°F (best 60°F to 90°F)
Why it matters

Most “disadvantages” come down to ergonomics and kitchen fit. If you access fresh food more than frozen food, the lower refrigerator section can be the biggest day-to-day annoyance. If your fridge sits next to a wall or tight cabinet run, door swing clearance can also affect usability.

Tips to reduce the downsides
  • Store everyday items at eye level on the upper refrigerator shelves.
  • Keep heavier items (milk, juice) on sturdier shelves to reduce awkward lifting.
  • Avoid overpacking; blocked bins and shelves can keep doors from closing properly.
  • Keep door gaskets clean so the door seals without sticking.
  • Level the refrigerator so it tilts slightly toward the rear to help doors close more easily.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint: the fresh food section is too warm, the freezer is too warm, or temperatures swing. On the Whirlpool WRT148FZDW00, the most frequent root causes are airflow restrictions (dirty condenser area, blocked vents), fan issues, or defrost and door-seal problems; our owner's manual troubleshooting section walks through the first checks.

Most common symptoms and what they usually point to
  • Not cooling enough: blocked air vents, dirty condenser area, weak evaporator fan airflow
  • Runs all the time: warm room, frequent door openings, door left ajar, heavy food load (common on high-efficiency designs)
  • Noisy operation: normal compressor and fan sounds, or a failing fan motor
  • Water on floor or inside: defrost drain issue or door not sealing
  • Ice maker issues (if equipped): water supply problem or valve not opening
Quick checks we recommend first (WRT148FZDW00)
  1. Confirm the control is ON and the unit is plugged into a grounded outlet.
  2. After a new install or power outage, allow 24 hours to reach stable temperatures.
  3. Make sure nothing blocks the return vents inside the refrigerator or freezer.
  4. Listen for fan operation; a stalled evaporator fan often causes warm temperatures and odd noises.
  5. Inspect door gaskets for gaps, tears, or areas not sealing.
Common parts tied to “not cooling” and “noise” complaints
Symptom Common cause Example part for this model
Warm refrigerator, freezer OK or weak airflow Evaporator fan not moving air Refrigerator evaporator fan motor WP2315539
Frost buildup, warming temps over time Defrost system problem Refrigerator defrost heater WPW10316428
Door not sealing, moisture, temp swings Worn or warped gasket Refrigerator door gasket (white) W10861499
Why it matters

Cooling and airflow problems can spoil food quickly and also make the compressor run longer than normal. Fixing airflow, sealing, and defrost issues early helps the refrigerator hold steady temperatures and reduces wear on major components.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Circular Saw
Cooktop
Dryer
Dvd Player
Electric Range
Electric Water Heater
Front-Engine Lawn Tractor
Furnace
Gas Range
Parts
Refrigerator
Rolling Tool Cart
Tool Chest
Wet/Dry Vacuum
