GE
Washer

Model # GNW128SSM0WW Official GE washer

Here are the diagrams and repair parts for Official GE GNW128SSM0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Drive Motor WH02X26905
#67

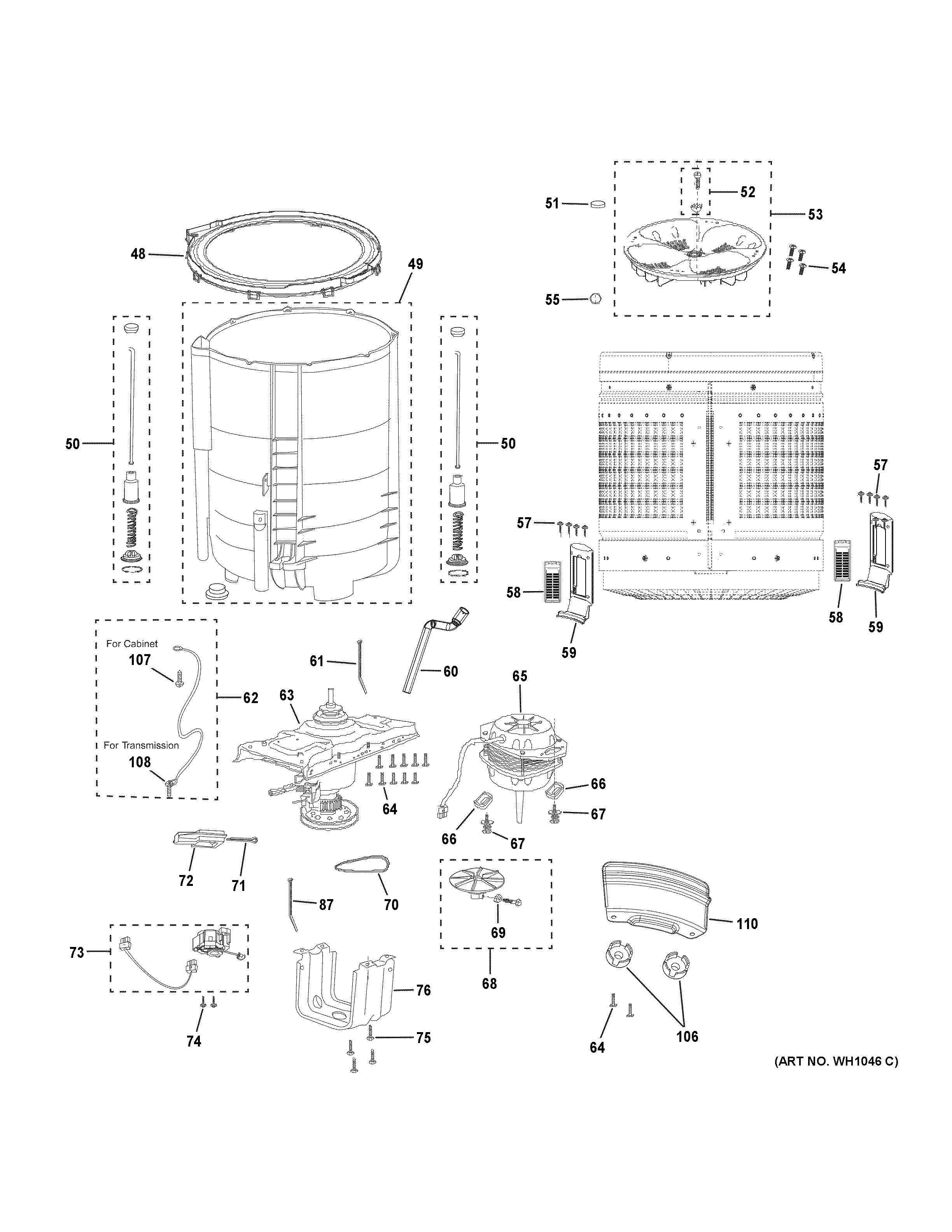

Tub & motor diagram

Drive motor

Part #WH02X26905

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Internal Dra WH41X26959
#96

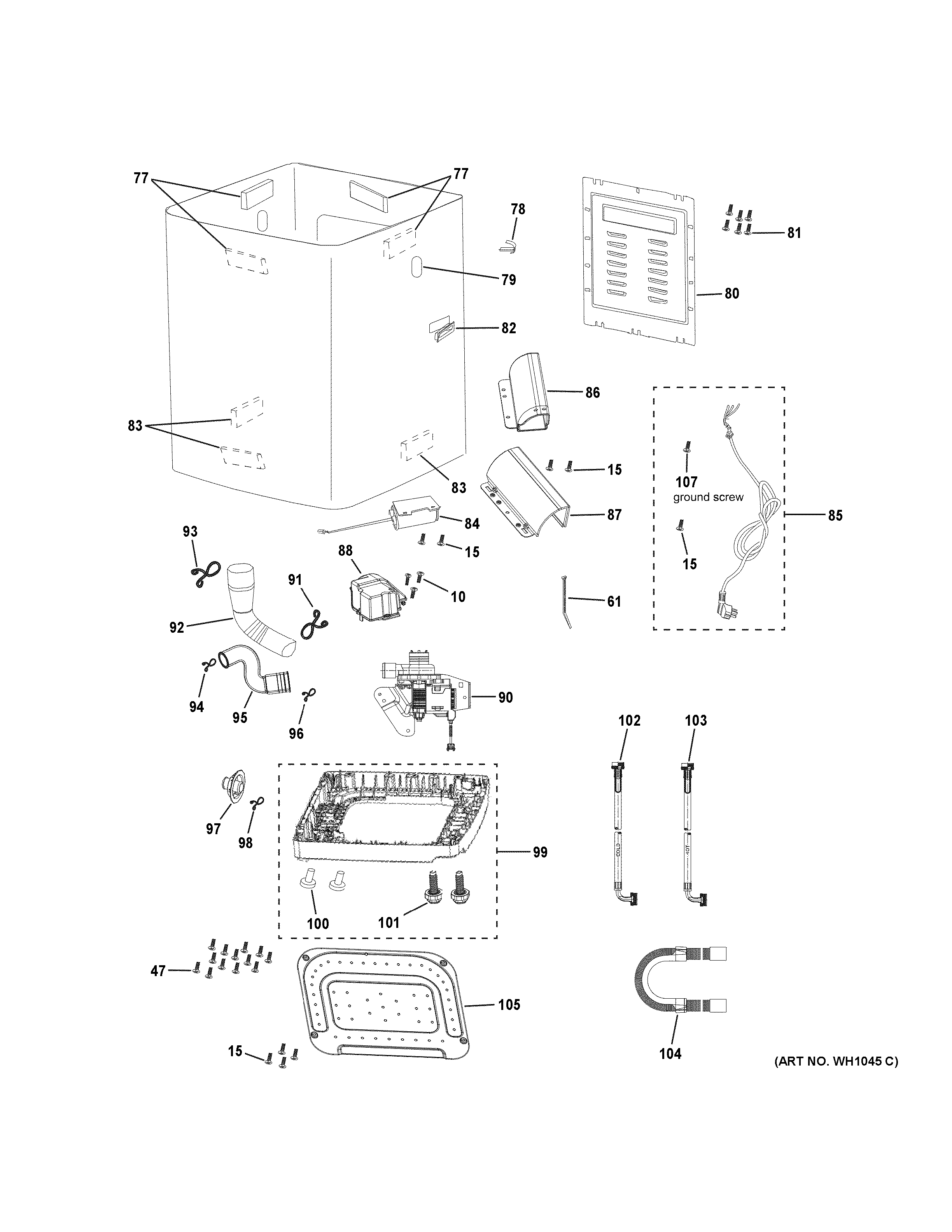

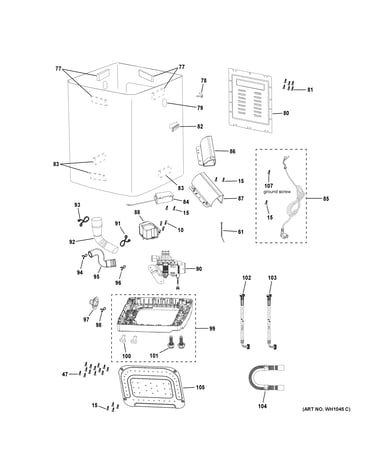

Cabinet diagram

Internal dra

Part #WH41X26959

Replaced by #WH01X26320

?
Manufacturer substitution
This part replaces WH41X26959. Substitute parts can look different from the original.
$8.11
In Stock
Pump WH23X28134
#90

Cabinet diagram

Pump

Part #WH23X28134

$112.78
In Stock
Water Valve Inlet Tube WH13X26856
#11

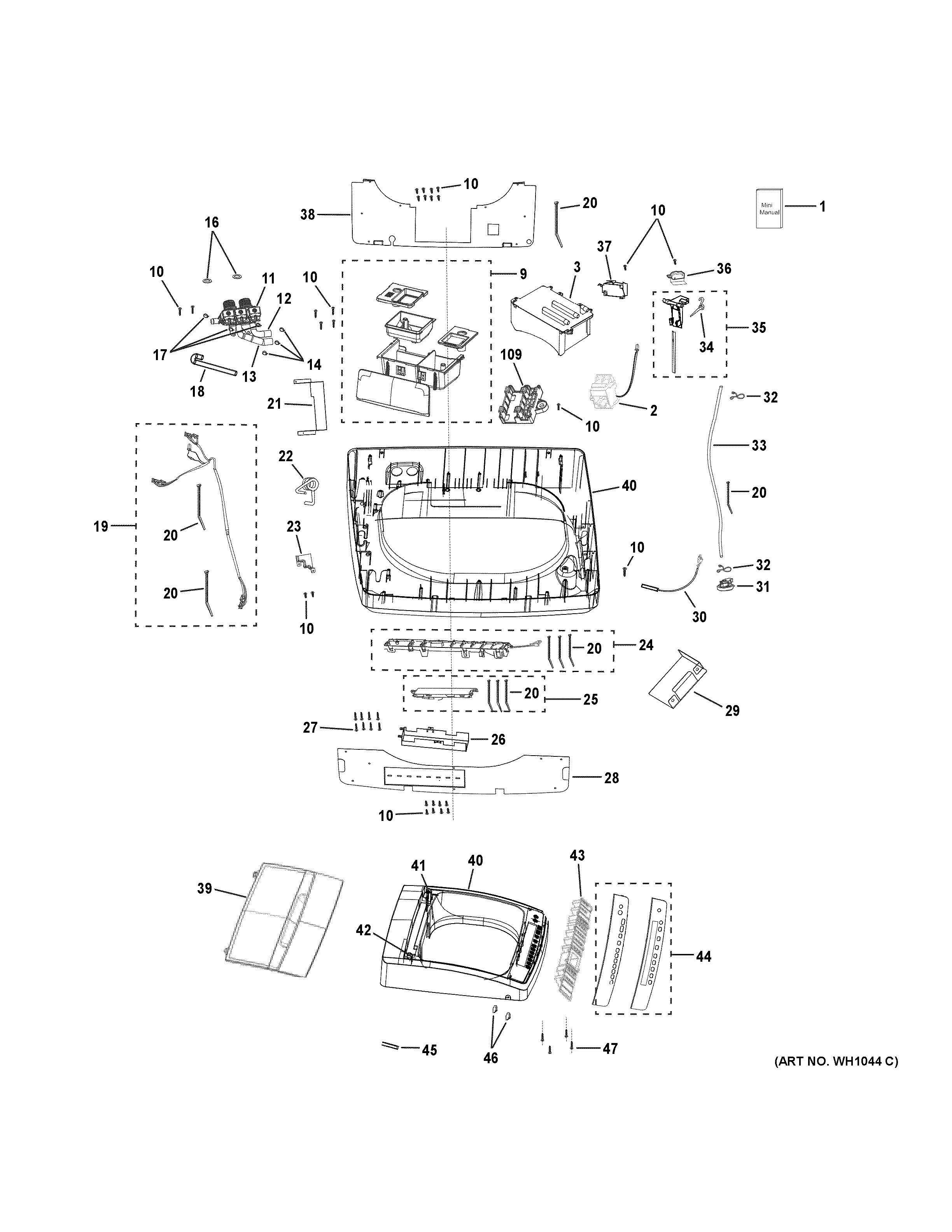

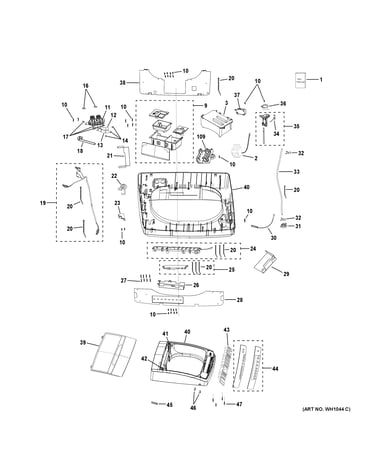

Controls & lid diagram

Water valve inlet tube

Part #WH13X26856

$114.58 |
8% OFF Phone Price : $124.58
In Stock
V-belt WH07X27269
#70

Tub & motor diagram

V-belt

Part #WH07X27269

$16.70 |
11% OFF Phone Price : $18.70
In Stock
Belt Pulley WH07X27267
#68

Tub & motor diagram

Belt pulley

Part #WH07X27267

$23.67 |
17% OFF Phone Price : $28.67
In Stock
Drive Motor WH20X26918
#65

Tub & motor diagram

Drive motor

Part #WH20X26918

$243.22
In Stock
Main Board WH18X27442
#25

Controls & lid diagram

Main board

Part #WH18X27442

$193.46
In Stock
Internal Tub To Pump Drain Hose WH41X26956
#92

Cabinet diagram

Internal tub to pump drain hose

Part #WH41X26956

$33.20 |
13% OFF Phone Price : $38.20
In Stock
Rod And Spring Assembly Qty 4 WH16X27446
#50

Tub & motor diagram

Rod and spring assembly qty 4

Part #WH16X27446

Replaced by #WH03X31098

?
Manufacturer substitution
This part replaces WH16X27446. Substitute parts can look different from the original.
$81.44
In Stock
