Can I look up Frigidaire parts by model number?
Yes. Looking up parts by model number is the most accurate way to get compatible replacement parts for your Frigidaire free standing gas range, including model LFGF3052TFB. Use the model and serial information from the identification plate, then match parts by description and part ID.
Where to find the model number on LFGF3052TFB
On this range, the identification plate is on the right-hand surface of the oven front frame. You access it by opening the storage drawer, warmer drawer, or broiler drawer (depending on your configuration). See the location details in the installation guide.
What to write down before you search
- Full model number: LFGF3052TFB
- Serial number
- Lot number or letter (if shown)
- Fuel type and pressure rating listed on the plate (helpful for gas-related parts)
How we recommend searching for the correct part
Searching by model number narrows results to parts that fit your exact Frigidaire range design, which helps avoid ordering the wrong igniter, burner parts, or control components.
- Enter LFGF3052TFB exactly as shown on the plate

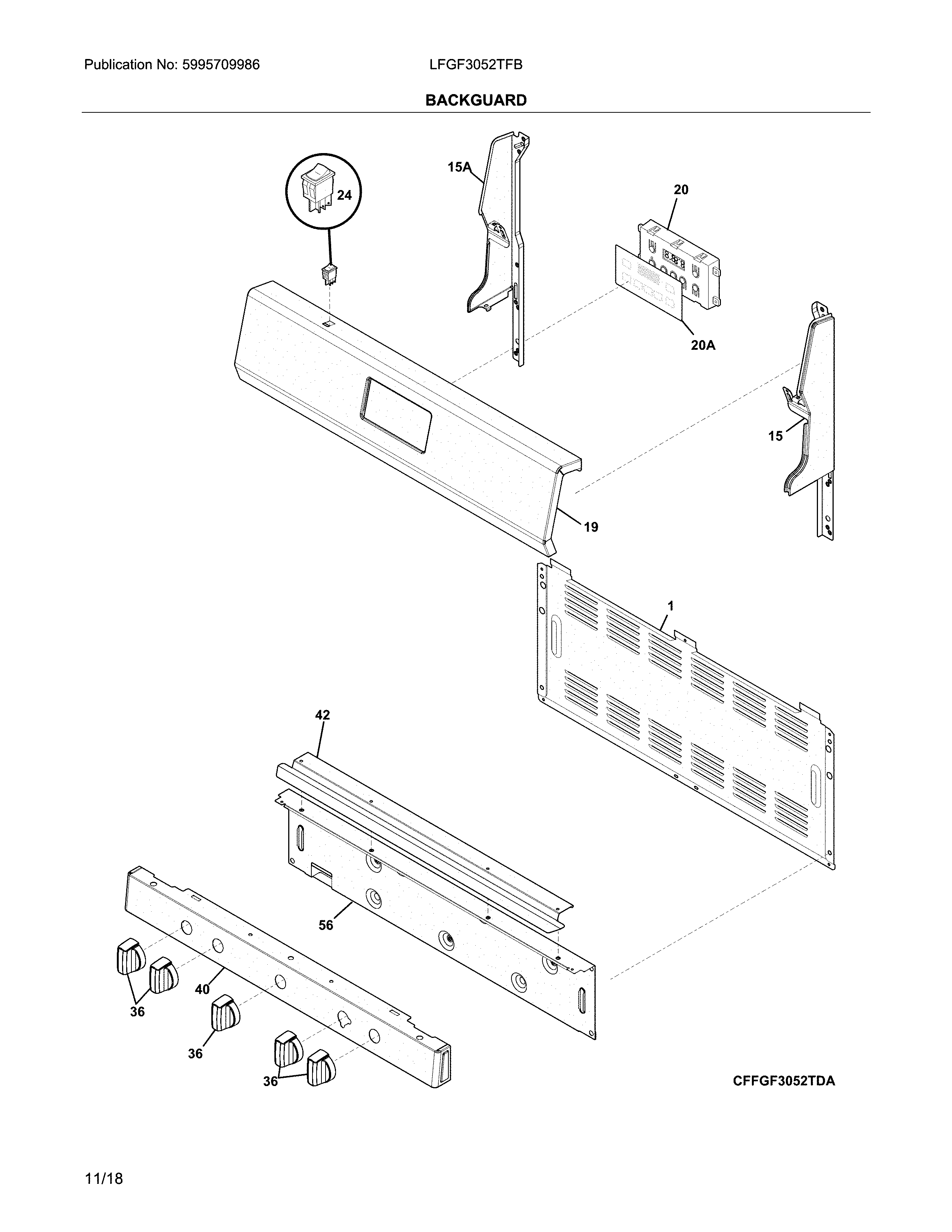

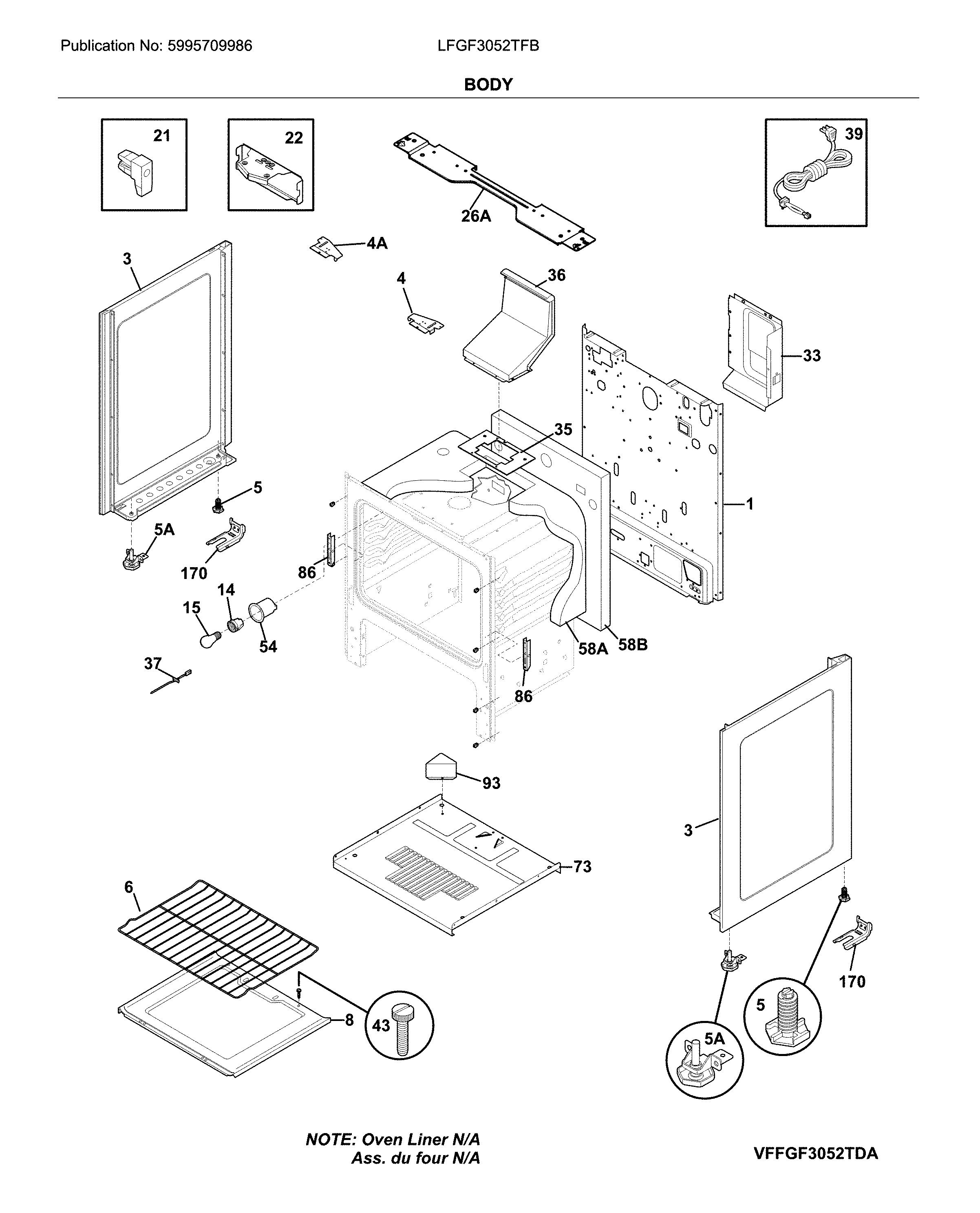

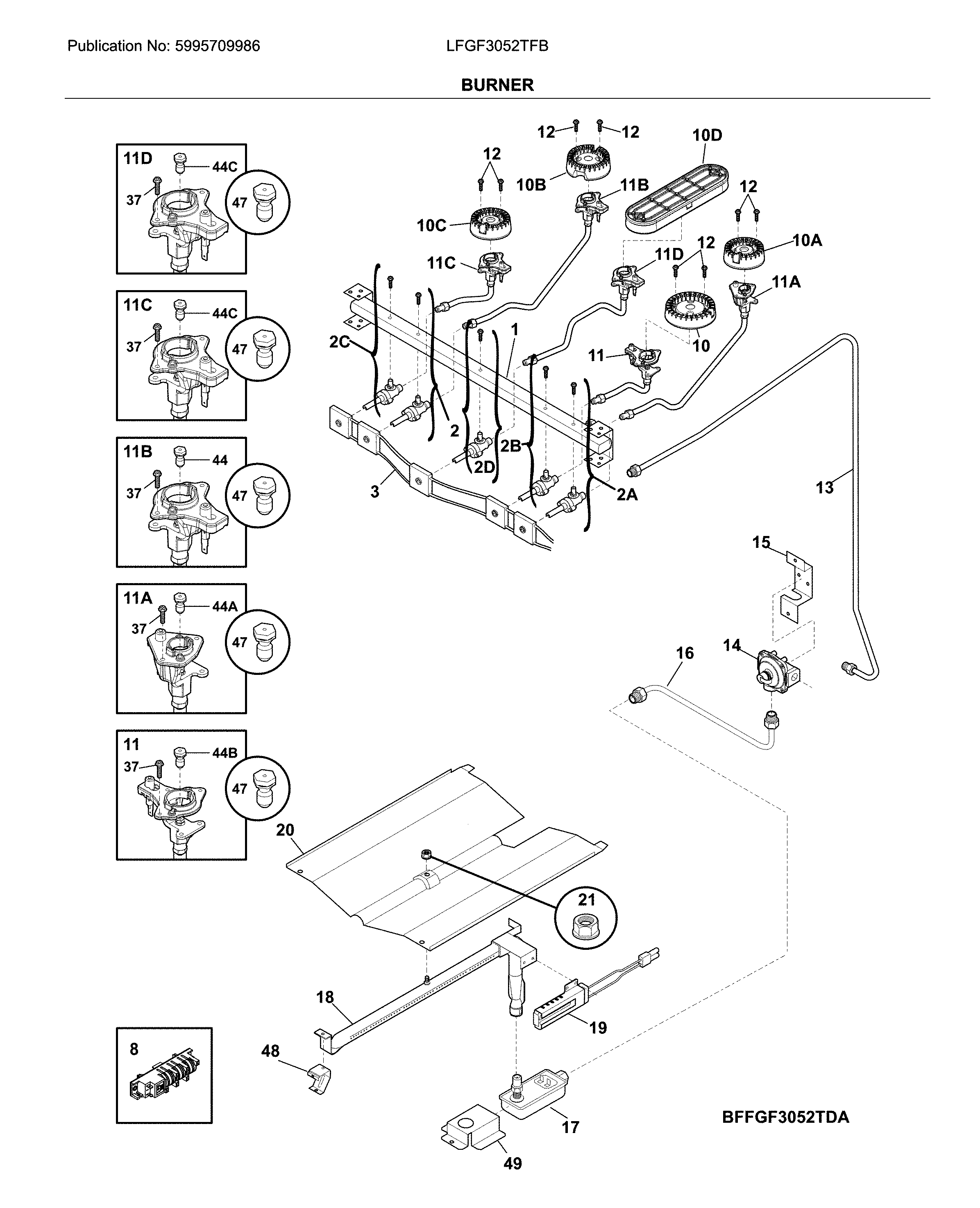

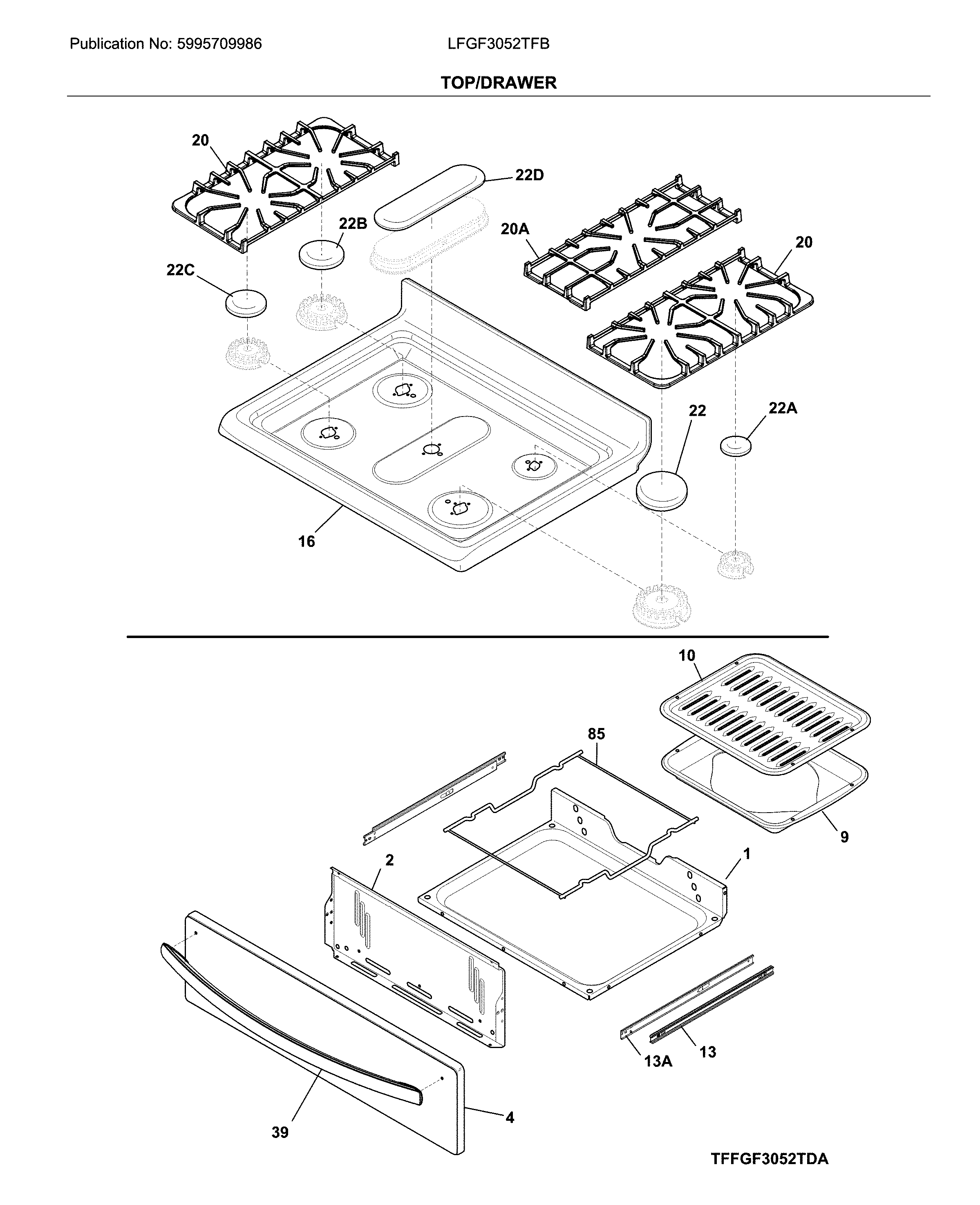

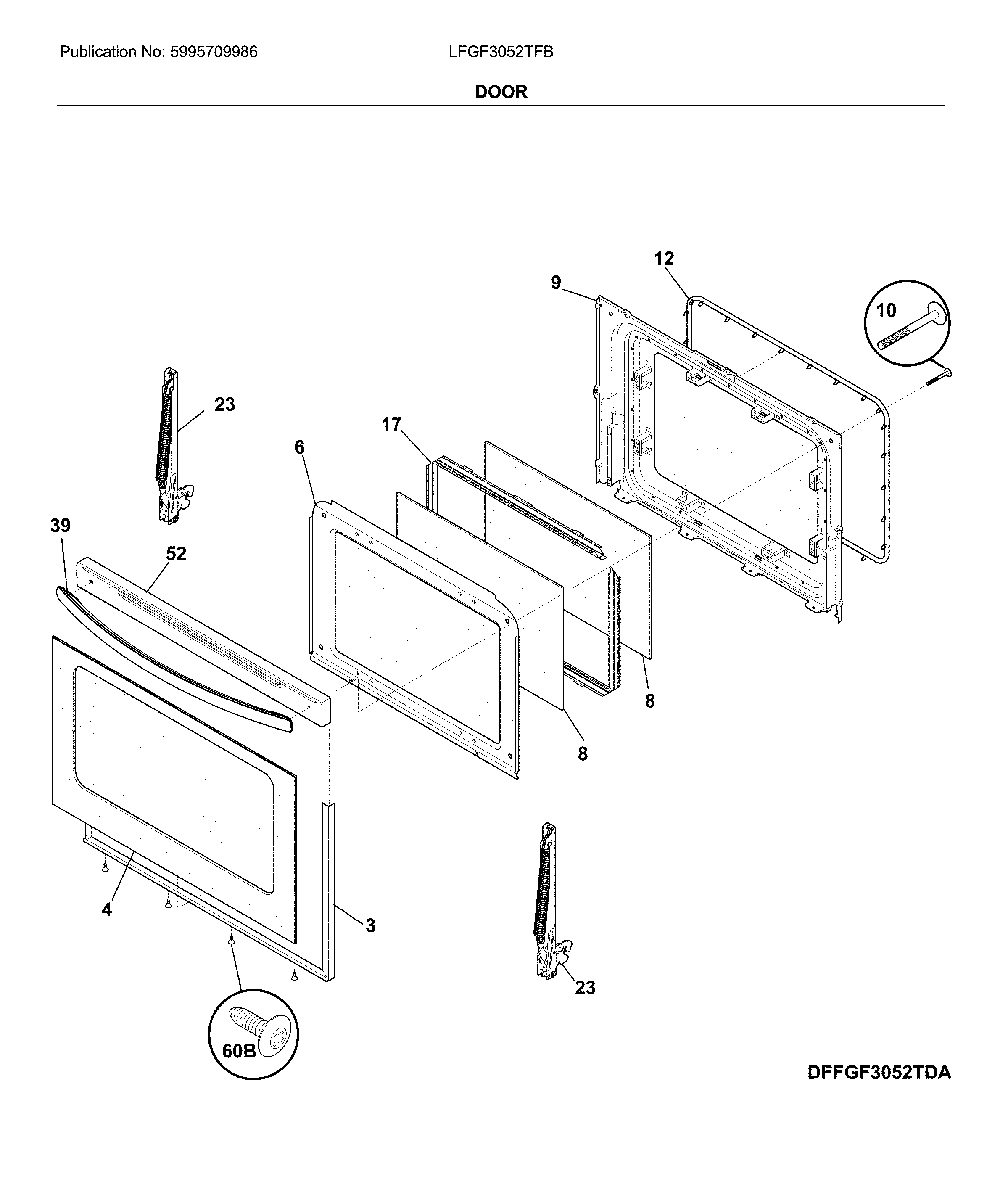

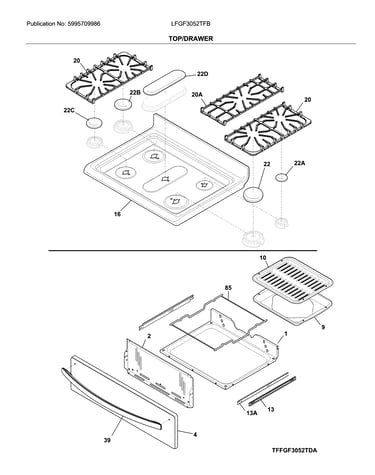

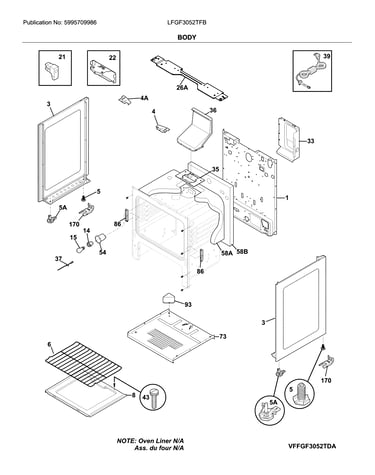

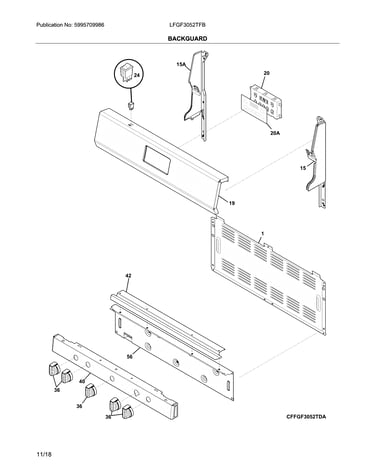

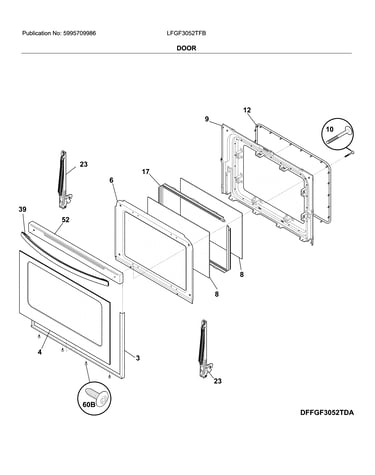

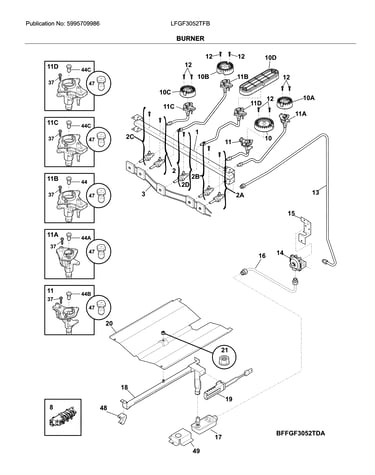

- Use the parts diagram categories (burners, oven, controls, door, panels)
- Match the part by name + part ID, not just by appearance
- Compare your symptom to common failure parts (ignition, temperature, lighting)
- Confirm any installation notes in the owner's manual
Examples of model-matched parts you can identify by ID
| Common need | Example part name | Part ID |
|---|---|---|
| Oven won’t ignite or takes too long to light | Oven burner igniter | 5304509706 |
| Oven light is out | Appliance light bulb, 40-watt | 316538904 |
| Oven temperature seems inaccurate | Oven temperature sensor | 316233903 |
If your issue points to ignition problems, the Frigidaire range oven burner igniter 5304509706 is one of the first parts we check for this model.
Why it matters
Gas range parts are highly model-specific (burner ratings, fuel type, and pressure settings vary). Using the exact model number from the identification plate helps ensure the replacement part fits correctly and performs safely.
Last updated: February 2026
How to manually light a Frigidaire gas oven?
On the Frigidaire LFGF3052TFB gas range, we do not manually light the oven burner; the oven uses an electronic ignition system. If you need heat during a power outage, we recommend manually lighting a surface burner only, using the steps in the LFGF3052TFB owner’s manual.
Manual lighting during a power outage (surface burners)
Use caution and keep your face and hands back from the burner area.
- Remove the grate if needed so you can safely reach the burner head.
- Hold a lit match (or long lighter) next to the burner head.
- Slowly turn the matching surface control knob to LITE.
- After ignition, turn the knob out of LITE to set the flame.
- If the flame goes out, turn the knob OFF, wait a moment, then try again.
If the oven will not light (normal power)
If the cooktop works but the oven will not ignite, the most common cause is a weak or failed oven igniter.
- Confirm the range has power (clock/display on).
- Start Bake and listen for the igniter and burner sequence.
- If you smell gas without ignition, turn the oven OFF and ventilate.
- If the igniter does not glow or the oven never lights, replace the igniter.
A common replacement for this model is the range oven burner igniter 5304509706.
Quick comparison: surface burner vs oven burner
| Item | Can be manually lit? | What it typically needs |
|---|---|---|
| Surface burner | Yes (during outage) | Match or long lighter, knob to LITE |
| Oven burner | No (normal operation) | Electronic igniter, gas valve, control |
Why it matters
Trying to manually light an oven burner can create a delayed ignition risk. Using the correct method keeps your Frigidaire range operating safely and helps you pinpoint whether you have an ignition-part problem (like an igniter) versus a gas supply issue.
Last updated: February 2026
Where to find model number on Frigidaire gas range?
On the Frigidaire LFGF3052TFB gas range, the model and serial tag is located at the lower drawer opening. Pull out the storage or lower oven drawer and look on the frame area around that opening for the serial plate (model and serial numbers). See the LFGF3052TFB owner's manual for the exact “Serial Plate Location” note.
Quick steps to find it
- Turn the oven off and let surfaces cool.
- Pull the bottom storage drawer straight out.
- Look along the front frame (left, right, and center) at the drawer opening.
- Check the underside of the cooktop front lip if you do not see it immediately.
- Write down the full model number and serial number exactly as shown.
What the tag looks like and what you need
The serial plate is a printed label or metal tag that typically includes:
- Model number (example format: LFGF3052TFB)
- Serial number
- Electrical rating information
- Gas type information (varies by unit)
| Item | Why we ask for it | Used for |
|---|---|---|
| Model number | Identifies the exact range version | Correct parts diagrams and fit |
| Serial number | Identifies production details | Service bulletins and date coding |
Why it matters
Frigidaire ranges can use different igniters, burner parts, and control components depending on the exact model and production run. Using the full model number helps us match parts like an oven igniter or temperature sensor correctly the first time.
Last updated: February 2026
