Kelvinator
Electric Range

Model # CE305WP2W1 Official Kelvinator electric range - 5995233888

Here are the diagrams and repair parts for Official Kelvinator CE305WP2W1 electric range - 5995233888, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

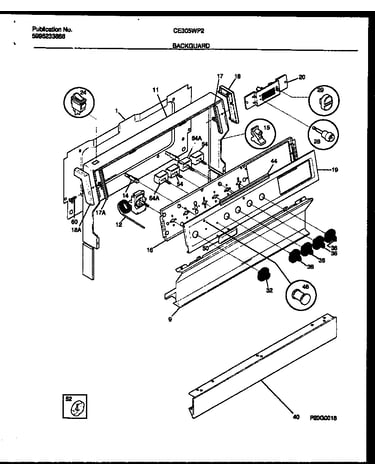

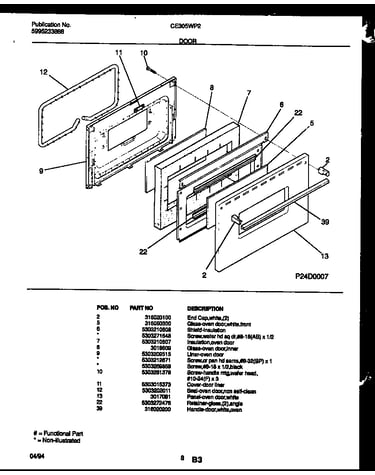

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Range Oven Light Bulb 5303013071
#15

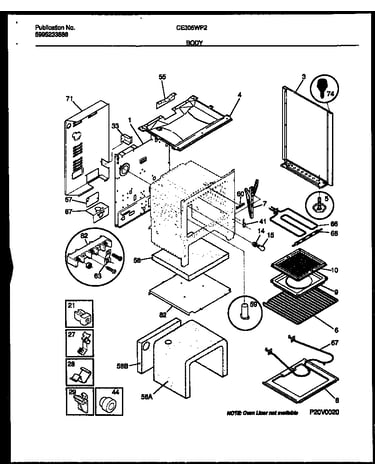

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Block 5303912666
#27

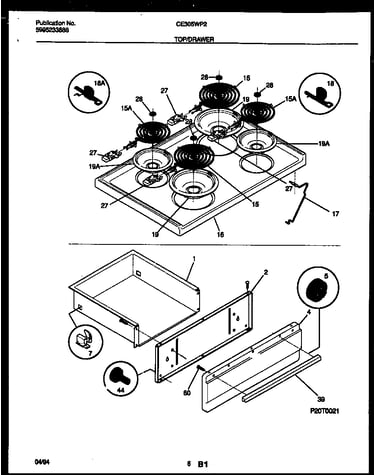

Cooktop and drawer parts diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$7.83 |
35% OFF Was : $12.00
In Stock
Range Drip Pan 5303013588
#19

Cooktop and drawer parts diagram

Range drip pan

Part #5303013588

Replaced by #316048413

?
Manufacturer substitution
This part replaces 5303013588. Substitute parts can look different from the original.
BEST SELLER
$7.53 |
69% OFF Was : $24.00
In Stock
Pan 5303205285
#19A

Cooktop and drawer parts diagram

Pan

Part #5303205285

Replaced by #316048414

?
Manufacturer substitution
This part replaces 5303205285. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.97 |
57% OFF Was : $14.00
In Stock
Range Coil Surface Element, 8-in 5303015715
#15

Cooktop and drawer parts diagram

Range coil surface element, 8-in

Part #5303015715

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#29

Body parts diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

Cooktop and drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Socket 3014073
#14

Body parts diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Rack 5303281625
#6

Body parts diagram

Oven rack

Part #5303281625

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303281625. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Range Broil Element (replaces 08067760, 3012210, 3051140) 5303051140
#66

Body parts diagram

Range broil element (replaces 08067760, 3012210, 3051140)

Part #5303051140

This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
