Whirlpool RF302BXEW0 electric freestanding range Parts
Here are the diagrams and repair parts for Whirlpool RF302BXEW0 electric freestanding range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

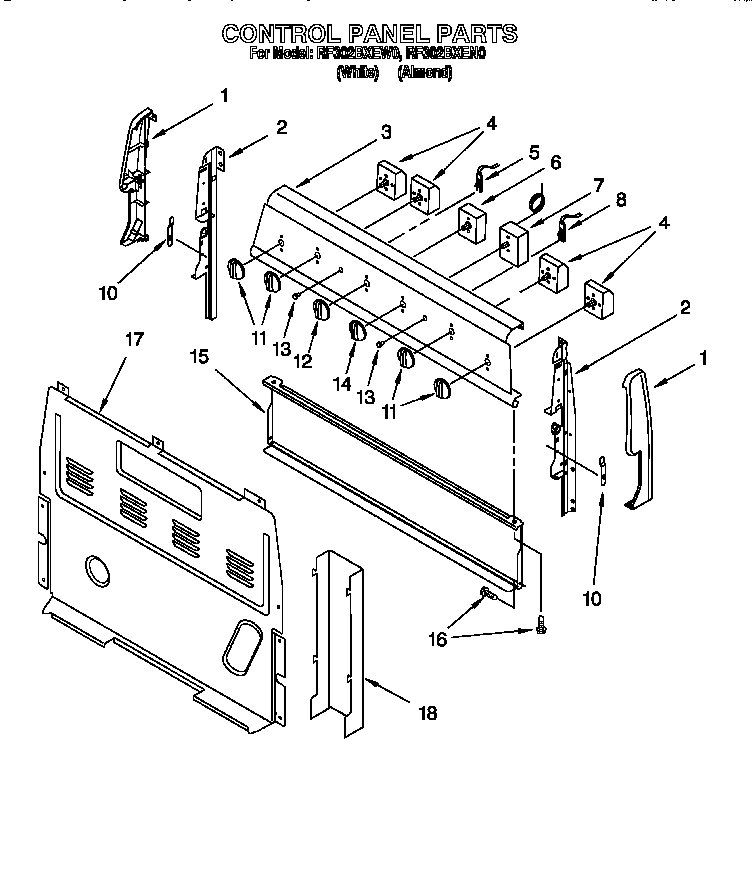

SELECT DIAGRAM
Browse Parts for RF302BXEW0 Ranges

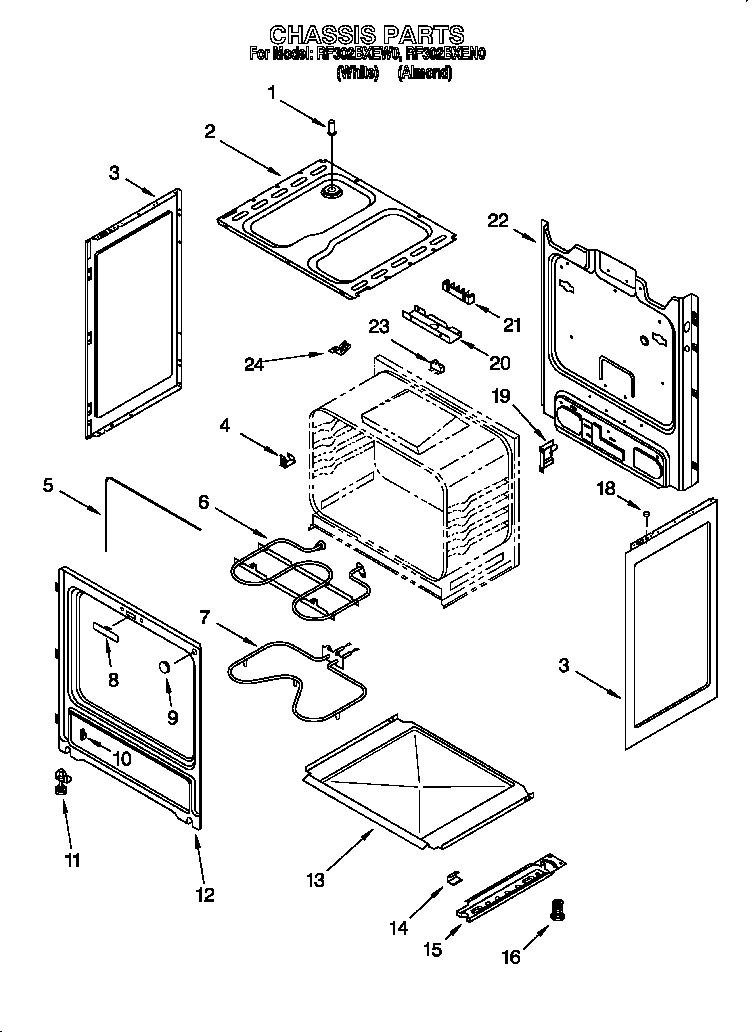

Chassis diagram
Broiler Element
Part #3195063Replaced by #W10856603
Manufacturer substitutionThis part replaces 3195063. Substitute parts can look different from the original.In Stock$154.367% OFF Phone Price : $166.36
Qty

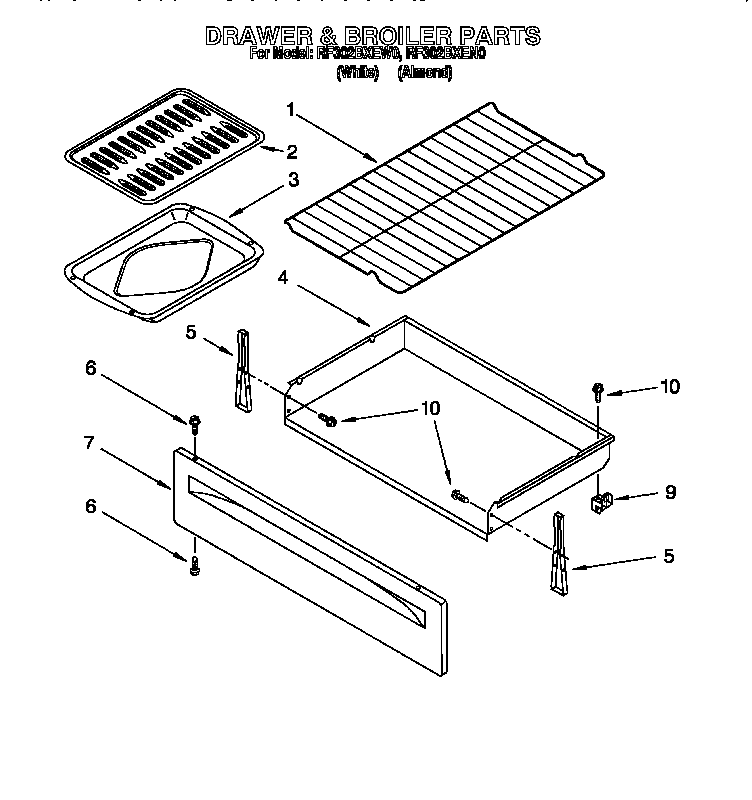

Drawer and broiler diagram
Range Broil Pan Insert
Part #3195996Replaced by #WP3195996
Manufacturer substitutionThis part replaces 3195996. Substitute parts can look different from the original.In Stock$104.44QtyChassis diagram
Vent Tube
Part #3169143Replaced by #9755804
Manufacturer substitutionThis part replaces 3169143. Substitute parts can look different from the original.In Stock$71.628% OFF Phone Price : $77.62QtyDrawer and broiler diagram
Bracket Panel
Part #3186098Replaced by #W10838990
Manufacturer substitutionThis part replaces 3186098. Substitute parts can look different from the original.In Stock$45.0912% OFF Phone Price : $51.09QtyRange Burner Control Knob
Part #3196231Replaced by #WP3196231

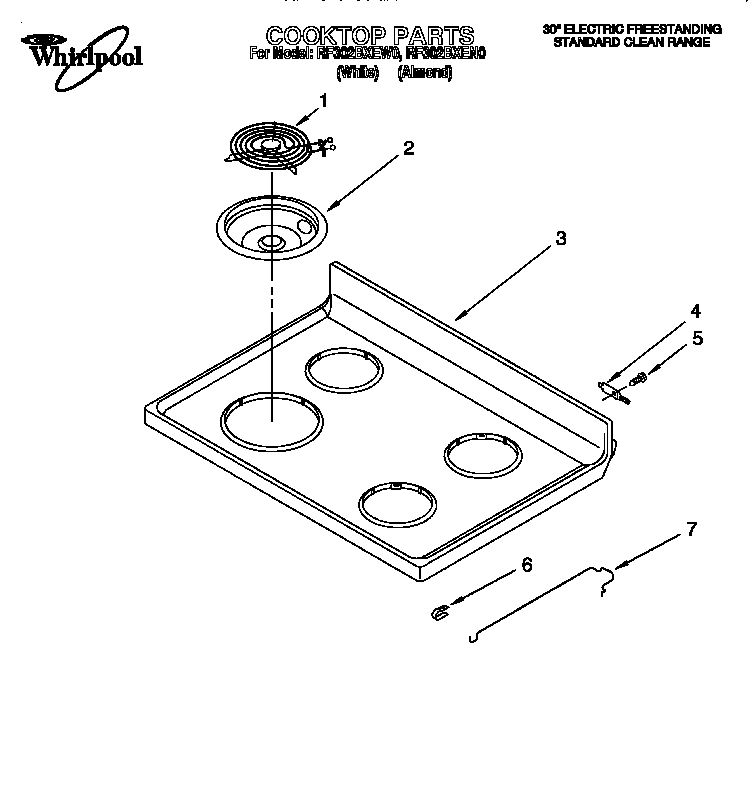

Manufacturer substitutionThis part replaces 3196231. Substitute parts can look different from the original.This item is not returnableIn Stock$21.5222% OFF Phone Price : $27.52QtyCooktop diagram
Drip Bowl
Part #3195209Replaced by #W10196405RW
Manufacturer substitutionThis part replaces 3195209. Substitute parts can look different from the original.This item is not returnableIn Stock$13.1213% OFF Phone Price : $15.12Qty#NI
All parts diagram
Insulation
Part #261514Replaced by #WPW10208653

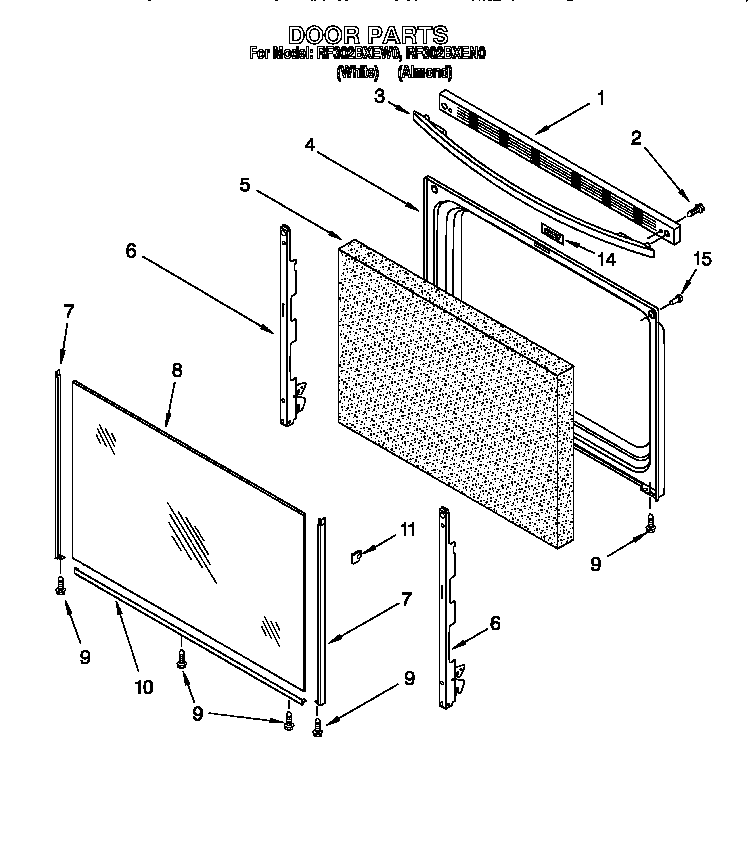

Manufacturer substitutionThis part replaces 261514. Substitute parts can look different from the original.In Stock$47.4211% OFF Phone Price : $53.42QtyDoor diagram
Door Trim
Part #3195976Replaced by #8184858
Manufacturer substitutionThis part replaces 3195976. Substitute parts can look different from the original.In Stock$90.626% OFF Phone Price : $96.62QtyBumper
Part #3195809Replaced by #238614
Manufacturer substitutionThis part replaces 3195809. Substitute parts can look different from the original.In Stock$156.28QtyChassis diagram
Burner Box
Part #3186144Replaced by #W11699791
Manufacturer substitutionThis part replaces 3186144. Substitute parts can look different from the original.In Stock$212.76Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint
Part #72017
This item is not returnable
In Stock
$31.61
Qty
Appliance Spray Paint (black)
Part #285006
This item is not returnable
In Stock
$45.09
12% OFF Phone Price : $51.09
Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
