Kenmore 79071373701 gas range Parts

Yes. Kenmore makes gas ranges, including the Kenmore 79071373701 gas range; they are designed for everyday cooking with gas surface burners and an electronically ignited oven system. For feature details and safe operation steps, use the 79071373701 owner’s manual.

What you can expect from a Kenmore gas range

Most Kenmore gas ranges (including model 79071373701) are built around consistent burner heat on the cooktop and a gas oven with electronic ignition.

Common features you will typically see:

• Multiple surface burners with individual control knobs
• Burner grates designed for daily cooking and cleaning
• Oven interior light and adjustable oven racks
• Electronic oven control with a kitchen timer (varies by model)
• Storage drawer or warmer drawer on some versions

Safety and installation notes that matter for gas ranges

Gas ranges are safe and reliable when installed correctly and used as intended.

Key points we follow from the installation and use guidance:

• Keep flammable vapors and liquids away from the range.
• Reset oven controls to OFF after timed cooking.
• Do not use the range as a space heater.
• Install and verify the anti-tip bracket; it helps prevent tip-over injuries.
• Do not attempt to remove the cooktop on models where it is not removable.

Quick reference: power outage behavior

What you are using	What typically happens in a power failure	What to do
Surface burners	Can often be lit and used (varies by setup)	Use caution and follow the manual’s lighting instructions
Oven/bake/broil	Electronic igniter will not operate without power	Turn controls OFF and wait for power to return

Why it matters

Choosing the correct parts and following the right procedures depends on the exact model. Using the Kenmore 79071373701 documentation helps you match parts (like an oven sensor or burner components) and avoid unsafe adjustments during installation or troubleshooting.

Last updated: February 2026

A Kenmore gas range like model 79071373701 typically lasts 15 years with normal household use. Regular cleaning to prevent grease buildup and keeping burners properly adjusted helps the range heat consistently and reduces wear on key components.

Typical lifespan and what affects it

Most gas ranges land in a similar life range, but these factors make the biggest difference:

• Cooking frequency and high-heat use (daily cooking shortens lifespan)
• Grease control (grease buildup can create overheating and ignition issues)
• Burner flame quality (weak or unstable flames stress the oven and surface systems)
• Door seal condition (heat loss makes the oven run longer to maintain temperature)
• Electrical protection (controls can be affected by cold storage conditions)

Quick maintenance checklist (high impact)

We recommend these habits to help your 79071373701 reach its full service life:

• Clean the cooktop and areas under burners regularly to prevent grease accumulation
• Keep burner ports clear (food spills and debris cause uneven flames)
• Avoid using harsh aerosols that can leave flammable residue
• Do not line the broiler insert with foil (grease can ignite)
• Confirm the range is properly grounded and plugged into a 3-prong outlet

When “it’s wearing out” vs “it needs a part”

Many “old range” symptoms are actually common service items.

Symptom	Common cause	Example part for this model
Oven temperature swings	Sensor drifting out of range	Frigidaire range oven temperature sensor 316490000
Oven light out	Bulb burned out (normal wear item)	Range oven light bulb 316538904
Oven heats unevenly or takes longer	Door seal leaking heat	Range oven door seal 5304498835

Why it matters

A 15-year lifespan assumes the range can maintain stable flames and consistent oven temperature. Grease buildup and poor burner adjustment can cause ignition delays, uneven heating, and longer run times, which accelerates wear.

For model-specific care, cleaning guidance, and safety notes, use the 79071373701 owner's manual.

Last updated: February 2026

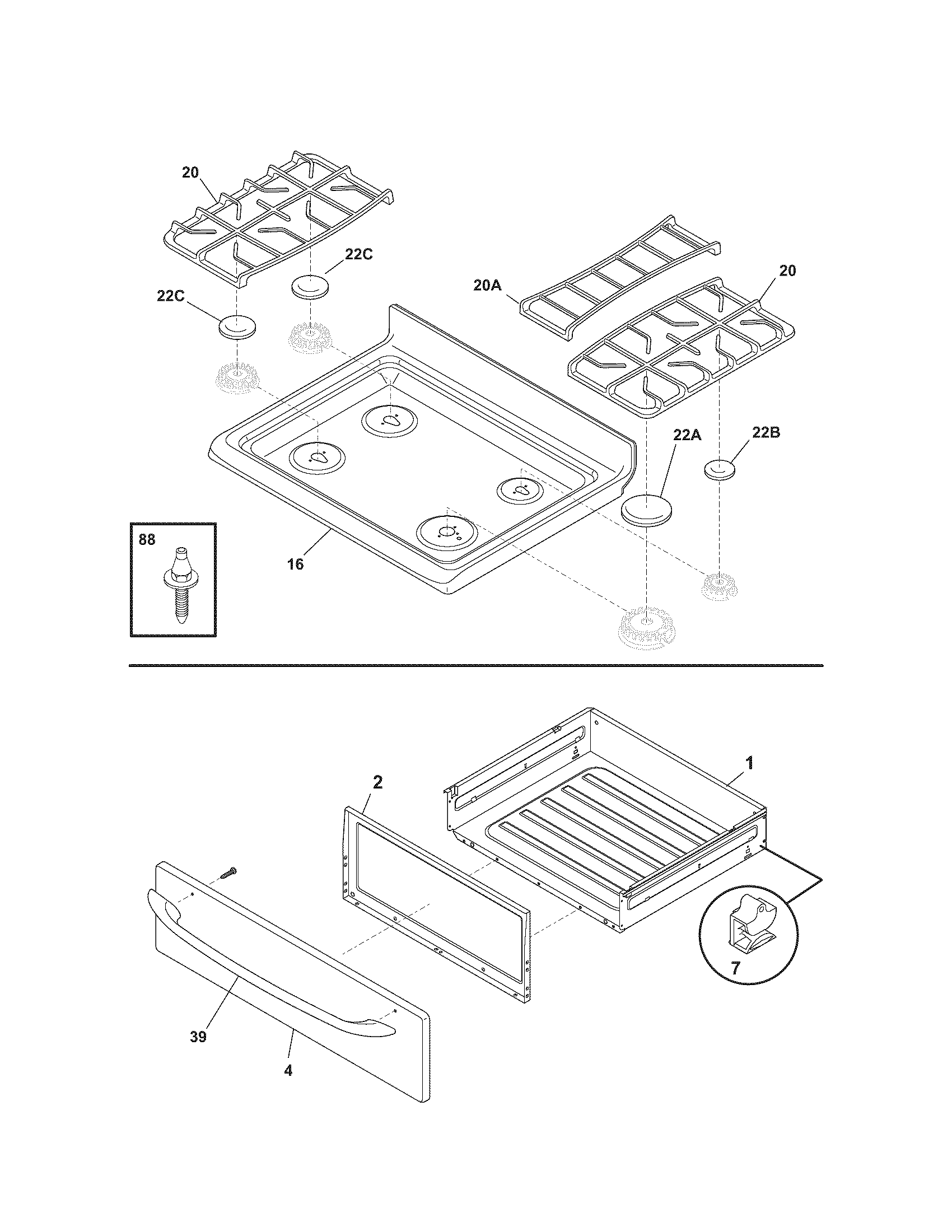

To lift the cooktop on a Kenmore 79071373701 gas range, we remove the grates and burner pieces first, then release any front hold-down screws or clips so the main top can hinge up or lift off. Always shut off gas and power before starting.

Before you start (safety and access)

• Turn all burner knobs to OFF.
• Shut off the gas supply at the manual shut-off valve.
• Unplug the range (or switch off the breaker).
• Let the cooktop cool completely.
• Pull the range forward only as far as needed; if you move it, recheck stability and anti-tip engagement per the installation guide.

Steps to remove or lift the cooktop (main top)

1. Remove the burner grates.
2. Lift off the burner caps.
3. Remove the burner heads (on many versions they lift off; some are secured).
4. Look for hold-down screws at the front edge under the cooktop lip, or near burner bases; remove them if present.
5. If your model uses burner-base screws, remove them and keep them organized.
6. Lift the front of the cooktop and either:
   • Prop it up (hinged style), or
   • Lift it off after releasing rear tabs (lift-off style).

What you may need to remove (varies by configuration)

Item	Why it matters	Common location
Grates, caps, heads	Clears the cooktop and exposes fasteners	On top of cooktop
Hold-down screws	Locks cooktop to the frame	Front underside or near burners
Igniter wires/connectors	Prevents lifting too far	Under cooktop near each burner

Why it matters

Removing the cooktop is the first step for cleaning spills under the top, checking igniters, or accessing gas components. Keeping screws and burner parts in order helps burners light correctly when reassembled.

If you find the cooktop is damaged, warped, or won’t sit flat after reassembly, the range main top assembly 316411259 is the model-matched replacement.

Last updated: February 2026

On the Kenmore 79071373701 gas range, a bad oven igniter typically shows up as no bake/broil heat, a long delay before the burner lights, or an igniter that glows but never lights the gas. Normal ignition includes a brief warm-up, then the gas valve opens and the burner lights.

What “normal” looks like on this model

From the installation instructions, the oven igniter should glow like a light bulb; once it gets hot enough, the oven valve opens and the burner lights.

Typical timing you should see:

What you see	What it usually means
Igniter glows, burner lights after about 30 to 60 seconds	Normal operation
Igniter glows for 90+ seconds and burner still does not light	Weak igniter or gas valve issue
No glow at all	Power, wiring, control, or igniter failure

For step-by-step operating checks and safety notes, use the 79071373701 installation guide.

Quick checks that point to a weak or failed igniter

• Bake or broil takes much longer than usual to start heating.
• You see the igniter glowing, but the burner never lights.
• The burner lights sometimes, then fails on the next cycle.
• You smell gas without ignition (turn the oven OFF and ventilate).
• The igniter is cracked, chalky-white, or visibly damaged.

How we test it (safe DIY approach)

1. Cut power to the range at the breaker before accessing wiring.
2. Inspect the igniter for cracks or burned spots.
3. Electrical test: use a meter to check continuity through the igniter circuit.
4. Performance clue: if the igniter glows but the burner will not light, the igniter can be too weak to draw enough current to open the gas valve.

If you’re also troubleshooting temperature swings after ignition, the frigidaire range oven temperature sensor 316490000 is the part that reports oven temperature to the control.

Why it matters

A weak igniter can prevent the gas valve from opening on time, causing delayed ignition, no heat, and inconsistent baking. Catching it early helps restore reliable preheat and steady oven temperature.

Last updated: February 2026

On the Kenmore 79071373701 gas range, an oven that “stops working” is usually caused by a power issue (controls not set after an outage), a control fault (an “F” error code), or a failed heating/ignition-related part such as the oven temperature sensor or gas ignition components. Check the basics first using the 79071373701 owner’s manual.

Quick checks we recommend first

• Confirm the range has power; the clock/time of day must be set for normal oven operation.
• If the display is beeping and shows an “F” code, press CLEAR/OFF to stop the beeping and clear the code.
• Make sure the oven is not in Sabbath mode (display may show SAb); turn Sabbath off per the instructions.
• After any power interruption, reset the clock and reselect Bake/Broil.
• If you recently ran self-clean, let the oven cool fully and try again.

Common causes and what they look like

Symptom	Most likely cause	What to do next
No heat, no response	Time not set or control not programmed	Set clock, reprogram Bake/Broil per the manual
Beeping with “F” code	Electronic control detected a fault	CLEAR/OFF; if it returns, record the code and service
Oven heats poorly or unevenly	Temperature sensing or calibration issue	Check calibration steps; consider replacing sensor
Oven won’t operate during outage	Normal for electric ignition ovens	Keep controls OFF; do not use oven during outage

Parts that commonly fix “not heating” on this model

If the oven has power and the control is set correctly, these parts are frequent culprits:

• Frigidaire range oven temperature sensor 316490000 (sensor out of range can cause wrong temps or shutdown behavior)
• Ignition-related components (glow igniter style systems can fail to light the burner)
• Oven control components (when recurring “F” codes point to a control fault)

Why it matters

A gas range like the Kenmore 79071373701 uses electric ignition and electronic controls; that means a brief power interruption, an active special mode (like Sabbath), or a control fault can stop oven operation even though surface burners may still light.

Last updated: February 2026

Your Kenmore gas range model number is printed on the appliance’s identification plate. On Kenmore model 79071373701, the plate is located on the right side of the oven front frame inside the storage drawer or warmer drawer compartment; match that number exactly when ordering parts.

Where to look on the range

Check these common label locations first (use a flashlight):

• Pull out the storage drawer or warmer drawer; look on the right side of the oven front frame
• Open the oven door; check the front frame area around the door opening
• Look behind the lower panel or drawer area if your model has one
• Check the back of the range near the vent area (less common on this model family)

For the exact label location and how it’s described by Kenmore, use the 79071373701 owner’s manual.

What to write down (and why)

Record both numbers exactly as shown on the plate:

• Model number (example format in the manual: 790.)
• Serial number
• Date of purchase (helpful for service history and part compatibility)

Quick ID checklist

Item on label	What it’s used for	Tip
Model number	Ensures the part fits your exact range	Copy every digit (no spaces)
Serial number	Identifies production run details	Useful when troubleshooting
Gas type info (if shown)	Helps confirm natural gas vs LP conversion	Check before any conversion work

Why it matters

Kenmore ranges often share similar looks across multiple models, but parts like the oven temperature sensor, burner components, control overlay, and oven racks can vary by model. Using the exact model number prevents ordering the wrong replacement part.

Last updated: February 2026
