GE JGSP48CH3CC gas range Parts
Here are the diagrams and repair parts for GE JGSP48CH3CC gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

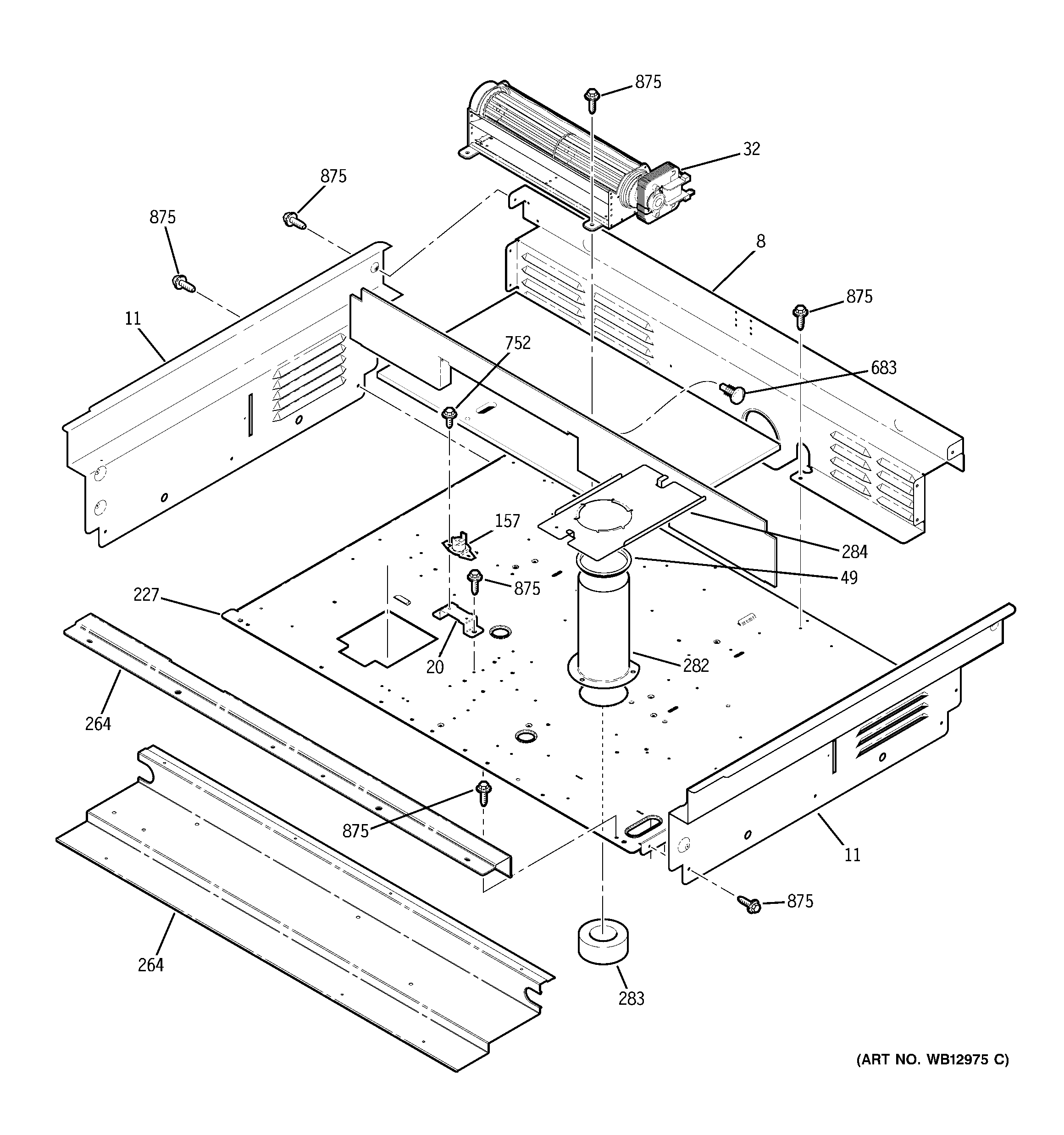

Browse Parts for JGSP48CH3CC Ranges

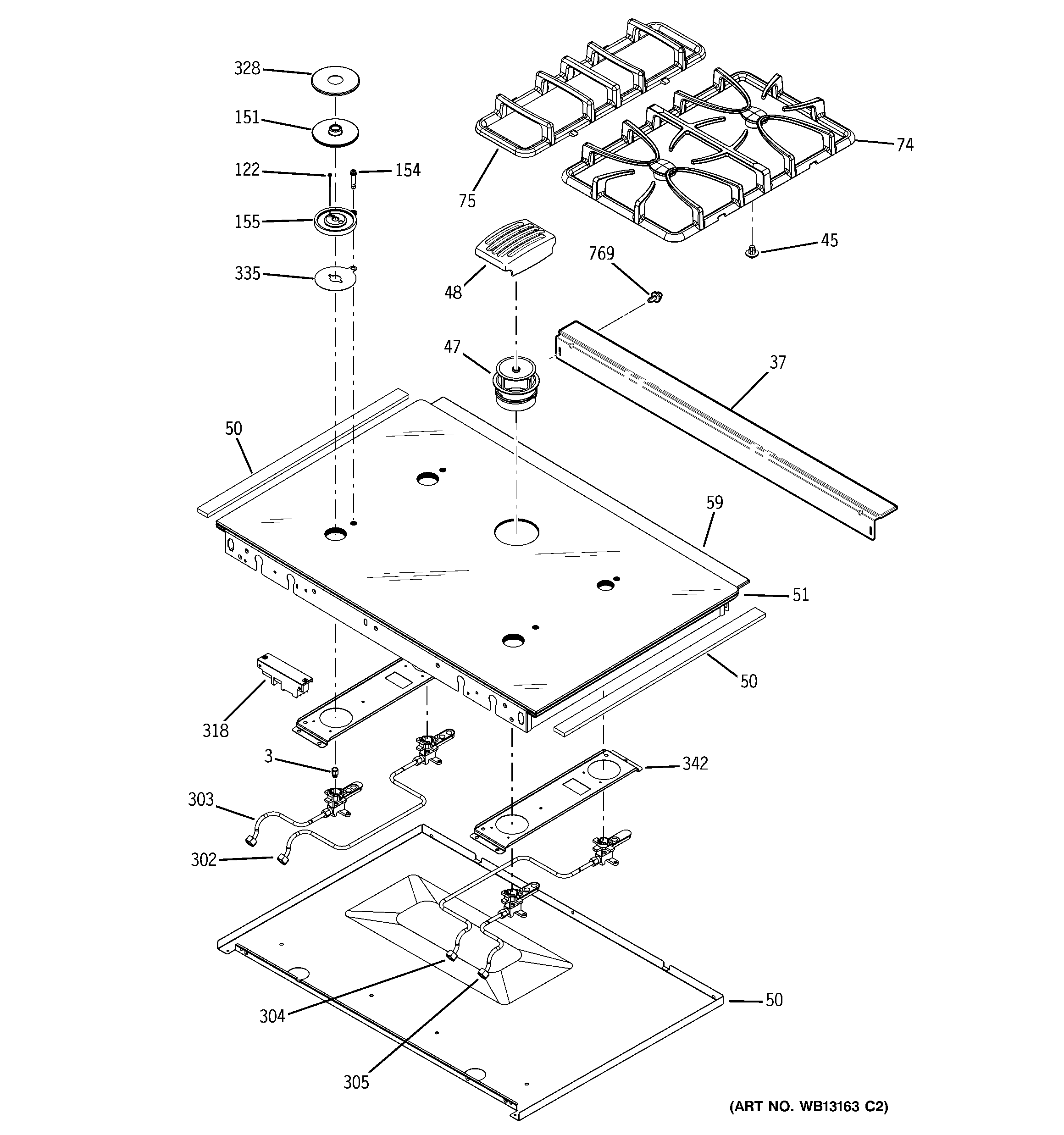

Cooktop diagram
Grate Assembly
Part #WB31T10072
The manufacturer no longer makes this part, and there's no substitute part

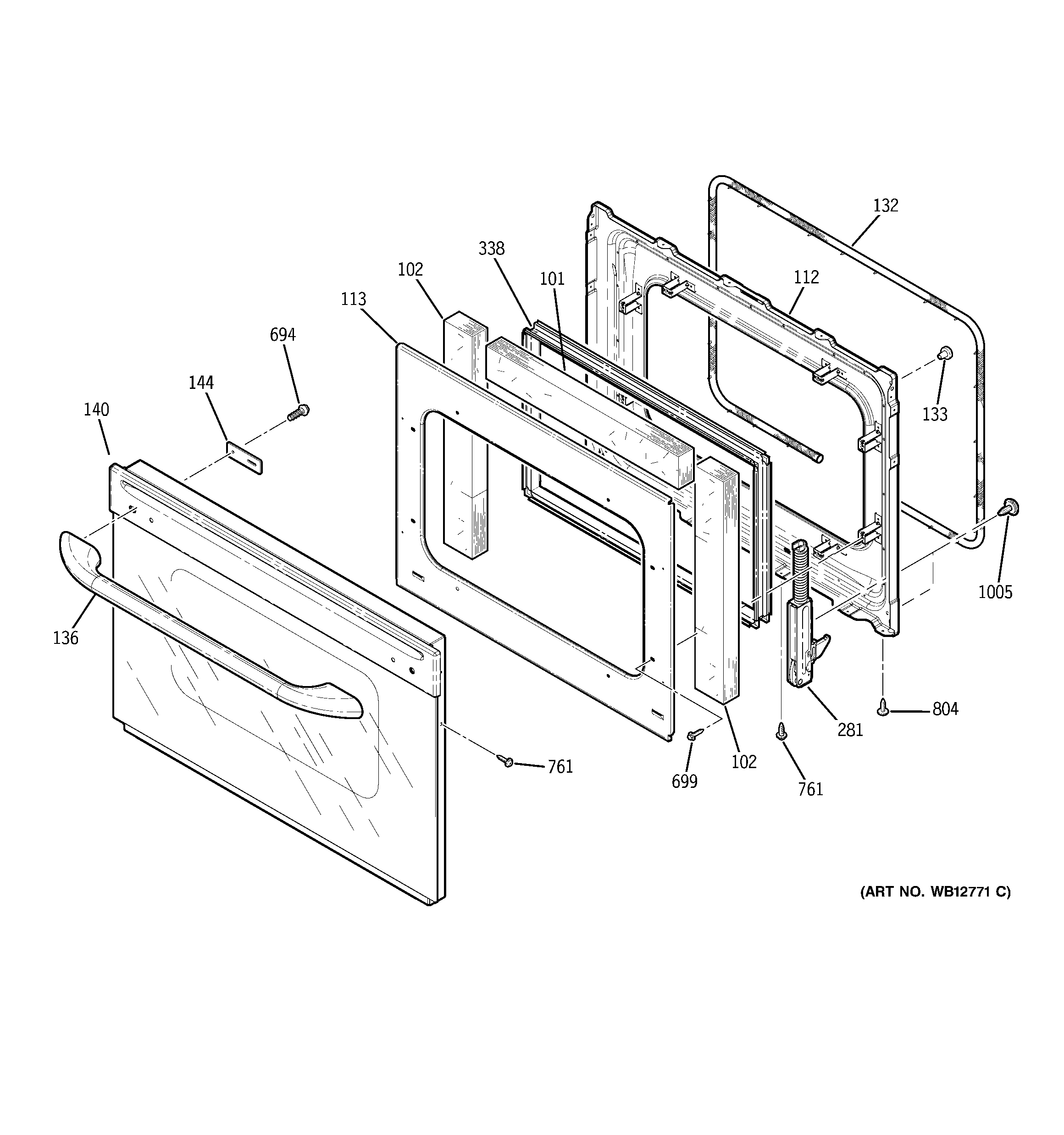

Door diagram
Outer Door Assembly
Part #WB57T10214
The manufacturer no longer makes this part, and there's no substitute part
Screw (white)
Part #WB01K5185
The manufacturer no longer makes this part, and there's no substitute part

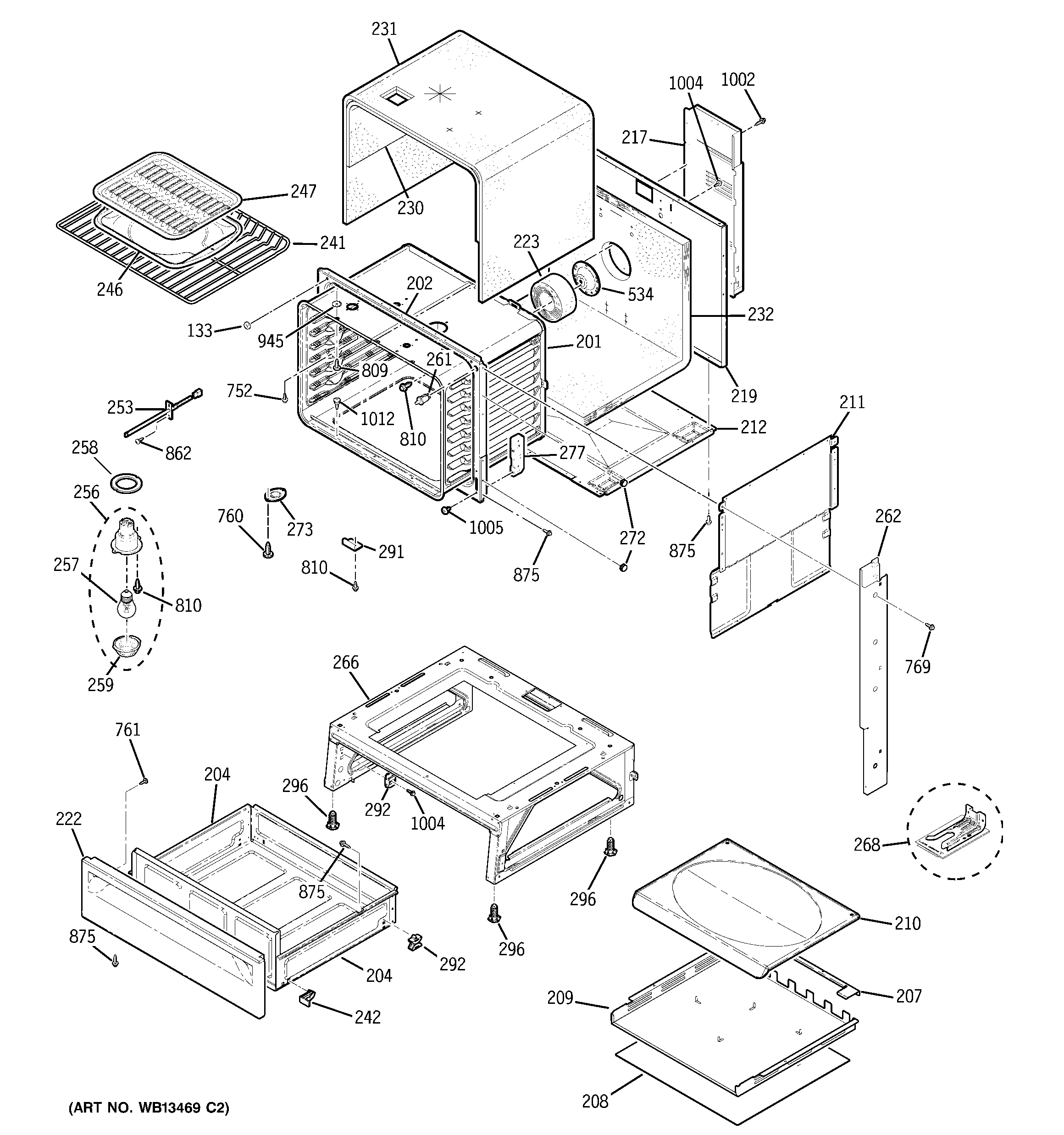

Body parts diagram
Cover
Part #WB02K5365
The manufacturer no longer makes this part, and there's no substitute part

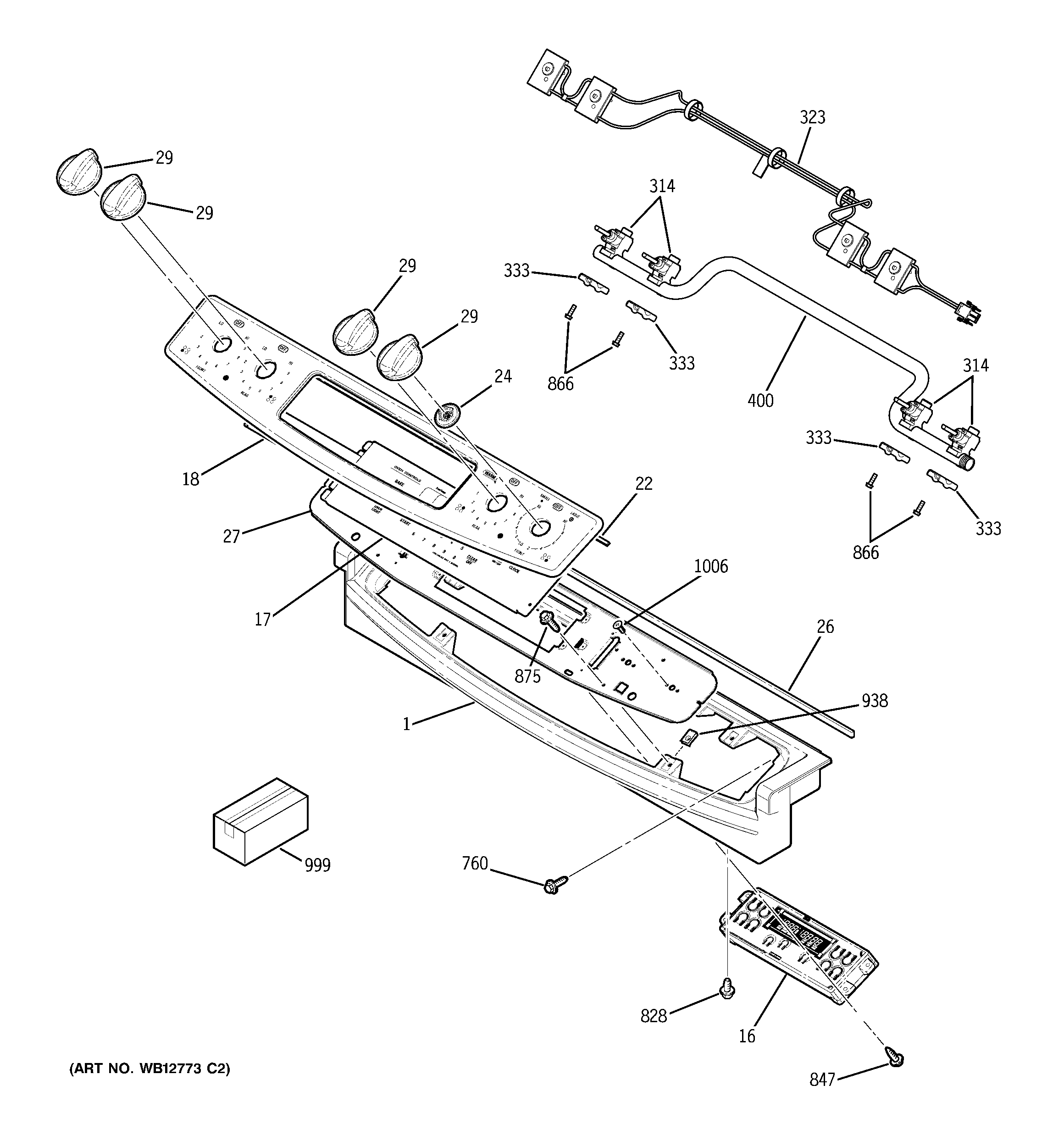

Control panel diagram
Faceplate
Part #WB29T10028
The manufacturer no longer makes this part, and there's no substitute part

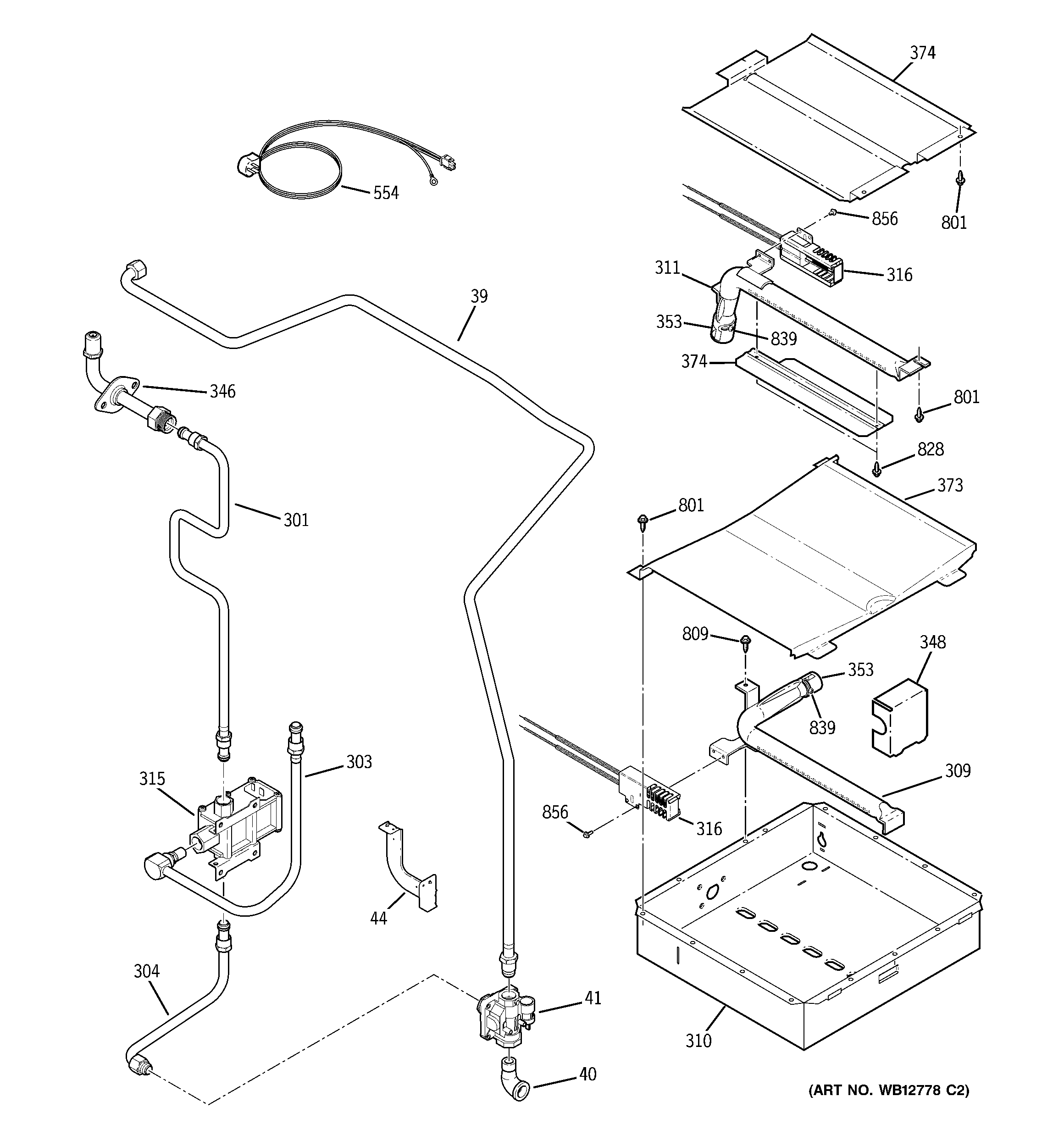

Gas & burner parts diagram
Complete Regulator
Part #WB19T10033
The manufacturer no longer makes this part, and there's no substitute part
Gas & burner parts diagram
Oven Burner Box
Part #WB53T10006
The manufacturer no longer makes this part, and there's no substitute part
