Frigidaire FDPC4221AW2A dishwasher Parts

For the Frigidaire dishwasher model FDPC4221AW2A, a hard reset is done by canceling the cycle (to stop and drain) or power-cycling the unit at the breaker; this clears most control glitches and restores normal operation if the dishwasher is otherwise mechanically sound.

• Cancel/Drain reset: Press and hold Start/Cancel for 3 to 5 seconds until the dishwasher begins draining.
• Breaker reset (power cycle): Turn OFF the dishwasher circuit breaker for 5 to 10 minutes, then turn it back ON.
• Control lock check: If buttons do not respond, disable Control Lock (often a 3-second hold on a lock-labeled pad).
• Door reset: Open the door, wait 10 seconds, close it firmly, then press Start/Cancel once.
• Cycle reselect: After reset, choose a normal cycle and press Start to confirm the control is responding.

A reset helps with temporary control issues, but if FDPC4221AW2A still will not start, fill, drain, or dry, a part or condition is usually preventing operation.

• Confirm the door latches fully and the tub is not overfilled
• Check the sink drain/disposal for clogs that can block dishwasher draining
• Inspect the drain path and hose routing; replace a damaged hose with the dishwasher drain hose 807117001
• If it will not fill, the inlet valve may be sticking; consider the crosley dishwasher water inlet valve 5304525044

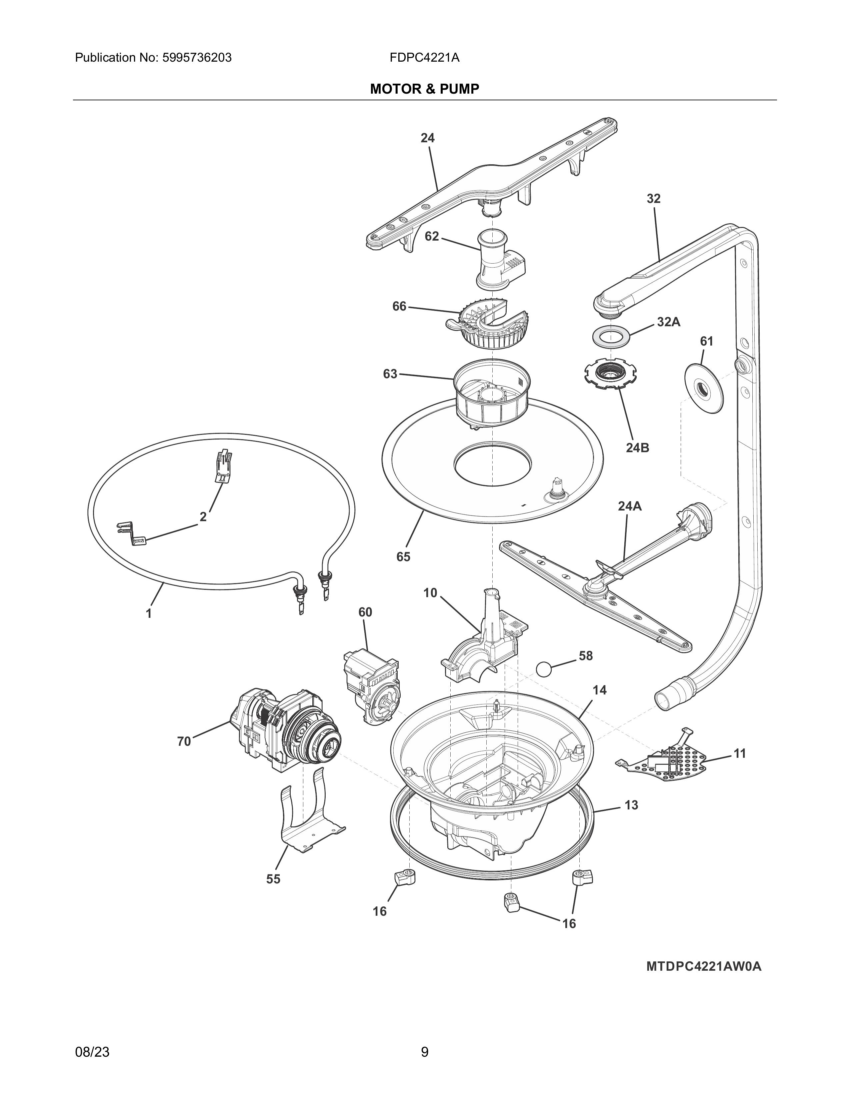

• If it will not drain and the hose is clear, the wash/drain motor area may need service; see the crosley dishwasher pump and motor assembly 5304519906

Resetting is the fastest way to clear a stalled cycle or minor electronic glitch; it also helps you separate a one-time control issue from a true problem like a blocked drain hose, failed inlet valve, or pump/motor failure.

Related help: dishwasher wont start video

Last updated: January 2026

Yes. 22-inch-wide dishwashers exist, but they are less common than standard 24-inch built-in models. Your Frigidaire FDPC4221AW2A is a full-size built-in dishwasher, so a true 22-inch replacement usually means switching to a compact or specialty model and confirming cabinet opening and hookups.

Most products advertised as 22 inches wide fall into one of these categories:

• Compact built-in dishwashers (often around 18 inches wide, sometimes listed near 22 inches depending on trim or packaging)
• Countertop dishwashers (portable units that sit on the counter)
• RV or specialty dishwashers (designed for tighter spaces)

Before buying, we recommend measuring and checking these fit points:

• Cabinet opening width (measure at the front and back)
• Opening height (floor to underside of countertop)
• Depth (front of cabinet to back wall, plus door clearance)
• Water supply line location and shutoff access
• Drain connection (garbage disposal or sink drain) and hose routing

A dishwasher that is even a couple inches narrower can leave gaps at the sides, require filler strips, or force changes to mounting brackets and plumbing. Confirming the opening size first prevents installation surprises and helps you choose the right style.

If you are troubleshooting your current dishwasher instead of replacing it, common performance issues are often tied to wash circulation or drainage. For example, a failing pump can cause poor cleaning or unusual noises; the crosley dishwasher pump and motor assembly 5304519906 is one of the key circulation components used on this model.

For more help diagnosing symptoms before replacing the dishwasher, use our dishwasher common questions guide.

Last updated: January 2026

On the Frigidaire FDPC4221AW2A dishwasher, three beeps most often point to a door-latch/door-switch issue (the control is not sensing the door as fully closed and locked), or a cycle that stopped because the unit could not start safely. Focus first on the door closing and latch engagement.

• Press the door firmly closed, then start a cycle again.
• Remove any dishes or racks that could be preventing a full close.
• Check for detergent buildup or debris around the latch area and wipe it clean.
• Turn off power at the breaker for 1 minute, then restore power and retry.
• If the beeps happen mid-cycle, check for standing water in the tub (a drain problem can also stop a cycle).

A common cause is a worn latch or a failing door switch. If the door feels closed but the beeping continues, we recommend checking the latch alignment and testing the door switch circuit for continuity.

What you should see with a multimeter (typical):

If three beeps happen after the dishwasher pauses and you notice water left in the bottom, address draining next.

• Check the sink/disposer connection for a clog.
• Make sure the drain hose has a high loop and is not kinked.
• Clean the filter area; a blocked filter can slow draining.
• Inspect the hose for internal blockage.

Helpful parts to consider for FDPC4221AW2A:

• Dishwasher filter 5304532206
• Dishwasher drain hose 807117001

The control uses the door switch and latch signal as a safety interlock. If it cannot confirm the door is locked, it will stop the wash motor and alert you with beeps to prevent leaks and unsafe operation.

For a step-by-step walkthrough on start issues, use dishwasher wont start video. For drain-related stoppages, use dishwasher not draining video.

Last updated: January 2026

The most common issue we see with the Frigidaire FDPC4221AW2A dishwasher is a draining problem: water stays in the tub after the cycle. In many cases, the fix is clearing a clog (filter, drain path, or hose) rather than replacing major parts.

• Cancel the cycle and run a drain function (if available) to see if water evacuates.
• Remove and clean the filter area; food debris here is a top cause of poor draining.
• Check the sink drain or garbage disposal inlet where the dishwasher drain connects for blockage.
• Inspect the drain hose for kinks, crushing, or a low loop that can cause backflow.
• Listen for the drain pump: a steady hum with no draining often points to a blockage at the pump or hose.

If you need the model-correct filter, use the dishwasher filter 5304532206.

Even when draining is the most common complaint, these are also frequent on many dishwashers:

• Not filling: water supply valve closed, inlet screen clogged, or a failed inlet valve.
• Not cleaning well: clogged filter, spray arm blockage, low water temperature, or wash motor issues.
• Not drying: heater circuit issue, rinse aid empty, or door opened too soon.
• Won’t start: door not latching fully, control not responding, or power supply issue.

For step-by-step troubleshooting, use dishwasher not draining video and dishwasher not cleaning dishes video.

A dishwasher that does not drain can leave dirty water on dishes, create odors, and strain the pump. Clearing the filter and drain path early often prevents a bigger repair later.

Last updated: January 2026
