Kenmore 9119851191 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119851191 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

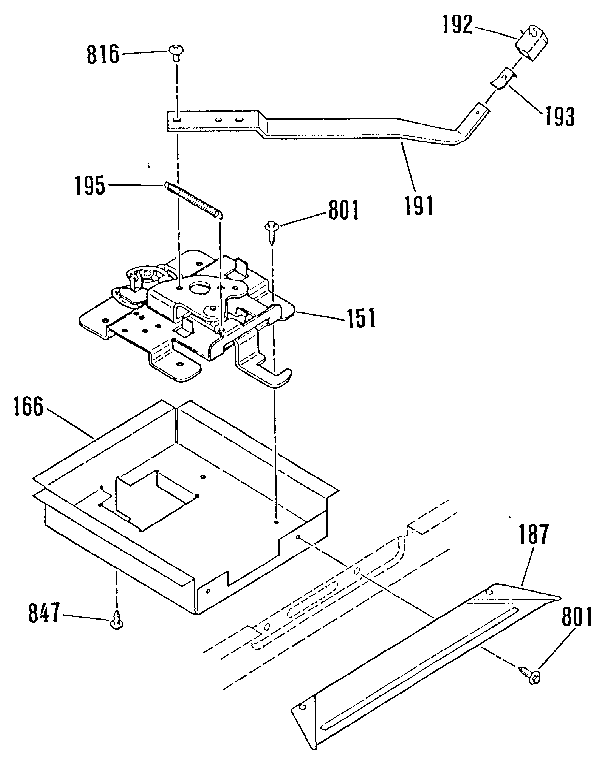

SELECT DIAGRAM
Browse Parts for9119851191 Ranges

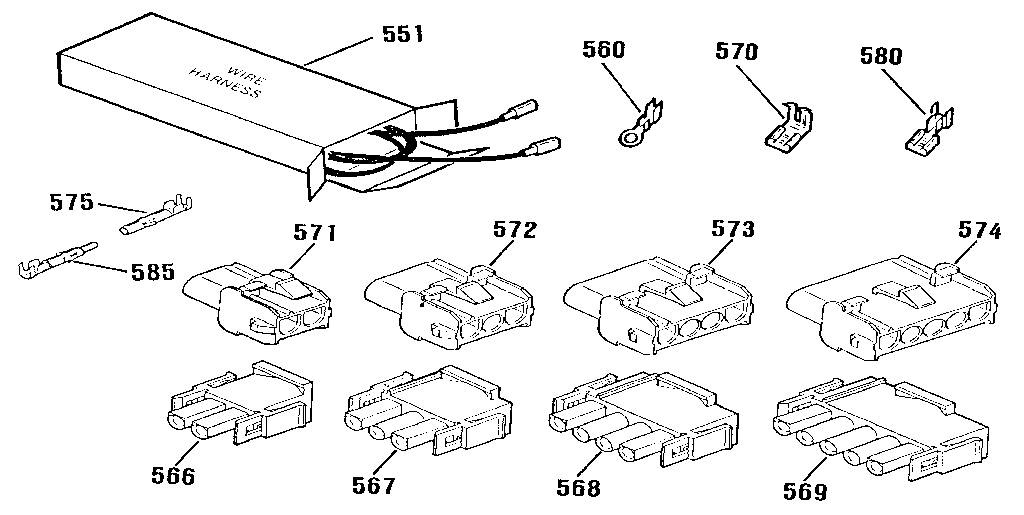

Wire harnesses and components diagram
Mt W Harn Lt
In Stock$101.39
Qty

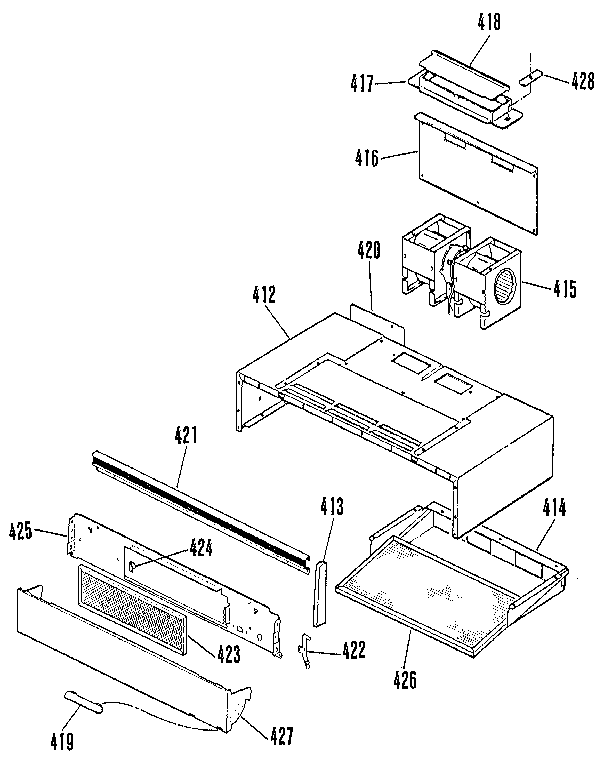

Hood section diagram
Hood Body Ad

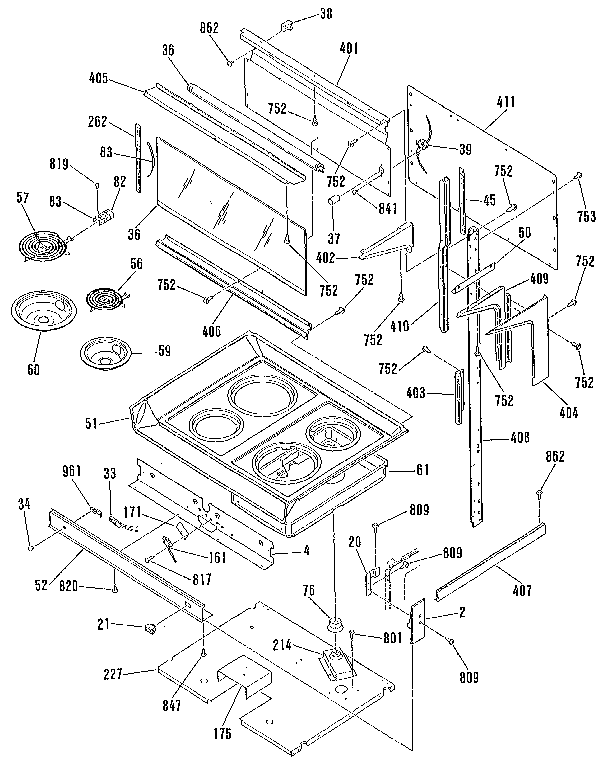

In Stock$140.60QtyMain top section diagram
Screw
Part #WB01X1158Replaced by #WB1X1118
Manufacturer substitutionThis part replaces WB01X1158. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38

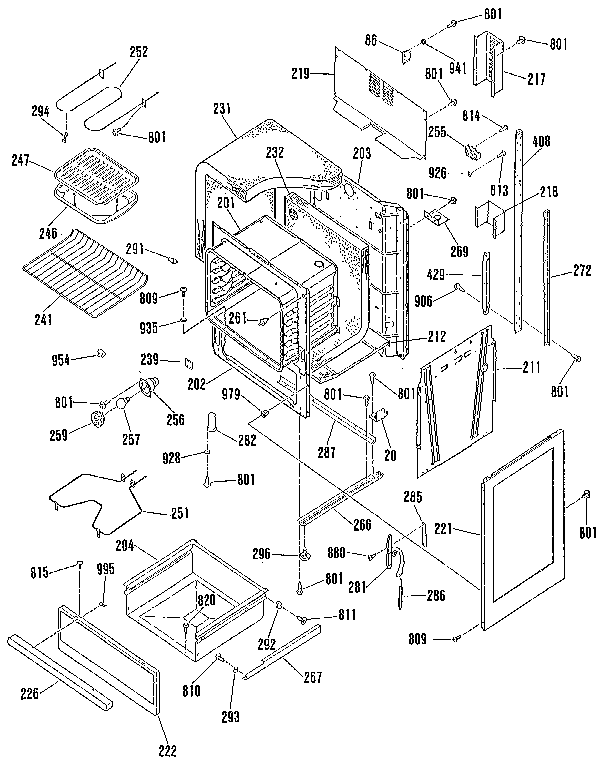

QtyLower body section diagram
Cover
Part #WB02X9152Replaced by #WB2X9152

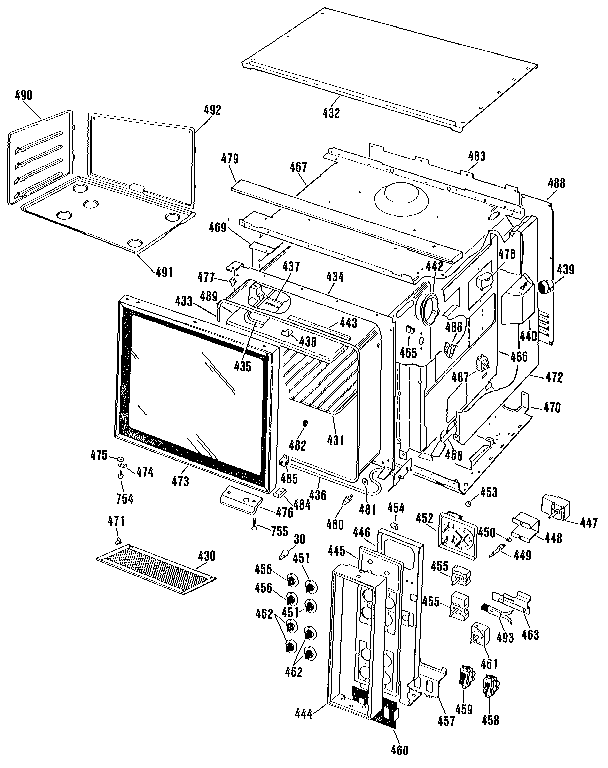

Manufacturer substitutionThis part replaces WB02X9152. Substitute parts can look different from the original.In Stock$32.4816% OFF Phone Price : $38.48QtyUpper body section diagram
Speed Nut
Part #WB02X6653Replaced by #WB2X6653

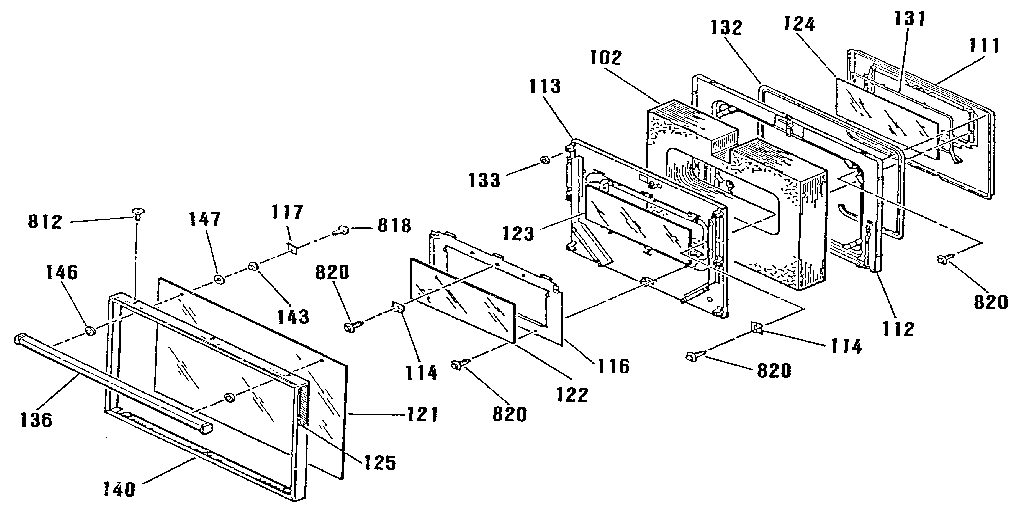

Manufacturer substitutionThis part replaces WB02X6653. Substitute parts can look different from the original.In Stock$26.48QtyDoor section diagram
Gasket
Part #WB02X9383Replaced by #WB2X9373
Manufacturer substitutionThis part replaces WB02X9383. Substitute parts can look different from the original.In Stock$90.876% OFF Phone Price : $96.87QtyUpper body section diagram
Thermistor Bracket
Part #WB02X6455Replaced by #WB2X6455
Manufacturer substitutionThis part replaces WB02X6455. Substitute parts can look different from the original.In Stock$43.51QtyMain top section diagram
Spacer
Part #WB02X3001Replaced by #WB2X3001
Manufacturer substitutionThis part replaces WB02X3001. Substitute parts can look different from the original.In Stock$39.05QtyUpper body section diagram
Case
Part #WB55X0421Replaced by #WB55X421
Manufacturer substitutionThis part replaces WB55X0421. Substitute parts can look different from the original.In Stock$104.41QtyLower body section diagram
Lower Shield
Part #WB02X9426Replaced by #WB2X9426
Manufacturer substitutionThis part replaces WB02X9426. Substitute parts can look different from the original.In Stock$31.79Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure...
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen...
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig...
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem...
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite...
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen...
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin...
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it ...
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how....
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better....
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself....
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer....
