Kenmore 9119851191 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119851191 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

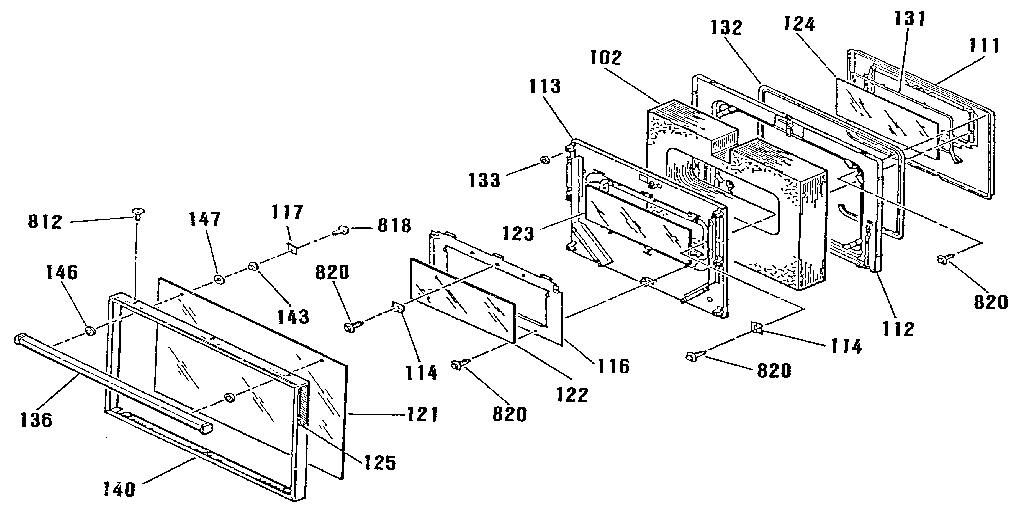

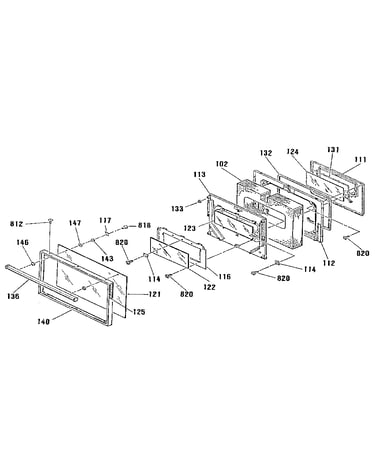

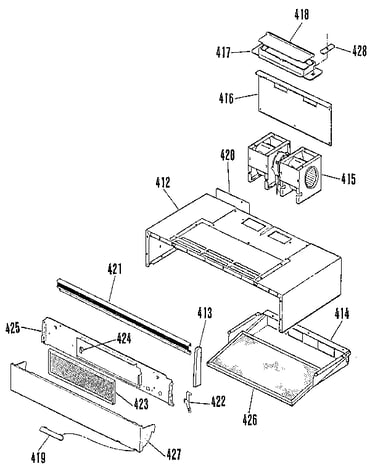

Browse Parts for 9119851191 Ranges

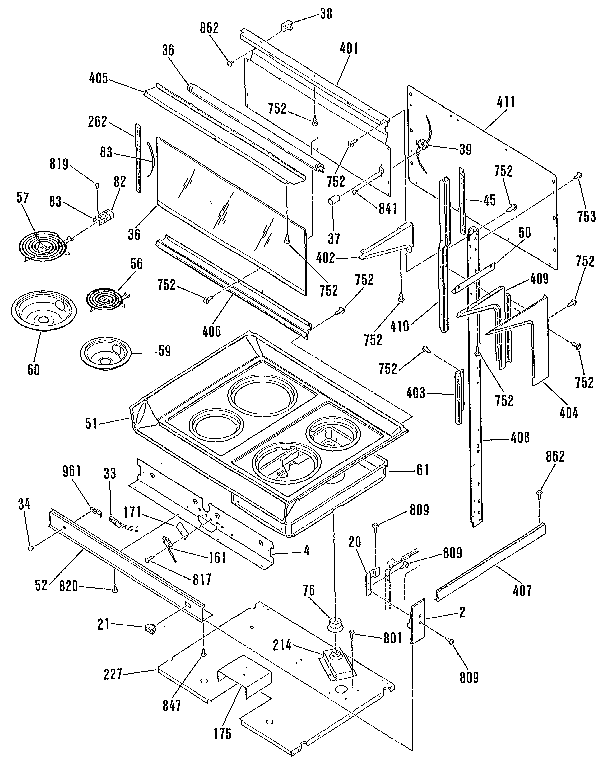

Main top section diagram
Term Blk Unt
Part #WB17X0217Replaced by #330031
Manufacturer substitutionThis part replaces WB17X0217. Substitute parts can look different from the original.In Stock$10.0117% OFF Phone Price : $12.01
Qty

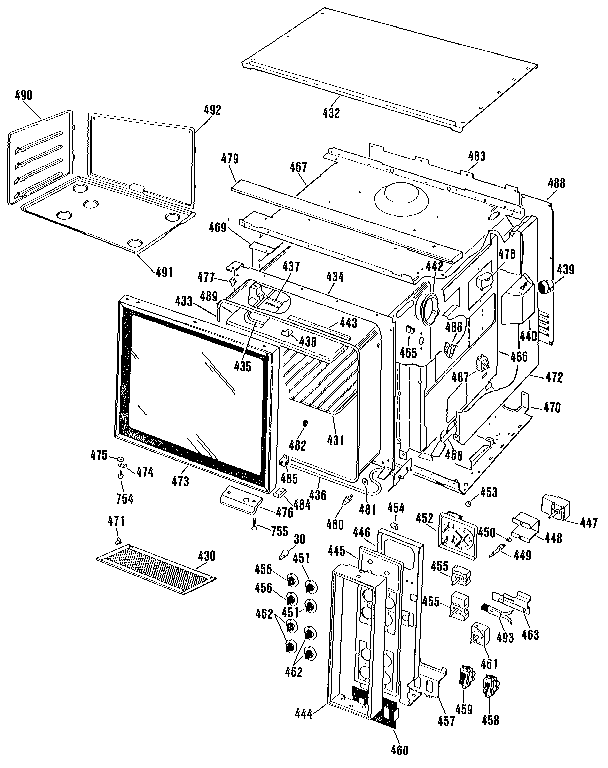

Upper body section diagram
Inf Ht Swi
Part #WB21X5243Replaced by #WB21X36771

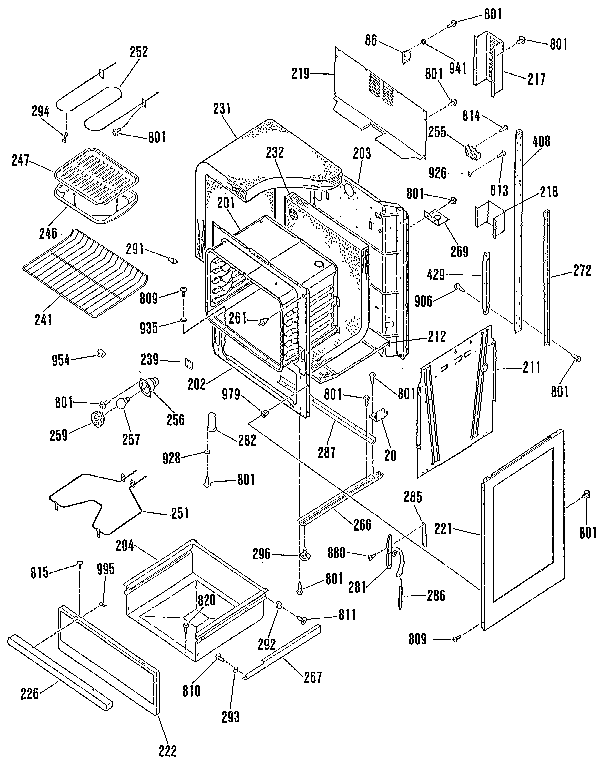

Manufacturer substitutionThis part replaces WB21X5243. Substitute parts can look different from the original.In Stock$36.0014% OFF Phone Price : $42.00QtyLower body section diagram
Bake Element
Part #WB44M0001Replaced by #WB44K5012

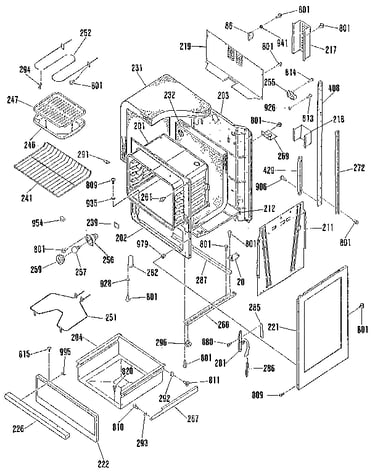

Manufacturer substitutionThis part replaces WB44M0001. Substitute parts can look different from the original.In Stock$112.24QtyLower body section diagram
Broilunt 240
Part #WB44X0232Replaced by #WB44X232
Manufacturer substitutionThis part replaces WB44X0232. Substitute parts can look different from the original.In Stock$88.036% OFF Phone Price : $94.03QtyLower body section diagram
Broil Support
Part #WB02X9719Replaced by #WB2X9719

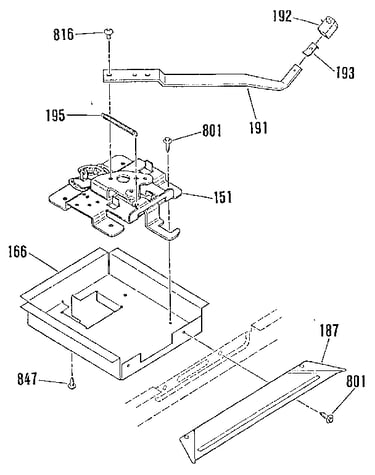

Manufacturer substitutionThis part replaces WB02X9719. Substitute parts can look different from the original.In Stock$10.8416% OFF Phone Price : $12.84QtyDoor lock section diagram

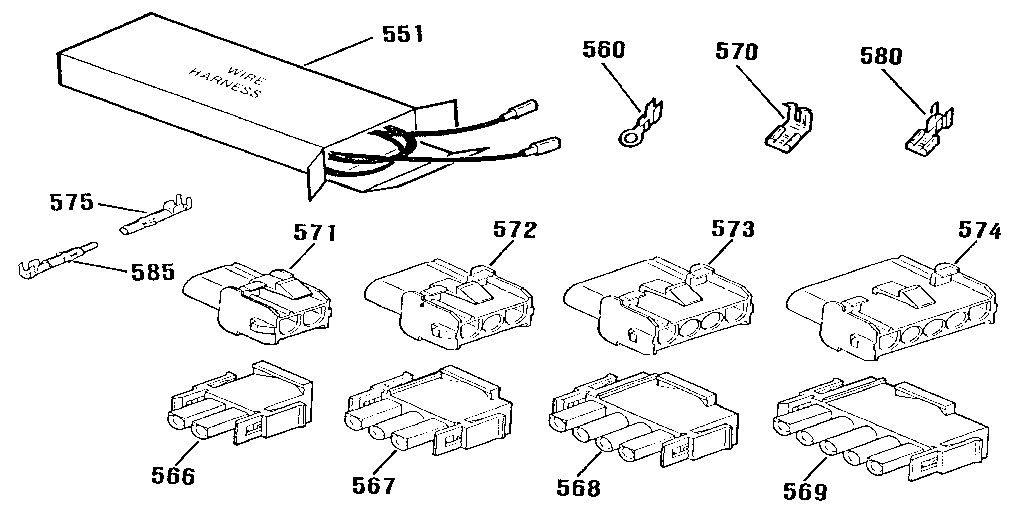

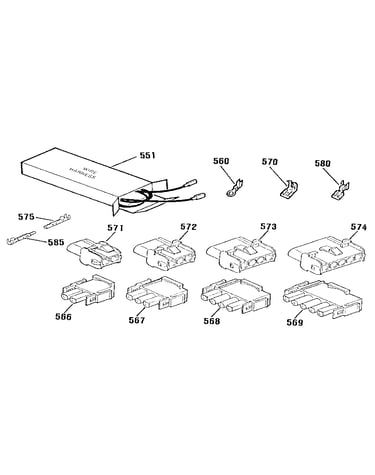

Connector
Part #WB01X1181Replaced by #WB1X371D
Manufacturer substitutionThis part replaces WB01X1181. Substitute parts can look different from the original.In Stock$42.25QtyLower body section diagram
Hinge
Part #WB14X0103Replaced by #WB14X103
Manufacturer substitutionThis part replaces WB14X0103. Substitute parts can look different from the original.In Stock$47.1020% OFF Was : $59.15QtyScrew 10
Part #WB01M0001Replaced by #WB1M1
Manufacturer substitutionThis part replaces WB01M0001. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1311% OFF Phone Price : $9.13QtyMain top section diagram
Screw
Part #WZ04X0345Replaced by #WZ4X345D
Manufacturer substitutionThis part replaces WZ04X0345. Substitute parts can look different from the original.In Stock$25.4819% OFF Phone Price : $31.48QtyUpper body section diagram
Clock Knob
Part #WB03K5059Replaced by #WB3X5699
Manufacturer substitutionThis part replaces WB03K5059. Substitute parts can look different from the original.This item is not returnableIn Stock$26.3919% OFF Phone Price : $32.39Qty
