Maytag PER5502BAH range Parts
Here are the diagrams and repair parts for Maytag PER5502BAH range, as well as links to manuals and error code tables, if available.

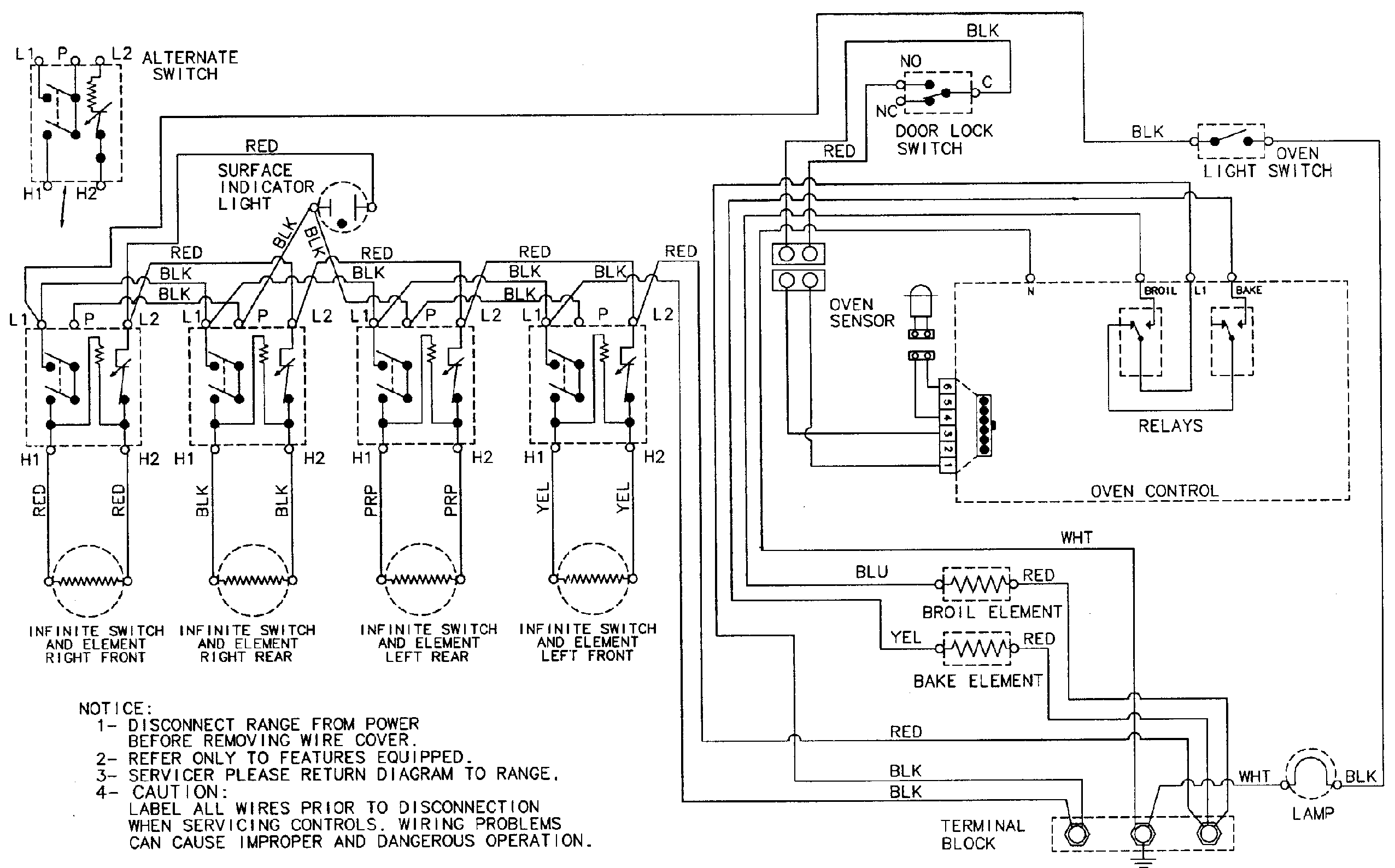

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for PER5502BAH Ranges

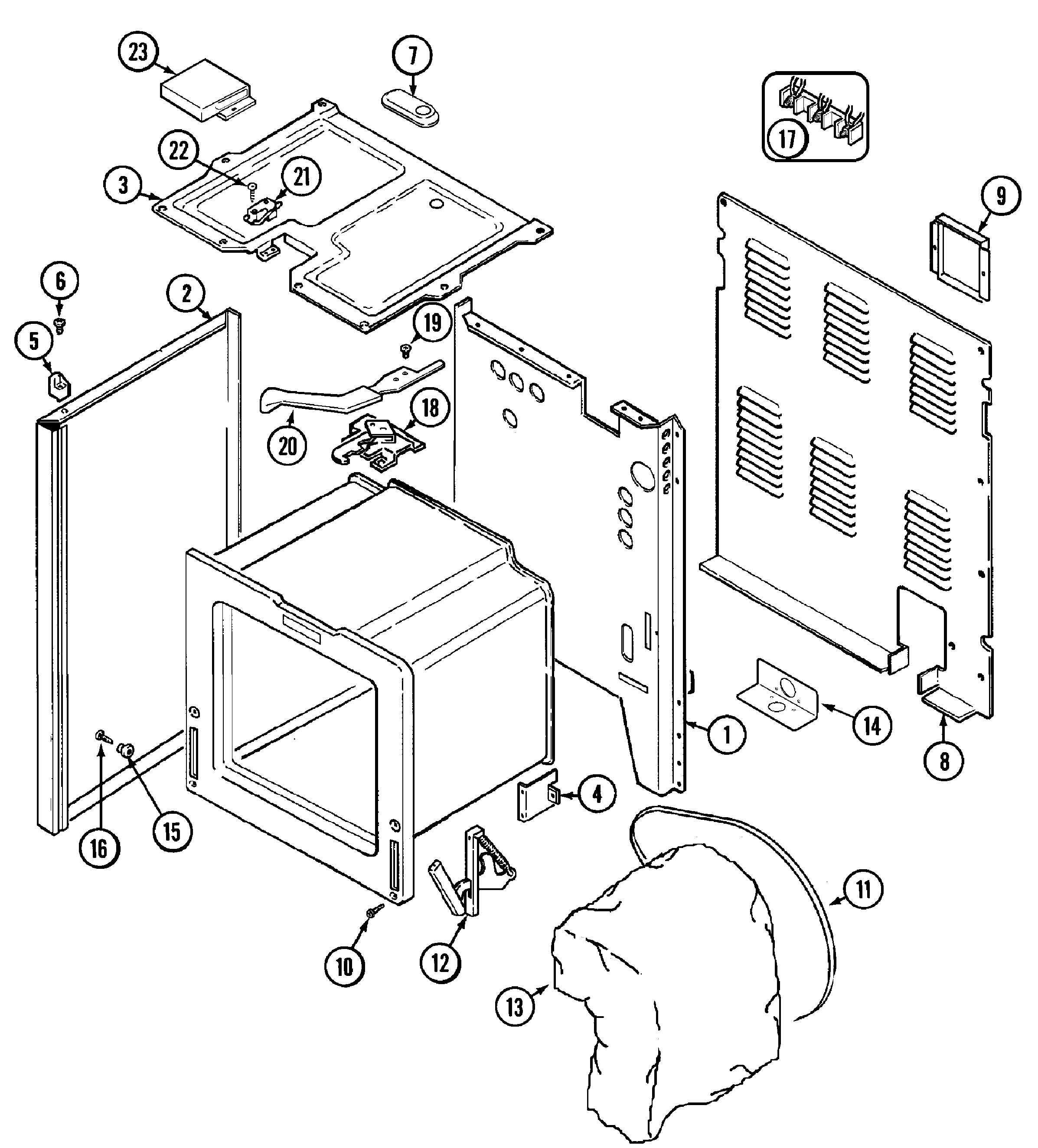

Body diagram
Power Bracket
Part #74004180Replaced by #W10190166
Manufacturer substitutionThis part replaces 74004180. Substitute parts can look different from the original.In Stock$32.70
Qty

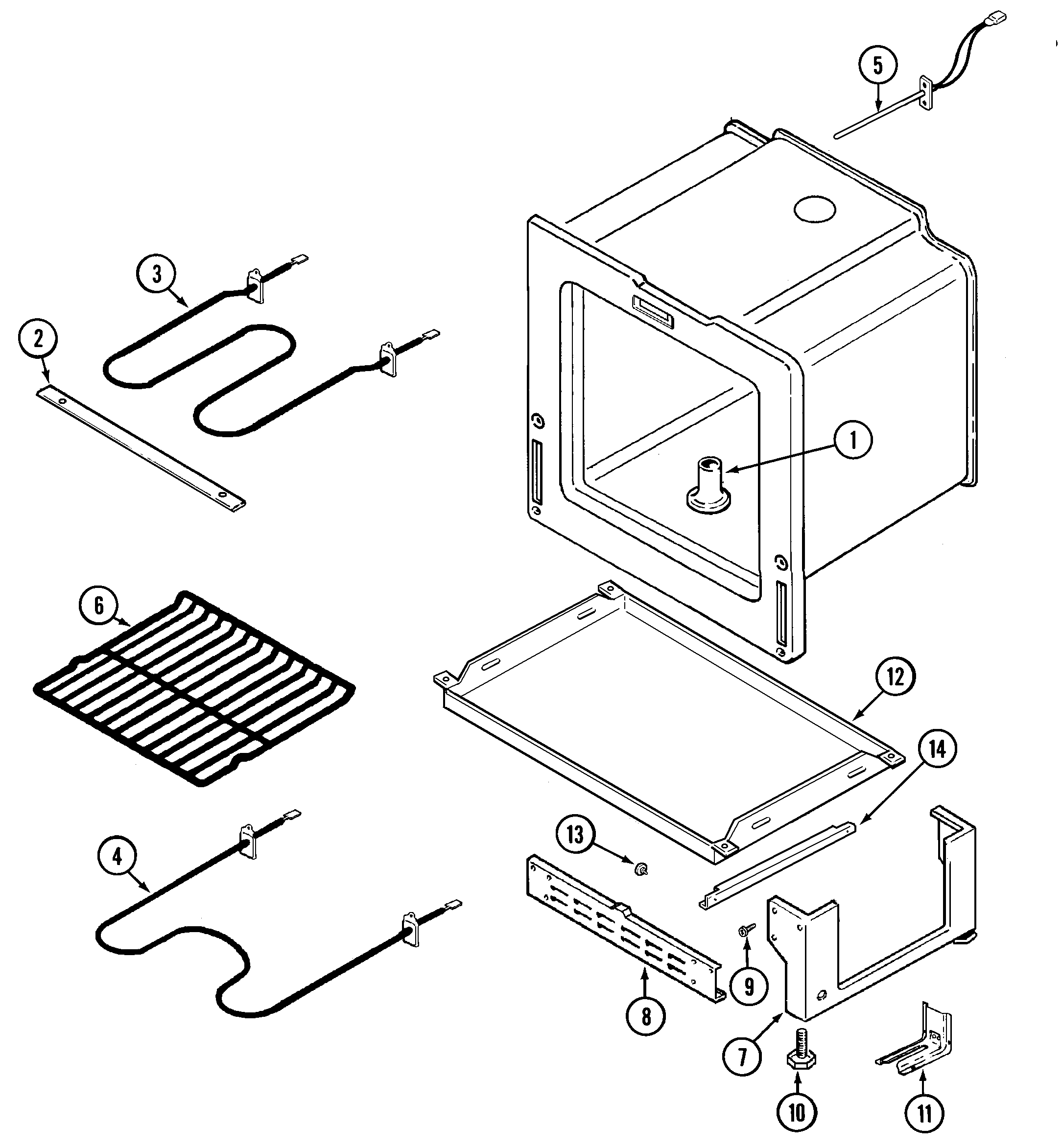

Oven/base diagram
Broiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56

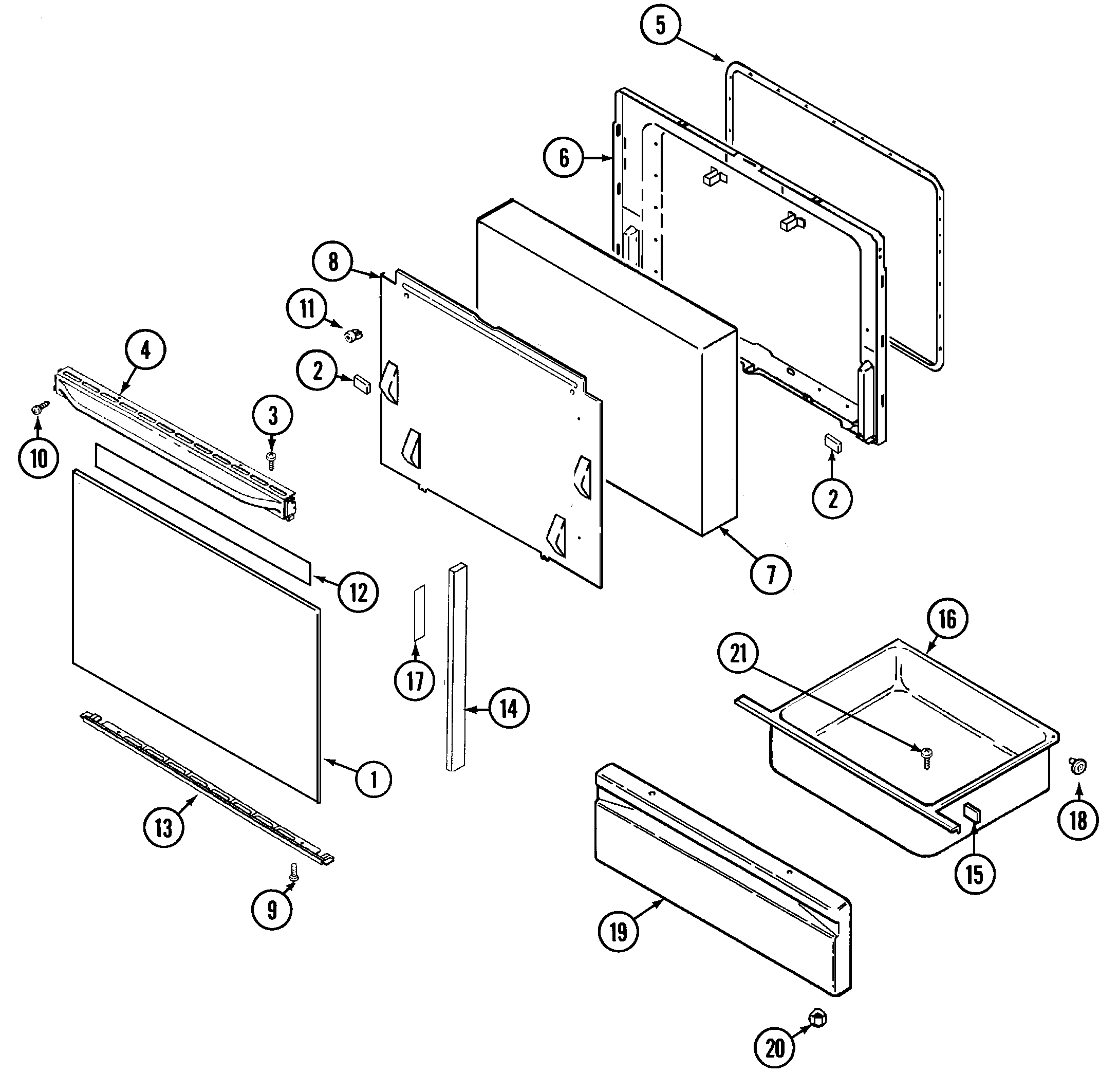

QtyDoor/drawer diagram
Screw, #10 X
Part #7101P274-60Replaced by #WP3387230
Manufacturer substitutionThis part replaces 7101P274-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2316% OFF Phone Price : $6.23QtyTop assembly diagram

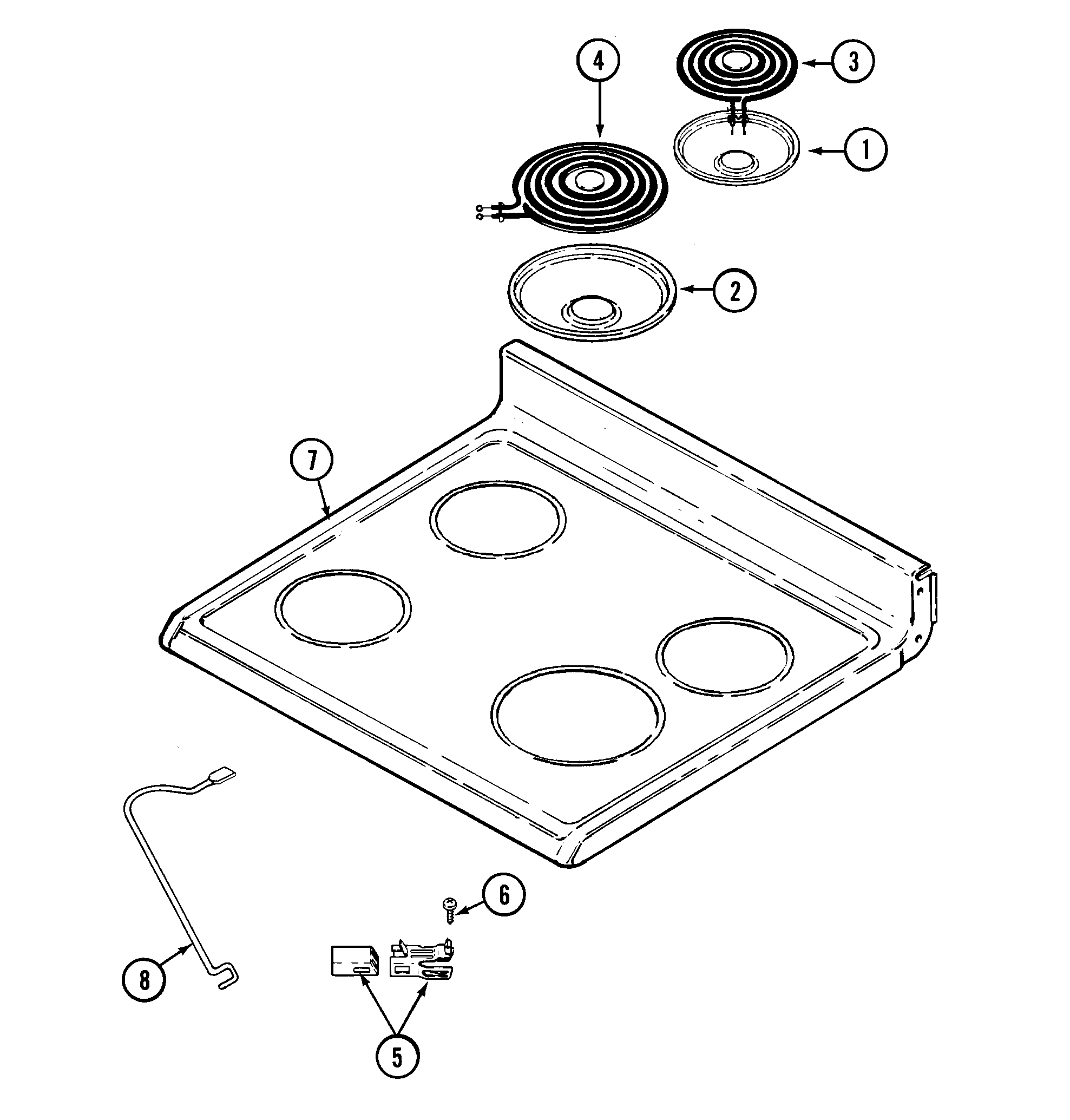

Surface Element
Part #74004090Replaced by #WP12001559

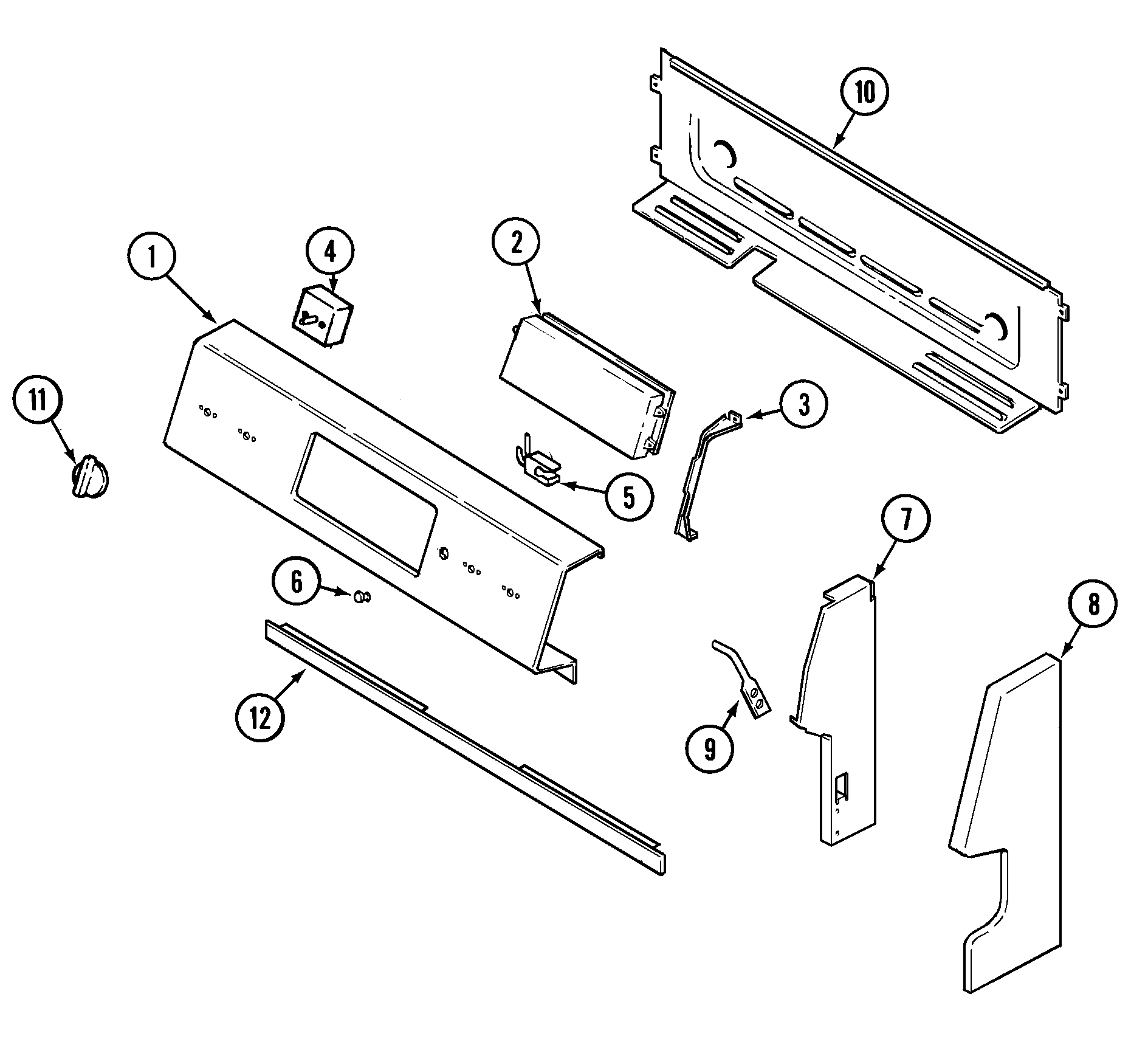

Manufacturer substitutionThis part replaces 74004090. Substitute parts can look different from the original.In Stock$98.1511% OFF Phone Price : $110.15QtyControl panel diagram
Indicator Lens
Part #7730P011-60Replaced by #WP7730P011-60
Manufacturer substitutionThis part replaces 7730P011-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.5315% OFF Phone Price : $6.53QtyOven/base diagram
Screw
Part #7101P352-60Replaced by #WP7101P485-60
Manufacturer substitutionThis part replaces 7101P352-60. Substitute parts can look different from the original.In Stock$28.2618% OFF Phone Price : $34.26QtyTop assembly diagram
Screw
Part #7118P013-60Replaced by #WP74004005
Manufacturer substitutionThis part replaces 7118P013-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyTop assembly diagram
Surface Element
Part #74007156Replaced by #WPW10345410
Manufacturer substitutionThis part replaces 74007156. Substitute parts can look different from the original.In Stock$110.2610% OFF Phone Price : $122.26QtyBody diagram
Insulation
Part #74003382Replaced by #WP74010942
Manufacturer substitutionThis part replaces 74003382. Substitute parts can look different from the original.In Stock$115.40QtyDoor/drawer diagram
Lock Nut
Part #7103P139-60Replaced by #WPW10131078
Manufacturer substitutionThis part replaces 7103P139-60. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0314% OFF Phone Price : $7.03Qty
