Model # GDF630PSM3SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE GDF630PSM3SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |

Dishwasher Dishrack, Lower (replaces WD28X22358, WD28X22506, WD28X24478, WD28X25958, WD28X26103, WD28X27744, WD28X27745, WD28X27979, WD28X28218)
#701

Lower rack assembly diagram

Rack lower asm complete

Part #WD28X24478

Replaced by #WD28X26099

?
Manufacturer substitution
This part replaces WD28X24478. Substitute parts can look different from the original.
BEST SELLER
In Stock
Dishwasher Spray Arm, Lower (replaces WD22X26621)
#501

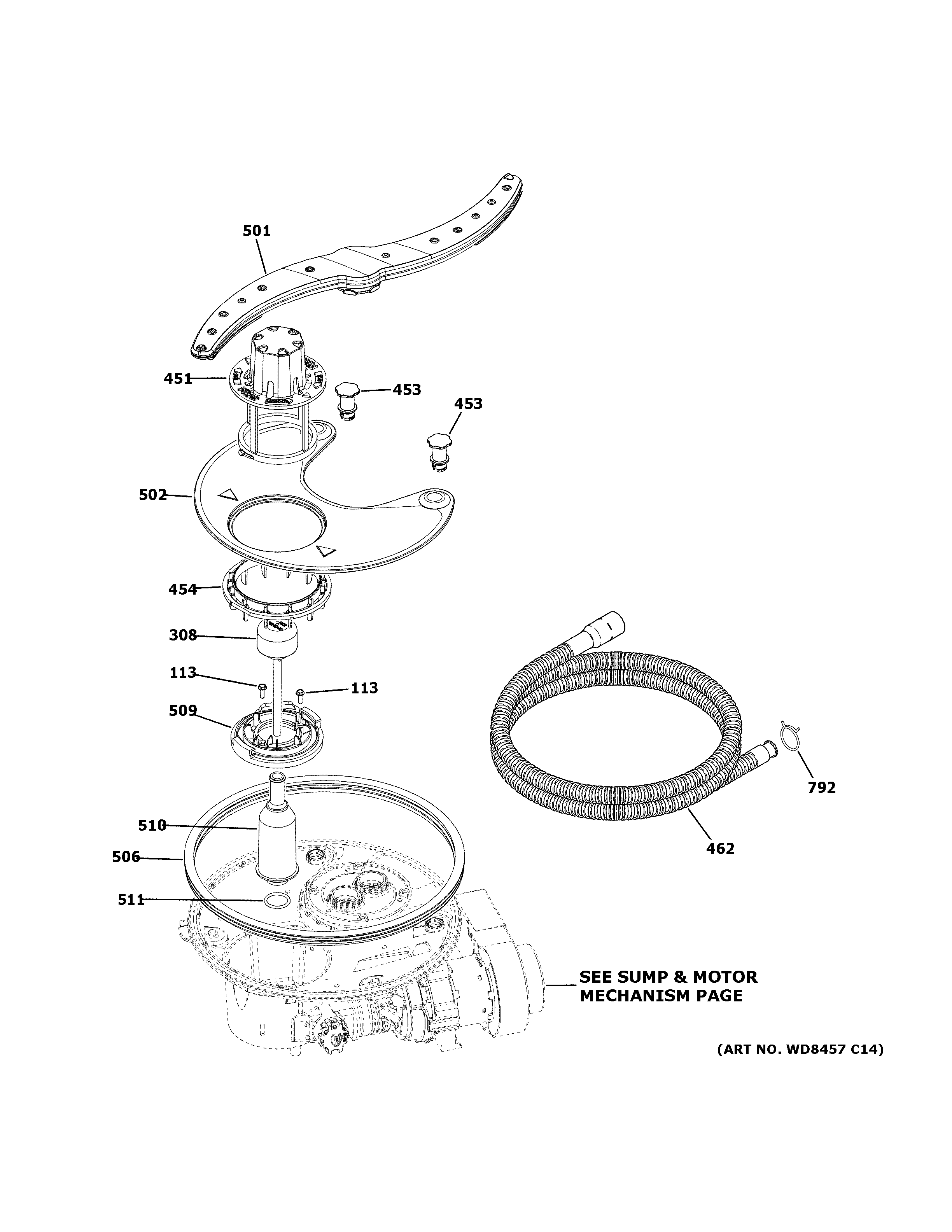

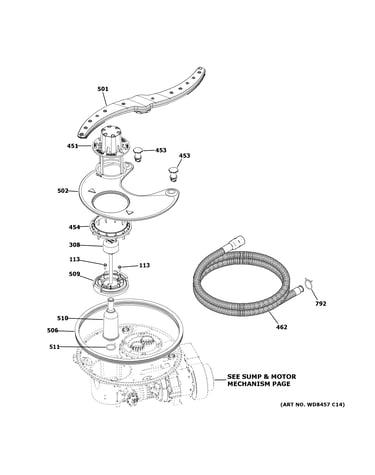

Sump & filter assembly diagram

Dishwasher spray arm, lower

Part #WD22X10091

Replaced by #WD22X27724

?
Manufacturer substitution
This part replaces WD22X10091. Substitute parts can look different from the original.
BEST SELLER
$23.22
18% OFF Phone Price : $28.22
In Stock
Dishwasher Door Latch Lock
#803

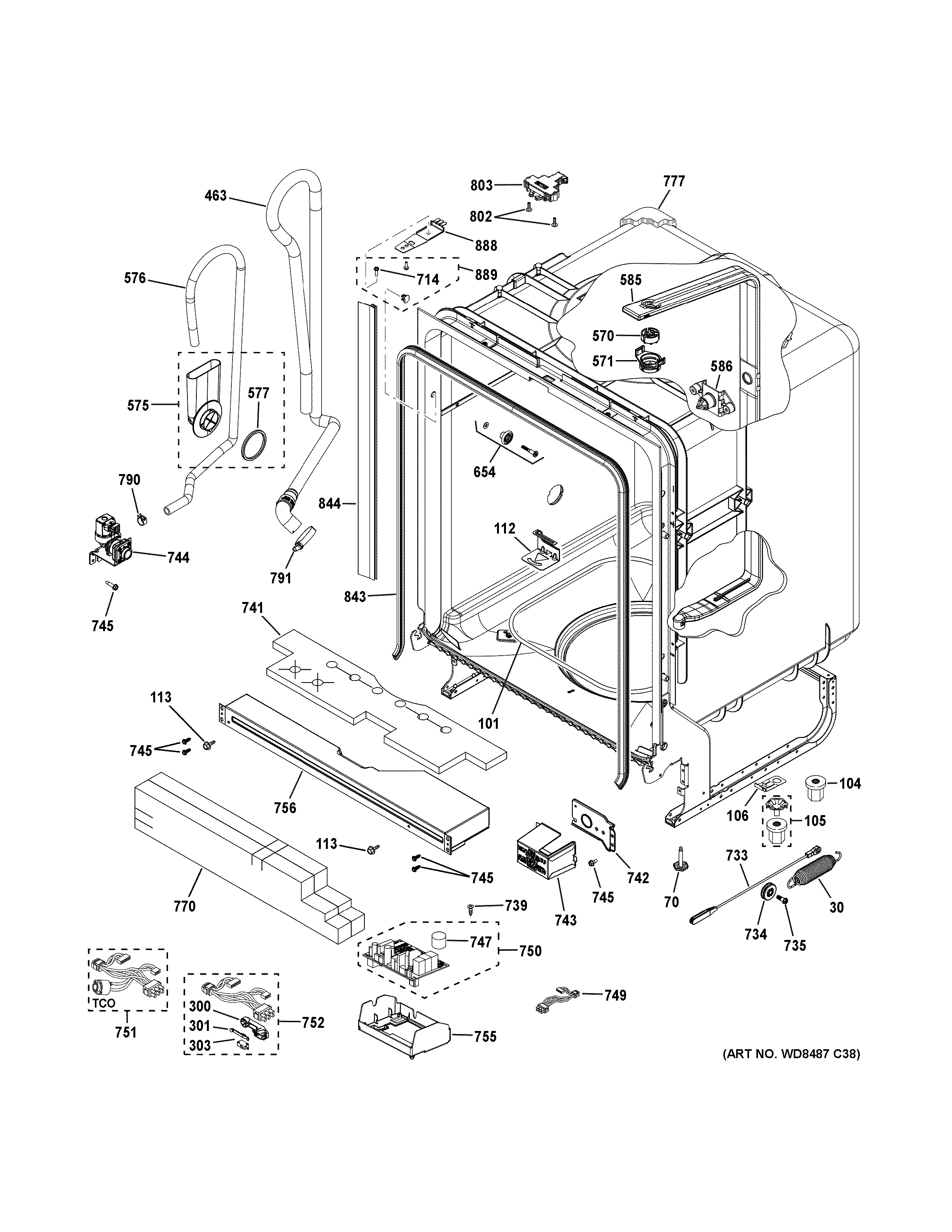

Body parts (1) diagram

Dishwasher door latch lock

Part #WD21X10490

BEST SELLER
$27.83
17% OFF Phone Price : $33.66
In Stock
Dishwasher Lower Dishrack Roller (replaces WD12X10435)
#704

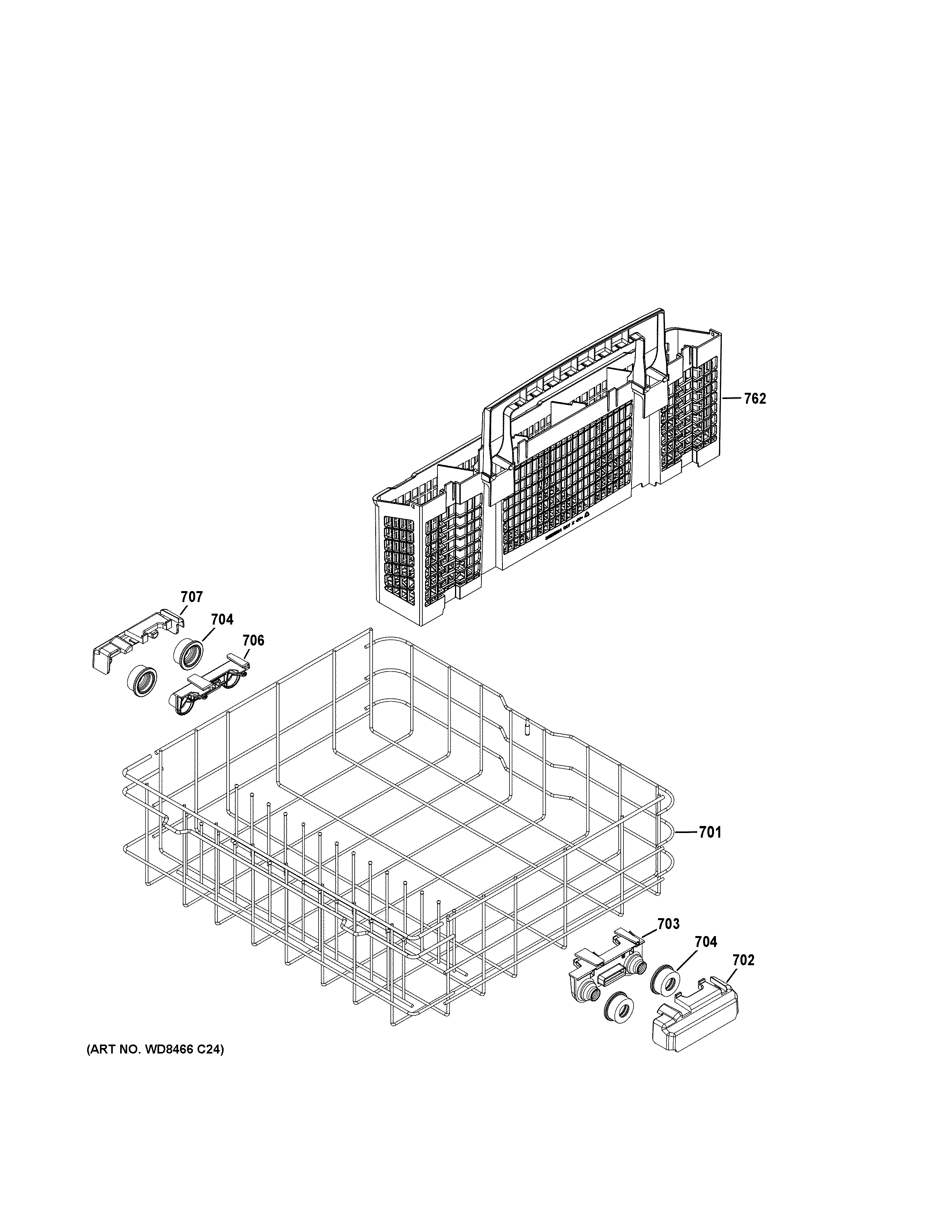

Lower rack assembly diagram

Dishwasher lower dishrack roller

Part #WD12X10435

Replaced by #WD12X26146

?
Manufacturer substitution
This part replaces WD12X10435. Substitute parts can look different from the original.
BEST SELLER
$12.07
12% OFF Phone Price : $13.72
In Stock
Dishwasher Spray Arm, Middle (replaces WD22X26622)
#618

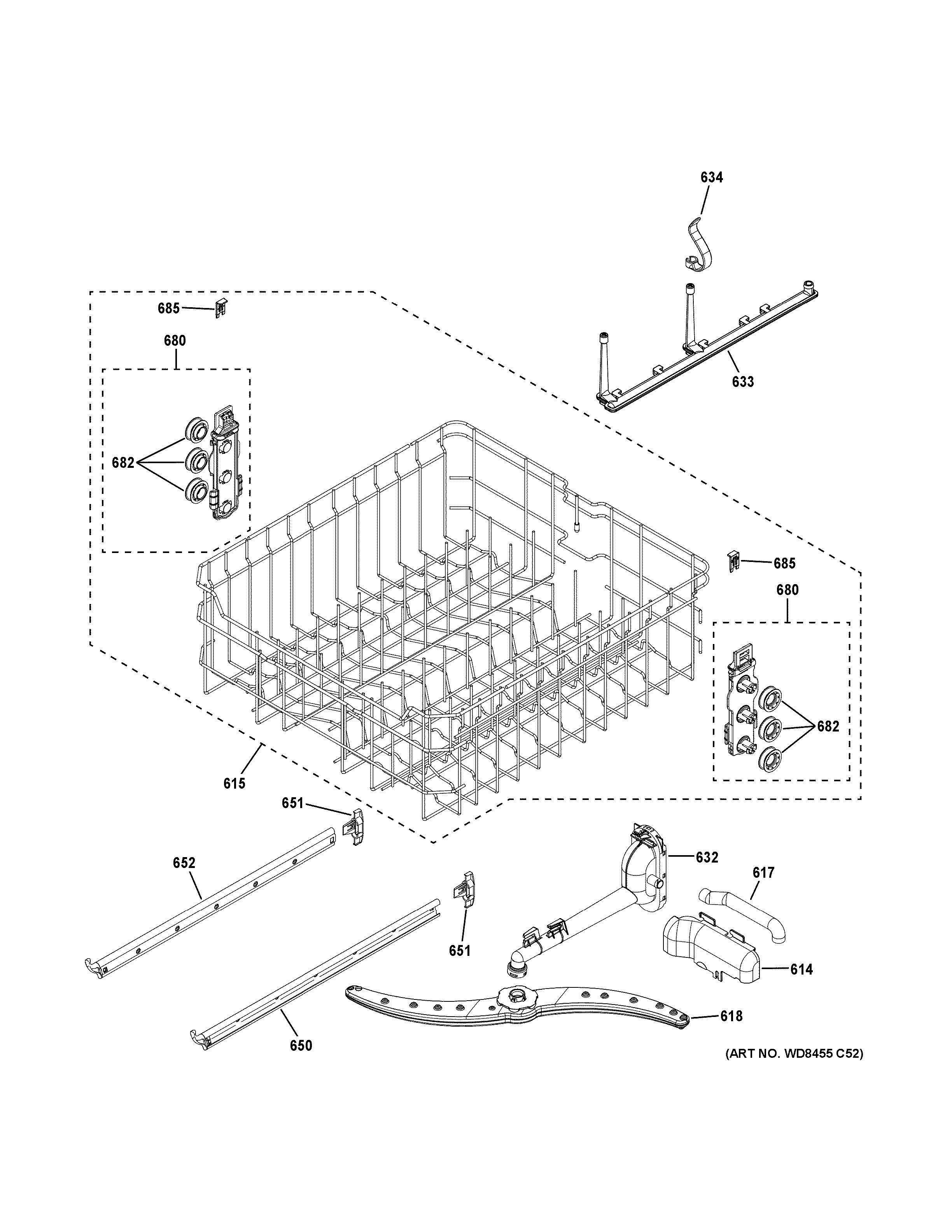

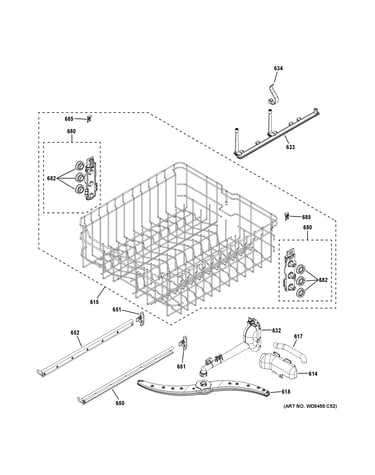

Upper rack assembly diagram

Dishwasher spray arm, middle

Part #WD22X10089

Replaced by #WD22X27740

?
Manufacturer substitution
This part replaces WD22X10089. Substitute parts can look different from the original.
BEST SELLER
In Stock
Dishwasher Tub Corner Baffle (replaces WD08X10090)
#845

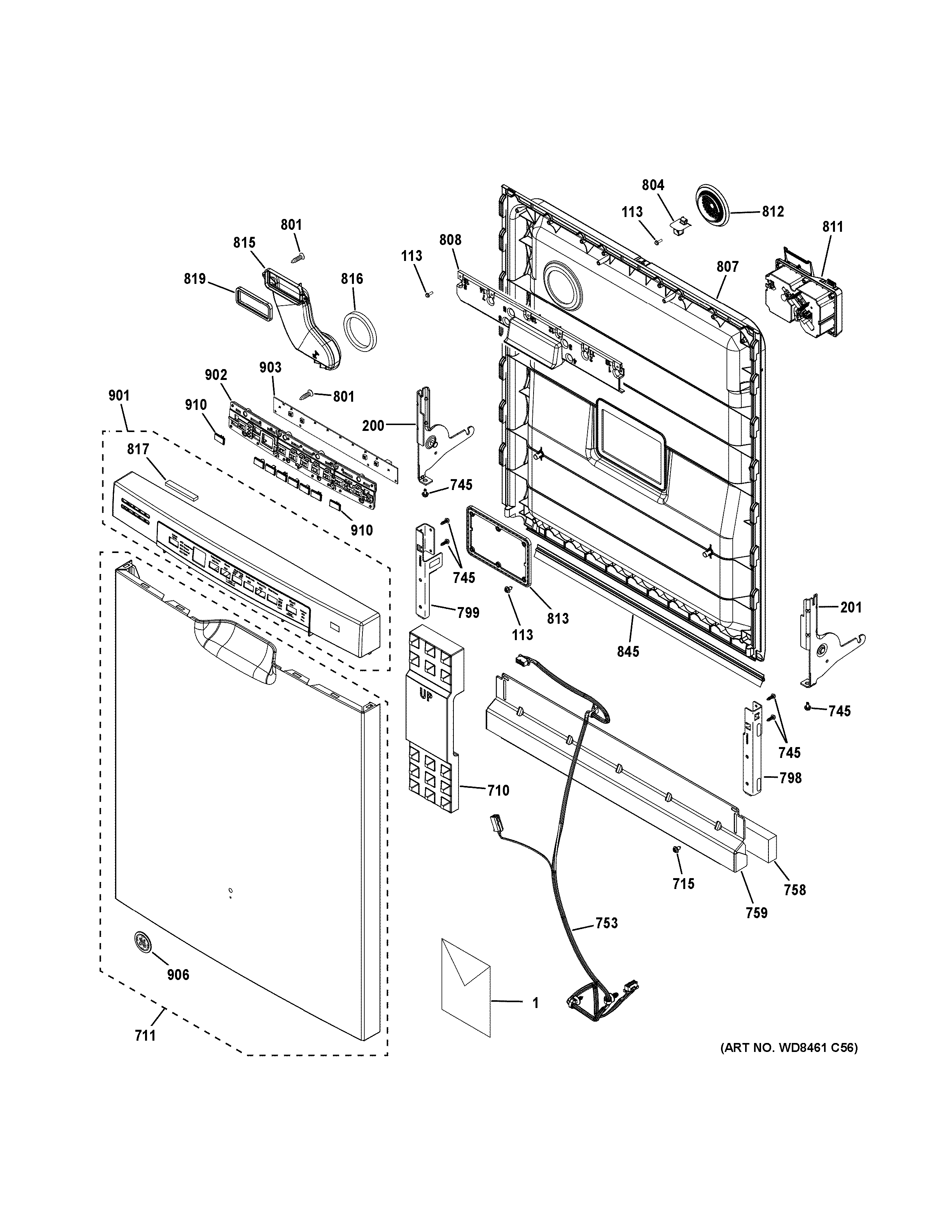

Escutcheon & door assembly diagram

Dishwasher tub corner baffle (replaces wd08x10090)

Part #WD08X21894

BEST SELLER
$8.09
11% OFF Phone Price : $9.09
In Stock
Dishwasher Heating Element (replaces WD05X24385, WD05X29418)
#101

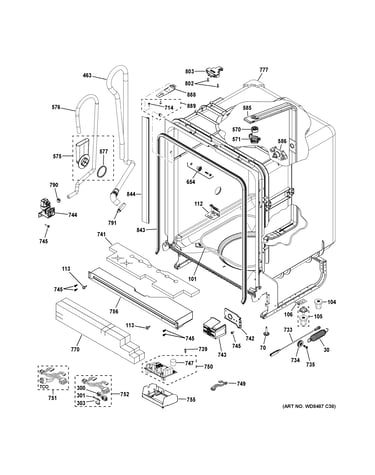

Body parts (1) diagram

Dishwasher heating element

Part #WD05X24385

Replaced by #WD05X30298

?
Manufacturer substitution
This part replaces WD05X24385. Substitute parts can look different from the original.
BEST SELLER
In Stock
Dishwasher Control Board Fuse (replaces WD21X24482)
#747

Body parts (1) diagram

Dishwasher control board fuse (replaces wd21x24482)

Part #WD21X25696

BEST SELLER
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Dishwasher Diverter Assembly (replaces WD18X21678, WD19X25259)
#504

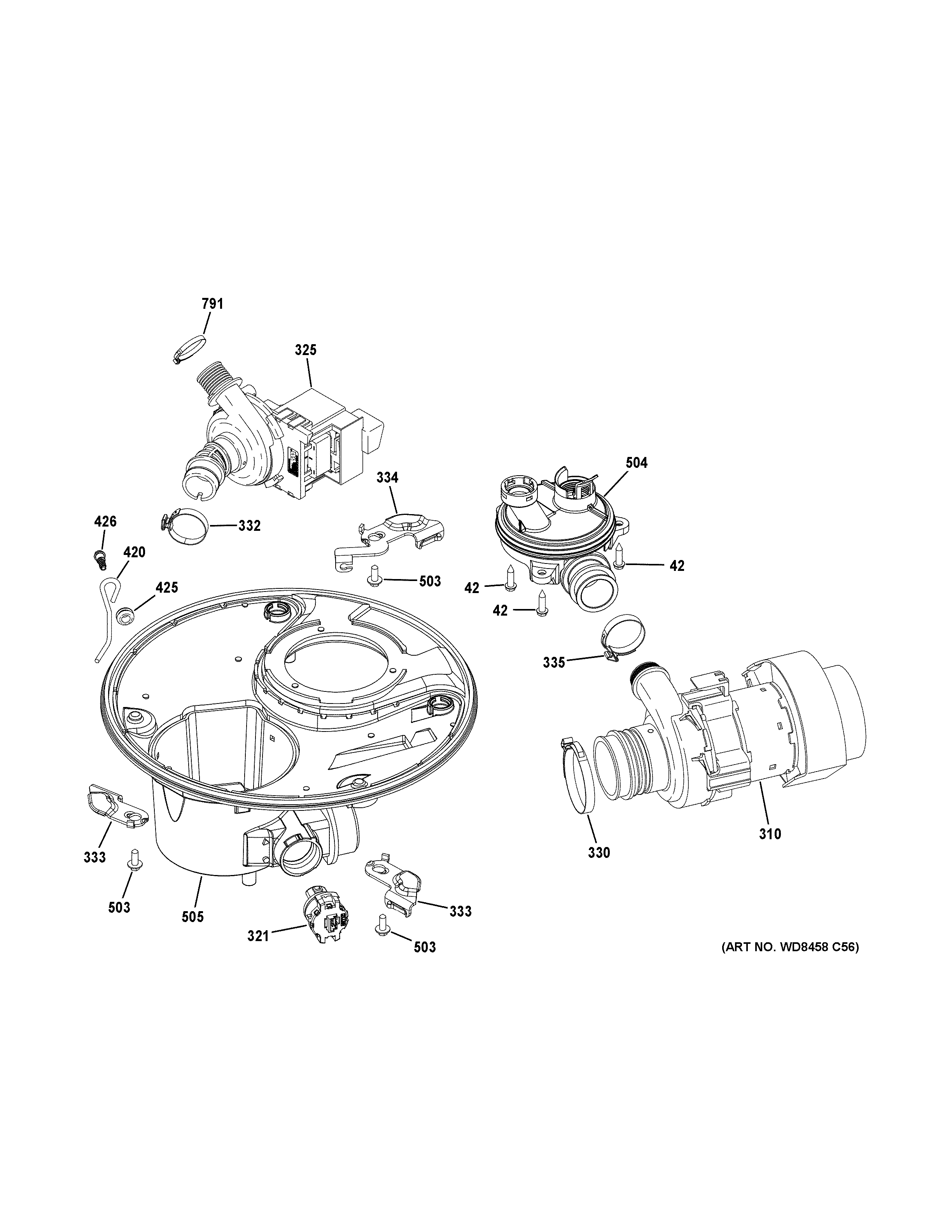

Sump & motor mechanism diagram

Dishwasher diverter valve kit

Part #WD19X25259

Replaced by #WD19X25278

?
Manufacturer substitution
This part replaces WD19X25259. Substitute parts can look different from the original.
BEST SELLER
$64.68
5% OFF Phone Price : $67.74
In Stock
Dishwasher Installation Screw Set
#889

Body parts (1) diagram

Dishwasher installation screw set

Part #WD35X10383

BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
