Kenmore
Sewing Machine

Model #15813400 Kenmore sewing machine

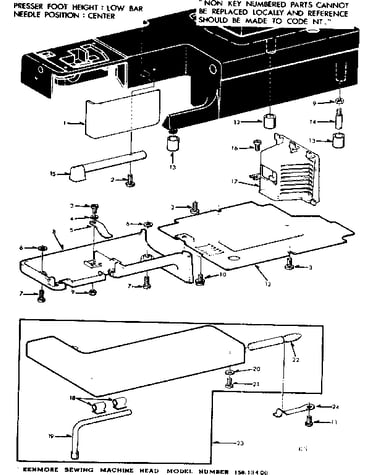

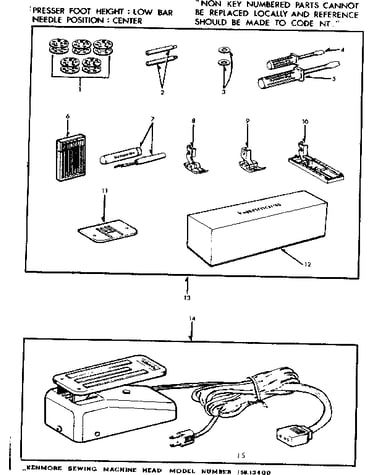

Here are the repair parts and diagrams for your Kenmore 15813400 sewing machine.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 210 parts

Pivot Stud

#2

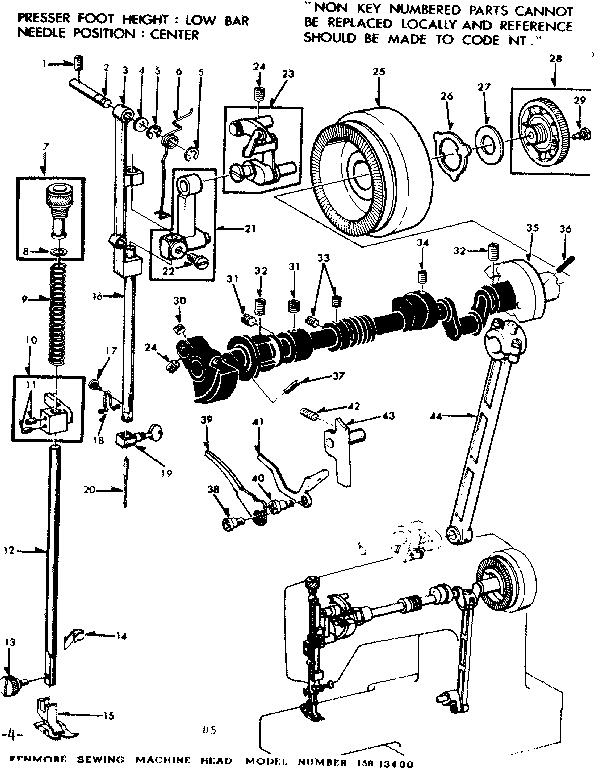

Presser bar assembly Diagram

Pivot stud

Part #32881

The manufacturer no longer makes this part, and there's no substitute part

Slide Assembly

#8

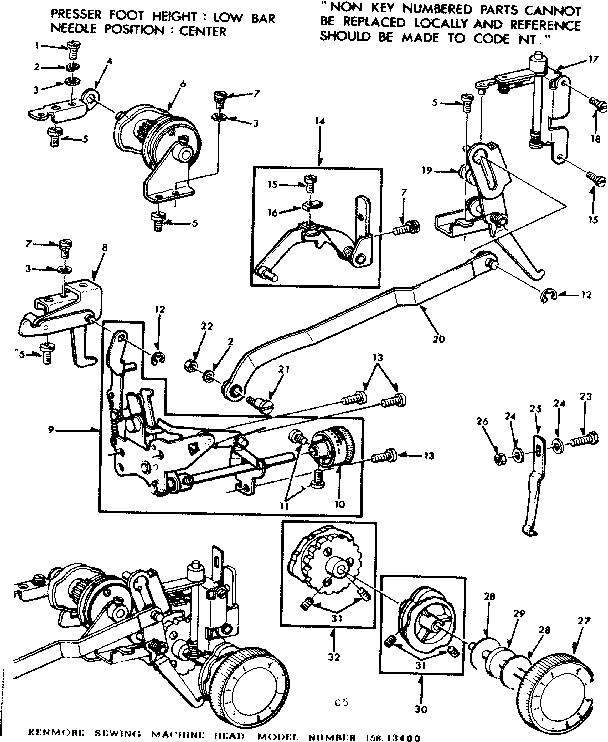

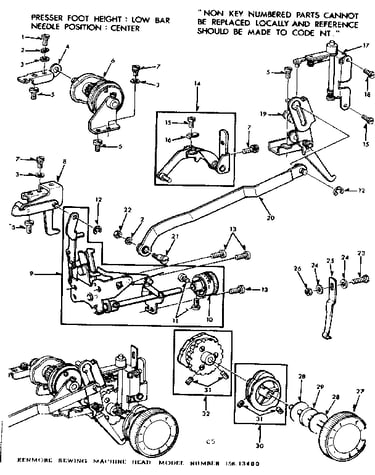

Geared cam assembly Diagram

Slide assembly

Part #49776

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Needle Plate

#12

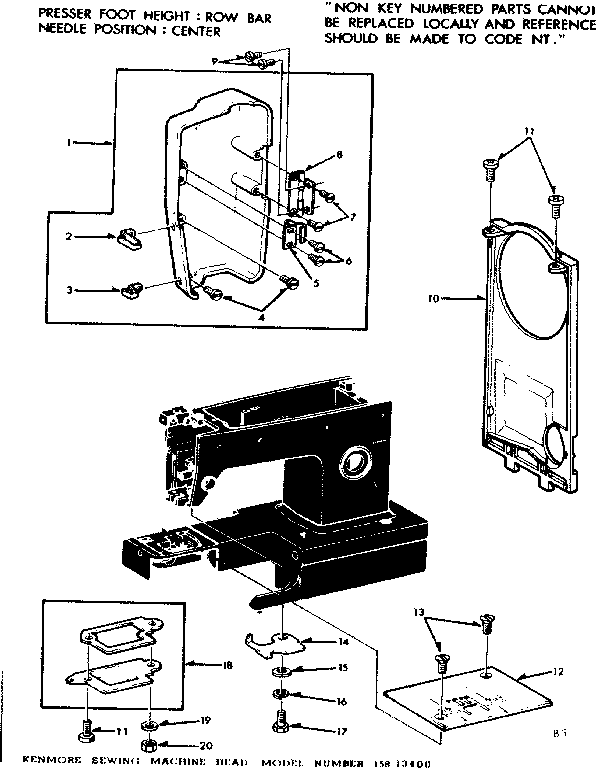

Needle plate Diagram

Sewing machine needle plate

Part #45614

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly

#12

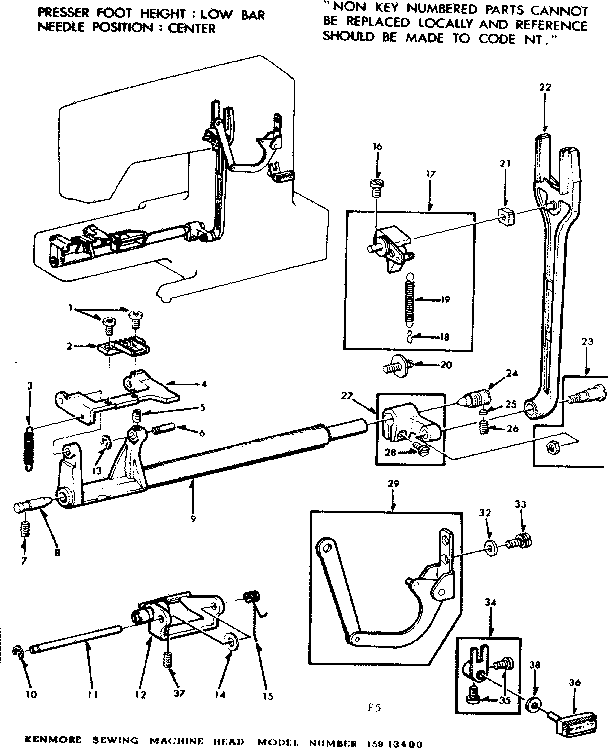

Feed regulator assembly Diagram

Bracket assembly

Part #48887

The manufacturer no longer makes this part, and there's no substitute part

Bracket

#4

Geared cam assembly Diagram

Bracket

Part #53222

The manufacturer no longer makes this part, and there's no substitute part

Control Nel

#16

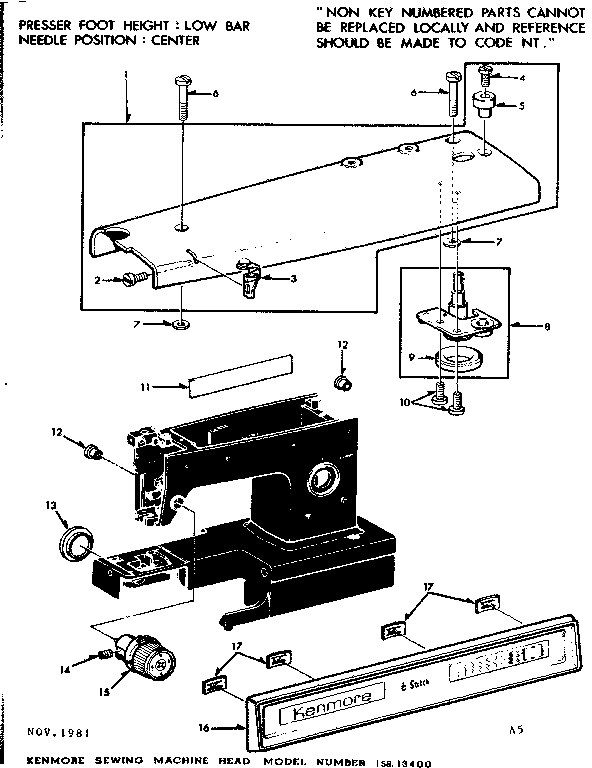

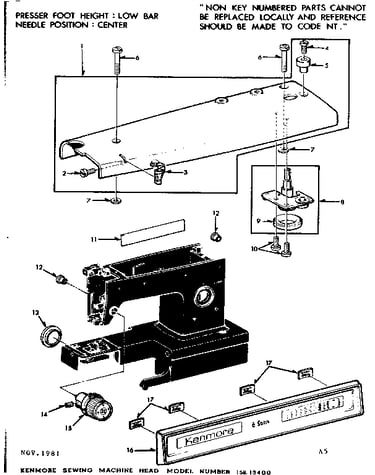

Base assembly Diagram

Control nel

Part #49775

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Belt

#14

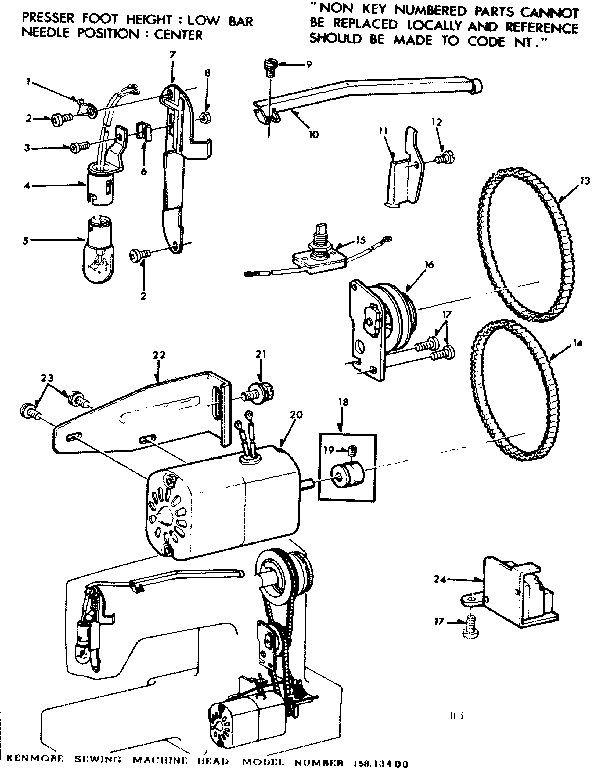

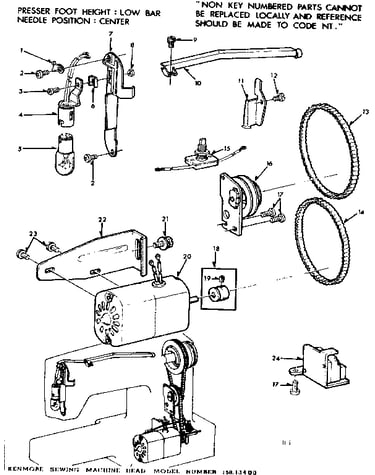

Motor assembly Diagram

Sewing machine belt

Part #56973

The manufacturer no longer makes this part, and there's no substitute part

Pin

#8

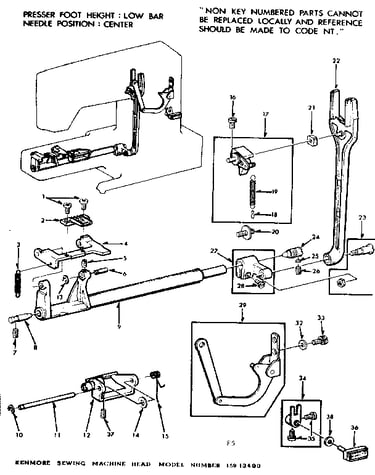

Feed regulator assembly Diagram

Pin

Part #45551

The manufacturer no longer makes this part, and there's no substitute part

Spring

#14

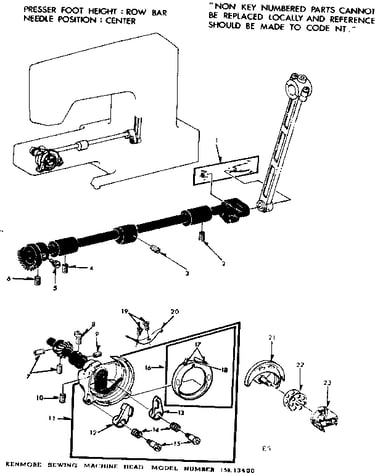

Shuttle assembly Diagram

Spring

Part #8576

The manufacturer no longer makes this part, and there's no substitute part

Hanger

#18

Feed regulator assembly Diagram

Hanger

Part #32305

The manufacturer no longer makes this part, and there's no substitute part
