Whirlpool WFW5720RR0 washer Parts

The Whirlpool WFW5720RR0 is a washer, specifically a front-load washing machine. If you are shopping parts or troubleshooting, treat it as a Whirlpool front-load washer (door lock, drain pump, inlet valve, and bellow are common service areas).

How we classify the WFW5720RR0

Front-load washers use a horizontal drum and a sealed door, so many symptoms and parts differ from top-load designs.

• Appliance type: washer
• Design: front load
• Brand: Whirlpool
• Typical installation: laundry room, often stackable with a matching dryer (when paired with the correct kit)

Parts you will commonly see on a front-load washer

These are frequent “category” parts customers look for on the Whirlpool WFW5720RR0:

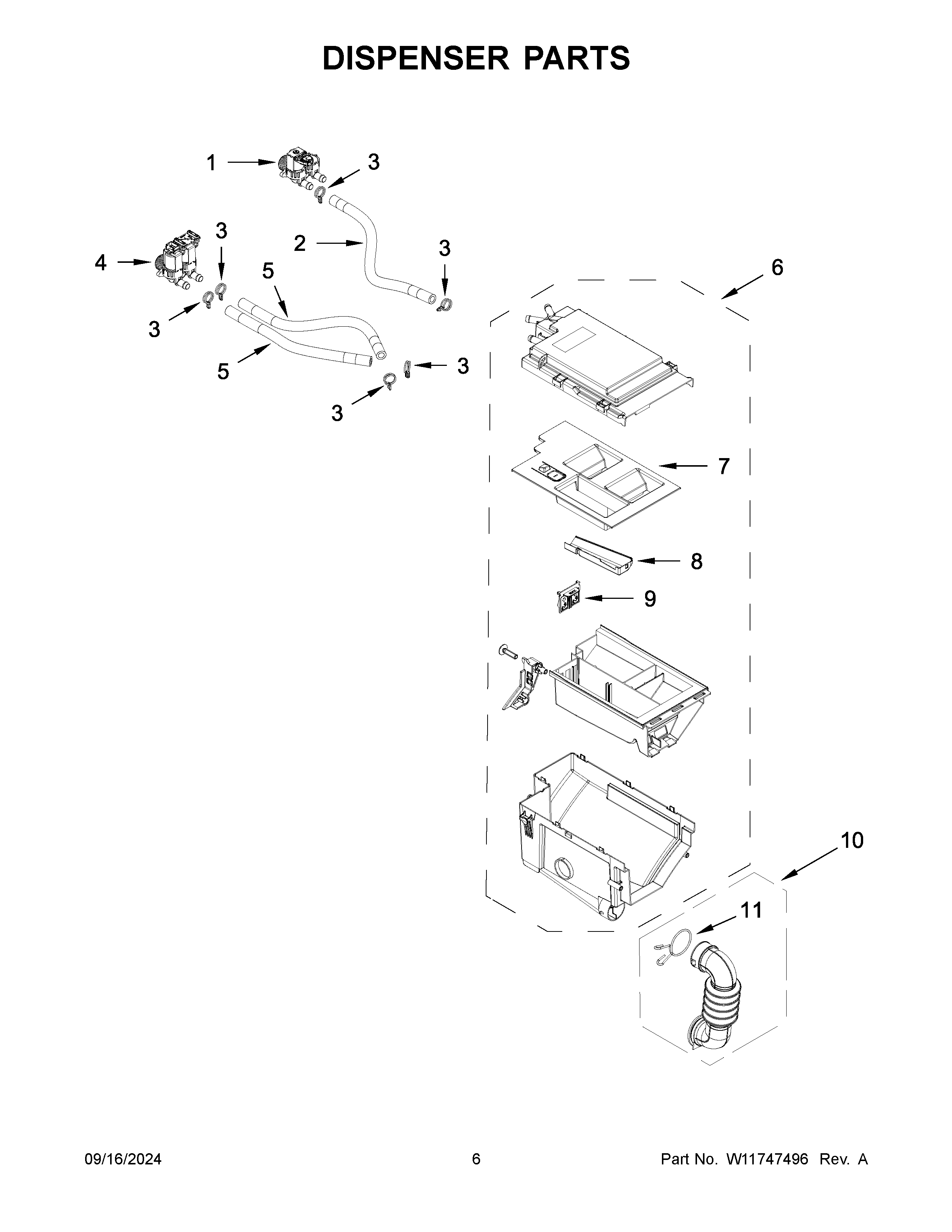

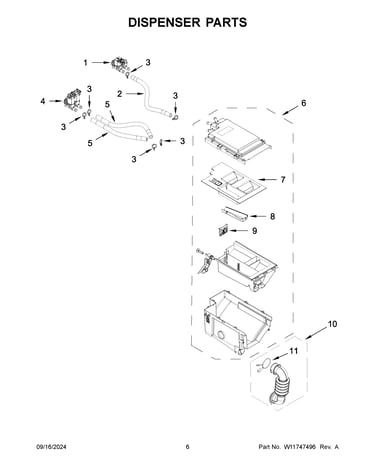

• Water inlet and fill components (valves and fill hoses)

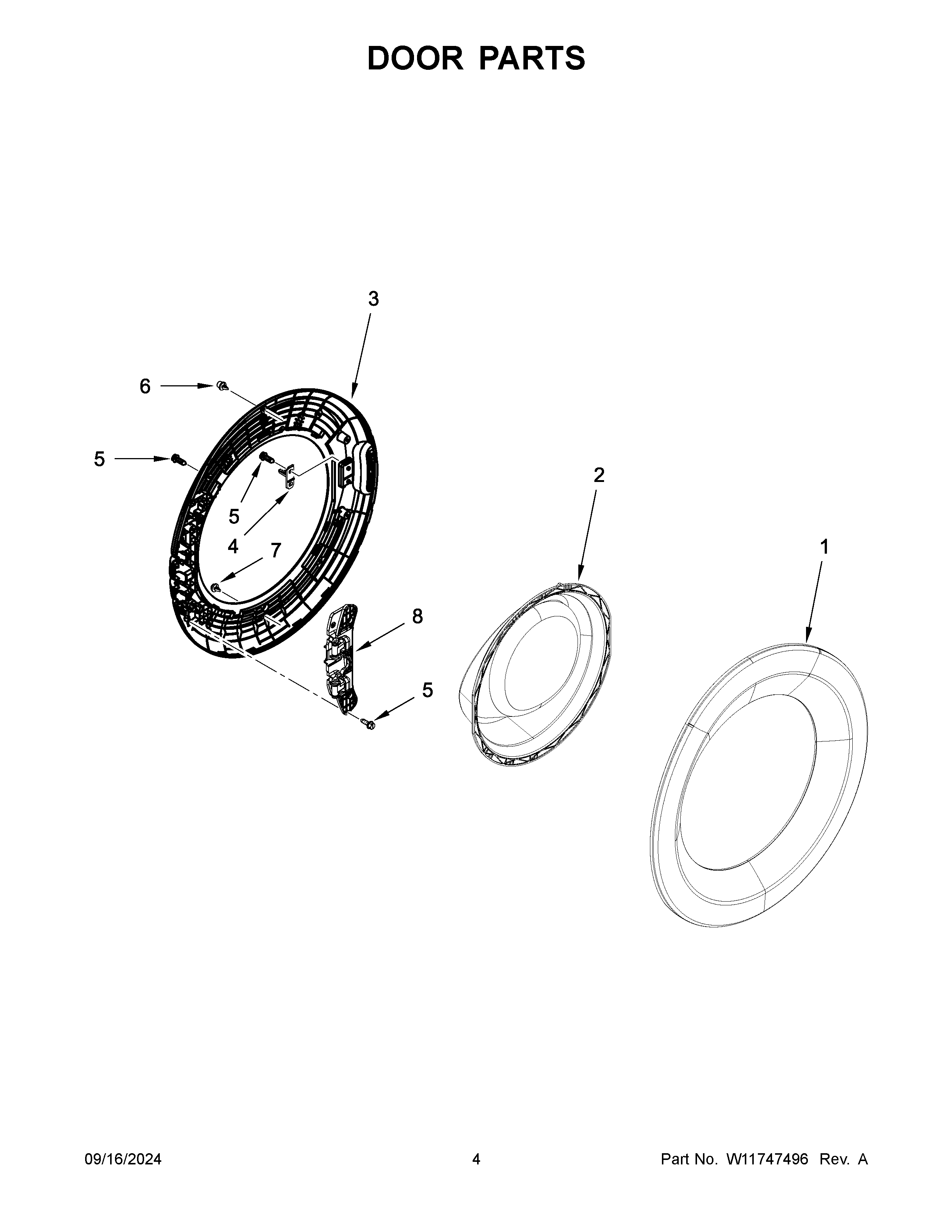

• Door latch and strike components

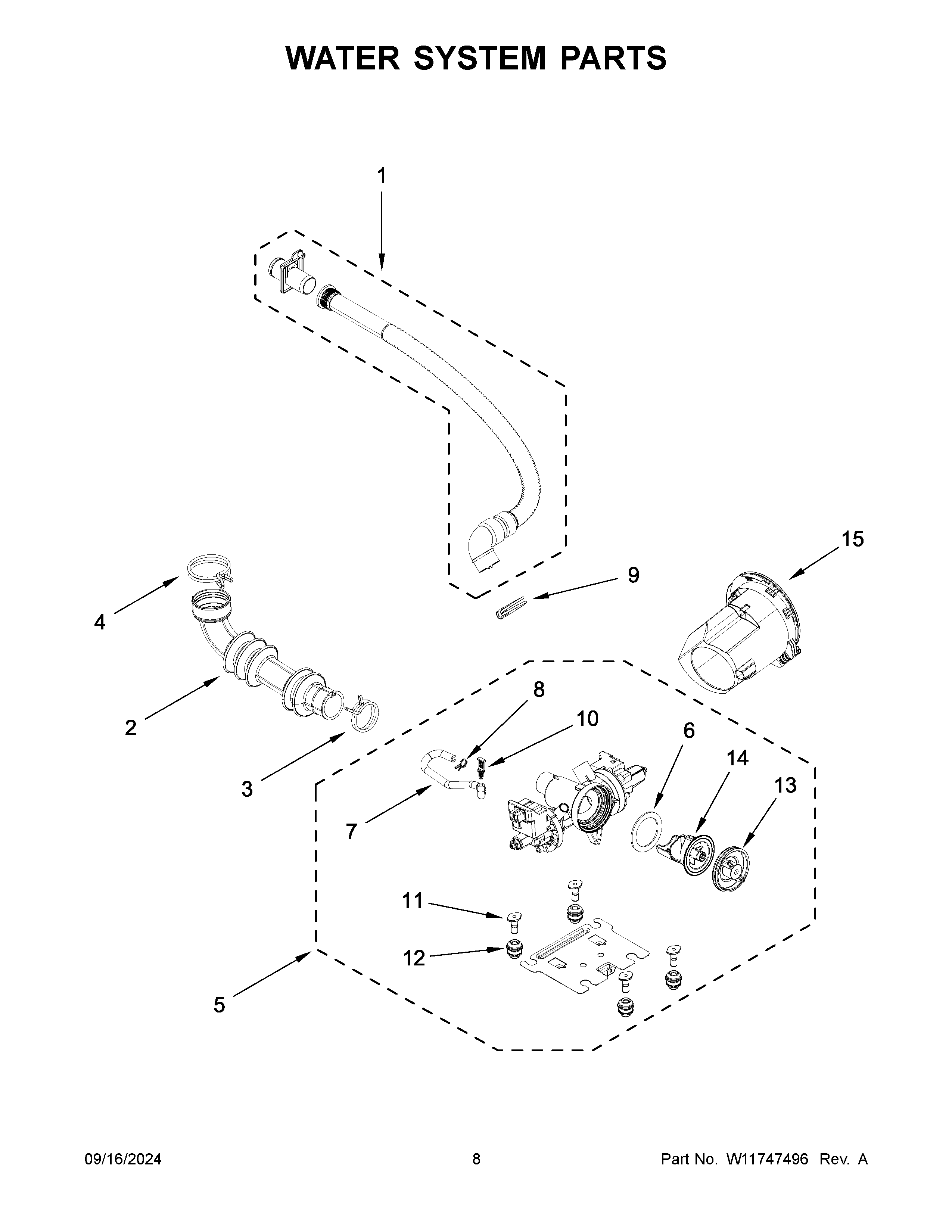

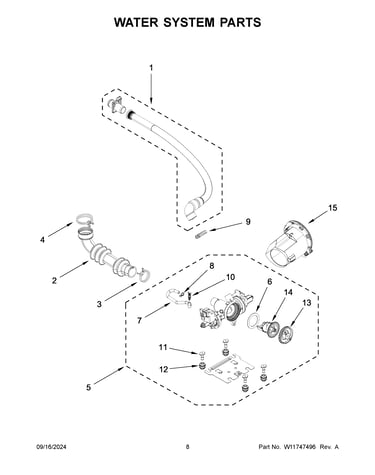

• Drain system components (pump and drain hose)
• Door boot seal (bellow)
• Sensors and pressure system components

Quick examples from this model’s parts list

What it does	Example part for WFW5720RR0	When it matters
Controls water entering the washer	Water valve W11688995	No fill, slow fill, fill errors
Seals the door opening to prevent leaks	Bellow W11746638	Leaks at the door, mold/odor, torn boot
Pumps water out during drain/spin	Pump assembl W11747098	Won’t drain, stops mid-cycle, drain errors

Why it matters

Front-load washers rely on a tight door seal and a strong drain system; that is why issues like door leaks, odors, and drain problems are more common than on many top-load designs. Knowing the WFW5720RR0 is a front-load washer helps you choose the right troubleshooting steps and the correct Whirlpool parts.

Last updated: January 2026

The most common Whirlpool washer problems are water-related (not filling, overfilling, or leaking) and drain or spin issues. On the Whirlpool WFW5720RR0, these symptoms usually trace back to the water supply, inlet hoses, the inlet water valve, or a drain restriction.

Most common symptoms we see

• Washer won’t fill or fills slowly
• Washer overfills or won’t stop filling
• Water leaking at the back connections
• Washer won’t drain, drains slowly, or won’t spin out
• Error codes related to water level, fill, or drain (varies by platform)

Quick checks you can do first (no parts)

• Confirm both hot and cold shutoff valves are fully open.
• Straighten kinked hoses and make sure the washer is not pushed against them.
• Clean the inlet screens at the hose connections (sediment can restrict flow).
• Verify the drain hose is not shoved too far down the standpipe (can cause siphoning and fill or drain problems).
• Run a rinse and spin cycle with an empty drum to see if the issue is load-related.

Parts that commonly solve fill and leak complaints

If the basics check out, these model-matched parts are the most common next step:

• Washer water inlet hose, 2-pack 8212487RP for cracked hoses, bulges, or leaking couplers
• Washer fill hose set 8212545RP if you want a matched hot/cold set replacement
• Water valve W11688995 when the washer won’t fill, fills slowly, or keeps filling

Symptom-to-part guide

Symptom	Most likely area	Common fix
Slow or no fill	Supply valves, inlet screens, inlet valve	Clean screens; replace inlet valve if still weak
Overfilling	Inlet valve, pressure sensing	Replace inlet valve; check pressure hose routing
Leak at back	Fill hoses, hose washers	Replace hoses; reseat connections
Won’t drain/spin	Drain path, pump, load balance	Check drain hose; clear restriction; inspect pump

Why it matters

Fill, leak, and drain problems can trigger error codes, extend cycle times, and cause water damage. Fixing the water supply and inlet components early also helps protect the control system and motor from repeat faults.

For code-based troubleshooting, we use Whirlpool duet high efficiency front load washer error codes to match the symptom to the most likely circuit or component.

Last updated: January 2026

Yes. The Whirlpool WFW5720RR0 is designed to be energy efficient; front-load washers typically use less water and less energy than many top-load designs, and this model is commonly sold as ENERGY STAR certified.

What “energy efficient” means for this washer

Energy efficiency comes from using less hot water, extracting more water during spin (shorter dry times), and optimizing cycle time and temperature.

Common efficiency features you will notice:

• Lower water levels compared to older washers
• Longer cycle times on Eco or Normal cycles (this improves cleaning with less energy)
• High-speed spin to reduce remaining moisture
• Better detergent rinsing with HE detergent

Quick checks to maximize efficiency

These steps reduce energy use and improve cleaning on the WFW5720RR0.

• Use HE detergent and measure carefully (too much causes extra rinsing)
• Wash with cold or warm water when possible
• Run full loads, but do not pack the drum tight
• Use the highest spin speed safe for the fabric
• Clean the drain path if you notice slow draining or extra rinse behavior

Parts that can affect efficiency (when problems show up)

If the washer overfills, fills slowly, or repeats fill and drain, efficiency drops because the machine uses extra water and time.

Symptom	Likely area	Example part for WFW5720RR0
Slow fill, no fill, or fill errors	Water supply and inlet valve	Water valve W11688995
Long fill times or weak flow	Inlet hoses and screens	Washer fill hose set 8212545RP
Won’t drain well, extra rinse behavior	Drain system	Hose assy-dr W11549455

Why it matters

An efficient washer saves money two ways: it reduces water heating costs and it leaves clothes drier after the final spin, which can shorten dryer run time.

Related help

If you see an error code while troubleshooting fill, drain, or sensing issues, use our Whirlpool duet high efficiency front load washer error codes guide to narrow down the cause.

Last updated: January 2026
