Hoover
Upright Vacuum

Model # U5722-900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5722-900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

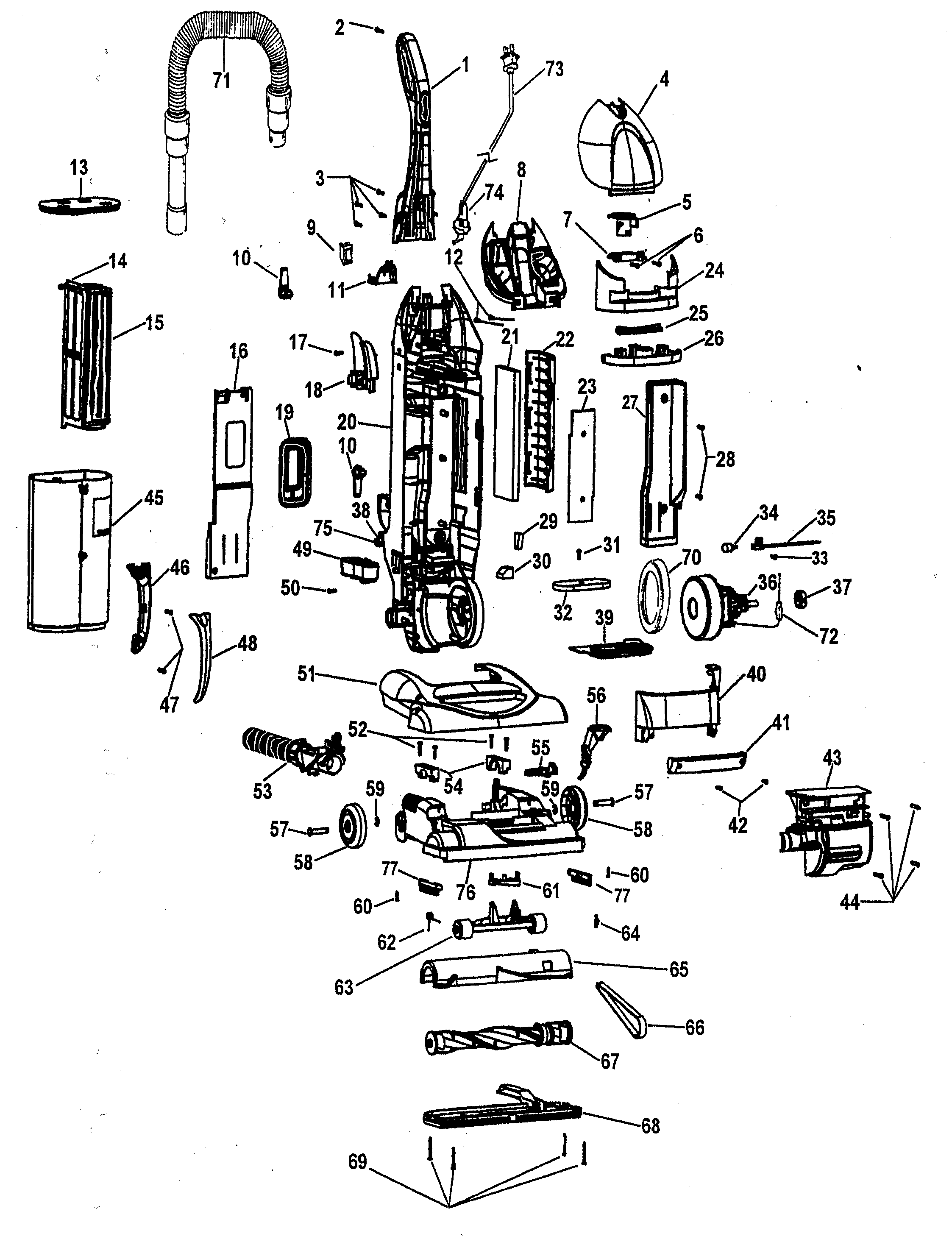

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Foam 34131009
#29

Vacuum diagram

Foam

Part #34131009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 38458043
#56

Vacuum diagram

Vacuum handle release pedal

Part #38458043

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38762008
#32

Vacuum diagram

Vacuum motor safety filter

Part #38762008

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 56511B93
#NI

Vacuum diagram

Owner's manual

Part #56511B93

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447230
#44

Vacuum diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire Wh 49811079
#NI

Vacuum diagram

Lead wire wh

Part #49811079

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#37

Vacuum diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 36215028
#74

Vacuum diagram

Vacuum power cord strain relief

Part #36215028

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447228
Vacuum screw

Part #21447228

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#66

Vacuum diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part
