Kenmore 625320300 electric water heater Parts
Here are the diagrams and repair parts for Kenmore 625320300 electric water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 625320300 Water Heaters

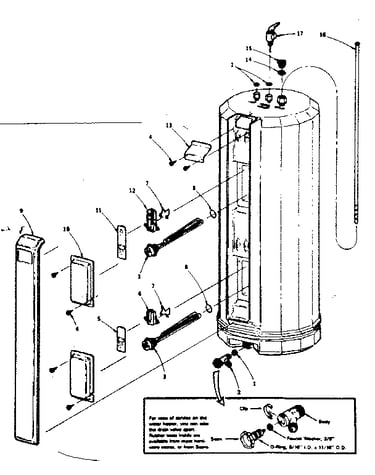

Functional replacement parts diagram
Control
Part #7030569Replaced by #100108683
Manufacturer substitutionThis part replaces 7030569. Substitute parts can look different from the original.In Stock$41.4613% OFF Phone Price : $47.46
Qty
Functional replacement parts diagram
Control
Part #7030577Replaced by #100108421
Manufacturer substitutionThis part replaces 7030577. Substitute parts can look different from the original.In Stock$59.50QtyFunctional replacement parts diagram
Seat Ring
Part #7016620
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Washer
Part #7025881
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Dip Tube
Part #7040653
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Drain Valve
Part #7025124
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Dip Tube
Part #7008716
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Dip Tube
Part #7040661
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Element
Part #SP610140
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Gasket
Part #7033973
The manufacturer no longer makes this part, and there's no substitute part
