Homelite
Gas Chainsaw

Model # UT-10629 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite UT-10629 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

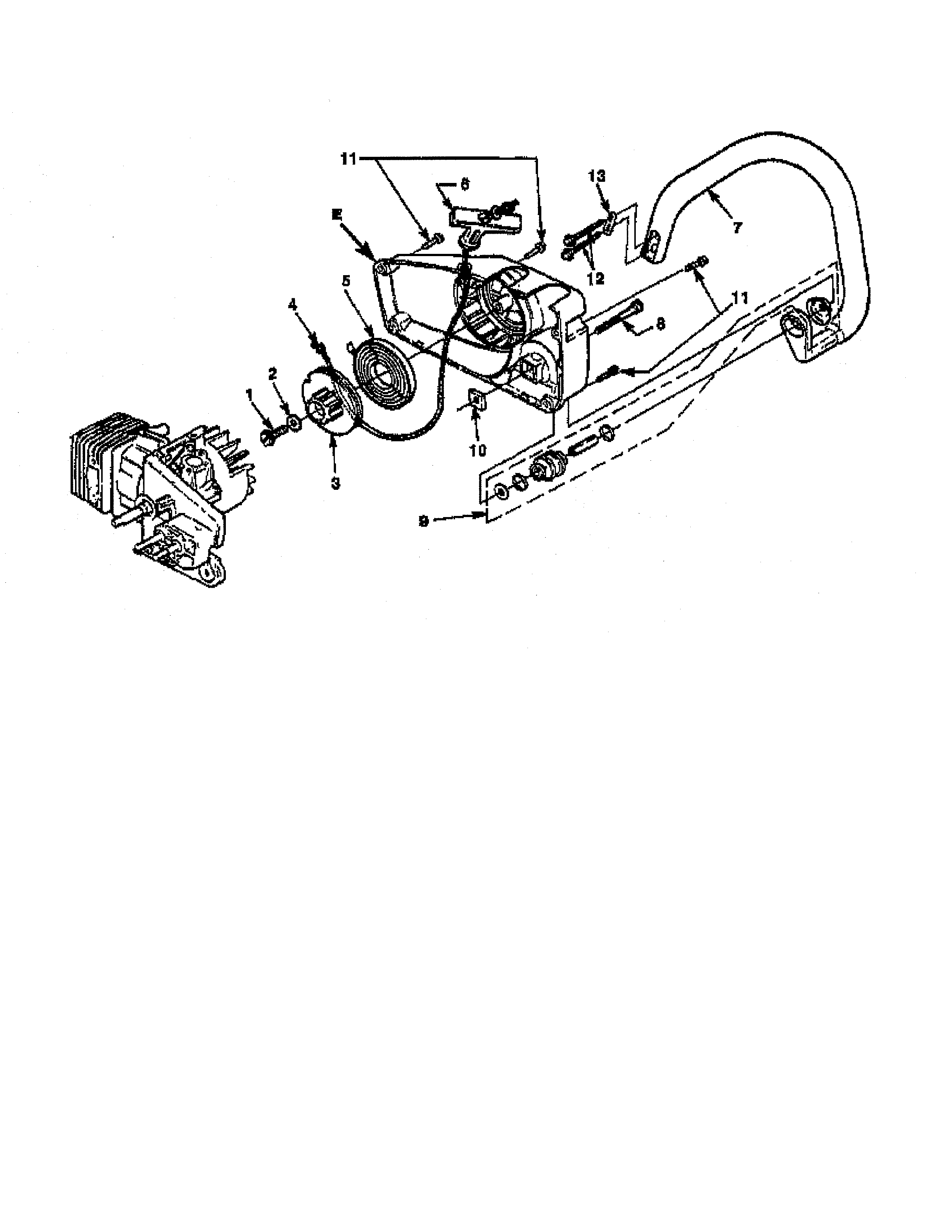

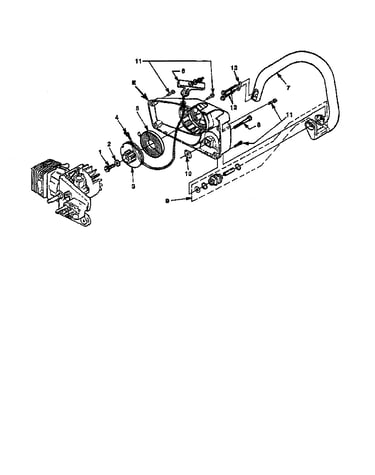

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Muffler Plate 94889
#8

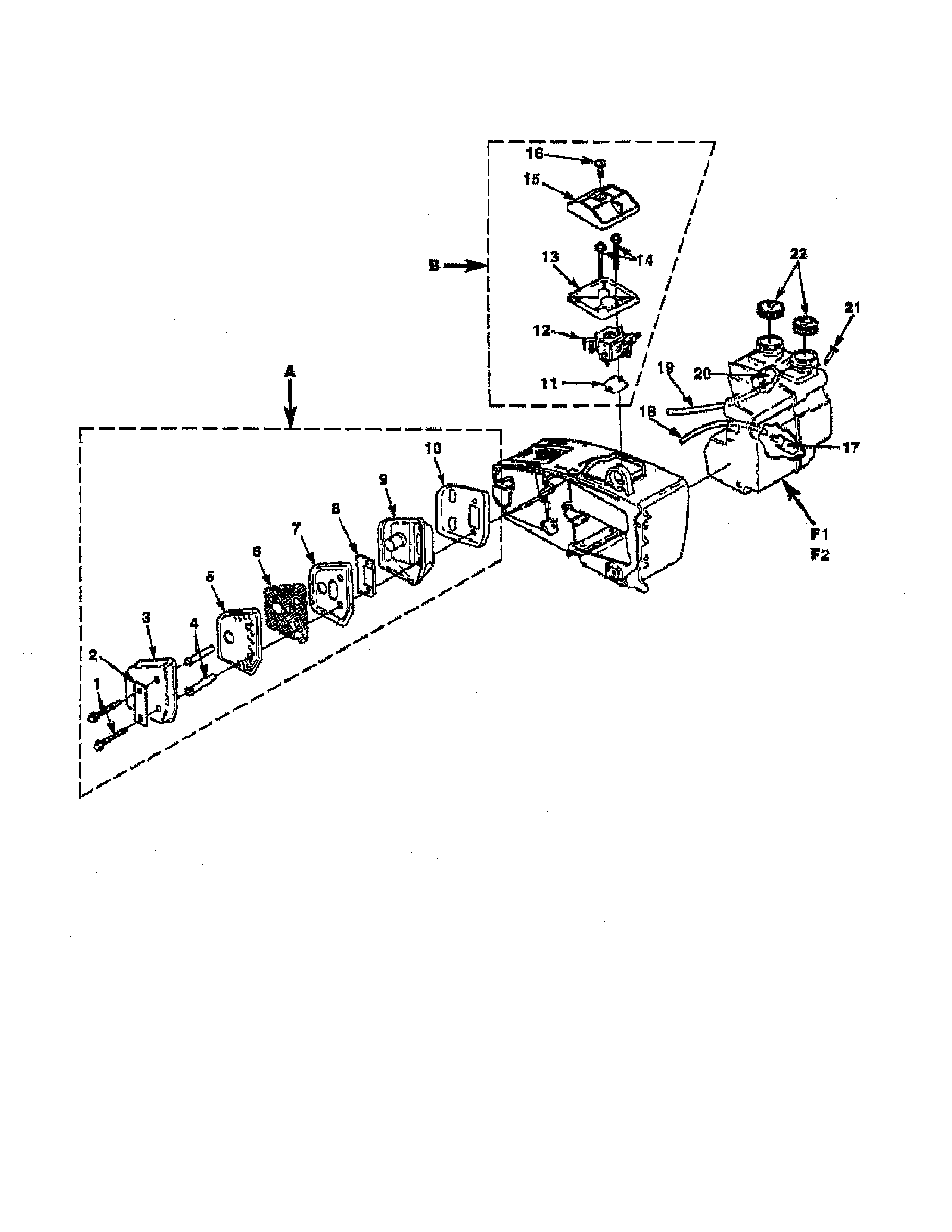

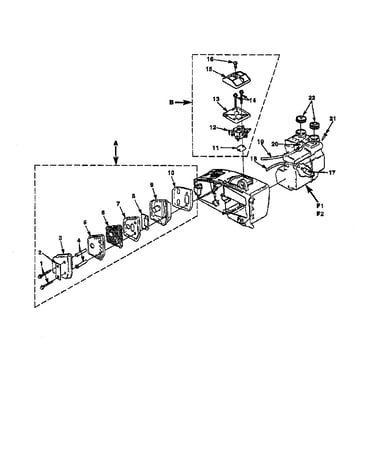

Muffler/carburetor/tank diagram

Muffler plate

Part #94889

The manufacturer no longer makes this part, and there's no substitute part

Bearing 70277
#24

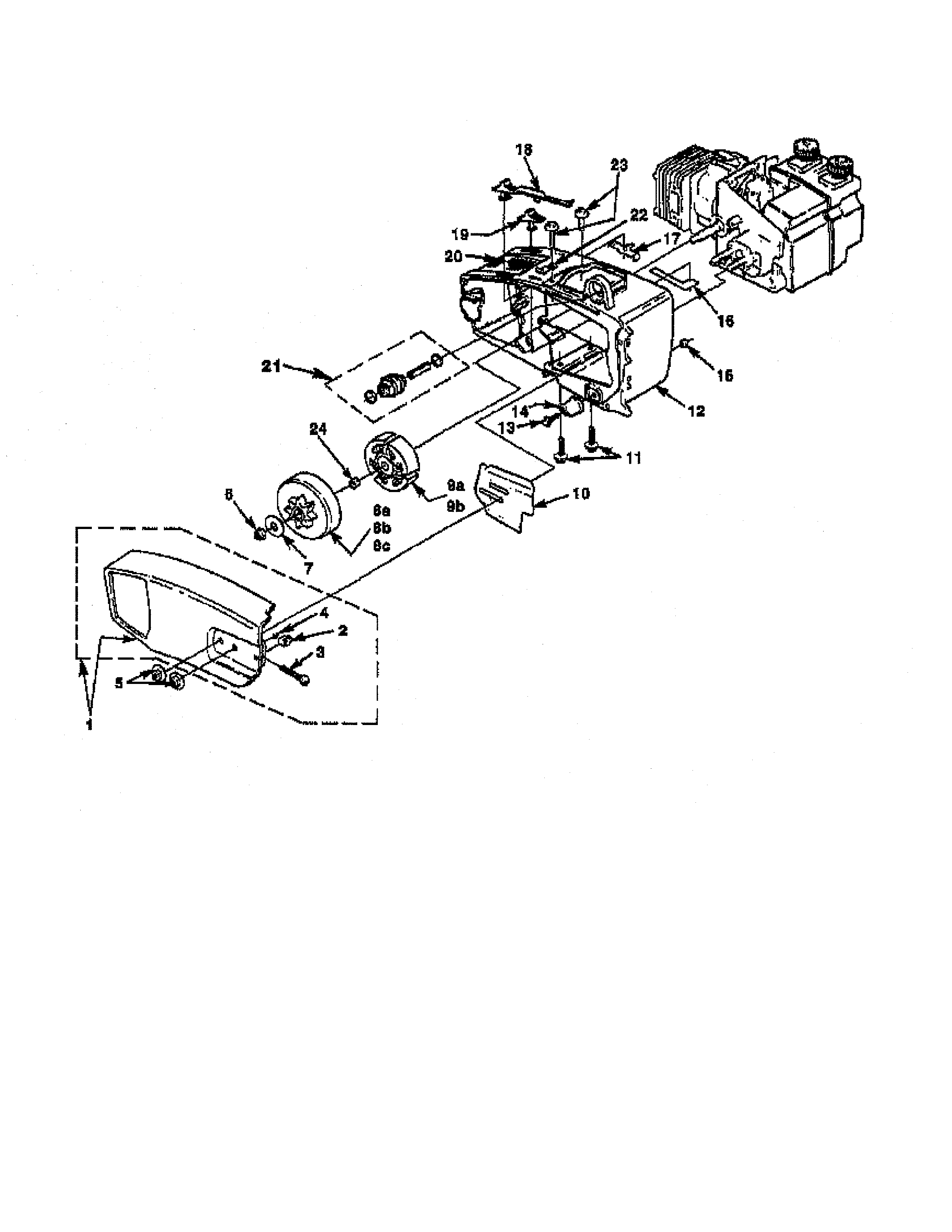

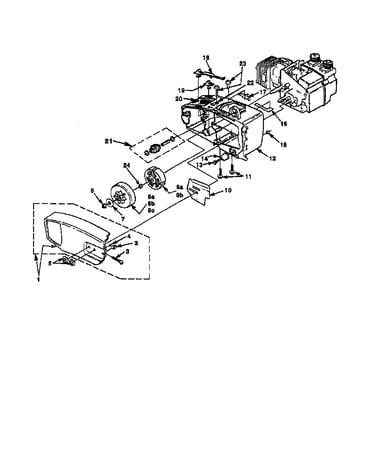

Engine housing/clutch diagram

Bearing

Part #70277

The manufacturer no longer makes this part, and there's no substitute part

Warning Decal 03128
#4

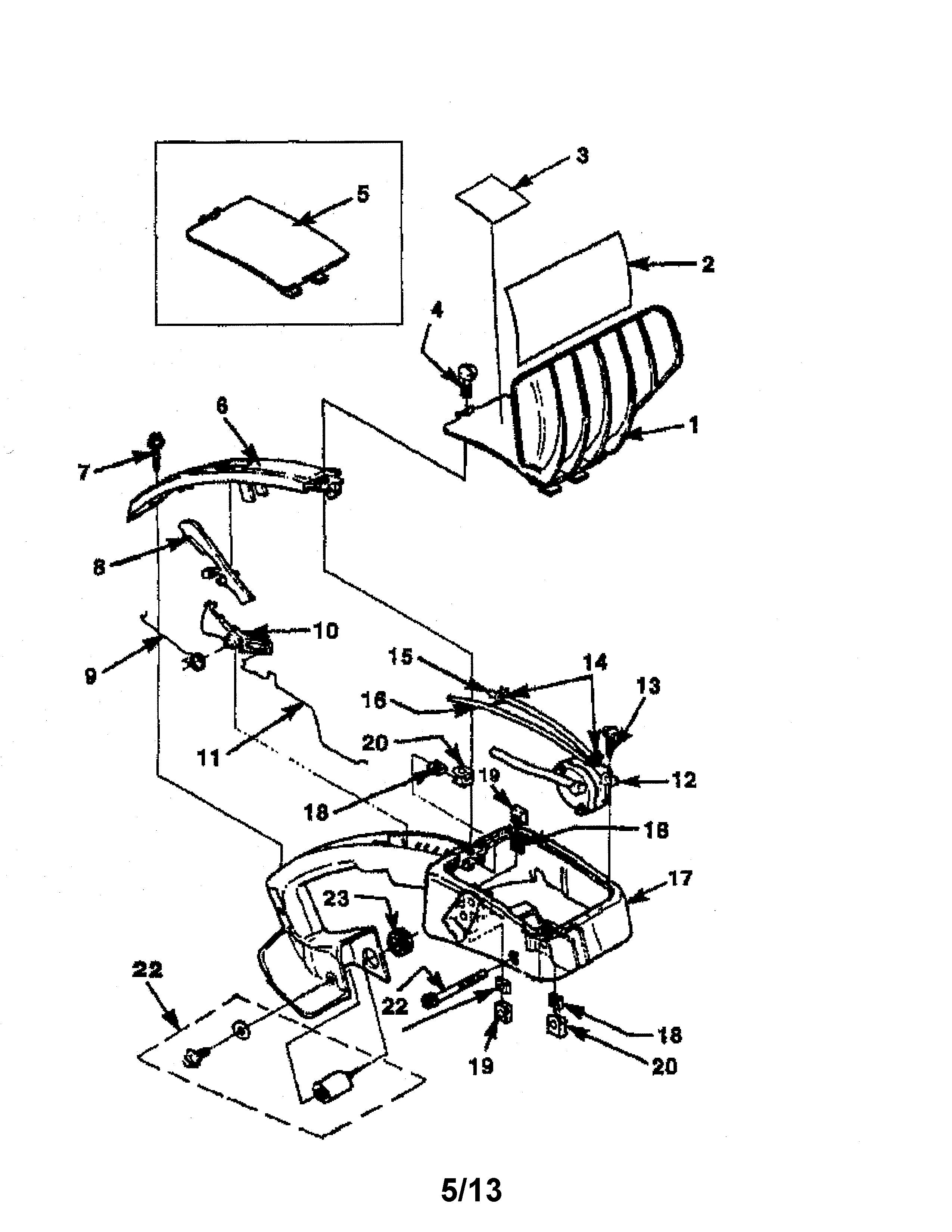

Carburetor chamber/rear handle diagram

Warning decal

Part #03128

The manufacturer no longer makes this part, and there's no substitute part

Tubing 10 Ft 9520199
#9520199

Tools & accessories diagram

Tubing 10 ft

Part #9520199

The manufacturer no longer makes this part, and there's no substitute part

Fastener K A06439
#A06439

Tools & accessories diagram

Fastener k

Part #A06439

The manufacturer no longer makes this part, and there's no substitute part

Nut 81229A
#6

Engine housing/clutch diagram

Nut

Part #81229A

The manufacturer no longer makes this part, and there's no substitute part

Shaft Seal 07025
#15

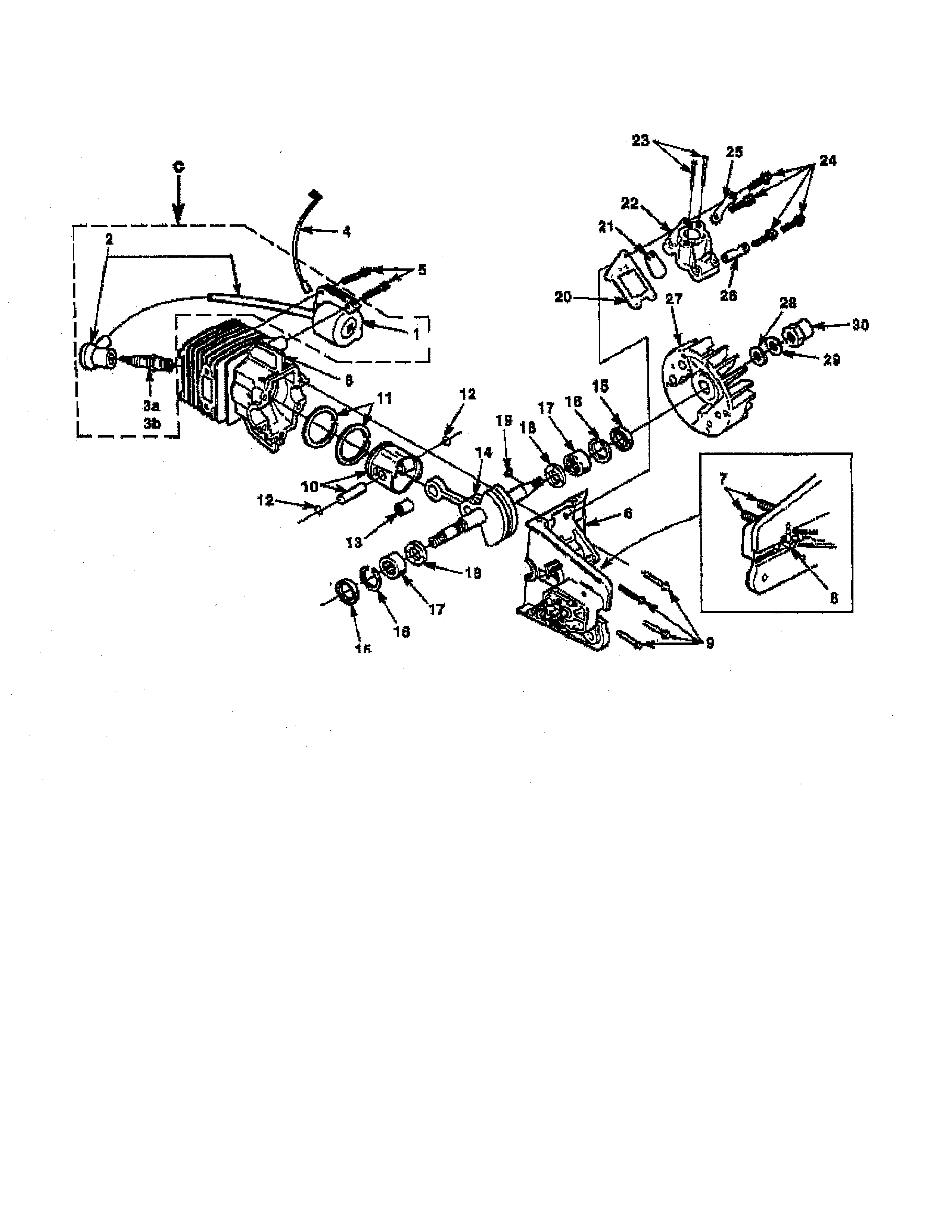

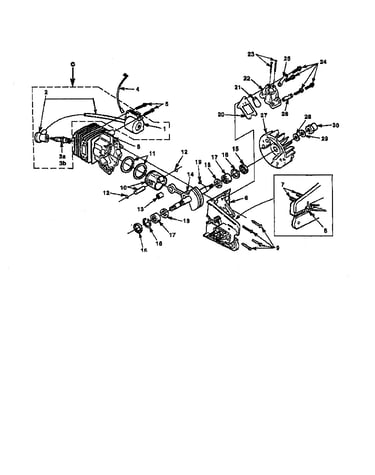

Engine internal diagram

Shaft seal

Part #07025

The manufacturer no longer makes this part, and there's no substitute part

Crvd Washr 95486
#8

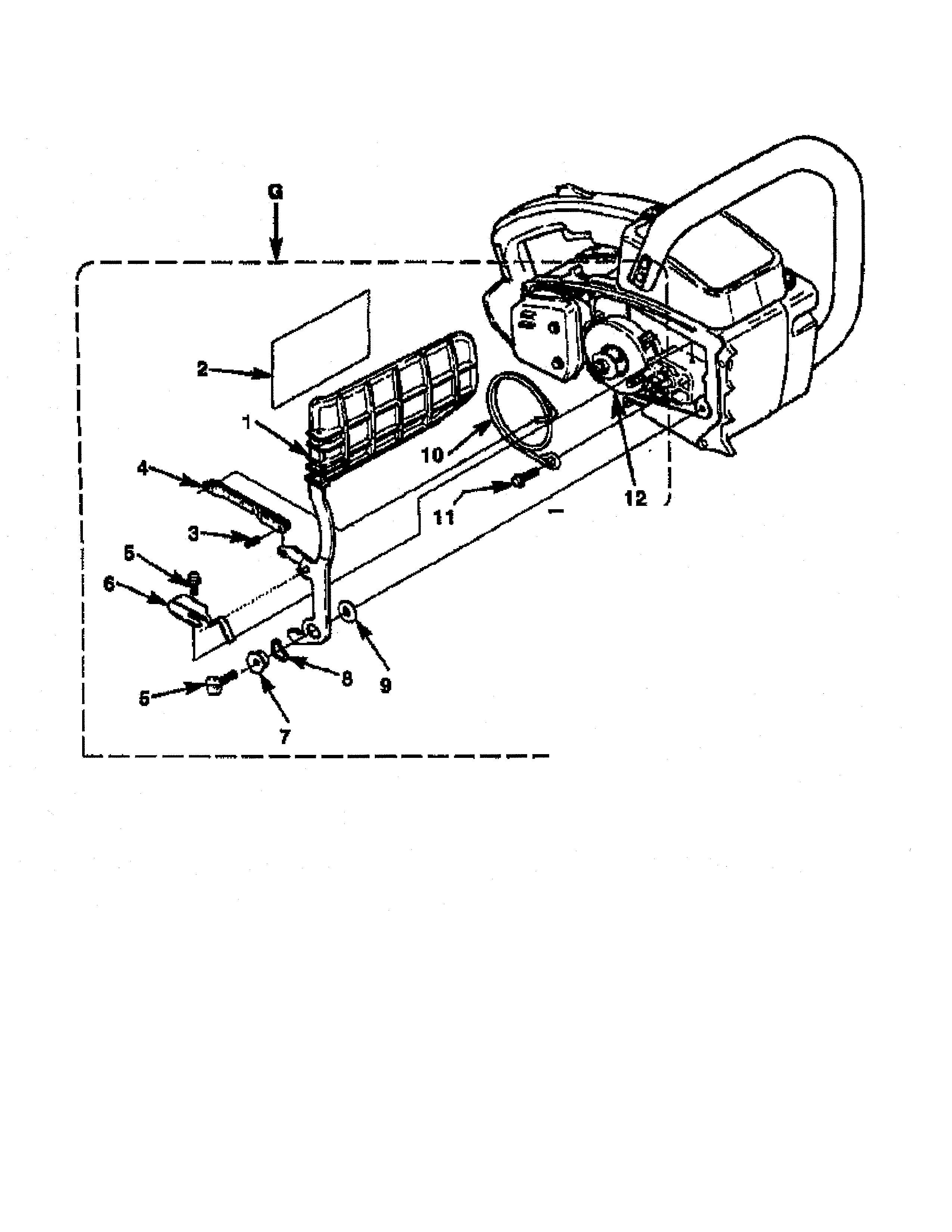

Chain break diagram

Crvd washr

Part #95486

The manufacturer no longer makes this part, and there's no substitute part

Screw 88051
#11

Engine housing/clutch diagram

Screw

Part #88051

The manufacturer no longer makes this part, and there's no substitute part

Screw 88063
#11

Chain break diagram

Screw

Part #88063

The manufacturer no longer makes this part, and there's no substitute part
