What does code 654 mean?
On the Frigidaire FRS6HR5JSB4 side-by-side refrigerator, a “654” code is a number code shown on the digital temperature displays that points to a control-system performance problem; it is not a legal code. When the control detects a problem, the displays can flash and show a number code.
What to do right away
- Make sure both doors are fully closed and sealing.
- Confirm the freezer and fresh food controls are not set to 0/OFF.
- Unplug the refrigerator for 5 minutes, then plug it back in to reset the control.
- Allow 8 to 12 hours of door-closed run time after a reset before judging temperatures.
- Place a separate thermometer in each compartment; some 2-digit displays are reference-only.
Common causes that trigger control warnings
These issues often lead to abnormal temperatures that the electronic control flags:
- Door left ajar or opened too often
- Dirty condenser (poor heat release, long run times)
- Blocked air vents inside the compartments
- Temperature settings changed repeatedly without waiting for stabilization
Quick checks and what they tell you
| What you notice | What it usually means | What we recommend |
|---|---|---|
| Temps are warm in both sections | Airflow or condenser issue, door not sealing | Clean condenser, check vents, verify door seal |
| Freezer OK, fresh food warm | Airflow/damper issue or blocked vents | Clear vents, avoid overpacking |
| Displays flash with a number code | Control detected a performance problem | Follow reset steps; use thermometer to confirm |
Why it matters
A flashing display and number code typically shows the refrigerator is not maintaining stable temperatures. Addressing airflow, door sealing, and condenser cleanliness helps protect food and reduces compressor run time.
For model-specific control behavior and temperature-setting steps, follow the owner's manual.
Last updated: February 2026
What is the SB code on a Frigidaire refrigerator?
On the Frigidaire FRS6HR5JSB4 side-by-side refrigerator, the SB (or Sb) code means Sabbath Mode is turned on. In this mode, the refrigerator limits certain functions to reduce power use and align with Sabbath observance guidelines; the display shows Sb while active.
What Sabbath Mode changes
Sabbath Mode is mainly about limiting user interface and convenience features while keeping cooling operating.
- The display indicates Sb instead of normal temperature information
- Some control panel responses are limited while the mode is active
- Cooling continues so food stays cold (use a thermometer if you need an accurate compartment temperature)
- Door-related behaviors and alarms can act differently depending on the control design
How to turn SB (Sabbath Mode) on or off
Use the control panel inside the fresh food compartment (top area).
- Press and hold “-” and “Temp F-C” together
- Keep holding for about 5 seconds
- Watch for Sb to appear (mode on) or disappear (mode off)
- After changing modes, give the refrigerator time to stabilize before judging temperatures
For the exact button locations and display behavior on your unit, follow the steps in the owner's manual.
Quick reference
| Display/code | Meaning | What to do |
|---|---|---|
| SB or Sb | Sabbath Mode is on | Hold “-” + “Temp F-C” for ~5 seconds to toggle |
Why it matters
If you see SB/Sb, the refrigerator is not “broken”; it is in a special operating mode. Turning Sabbath Mode off restores normal display and control behavior, which helps when you are adjusting temperatures or troubleshooting cooling, ice, or dispenser concerns.
Last updated: February 2026
Where is the model number on a Frigidaire FRS6HR5JSB4 refrigerator?
On a Frigidaire FRS6HR5JSB4 side-by-side refrigerator, the model number is printed on the appliance’s serial tag (rating plate) inside the refrigerator compartment. It’s typically on an interior side wall or on the door frame area near the front opening.
Common places to check
Look for a white or silver sticker with the model and serial information in these spots:
- Inside the fresh food (refrigerator) compartment on the left wall
- Inside the fresh food compartment on the right wall
- On the door frame (jamb) near the front opening
- Behind or near the crisper drawers (you may need to slide drawers out)
- Along the lower interior liner near the toe grille area (less common)
What the tag looks like
The label usually includes:
- Model number (FRS6HR5JSB4)
- Serial number
- Electrical ratings (voltage/amps)
- Refrigerant information
Quick tips to find it faster
- Use a flashlight and check the front edges first; tags are often easiest to see near the door opening.
- Wipe condensation or smudges off the liner; the print can be hard to read.
- If drawers block your view, remove food and slide the drawers out to inspect the back wall and side walls.
Why it matters
We use the exact model number to match the correct Frigidaire parts and diagrams for your refrigerator, especially for fit-critical items like a refrigerator filter WFCB or door gaskets.
Helpful reference
Your owner's manual also shows the main component locations and can help you identify where labels and service information are typically placed.
| If you find this on the tag | Use it for |
|---|---|
| Model number | Ordering the correct replacement parts |
| Serial number | Identifying production details for the right variation |
| Electrical ratings | Confirming safe replacement of electrical components |
Last updated: February 2026
How do you defrost a Frigidaire side by side?
The Frigidaire FRS6HR5JSB4 side-by-side refrigerator uses automatic defrost; it periodically runs a defrost cycle that typically lasts about 30 minutes, so you normally do not need to manually defrost it. If you have heavy frost buildup, focus on fixing the cause (air leaks, door left open, airflow issues) rather than forcing a defrost.
What to do when you see frost buildup
- Check that both doors fully close and are not blocked by bins or food packages.
- Inspect the door gaskets for gaps, tears, or areas that are not sealing.
- Clean the gasket sealing surfaces with mild soap and water; dry thoroughly.
- Reduce door openings and avoid leaving doors open during loading.
- Make sure vents inside the freezer and fresh food sections are not blocked.
Common causes and the most likely fix
| Symptom | Most common cause | What to check first |
|---|---|---|
| Frost on freezer back wall | Door not sealing or frequent openings | Gasket fit and door alignment |
| Frost around door edge | Warped/dirty gasket | Clean gasket; replace if cracked |
| Warm temps plus frost | Airflow restriction or defrost issue | Vents clear; listen for fan |
Parts that often solve frost and sealing problems
If the doors are not sealing well, replacing a worn gasket is a high-impact repair.

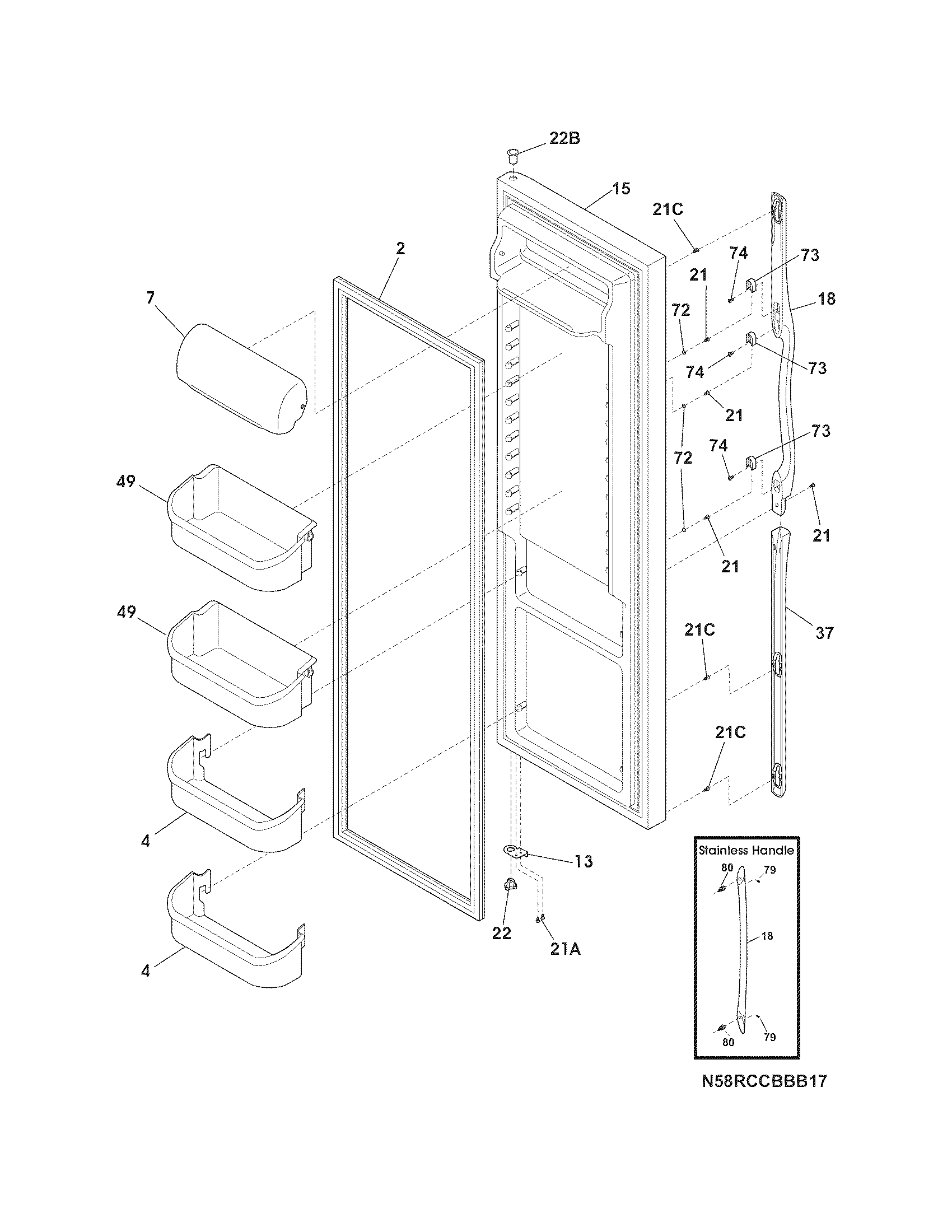

- Fresh food door gasket option: Frigidaire refrigerator door gasket (black) 241786013

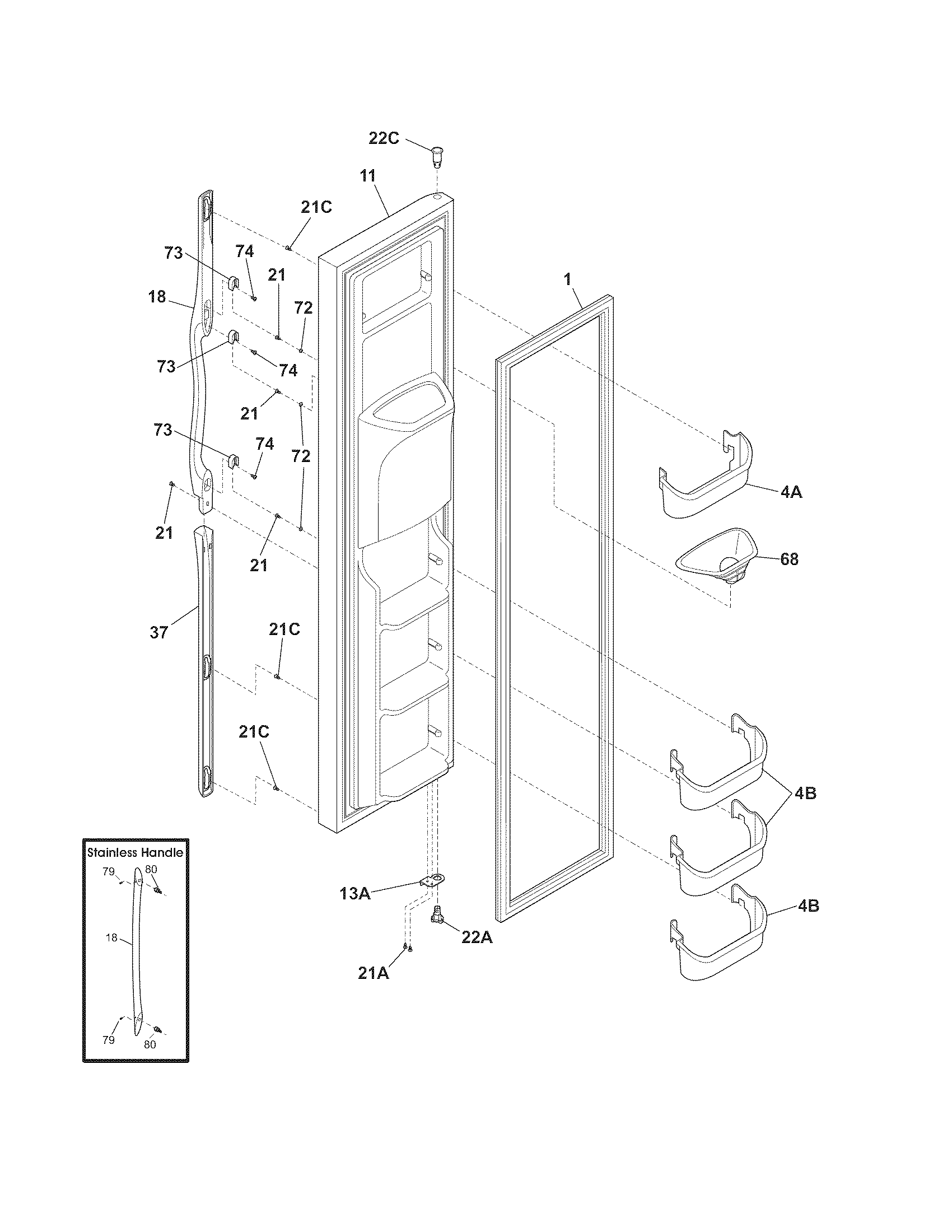

- Freezer door gasket option: refrigerator freezer door gasket 241786014
Why it matters
A poor door seal lets humid room air into the freezer; that moisture turns into frost, reduces airflow across the evaporator, and can make the refrigerator run longer and cool less effectively.
Where to confirm model-specific operation
For your exact control layout and normal operating behavior, follow the defrost and temperature control guidance in the owner's manual.
Last updated: February 2026
How to reset Frigidaire side by side refrigerator not cooling?
If your Frigidaire FRS6HR5JSB4 side-by-side refrigerator is not cooling, the most effective reset is power-cycling the cooling system at the control panel. Press and hold the Cooling System On/Off button for 3 seconds to turn cooling off, then press and hold it again for 3 seconds to turn cooling back on (see the owner's manual).
Quick reset steps (cooling system power cycle)
- Confirm the refrigerator is plugged in and the outlet has power.
- Open the fresh food door and locate the temperature control panel.
- Press and hold Cooling System On/Off for 3 seconds to turn cooling off.
- Wait 2 to 5 minutes.
- Press and hold Cooling System On/Off for 3 seconds to turn cooling on.
- Keep doors closed and allow 8 to 12 hours for temperatures to recover before judging results.
What to check if it still is not cooling
A reset helps when the controls need a restart, but most no-cool problems come from settings, airflow, or heat not being released at the condenser.
- Make sure the freezer and fresh food controls are not set to 0/OFF.
- Check that vents inside the compartments are not blocked by food packages.
- Verify doors seal tightly; damaged gaskets leak warm air.
- Clean dust from the condenser area so the unit can shed heat.
- Listen for the evaporator fan; weak or no airflow points to a fan or airflow problem.
Common symptoms and what they usually mean
| Symptom | Most likely cause | What we recommend |
|---|---|---|
| Compressor not running | Controls set to 0/OFF, cooling system turned off, or power issue | Recheck settings, then do the On/Off reset |
| Runs a lot but still warm | Dirty condenser, door not sealing, airflow blocked | Clean condenser, check gaskets, clear vents |
| Freezer colder than fresh food | Airflow/damper issue or evaporator fan problem | Check vent blockage; verify strong fan airflow |
Why it matters
Food safety depends on stable temperatures. After a reset or power interruption, the FRS6HR5JSB4 needs uninterrupted run time to pull temperatures back down; frequent door openings slow recovery.
Last updated: February 2026
