Model # PSG22SIMBFBS Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE PSG22SIMBFBS refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

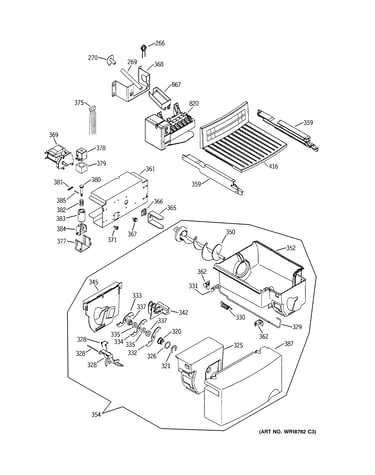

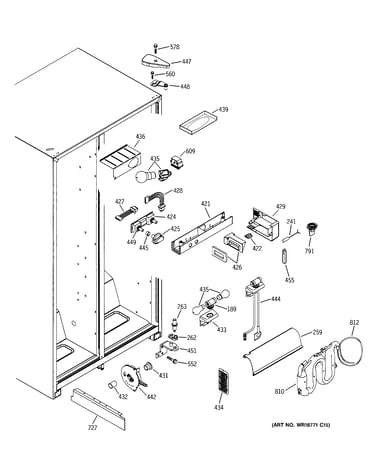

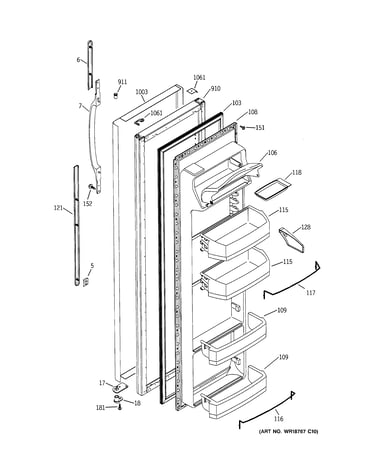

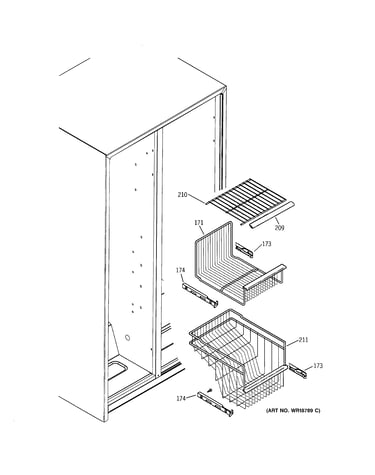

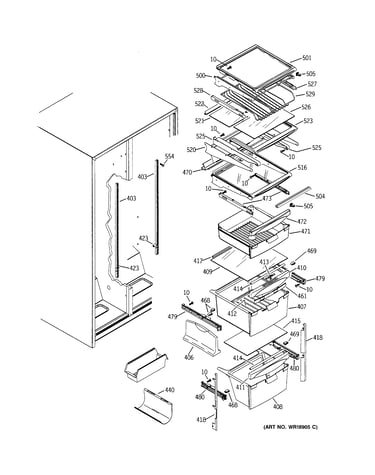

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 293 parts  |

Refrigerator Temperature Sensor WR50X10027
Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$19.89
9% OFF Phone Price : $21.89
In Stock
Dryer Filter WR86X0096
#740

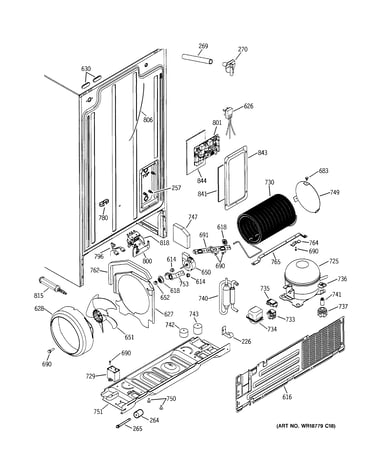

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18
6% OFF Phone Price : $84.18
In Stock
Refrigerator Evaporator Motor WR60X10043
#610

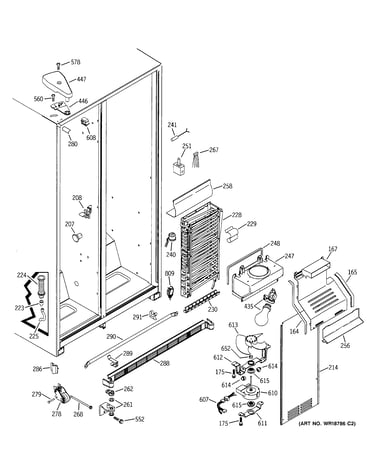

Freezer section diagram

Refrigerator evaporator motor

Part #WR60X10043

Replaced by #WR60X10185

?
Manufacturer substitution
This part replaces WR60X10043. Substitute parts can look different from the original.
BEST SELLER
$90.56
5% OFF Phone Price : $95.56
In Stock
Refrigerator Thermostat WR50X10015
#240

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93
19% OFF Phone Price : $25.93
In Stock
Dr Reces Asm WR17X3093
#62

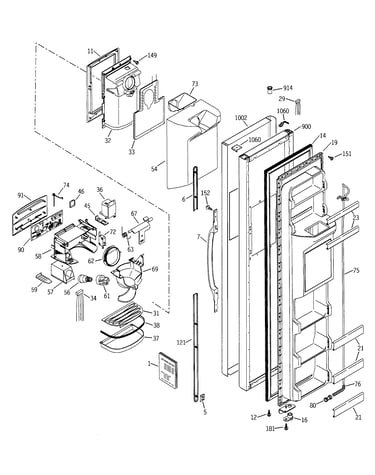

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76
14% OFF Phone Price : $14.76
In Stock
Refrigerator Solenoid WR62X10020
#36

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06
8% OFF Phone Price : $59.06
In Stock
Refrigerator Water Tube Fitting WR02X10471
#80

Freezer door diagram

Refrigerator water tube fitting

Part #WR02X10471

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10471. Substitute parts can look different from the original.
BEST SELLER
$8.20
11% OFF Phone Price : $9.20
In Stock
Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#67

Freezer door diagram

Refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86
13% OFF Phone Price : $7.86
In Stock
Refrigerator Dispenser Lever Spring WR02X10585
#63

Freezer door diagram

Refrigerator dispenser lever spring

Part #WR02X10585

BEST SELLER
$7.91
11% OFF Phone Price : $8.91
In Stock
Motor Dc Con WR60X10053
#650

Sealed system & mother board diagram

Motor dc con

Part #WR60X10053

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10053. Substitute parts can look different from the original.
BEST SELLER
$63.93
7% OFF Phone Price : $68.93
In Stock
